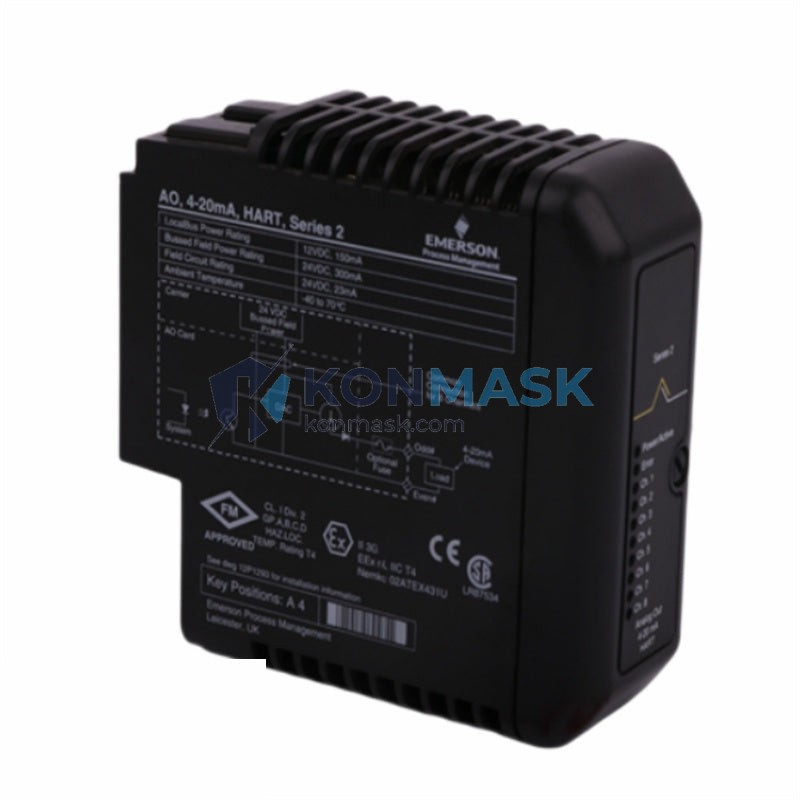

EMERSON KJ3221X1-BA1 – Analog Output HART Module | DeltaV Series
Engineering Background
The KJ3221X1-BA1 (alternate part number 12P2531X082) is a field-proven Analog Output HART Module designed for Emerson’s DeltaV distributed control system platform. HART (Highway Addressable Remote Transducer) communication capability enables simultaneous 4–20 mA analog control and digital diagnostics over the same two-wire loop — a critical requirement in modern process automation where asset health monitoring and predictive maintenance are standard practice.
Product Positioning
This module occupies a core position in DeltaV I/O subsystems, serving as the interface between the controller and field-mounted control valves, variable-speed drives, and positioners. It is the preferred choice for procurement engineers who require a drop-in replacement with full firmware and hardware compatibility, without the lead time or cost of new OEM supply.
Complete Technical Specifications
- Manufacturer: Emerson Electric / Fisher-Rosemount
- Part Number: KJ3221X1-BA1
- Alternate Part Number: 12P2531X082
- Module Type: Analog Output (AO) with HART Communication
- Platform: DeltaV Distributed Control System (DCS)
- Output Signal: 4–20 mA analog, HART protocol overlay
- HART Revision: HART 5 / HART 7 compatible
- Number of Channels: 8 channels (typical for KJ32xx series)
- Output Resolution: 16-bit DAC
- Loop Compliance Voltage: 17.5 V minimum at 20 mA
- Isolation: Channel-to-channel and channel-to-bus isolation
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Power Consumption: Per DeltaV carrier/bus specification
- Mounting: DeltaV I/O carrier (horizontal or vertical)
- Certifications: CE, FM, CSA (refer to OEM datasheet for full approvals list)
- Weight: Approx. 200 g
- RoHS Compliance: Consult OEM documentation for revision-specific status
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline regulation, downstream refinery unit operations
- Chemical & Petrochemical: Reactor feed control, distillation column management, batch process automation
- Power Generation: Boiler feedwater control, turbine governor interfaces, auxiliary system regulation
- Pulp & Paper: Stock flow control, digester pressure management, recovery boiler automation
- Pharmaceuticals: cGMP-compliant process control, bioreactor feed management, clean utility systems
- Water & Wastewater: Pump speed control, chemical dosing, effluent flow regulation
Engineering Advantages
- Dual-Protocol Output: Simultaneous 4–20 mA analog and HART digital communication eliminates the need for separate diagnostic wiring infrastructure.
- Hot-Swap Capability: Designed for in-service replacement within the DeltaV carrier without process shutdown, minimizing maintenance downtime.
- Predictive Diagnostics: HART pass-through to DeltaV AMS Device Manager enables valve signature analysis, loop integrity checks, and instrument health trending.
- Firmware Compatibility: Backward-compatible across DeltaV v10.x through v14.x controller revisions — no re-engineering required for legacy system upgrades.
- High Channel Density: Multi-channel architecture reduces cabinet footprint and wiring complexity versus discrete I/O solutions.
- Proven MTBF: Emerson’s DeltaV I/O modules are rated for continuous industrial service with documented mean-time-between-failure data available from OEM.
System Architecture & Signal Flow
The KJ3221X1-BA1 installs into a DeltaV I/O carrier and communicates upstream to the DeltaV controller via the proprietary I/O bus. Downstream, each channel drives a 4–20 mA current loop to a field device (control valve positioner, VFD, or actuator). The HART modem embedded in the module superimposes a ±0.5 mA FSK digital signal on the analog loop, enabling bidirectional digital communication with HART-capable field instruments without interrupting the analog control signal. AMS Device Manager or any HART-compatible handheld (e.g., Emerson 475/375 Field Communicator) can access device parameters, perform calibration, and retrieve diagnostic data in real time.
Sourcing & Quality Verification
- Stock Origin: Decommissioned from operational DCS systems or certified surplus inventory — not counterfeit, not refurbished without disclosure.
- Pre-Shipment Inspection: Each unit is visually inspected for PCB integrity, connector condition, label legibility, and absence of physical damage.
- Functional Testing: Available on request — bench-level power-on and communication verification prior to dispatch.
- Traceability: OEM part number and revision markings verified against Emerson’s published part number cross-reference.
- Packaging: ESD-safe anti-static bag, foam-lined carton, with desiccant for international shipments.
- Warranty: 90-day Konmask operational warranty covering DOA and latent defects.
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via the product page or email support@konmask.com with quantity, required delivery date, and destination port.
- Step 2 — Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express, FedEx International Priority, or sea freight for bulk orders).
- Step 3 — Order Confirmation: Issue a Purchase Order or pay via the online checkout. Pro-forma invoice available for T/T wire transfer customers.
- Step 4 — Dispatch: Orders confirmed before 14:00 CST ship same day or next business day. Tracking number provided within 24 hours of dispatch.
- Step 5 — After-Sales: Technical support available via email and WhatsApp for installation verification and commissioning queries.
Technical FAQ
Q: Is KJ3221X1-BA1 compatible with DeltaV S-series controllers?
A: Yes. The module is compatible with DeltaV MD, MD Plus, SD, SD Plus, and M-series controllers. Verify carrier compatibility with your specific DeltaV version using Emerson’s I/O compatibility matrix.
Q: Can this module replace KJ3221X1-BA2 or later revisions?
A: Revision interchangeability depends on firmware and carrier revision. Contact our technical team with your DeltaV system version for a definitive compatibility confirmation before ordering.
Q: Does the module support HART 7 multidrop mode?
A: HART multidrop is a field device configuration, not a module configuration. The KJ3221X1-BA1 supports HART pass-through; multidrop capability depends on the connected field instrument and DeltaV AMS configuration.
Q: What is the lead time for bulk orders (10+ units)?
A: Bulk order lead times are 3–7 business days depending on stock availability. Contact us for a consolidated RFQ and volume pricing.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. A Konmask CoC is included with every shipment. OEM CoC is available only if supplied with the original unit from the decommissioning site.
