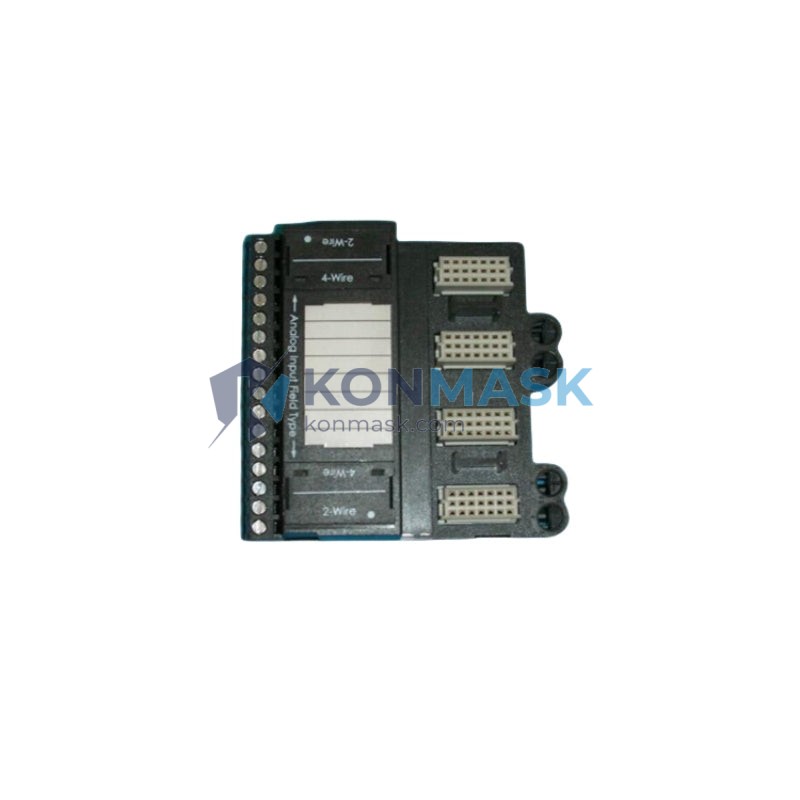

EMERSON KJ3222X1-EA1 – Field Wiring Termination Block | DeltaV DCS Platform
Engineering Background: In a DeltaV distributed control system, the termination block is the critical junction between field instrumentation and the I/O subsystem. Without a properly matched termination block, field signals cannot be reliably connected to DeltaV I/O cards — any mismatch in wiring interface leads to signal errors, loop failures, or complete loss of process visibility. In high-stakes environments such as oil & gas, chemical processing, or power generation, such failures translate directly into unplanned downtime and safety risks.
Product Positioning: The KJ3222X1-EA1 (Emerson part number 12P2533X022) is a purpose-built termination block designed for the Emerson DeltaV Series 2 I/O platform. It provides a structured, reliable field wiring interface that ensures signal integrity between field devices and DeltaV I/O modules. As a genuine Emerson component, it is engineered to meet the exact mechanical and electrical tolerances required by the DeltaV architecture, making it the preferred choice for system integrators and plant maintenance teams worldwide.
Complete Technical Specifications
- Manufacturer: Emerson Electric / Emerson Process Management
- Part Number: KJ3222X1-EA1
- Alternate Part Number: 12P2533X022
- Product Type: Termination Block (Field Wiring Interface)
- Compatible Platform: Emerson DeltaV Distributed Control System (DCS)
- Series: DeltaV Series 2 I/O
- Weight: 200 g (approx.)
- SKU: KJ3222X1-EA1 12P2533X022
- Condition: New / Refurbished (specify on inquiry)
Note: All specifications are based on Emerson published documentation. Konmask does not modify or alter any hardware parameters.
Proven Application Environments
- Oil & Gas: Upstream wellhead control panels, downstream refinery DCS cabinets
- Chemical & Petrochemical: Reactor control loops, safety instrumented systems (SIS) adjacent wiring
- Power Generation: Turbine control, boiler management systems
- Pulp & Paper / Water Treatment: Process automation panels requiring DeltaV I/O expansion
- Pharmaceutical: FDA-regulated batch process control environments
- General Manufacturing: Any facility running Emerson DeltaV as the primary DCS platform
Engineering Advantages
- OEM Compatibility: Designed and manufactured by Emerson — guaranteed fit with DeltaV Series 2 I/O cards without adaptation or modification
- Signal Integrity: Precision terminal layout minimizes wiring errors and ensures clean signal paths for analog and discrete I/O
- Simplified Maintenance: Modular termination design allows field wiring to be disconnected from the I/O card without disturbing the process loop
- Reduced Commissioning Time: Pre-labeled terminal positions align with DeltaV engineering documentation, accelerating loop checkout
- Long Service Life: Industrial-grade materials rated for continuous operation in control room and marshalling cabinet environments
- Dual Part Number Traceability: Both KJ3222X1-EA1 and 12P2533X022 are cross-referenced for procurement and MRO database compatibility
System Architecture & Signal Flow
Within the DeltaV architecture, the KJ3222X1-EA1 termination block sits at the marshalling layer — the interface point between field cable terminations and the DeltaV I/O subsystem. The signal flow is as follows:
- Field Device → Field Cable → KJ3222X1-EA1 Termination Block → I/O Card Connector → DeltaV I/O Module → DeltaV Controller
This architecture ensures that field wiring can be pre-installed and tested independently of the I/O cards, supporting phased commissioning and hot-swap maintenance strategies. The termination block acts as the mechanical and electrical anchor point, maintaining consistent contact resistance and terminal torque specifications across the system lifecycle.
Sourcing & Quality Verification
At Konmask.com, every Emerson DeltaV component undergoes a structured verification process before dispatch:
- Part Number Verification: Physical label cross-check against both KJ3222X1-EA1 and 12P2533X022 references
- Visual Inspection: Terminal block housing, connector pins, and mounting hardware inspected for damage or wear
- Functional Check: Where applicable, continuity and contact resistance testing performed
- Traceability Documentation: Certificate of conformance and packing list provided with each shipment
- Secure Packaging: Anti-static and moisture-resistant packaging for international freight
Procurement Process
- Step 1 — Submit Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline
- Step 2 — Receive Quotation: Our technical team will confirm availability, lead time, and pricing within 24 business hours
- Step 3 — Order Confirmation: Approve the proforma invoice and confirm shipping details
- Step 4 — Dispatch & Tracking: Parts are shipped with full tracking; export documentation provided for international orders
- Step 5 — After-Sales Support: Technical assistance available post-delivery for installation and integration queries
📧 support@konmask.com | 📞 +0086 19859288691
Technical FAQ
Q1: Is KJ3222X1-EA1 the same as 12P2533X022?
A: Yes. KJ3222X1-EA1 is the Emerson engineering part number, while 12P2533X022 is the alternate/procurement part number. Both refer to the identical termination block assembly.
Q2: Which DeltaV I/O cards is this termination block compatible with?
A: The KJ3222X1-EA1 is designed for use with specific DeltaV Series 2 I/O modules. Please provide your I/O card model number when submitting your inquiry so our team can confirm compatibility.
Q3: Can this termination block be used in a SIL-rated safety loop?
A: Emerson DeltaV SIS components have specific safety ratings. Please consult the Emerson DeltaV SIS documentation and confirm with our technical team before use in safety-critical applications.
Q4: Do you supply new or refurbished units?
A: Konmask supplies both new and professionally refurbished units depending on availability. Condition is clearly stated in the quotation. All units pass our quality verification process regardless of condition.
Q5: What is the typical lead time for international orders?
A: In-stock items typically ship within 3–5 business days. Lead time for sourced items is confirmed at quotation stage. Express shipping options are available on request.
Q6: Can you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of conformance as standard. Additional documentation (e.g., country of origin certificate) is available on request.
