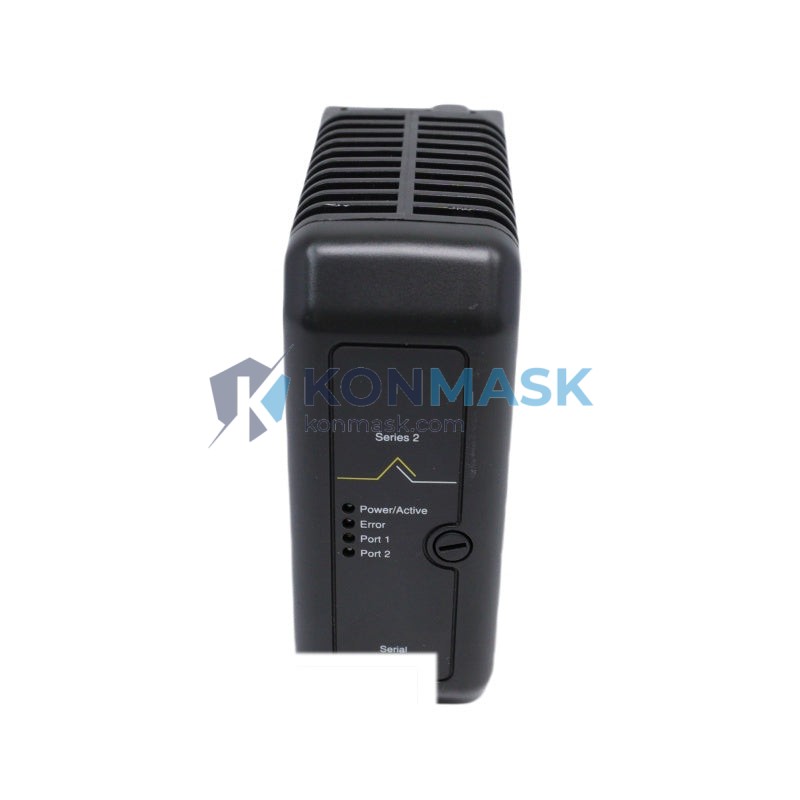

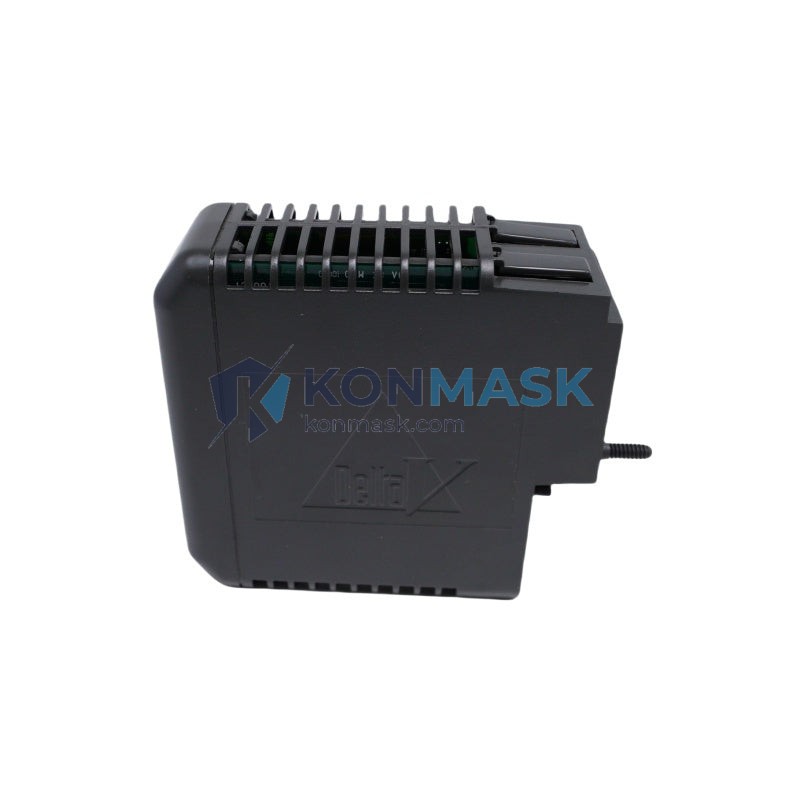

Emerson KJ3243X1-BB2 Profibus DP Interface Card | Replacement, Equivalent & Selection Guide
The Emerson KJ3243X1-BB2 is a Profibus DP Interface Card designed for use in Emerson DeltaV Distributed Control Systems (DCS). It enables seamless communication between DeltaV controllers and Profibus DP field devices, making it a critical component in process automation environments. This page provides full technical specifications, compatible replacements, selection guidance, and sourcing information.
Technical Specifications
- Part Number: KJ3243X1-BB2
- Manufacturer: Emerson Electric / Fisher-Rosemount
- Series: DeltaV DCS
- Function: Profibus DP Interface Card
- Communication Protocol: Profibus DP (EN 50170 / IEC 61158)
- Bus Speed: Up to 12 Mbps
- Node Support: Up to 125 slave devices per segment
- Form Factor: DeltaV I/O Card Module
- Power Supply: Supplied via DeltaV carrier/backplane
- Operating Temperature: 0°C to 60°C
- Certifications: CE, UL, FM (refer to datasheet for full list)
- Weight: Approx. 200 g
- Country of Origin: USA
Compatible Replacement & Equivalent Models
If the KJ3243X1-BB2 is unavailable or discontinued, the following models may serve as functional replacements or equivalents. Always verify compatibility with your DeltaV system version before substitution.
- KJ3243X1-BA1 – Earlier revision of the same Profibus DP card; functionally equivalent in most DeltaV configurations
- KJ3243X1-BC1 – Newer revision with enhanced diagnostics; drop-in replacement in DeltaV v11+
- Siemens CP 342-5 – Third-party Profibus DP master for S7-300; requires gateway adapter for DeltaV integration
- Hilscher CIFX 50-DP – Universal Profibus DP interface card; requires custom driver configuration
- HMS Anybus X-gateway – Protocol converter option for legacy system migration
Note: Third-party replacements may require additional engineering. Contact Konmask for compatibility assessment.
Why Choose the Original Model
- ✅ Native DeltaV Integration – Plug-and-play with DeltaV v7.3 through v14+; no custom drivers required
- ✅ Emerson Factory Firmware – Guaranteed firmware compatibility and OEM support lifecycle
- ✅ Proven Reliability – Widely deployed in oil & gas, chemical, and power generation industries
- ✅ Full Diagnostics – Supports DeltaV AMS Device Manager for predictive maintenance
- ✅ Regulatory Compliance – Meets IEC 61158, EN 50170, and relevant safety standards
Typical Applications
- Oil & Gas upstream/downstream process control
- Chemical and petrochemical plant automation
- Power generation and utilities
- Pharmaceutical batch processing (FDA 21 CFR Part 11 environments)
- Water and wastewater treatment facilities
- Pulp and paper manufacturing
System Compatibility
- DeltaV Versions: v7.3, v8.x, v9.x, v10.x, v11.x, v12.x, v13.x, v14.x (verify with Emerson release notes for v15+)
- Compatible Controllers: DeltaV MD, MD Plus, MD Controller, SD Controller series
- Carrier Compatibility: 8-slot and 12-slot DeltaV I/O carriers
- Profibus DP Slave Devices: Compatible with any EN 50170-compliant Profibus DP slave (Siemens ET200, ABB, Yokogawa, Endress+Hauser, etc.)
Selection Guide
Use the table below to select the correct Profibus DP interface card for your DeltaV system:
| Model | Revision | DeltaV Version | Max Nodes | Recommended Use |
|---|---|---|---|---|
| KJ3243X1-BA1 | Rev A | v7.3 – v10.x | 125 | Legacy systems |
| KJ3243X1-BB2 | Rev B | v8.x – v14.x | 125 | Current standard (recommended) |
| KJ3243X1-BC1 | Rev C | v11.x – v14.x+ | 125 | New installations with enhanced diagnostics |
If your DeltaV system is v11 or above and you require enhanced diagnostic features, consider upgrading to KJ3243X1-BC1. For legacy v7.3–v10.x systems, KJ3243X1-BA1 or BB2 are both suitable.
Quality Assurance & Sourcing
- 🔍 Authenticity Verified – All units sourced from authorized distributors or directly from Emerson-certified channels
- 📦 Condition Options – New, refurbished (tested), and surplus stock available; condition clearly stated on each listing
- 🛡️ Warranty – 12-month warranty on new units; 90-day warranty on tested refurbished units
- 🔬 Pre-shipment Testing – Functional testing performed on all refurbished modules before dispatch
- 📋 Documentation – Datasheet, wiring diagram, and firmware version available upon request
How to Order
- Confirm your DeltaV system version and carrier slot availability
- Select the correct revision (BA1 / BB2 / BC1) using the Selection Guide above
- Add to cart or contact us directly for bulk/project pricing
- Provide your PO number, shipping address, and any special requirements
- Receive order confirmation and estimated lead time within 1 business day
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Is KJ3243X1-BB2 compatible with DeltaV v14?
A: Yes, the BB2 revision is compatible with DeltaV v8.x through v14.x. For v15+, please verify with Emerson release notes or contact us.
Q: Can I replace KJ3243X1-BB2 with KJ3243X1-BC1 without reconfiguration?
A: In most cases yes, as BC1 is a drop-in replacement for BB2 on DeltaV v11+. However, a DeltaV database download is recommended after hardware swap.
Q: Do you supply new or refurbished units?
A: Both options are available. New units come with full OEM packaging; refurbished units are fully tested and include a 90-day warranty.
Q: What is the lead time?
A: In-stock items ship within 1–3 business days. Out-of-stock items typically have a 2–4 week lead time. Contact us for current availability.
Q: Can KJ3243X1-BB2 work with non-Emerson Profibus DP slaves?
A: Yes. The card supports any EN 50170 / IEC 61158-compliant Profibus DP slave device, regardless of manufacturer.
