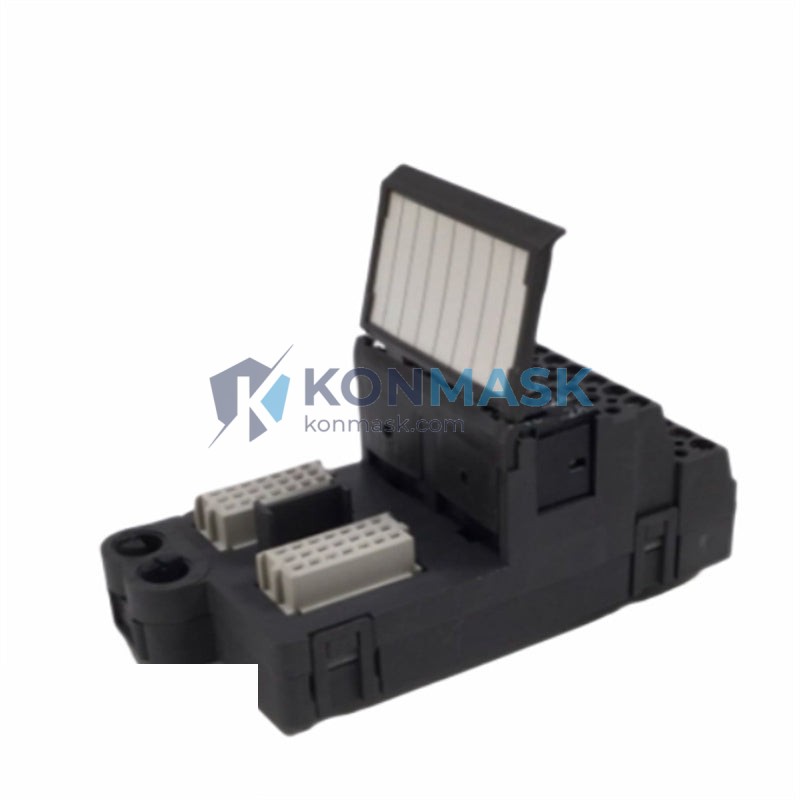

EMERSON KJ4001X1-CB1 – Field Termination Terminal Block | DeltaV Series Platform
Engineering Background
The KJ4001X1-CB1 is a field termination terminal block engineered by Emerson Electric for use within the DeltaV distributed control system (DCS) architecture. Designed to interface field wiring with DeltaV I/O subsystem cards, this component serves as the critical junction between process instrumentation and the control network. Its robust construction and standardized form factor make it a cornerstone of reliable process automation installations across energy, chemical, pharmaceutical, and utilities sectors.
Product Positioning
Procurement engineers specifying replacement or expansion components for existing DeltaV installations will find the KJ4001X1-CB1 to be a direct OEM-equivalent solution. Konmask.com sources this module through verified supply channels, ensuring authenticity and traceability for critical control system environments where counterfeit risk is unacceptable.
Complete Technical Specifications
| Part Number | KJ4001X1-CB1 |
| Manufacturer | Emerson Electric / Fisher-Rosemount |
| Product Family | DeltaV DCS Series |
| Component Type | Field Termination Terminal Block |
| Compatible Platform | DeltaV S-Series, M-Series I/O Subsystem |
| Mounting Style | DIN Rail / Panel Mount |
| Terminal Type | Screw-clamp field wiring terminals |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Weight | Approx. 200 g |
| Compliance | CE, UL Listed (per DeltaV system certification) |
| Condition Available | New OEM / Refurbished / Tested Surplus |
Proven Application Environments
- Oil & Gas: Upstream wellhead control panels, downstream refinery DCS expansions, and FPSO automation systems requiring certified I/O termination.
- Chemical & Petrochemical: Continuous process plants with high channel-count I/O marshalling cabinets where standardized termination blocks reduce wiring errors.
- Pharmaceutical & Life Sciences: GMP-compliant manufacturing lines where validated DeltaV configurations demand OEM-identical replacement parts to preserve system qualification status.
- Power Generation & Utilities: Turbine control and BOP (Balance of Plant) systems integrated with DeltaV for coordinated plant-wide automation.
- Pulp, Paper & Mining: Harsh-environment installations where robust terminal block construction ensures long-term connection integrity under vibration and thermal cycling.
Engineering Advantages
- OEM Form-Fit-Function: Direct plug-in replacement for existing DeltaV I/O card termination assemblies — no re-engineering or wiring modification required.
- Signal Integrity: Screw-clamp terminals maintain low-resistance, vibration-resistant connections critical for analog and discrete I/O accuracy.
- Reduced Commissioning Risk: Standardized labeling and terminal layout align with DeltaV engineering drawings, minimizing field wiring errors during installation or hot-swap maintenance.
- System Qualification Preservation: Using OEM-equivalent parts avoids triggering re-validation requirements in regulated industries (FDA 21 CFR Part 11, GAMP 5).
- Long Service Life: Industrial-grade materials rated for continuous duty in control room and marshalling cabinet environments.
System Architecture & Signal Flow
Within the DeltaV architecture, the KJ4001X1-CB1 terminal block mounts in the I/O subsystem carrier and provides the physical interface between field instrument cables and the DeltaV I/O card connector. Signal flow proceeds as follows:
- Field Instrument → multi-pair cable routed to marshalling cabinet
- KJ4001X1-CB1 Terminal Block → screw-clamp termination of individual field wires, with clearly labeled terminal positions
- DeltaV I/O Card → card connector mates directly with terminal block, completing the signal path to the DeltaV controller
- DeltaV Controller / Network → process variable transmitted to operator workstation and historian
This architecture supports hot-swap maintenance: the I/O card can be removed and replaced without disturbing field wiring, as all field connections remain secured at the terminal block.
Sourcing & Quality Verification
- Supply Chain: Konmask.com procures EMERSON DeltaV components through authorized distributors and verified surplus channels with documented chain of custody.
- Inspection Protocol: Each unit undergoes visual inspection, label verification, and functional continuity testing prior to shipment.
- Authenticity Assurance: OEM part markings, date codes, and serial numbers are verified against manufacturer records where applicable.
- Documentation: Test reports and material certifications available upon request for regulated-industry procurement requirements.
- Warranty: 12-month warranty against defects in materials and workmanship; expedited replacement for critical spares.
Procurement Process
- Confirm Part Number: Verify KJ4001X1-CB1 against your DeltaV system BOM or engineering drawing revision.
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Submit PO: Standard purchase order accepted; Net 30 terms available for qualified accounts.
- Shipping: DHL / FedEx international express; EXW Shenzhen or CIF destination port options available.
- Customs & Documentation: Commercial invoice, packing list, and COO certificate provided; HS Code 8538.90 applicable.
Technical FAQ
Q: Is KJ4001X1-CB1 compatible with both S-Series and M-Series DeltaV I/O cards?
A: Compatibility depends on the specific I/O card type. Please provide your I/O card part number for cross-reference confirmation before ordering.
Q: Can this terminal block be used in SIL-rated safety instrumented systems?
A: The KJ4001X1-CB1 is a standard DeltaV component. For SIS applications, confirm SIL certification requirements with your functional safety engineer and Emerson’s SIS documentation.
Q: What is the lead time for in-stock units?
A: In-stock units typically ship within 1–3 business days. Contact us for current inventory status.
Q: Do you provide ATEX or IECEx certified variants?
A: Intrinsically safe or explosion-proof variants require specific DeltaV I/O card and barrier combinations. Contact our engineering team for hazardous area configuration guidance.
Q: Can I return a unit if it does not fit my application?
A: Yes, unused units in original condition may be returned within 30 days. Custom-sourced or expedited orders may be subject to restocking fees.
