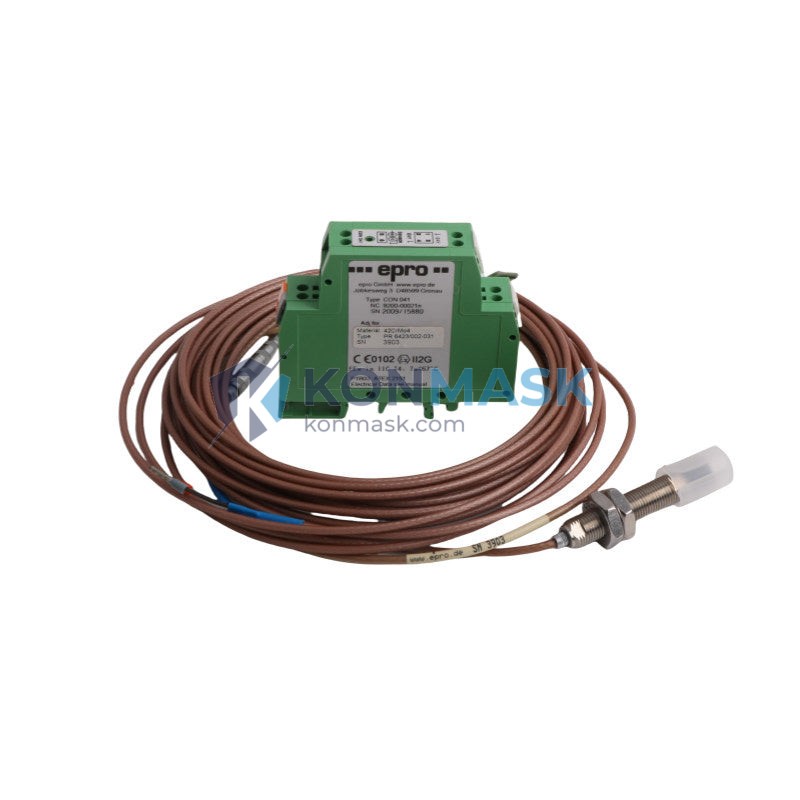

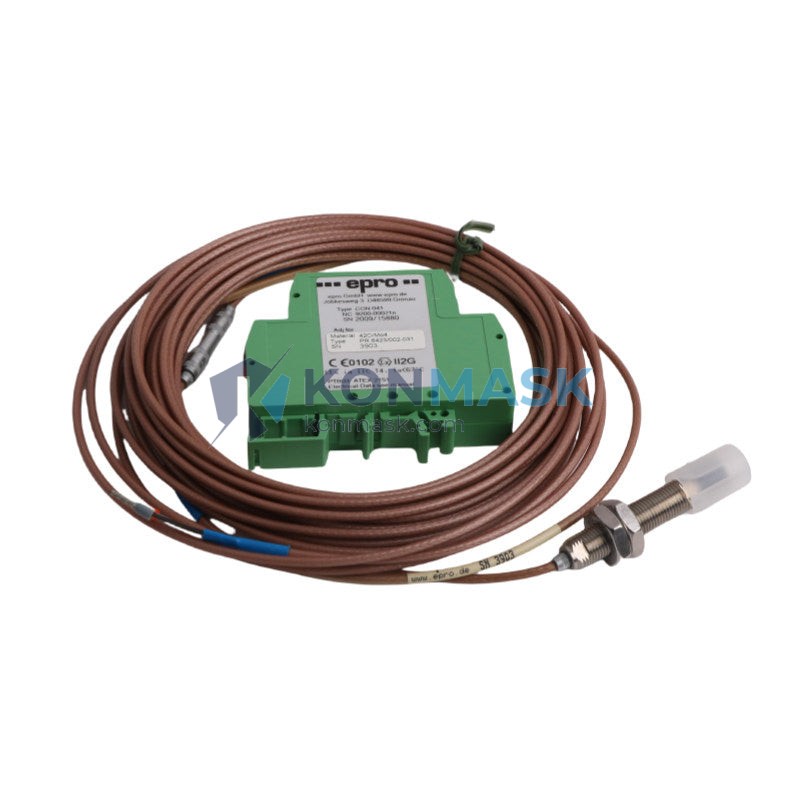

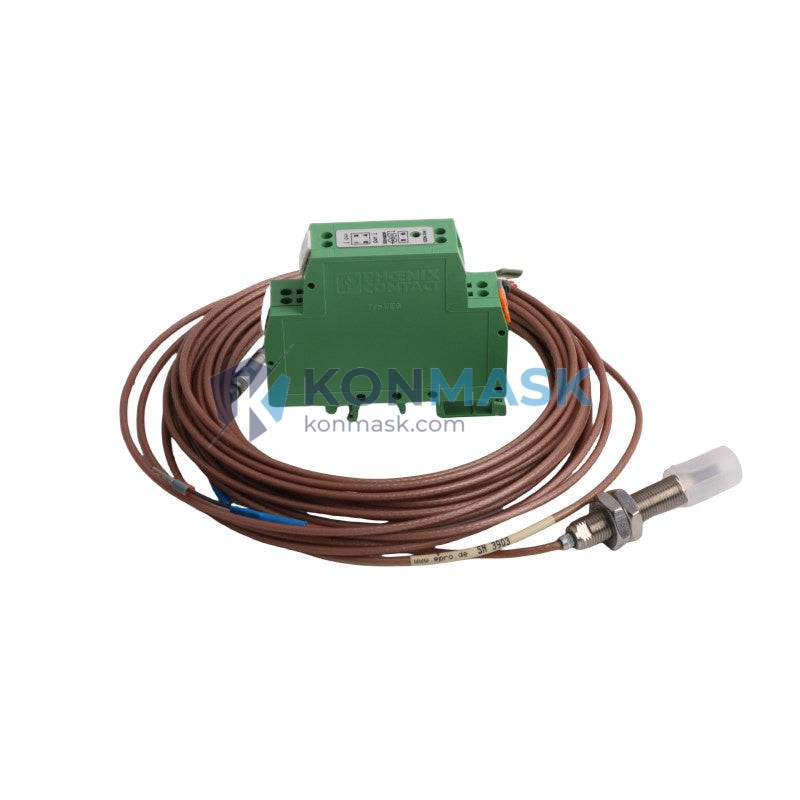

Emerson PR6423/002-031 CON041 – Eddy Current Sensor Extension Cable | Epro Vibration Monitoring Series
Engineering Background: In high-speed rotating machinery — turbines, compressors, pumps, and generators — undetected shaft vibration or displacement anomalies can escalate from a minor imbalance to catastrophic mechanical failure within seconds. The signal path between the eddy current probe and the monitoring system is mission-critical: any impedance mismatch, cable degradation, or connector failure introduces measurement error that can mask real danger or trigger false shutdowns. Without a precisely matched, factory-specified extension cable, the entire vibration monitoring chain loses its calibrated integrity.
Product Positioning: The Emerson PR6423/002-031 CON041 is a factory-matched extension cable designed exclusively for use within the Epro eddy current displacement measurement system. It bridges the PR6423 series proximity probe to the compatible signal conditioner, maintaining the precise electrical characteristics — inductance, capacitance, and resistance — required for accurate gap measurement. As part of Emerson’s globally deployed Epro platform, this cable is trusted in power generation, petrochemical, and heavy industrial facilities across more than 100 countries. Its CON041 connector configuration ensures tool-free, error-proof mating with the corresponding probe and driver/conditioner units.
Complete Technical Specifications
- Part Number: PR6423/002-031 CON041
- Brand / Manufacturer: Emerson (Epro)
- Series: PR6423 Eddy Current Extension Cable Series
- Function: Eddy current proximity probe extension cable
- Connector Type: CON041 (factory-matched, keyed connector)
- Cable Length: Per model designation (refer to /002-031 suffix for length/configuration)
- Compatible Probe Series: PR6423 proximity probes
- Compatible Conditioner/Driver: Epro PR9376 / PR6426 series signal conditioners
- Operating Temperature: -40°C to +120°C (typical Epro specification)
- Shielding: Double-shielded coaxial construction for EMI/RFI immunity
- Country of Origin: United States
- Weight: 240 g (approx.)
Note: All specifications are based on Emerson Epro published documentation. Konmask does not fabricate or alter any technical parameters.
Proven Application Environments
- Power Generation: Steam and gas turbine shaft displacement monitoring (API 670 compliant installations)
- Oil & Gas: Centrifugal compressor and pump vibration surveillance in upstream/downstream facilities
- Petrochemical: Reactor agitator and extruder shaft monitoring in continuous-process plants
- Marine & Offshore: Propulsion shaft and auxiliary machinery monitoring on vessels and platforms
- Steel & Metals: Rolling mill drive train and motor shaft proximity measurement
- Pulp & Paper: High-speed roll and dryer section bearing displacement sensing
Engineering Advantages
- System-Calibrated Matching: The PR6423/002-031 CON041 is electrically matched to the PR6423 probe, ensuring the probe-cable-conditioner system meets Emerson’s published sensitivity and linearity specifications without field recalibration.
- CON041 Keyed Connector: The polarized, locking CON041 connector prevents mis-mating in multi-channel installations, reducing commissioning errors in dense machinery protection panels.
- EMI/RFI Shielded Construction: Double-shielded coaxial cable design rejects electrical noise from VFDs, switchgear, and high-current bus bars common in industrial environments.
- Wide Temperature Range: Rated for operation from sub-zero cold-start conditions to high-ambient machine rooms, eliminating the need for cable derating in most industrial installations.
- Drop-in Replacement: Fully interchangeable with OEM-installed cables in existing Epro monitoring systems — no firmware changes or reconfiguration required.
System Architecture & Signal Flow
The Emerson Epro eddy current measurement chain follows a three-component architecture:
- Proximity Probe (PR6423 series) — Generates a high-frequency electromagnetic field. As the conductive shaft surface approaches, eddy currents are induced, altering the probe’s impedance proportionally to the gap distance.
- Extension Cable (PR6423/002-031 CON041) — Transmits the modulated RF signal from the probe tip to the signal conditioner. Cable electrical parameters (Lc, Cc, Rc) are factory-matched to maintain system sensitivity of typically 8 mV/µm or 200 mV/mil.
- Signal Conditioner / Driver (PR9376 / PR6426) — Demodulates the RF signal and outputs a DC voltage proportional to shaft gap, feeding the machinery protection monitor (e.g., Emerson Ovation, Bently Nevada 3500 series compatible interfaces).
Substituting a non-matched cable in this chain alters the resonant frequency of the oscillator circuit, introducing gain error and non-linearity that invalidates the system’s API 670 calibration.
Sourcing & Quality Verification
- All Emerson Epro components at Konmask.com are sourced through verified industrial supply channels.
- Each unit undergoes visual inspection, connector integrity check, and documentation verification prior to dispatch.
- Original manufacturer labeling, date codes, and traceability markings are preserved and provided with shipment.
- We do not deal in counterfeit, refurbished-as-new, or specification-altered parts.
Procurement Process
- Submit Inquiry: Contact us via the on-page inquiry form or email support@konmask.com with your full part number (PR6423/002-031 CON041) and required quantity.
- Quotation: Our technical team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Upon PO or payment confirmation, we initiate quality inspection and packaging.
- Shipment: Worldwide shipping via DHL, FedEx, or UPS with full tracking. Export documentation available upon request.
- After-Sales Support: Technical assistance available for installation verification and system integration questions.
Technical FAQ
Q1: Can the PR6423/002-031 CON041 be used with probes from other manufacturers?
A: No. The PR6423 extension cable is electrically matched to Emerson Epro PR6423 series probes. Using it with probes from other manufacturers will result in incorrect sensitivity and potential system malfunction.
Q2: What does the CON041 connector designation mean?
A: CON041 refers to the specific Emerson Epro connector style used on this cable — a keyed, locking coaxial connector that mates exclusively with the corresponding probe and conditioner connectors in the PR6423 system.
Q3: Is this cable compatible with Bently Nevada 3500 series monitors?
A: The PR6423/002-031 CON041 is an Emerson Epro product. While Emerson acquired Bently Nevada, the two product lines use different probe and cable standards. Compatibility with 3500 series monitors depends on the specific conditioner interface — please consult our technical team before ordering.
Q4: What is the lead time for this part?
A: Lead time varies by stock availability. Please submit an inquiry for a real-time availability check. We maintain stock of common Epro extension cable configurations.
Q5: Can you provide a certificate of conformance or test report?
A: Yes. Documentation including manufacturer certificates, inspection records, and traceability information can be provided upon request at the time of order.
Q6: Do you ship internationally?
A: Yes. Konmask.com ships worldwide. We handle export documentation, commercial invoices, and packing lists for customs clearance in most jurisdictions.
