EMERSON PR6423/00E-030 CON021 Eddy Current Sensor with Proximitor Module | Replacement, Equivalent & Selection Guide

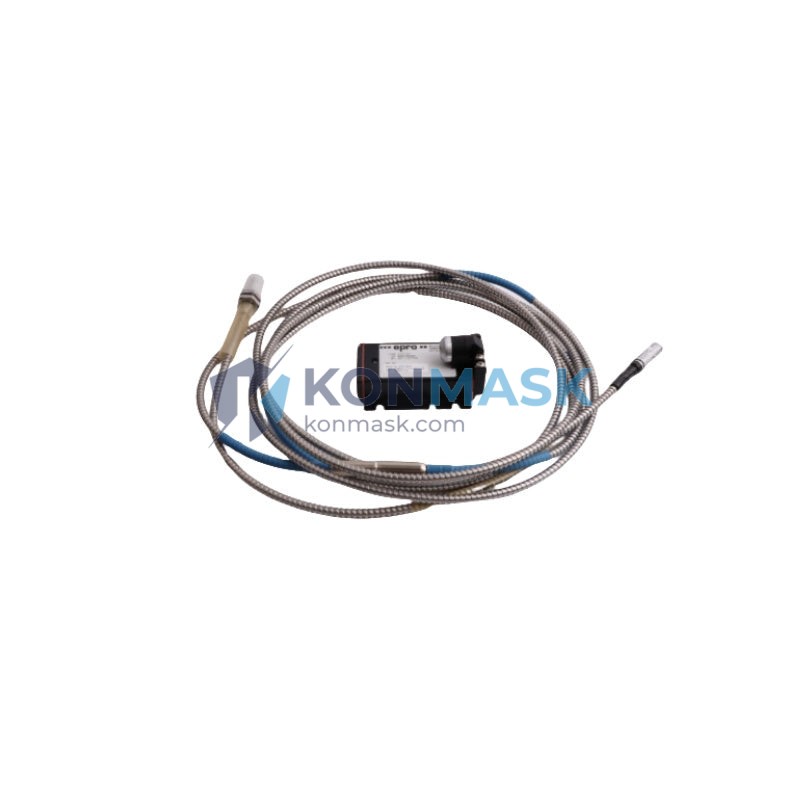

The EMERSON PR6423/00E-030 CON021 is a high-precision eddy current proximity sensor paired with a CON021 Proximitor module, engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed under the Bently Nevada product line, this sensor system delivers reliable non-contact measurement in demanding industrial environments.
Technical Specifications
- Manufacturer: EMERSON (Bently Nevada)
- Model / SKU: PR6423/00E-030 CON021
- Series: PR6423 Eddy Current Sensor Series
- Sensor Type: Eddy Current (Non-contact Proximity)
- Proximitor Module: CON021
- Cable Length: 030 (approx. 3.0 m extension cable)
- Measurement Range: 0–2 mm (typical, target-dependent)
- Output Signal: -24 VDC bias voltage, linear analog output
- Supply Voltage: -24 VDC (via Proximitor)
- Operating Temperature: -35°C to +120°C (sensor tip)
- Ingress Protection: IP67
- Weight: Approx. 1,600 g (complete assembly)
- Compliance: CE, ATEX (consult datasheet for zone ratings)
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the PR6423/00E-030 CON021. Always verify electrical and mechanical compatibility before substitution:
- EMERSON / Bently Nevada 330130-040-00-00 — 3300 XL 8mm Proximity Transducer System (direct Bently Nevada alternative)
- EMERSON PR6423/00E-010 CON021 — Same sensor, 1.0 m cable variant
- EMERSON PR6423/00E-050 CON021 — Same sensor, 5.0 m cable variant
- EPRO PR6423/00E-030 CON021 — EPRO-branded equivalent (EMERSON subsidiary, functionally identical)
- EPRO PR6424/000-030 CON021 — 8 mm tip diameter variant for tighter clearance applications
- Metrix ST5484E — Third-party eddy current sensor, requires signal conditioning verification
Note: Konmask.com recommends using original EMERSON / Bently Nevada parts for safety-critical machinery. Contact us for cross-reference validation.
Why Choose the Original Model
- Factory Calibration: Each PR6423/00E-030 CON021 set is factory-matched and calibrated as a system — sensor, extension cable, and Proximitor — ensuring measurement accuracy within ±0.5%.
- OEM Warranty Compliance: Using original parts preserves OEM machinery warranties and meets API 670 standard requirements for machinery protection systems.
- Long-term Availability: EMERSON maintains long product lifecycle support for the PR6423 series, reducing obsolescence risk.
- Proven Reliability: Deployed globally in power generation, oil & gas, and petrochemical plants with millions of operating hours.
Typical Applications
- Shaft radial vibration monitoring on steam turbines, gas turbines, and compressors
- Axial position (thrust) measurement on rotating shafts
- Differential expansion monitoring in turbine systems
- Speed and phase reference measurement (keyphasor)
- Integration with Bently Nevada 3500 / 3300 Series machinery protection racks
- DCS and SCADA integration via 4–20 mA or direct voltage output
System Compatibility
- Bently Nevada 3500 Series — 3500/42M, 3500/44M, 3500/46M proximity monitor modules
- Bently Nevada 3300 Series — 3300 XL proximity transducer systems
- EMERSON Ovation DCS — via standard analog I/O modules
- Third-party DCS / PLC — compatible with any system accepting -24 VDC bias, 0–10 V analog output
- CON021 Proximitor — the matched signal conditioner for this sensor; do not substitute with CON011 or CON031 without recalibration
Selection Guide
Use the table below to select the correct PR6423 variant for your application:
- Cable Length Suffix: -010 = 1 m | -030 = 3 m | -050 = 5 m | -090 = 9 m
- Tip Diameter: PR6423 = 5 mm | PR6424 = 8 mm (for larger air-gap requirements)
- Proximitor: CON021 (standard) | CON011 (legacy, limited availability)
- Target Material: Optimized for AISI 4140 steel; consult scale factor correction for other alloys
- Hazardous Area: Confirm ATEX / IECEx zone rating matches your installation zone
Not sure which model fits your system? Contact our selection team with your machinery OEM and rack model number.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each unit inspected and function-tested prior to shipment
- Original packaging, labels, and documentation preserved where available
- Traceability records available upon request for critical applications
- Export compliance: ECCN classification reviewed for international orders
How to Order
- Part Number: PR6423/00E-030 CON021
- Minimum Order: 1 unit
- Lead Time: In-stock units ship within 2 business days; contact us for bulk or urgent requirements
- Payment: T/T, PayPal, credit card accepted
- Shipping: DHL / FedEx / UPS worldwide; customs documentation provided
- RFQ: support@konmask.com | +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a PR6423/00E-030 sensor with a CON011 Proximitor?
A: Not recommended without recalibration. The CON021 and CON011 have different scale factors. Mixing them will result in measurement errors.
Q: Is the EPRO PR6423/00E-030 CON021 the same as the EMERSON version?
A: Yes. EPRO is an EMERSON subsidiary; the hardware is functionally identical and interchangeable.
Q: What is the difference between PR6423 and PR6424?
A: The PR6424 has an 8 mm tip diameter versus 5 mm for the PR6423, providing a larger linear range suitable for applications with greater shaft runout or larger air gaps.
Q: Can this sensor work with a Siemens or ABB DCS directly?
A: Yes, via the CON021 Proximitor analog output (voltage or 4–20 mA with appropriate converter). Signal conditioning must be verified against your DCS input card specifications.
Q: Do you provide calibration certificates?
A: Factory calibration documentation is included where available. Third-party calibration can be arranged upon request.
