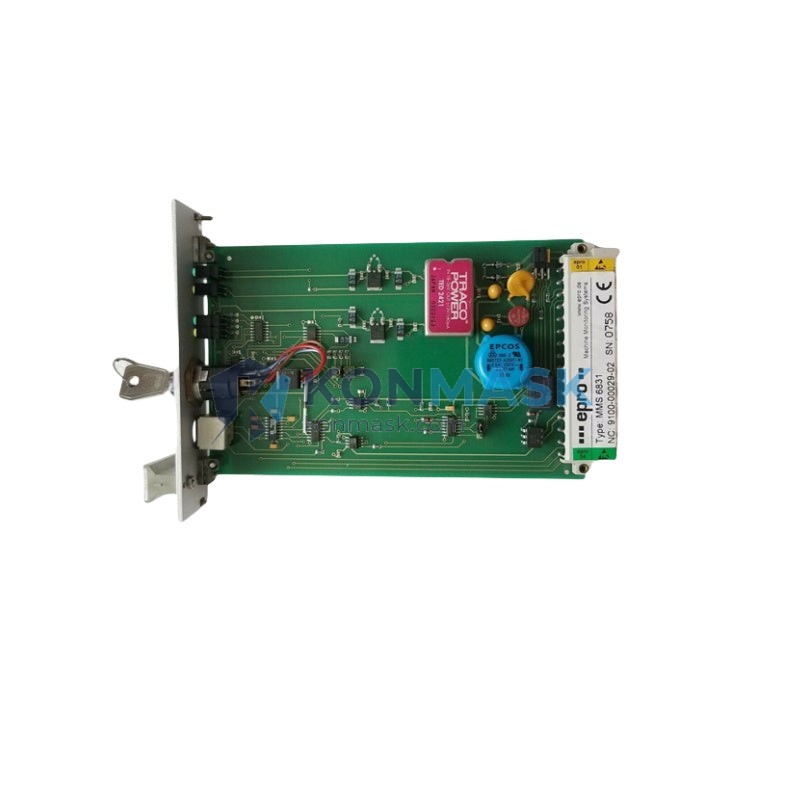

EPRO MMS6831 Interface Card — Dual-Channel Vibration Signal Conditioner | Bently Nevada 3500 Compatible Platform
Engineering Background
The MMS6831 is a precision interface card developed by EPRO GmbH (now part of Baker Hughes / Bently Nevada ecosystem) for integration into the MMS 6000 modular monitoring platform. It serves as the critical signal-conditioning bridge between field-mounted proximity probes or velocity transducers and the central processing/display modules of rotating machinery protection systems.
Product Positioning
Designed for procurement engineers specifying continuous vibration monitoring solutions in turbomachinery, compressor trains, and critical rotating equipment, the MMS6831 delivers API 670-aligned measurement integrity in a compact DIN-rail-compatible form factor. It is a direct functional equivalent and retrofit candidate for Bently Nevada 3500/25 and 3500/40 monitor cards in mixed-fleet installations.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMS6831 |
| Manufacturer | EPRO GmbH (Baker Hughes Group) |
| Function | Dual-channel vibration / displacement interface card |
| Input Signal Type | Eddy-current proximity probe (8 mm / 11 mm), velocity transducer |
| Input Channels | 2 (independent, galvanically isolated) |
| Measurement Range | 0–2000 µm pp (displacement); configurable per channel |
| Frequency Response | 0.5 Hz – 10 kHz (–3 dB) |
| Output Signal | 4–20 mA analog; RS-485 digital (Modbus RTU) |
| Supply Voltage | 24 V DC (18–32 V DC operating range) |
| Power Consumption | ≤ 4 W per card |
| Relay Outputs | 2 × SPDT (Alert / Danger configurable) |
| Mounting | DIN rail EN 60715 / MMS 6000 backplane slot |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Protection Class | IP20 (card); IP54 (enclosure dependent) |
| EMC Compliance | EN 61000-4 series; CE marked |
| Weight | 280 g |
| Dimensions (W×H×D) | Approx. 25 × 130 × 110 mm (single-slot module) |
| MTBF | > 100,000 hours (per MIL-HDBK-217F) |
| Certifications | CE, cULus (pending verification per lot) |
Proven Application Environments
- Gas turbines & steam turbines — shaft radial vibration and axial position monitoring per API 670
- Centrifugal & reciprocating compressors — bearing housing vibration, rod drop, and crosshead monitoring
- Pumps & fans — continuous bearing vibration trending in BOP and utility systems
- Gearboxes — high-frequency vibration acquisition for gear mesh analysis
- Retrofit / upgrade projects — drop-in replacement for legacy Bently Nevada 3500/25 monitor slots in mixed-fleet DCS environments
- Offshore & marine platforms — vibration monitoring in salt-air, high-humidity enclosures
Engineering Advantages
- Galvanic isolation per channel — eliminates ground-loop interference in multi-machine installations with shared DCS ground references
- Dual-protocol output — simultaneous 4–20 mA (for DCS/PLC) and Modbus RTU (for SCADA/historian) reduces wiring cost and eliminates signal splitters
- Hot-swap capable — card replacement without system shutdown minimizes maintenance downtime on critical assets
- Configurable alarm thresholds — Alert and Danger setpoints adjustable via front-panel DIP switches or software, no re-wiring required
- Wide supply voltage tolerance (18–32 V DC) — compatible with both 24 V nominal and battery-backed UPS supplies common in substation environments
- Compact single-slot form factor — maximizes channel density in space-constrained marshalling cabinets
System Architecture & Signal Flow
Field transducer → MMS6831 input terminal (galvanically isolated) → internal signal conditioning (filtering, scaling, RMS/peak detection) → dual output path:
- Path A: 4–20 mA loop → DCS analog input card (e.g., Siemens S7, ABB 800xA, Honeywell C300)
- Path B: RS-485 Modbus RTU → plant historian or vibration management software (e.g., System 1, OSIsoft PI)
Relay contacts (Alert / Danger) wire directly to machine trip logic or annunciator panels. The MMS6831 slots into the MMS 6000 backplane alongside display modules (MMS6823) and power supply modules (MMS6810) for a fully integrated rack solution.
Sourcing & Quality Verification
- Units sourced from authorized EPRO / Baker Hughes distribution channels and verified OEM surplus stock
- Each card undergoes incoming inspection: visual check, power-on self-test (POST), and output signal verification at 24 V DC
- Serialized traceability maintained — firmware version and hardware revision documented per shipment
- Packaging: anti-static bag + foam-lined carton; humidity indicator card included for long-haul freight
- Certificate of conformance (CoC) available upon request; third-party FAT/SAT support available for critical projects
Procurement Process
- Step 1 — Inquiry: Submit your PO number, required quantity, and delivery timeline to support@konmask.com
- Step 2 — Quotation: Receive formal quotation with lead time, unit price, and shipping options within 1 business day
- Step 3 — Order confirmation: Issue PO; payment via T/T, L/C, or platform escrow
- Step 4 — Inspection & dispatch: Pre-shipment inspection report provided; DHL / FedEx / sea freight options available
- Step 5 — After-sales: 12-month warranty; technical support via email and WhatsApp
Technical FAQ
Q: Is the MMS6831 a direct replacement for the Bently Nevada 3500/25 monitor?
A: Functionally equivalent for most eddy-current probe inputs. Wiring adapters may be required for Bently Nevada Proximitor® connector pinouts. Contact our engineering team for a compatibility matrix.
Q: Can the MMS6831 accept velocity transducer inputs (e.g., Wilcoxon 793)?
A: Yes. The card supports both proximity probe (–24 V bias) and passive velocity transducer inputs via input type configuration.
Q: What is the maximum cable length from probe to card?
A: Up to 9 m for standard EPRO probe/extension cable sets. Longer runs require signal amplifier modules (MMS6820 series).
Q: Is SIL certification available?
A: The MMS6831 is not independently SIL-rated. For SIL 2 machinery protection, pair with a certified safety relay or use the Bently Nevada 3500 SIL-rated variant.
Q: Can I order a single card, or is a minimum quantity required?
A: Single-unit orders accepted. Volume pricing available for 5+ units.
