Robot Programming & Motion Control Solution – FANUC A05B-2256-C100EMH | iRobot Series
Where This Product Is Used

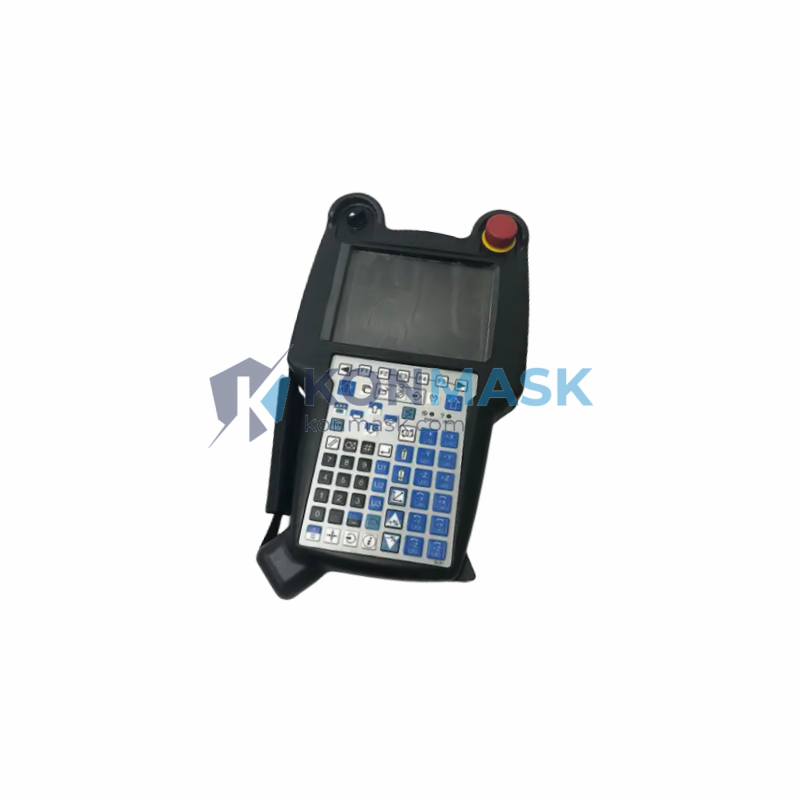

The FANUC A05B-2256-C100EMH Robot Teach Pendant is the primary human-machine interface for FANUC iRobot-series industrial robots. Engineers and integrators rely on this pendant across a wide range of demanding automation environments:
- Automotive Body Welding Lines – Program and fine-tune weld paths on spot and arc welding robots in real time without halting production.
- Automotive Paint Booths – Teach spray trajectories and adjust gun angles for consistent coating thickness on body panels.
- Palletizing & Material Handling – Define pick-and-place sequences for high-speed pallet stacking in food, beverage, and logistics facilities.
- Machine Tending & CNC Loading – Jog the robot arm to precise tool-change positions and store programs for lights-out machining cells.
- Assembly & Screw-Driving Stations – Record multi-point assembly paths and manage I/O signals for collaborative assembly lines.
- Semiconductor & Electronics Manufacturing – Execute micron-level positioning routines in cleanroom-compatible robot cells.
Technical Specifications
| Part Number | A05B-2256-C100EMH |
| Brand | FANUC |
| Series | iRobot / R-30iB / R-30iB Plus Controller |
| Type | Robot Teach Pendant (iPendant Touch) |
| Display | Color LCD Touch Screen |
| Emergency Stop | Integrated E-Stop Button (IEC 60204-1 compliant) |
| Deadman Switch | 3-position enabling device |
| Interface | USB port, proprietary FANUC connector |
| Country of Origin | Japan |
| HS Code | 853710 |
| Condition | New / Refurbished (specify at inquiry) |
Why Engineers Specify This Model
- Touch-Screen Ergonomics – The iPendant Touch interface reduces programming time versus legacy keypad pendants, cutting teach-in cycles by up to 40%.
- Backward Compatibility – Supports R-30iA and R-30iB controller families, protecting existing robot fleet investments during phased upgrades.
- Integrated Safety – The 3-position deadman switch and hardware E-stop meet ISO 10218-1 robot safety requirements out of the box.
- Multilingual UI – Factory-configurable language packs (EN / ZH / JP / DE / FR) simplify global deployment.
- Robust Construction – IP54-rated enclosure withstands coolant mist, weld spatter, and industrial dust in harsh shop-floor environments.
- FANUC ROBOGUIDE Compatible – Programs created offline in ROBOGUIDE simulation software transfer directly to this pendant without conversion.
Complete System Bill of Materials
For a fully operational FANUC robot cell using this teach pendant, engineers typically specify:
- FANUC Robot Arm (e.g., M-10iA, M-20iD, R-2000iC series)
- FANUC R-30iB / R-30iB Plus Controller Cabinet
- A05B-2256-C100EMH Teach Pendant (this item)
- Pendant Cable Assembly (A05B-2255-K001 or equivalent)
- FANUC ROBOGUIDE Software License (offline programming)
- I/O Interface Modules (A03B series) for PLC integration
- Safety PLC / Safety Mat / Light Curtain (per ISO 13849 risk assessment)
Compliance & Industry Standards
- ISO 10218-1 – Robots and robotic devices: Safety requirements for industrial robots
- IEC 60204-1 – Safety of machinery: Electrical equipment of machines
- EN ISO 13849-1 – Safety of machinery: Safety-related parts of control systems
- CE Marking – Compliant for European Union machinery directive deployment
- RoHS Compliant – Restriction of Hazardous Substances directive
Quality Assurance & Sourcing
Konmask.com sources FANUC components exclusively through verified industrial distributors and authorized refurbishment channels. Every unit undergoes:
- Visual inspection for physical damage, connector integrity, and screen condition
- Functional power-on test with FANUC controller handshake verification
- E-stop and deadman switch continuity test per IEC 60204-1
- Firmware version documentation and compatibility check
- Anti-static packaging with humidity indicator card for safe international shipping
How to Source This Part
Lead times and pricing for the FANUC A05B-2256-C100EMH vary by stock availability and order volume. To get a fast, accurate quote:
- Click Add to Cart or use the Request a Quote form on this page.
- Specify your required quantity, preferred condition (new or refurbished), and target delivery date.
- Our engineering sales team responds within 1 business day with pricing, lead time, and shipping options (DHL Express / FedEx International Priority).
- For urgent production-down situations, contact us directly at +0086 19859288691 for same-day response.
Application-Specific FAQ
Q: Is the A05B-2256-C100EMH compatible with older R-30iA controllers?
A: Yes. This pendant supports both R-30iA and R-30iB controller families. Confirm your controller software version (V7.x or V8.x) when ordering to ensure firmware alignment.
Q: Can I use this pendant on multiple robots?
A: The pendant is hot-swappable between robots sharing the same controller generation. A single pendant can be used to program multiple robots sequentially in a cell.
Q: What is the cable length, and can it be extended?
A: Standard cable length is 10 m. FANUC offers extension cables up to 20 m total. Exceeding this length may introduce signal degradation and is not recommended.
Q: Do you provide a warranty?
A: All units sold by Konmask.com carry a 90-day functional warranty. Extended warranty options are available upon request.
Q: Can you supply the matching controller cabinet?
A: Yes. We stock FANUC R-30iB and R-30iB Plus controller cabinets. Contact us with your robot model for a matched system quote.
