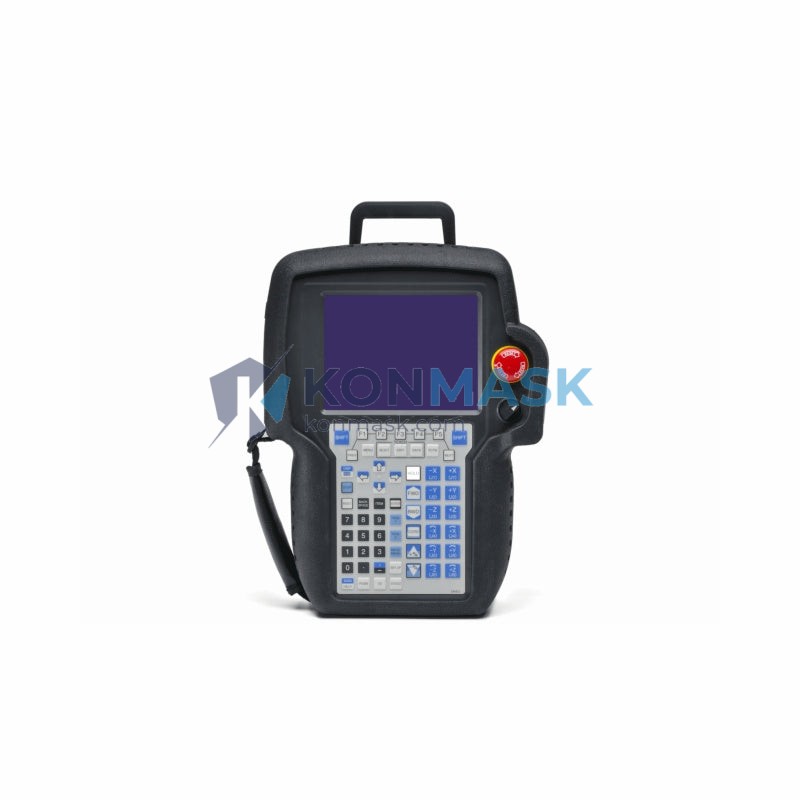

FANUC A05B-2400-C060 Arc Welding Teach Pendant | Replacement, Equivalent & Selection Guide
The FANUC A05B-2400-C060 is the dedicated Arc Welding Teach Pendant designed for the FANUC M-410iB/140H industrial robot series. Part numbers covered: M-410iB/140HA97L-02, 18-0898320N-169, A05B-2400-C060, A05-2518-202EAW. This page provides full technical specifications, compatible replacements, and a structured selection guide for procurement engineers and automation integrators.
Technical Specifications
- Part Number: A05B-2400-C060
- Cross Reference: A05-2518-202EAW / 18-0898320N-169 / M-410iB/140HA97L-02
- Type: Arc Welding Teach Pendant (iPendant)
- Compatible Robot Series: FANUC M-410iB/140H
- Application: Arc Welding (ARC WELDING)
- Interface: Color LCD touchscreen with dedicated arc welding function keys
- Cable: Standard FANUC iPendant cable (specify length at order)
- Origin: Japan
- Condition: New / Refurbished (specify at inquiry)
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the A05B-2400-C060 in arc welding applications:
- A05B-2518-C202 — Standard iPendant, compatible with R-30iB / R-30iB Plus controllers
- A05B-2518-C350 — iPendant Touch (touchscreen upgrade), same controller compatibility
- A05B-2255-C100 — Legacy pendant for older R-J3iB / R-30iA systems (verify firmware)
- A05B-2301-C370 — Compact pendant option for space-constrained cells
Note: Always verify controller model (R-30iB / R-30iB Plus / R-30iA) and software version before substituting pendants.
Why Choose the Original A05B-2400-C060
- Factory-matched to M-410iB/140H kinematic parameters — no re-calibration required
- Pre-loaded arc welding macros and weld schedule management screens
- Guaranteed compatibility with FANUC ArcTool software package
- Full FANUC warranty and traceability (serial number registered)
- Eliminates firmware mismatch risk present in third-party alternatives
Typical Applications
- Automotive body-in-white MIG/MAG welding lines
- Heavy equipment and structural steel fabrication
- Shipbuilding and offshore module welding
- Pressure vessel and pipe spool welding cells
- General-purpose robotic arc welding integration
System Compatibility
| Controller | Software | Compatible |
|---|---|---|
| R-30iB Plus | V9.x / V8.x | ✅ Yes |
| R-30iB | V7.x | ✅ Yes |
| R-30iA | V6.x | ⚠️ Verify firmware |
| R-J3iB | V5.x | ❌ Not compatible |
Selection Guide
Use the following decision tree to select the correct pendant:
- Step 1 — Identify your controller: R-30iB Plus → A05B-2400-C060 or A05B-2518-C350 (touch)
- Step 2 — Confirm application: Arc welding → ensure ArcTool license is active on controller
- Step 3 — Cable length: Standard 7 m / 10 m / 15 m — specify at order
- Step 4 — Condition: New OEM for critical production lines; certified refurbished for maintenance spares
- Step 5 — Budget vs. risk: OEM original eliminates integration risk; equivalent models reduce cost by 20–40%
Quality Assurance & Sourcing
- All units inspected and function-tested prior to shipment
- Sourced directly from authorized FANUC distributors or certified secondary market
- Traceability documentation available on request (COC, test report)
- Packaging: anti-static bag + foam-lined export carton
- Lead time: 3–7 business days (stock items); 2–4 weeks (factory order)
How to Order
- Confirm part number: A05B-2400-C060
- Specify controller model and software version
- Specify cable length requirement
- Specify condition: New OEM / Certified Refurbished
- Contact us via email or phone for a formal quotation
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use A05B-2518-C350 (iPendant Touch) as a direct replacement for A05B-2400-C060?
A: Yes, on R-30iB and R-30iB Plus controllers running V7.x or later. The touchscreen interface replaces the physical keypad; all arc welding functions are retained.
Q: Will a refurbished pendant retain my weld schedules?
A: Weld schedules are stored on the controller, not the pendant. Swapping pendants does not affect stored programs or weld parameters.
Q: Is the A05B-2400-C060 compatible with FANUC CRX collaborative robots?
A: No. CRX series uses a dedicated tablet-based pendant. The A05B-2400-C060 is specific to the M-410iB/140H industrial robot platform.
Q: What is the difference between A05B-2400-C060 and A05B-2400-C061?
A: The C061 suffix typically denotes a regional or cable-length variant. Confirm with your FANUC distributor or contact Konmask for clarification.
