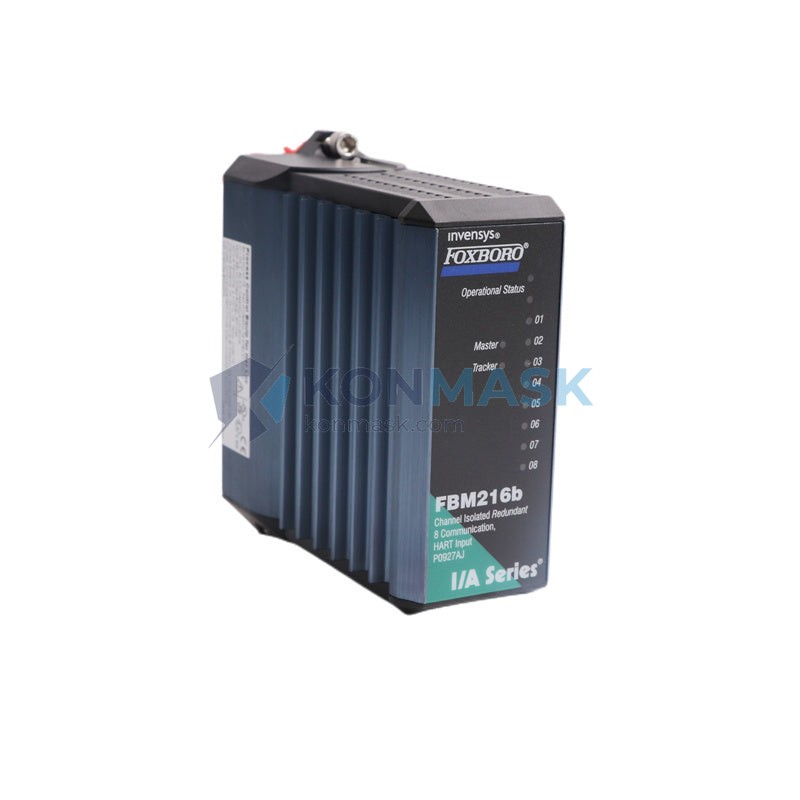

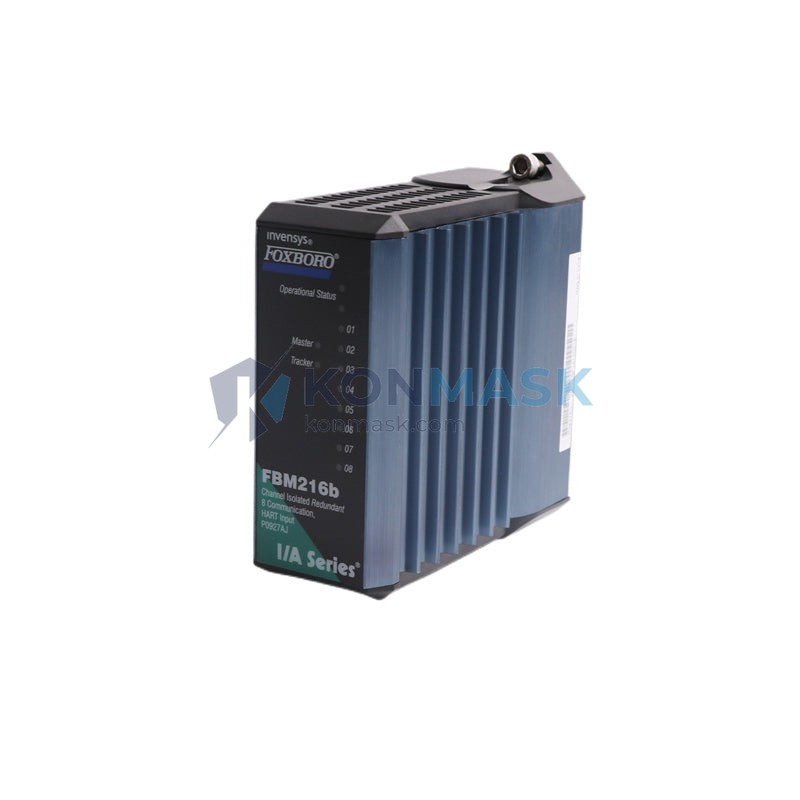

FOXBORO FBM216B P0927AJ – Redundant Ready HART Input Module | I/A Series

FOXBORO FBM216B P0927AJ – Redundant Ready HART Input Module | I/A Series DCS

Engineering Background: The Foxboro I/A Series (Intelligent Automation Series) DCS is one of the most widely deployed distributed control platforms in continuous-process industries, with an installed base spanning refineries, power generation facilities, and water treatment plants across more than 100 countries. Within the I/A Series architecture, Field Bus Modules (FBMs) serve as the critical interface layer between field instrumentation and the control network — translating raw analog signals into digital process data that the CP (Control Processor) acts upon in real time. The FBM216B occupies a specific and non-substitutable role in this architecture: it is the designated module for HART-enabled analog input channels where redundant module operation is a system requirement.

Product Positioning: The FBM216B (part number P0927AJ) is distinguished from the standard FBM216 by its redundancy-ready hardware design, allowing two modules to operate in a primary/backup configuration without process interruption during module failure or hot-swap maintenance. This makes it the correct selection for SIL-rated loops, critical measurement points, and any application where a single module failure cannot be tolerated. It is not a general-purpose replacement for FBM216 in non-redundant applications — the redundancy pairing requires matching hardware revisions and compatible FBM Extender configurations.

Complete Technical Specifications

Electrical

• Channel Count: 16 analog input channels
• Input Signal Range: 4–20 mA (HART superimposed)
• HART Protocol: HART 5 / HART 6 / HART 7 pass-through supported
• Input Impedance: ≤ 250 Ω (loop-powered, barrier-compatible)
• Resolution: 16-bit ADC per channel
• Accuracy: ±0.1% of full scale at 25°C
• Isolation: Channel-to-channel and channel-to-bus optical isolation
• Power Consumption: 24 VDC nominal, ≤ 8 W typical
• Redundancy Mode: Hot-standby, bumpless switchover < 1 scan cycle

Mechanical

• Form Factor: Single-slot FBM module, I/A Series Baseplate compatible

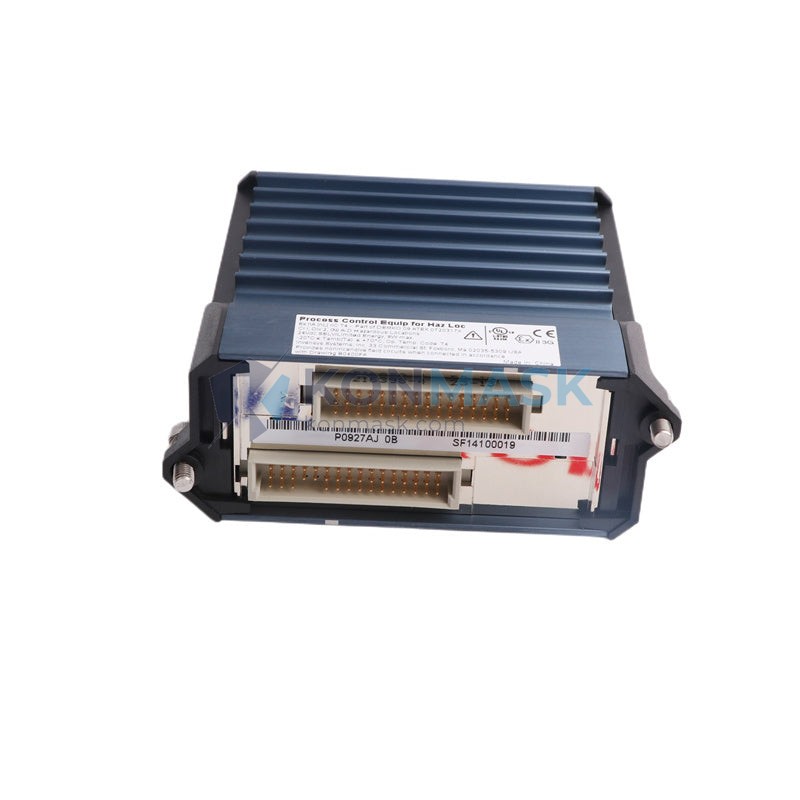

• Connector: 96-pin DIN 41612 rear-bus connector
• Weight: Approximately 320 g
• Mounting: Vertical or horizontal baseplate, tool-free hot-swap
• Part Number: P0927AJ

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: −40°C to +85°C
• Relative Humidity: 5% to 95% non-condensing
• Vibration: IEC 60068-2-6 compliant
• EMC: CE marked, IEC 61000-4 series immunity

Certifications

• SIL 2 capable (IEC 61508) in redundant configuration
• CE / ATEX Zone 2 compatible (with appropriate barriers)
• UL Listed for industrial control equipment
• RoHS compliant

Specification data sourced from Foxboro I/A Series FBM216B Product Specification Sheet (PSS 21H-2Z16 B4) and verified against Schneider Electric / Foxboro technical documentation. Confirm final values against the revision-specific datasheet for your project.

Proven Application Environments

• Petroleum Refining — Crude Distillation Units: Monitoring 16 HART-enabled temperature transmitters on distillation column trays under continuous 24/7 operation, where module redundancy prevents unplanned shutdowns during maintenance windows.
• Natural Gas Processing — Compressor Stations: Acquiring pressure and flow signals from HART smart transmitters across multiple compressor trains, with redundant FBM216B pairs ensuring no single-point failure in safety-critical measurement loops.
• Power Generation — Boiler Control Systems: Integrating HART diagnostic data from combustion air flow and fuel pressure transmitters into the I/A Series CP, enabling predictive maintenance without process interruption.
• Water & Wastewater Treatment — Dosing Control: Reading HART-enabled flow and level transmitters in chemical dosing systems where SIL 2 loop integrity is mandated by local environmental regulations.
• Petrochemical — Ethylene Cracker Furnaces: Handling high-density analog input from skin temperature and process gas transmitters in high-temperature zones, leveraging HART pass-through for remote calibration without field access.
• Pulp & Paper — Recovery Boiler Instrumentation: Consolidating 16 HART transmitter channels per module in black liquor combustion monitoring, where redundant module architecture satisfies insurance and safety audit requirements.

Engineering Advantages

• For safety-critical measurement loops requiring SIL 2 compliance, this HART input module supports redundant hot-standby operation, because the P0927AJ hardware revision includes the redundancy arbitration logic absent in the standard FBM216.
• For plants running mixed HART generations (5/6/7) across aging and new instrumentation, this module provides transparent multi-generation HART pass-through, because the firmware handles protocol negotiation without requiring transmitter reconfiguration.
• For maintenance teams performing module replacement under live process conditions, this module enables tool-free hot-swap without process bump, because the bumpless switchover completes within a single CP scan cycle (<100 ms typical).
• For control engineers requiring transmitter diagnostics at the DCS level, this module surfaces HART device status and diagnostic bytes directly to the I/A Series historian, because the HART pass-through is fully integrated with the FoxView/IACC data path.
• For facilities with high channel density requirements, this module delivers 16 independent HART-capable AI channels in a single baseplate slot, because the FBM216B uses a multiplexed HART master architecture rather than a single shared HART channel.
• For projects with strict EMC requirements in electrically noisy environments, this module provides per-channel optical isolation, because the design separates field-side ground references from the control bus ground, eliminating common-mode interference paths.

System Architecture & Signal Flow

Signal Flow: Field transmitter (4–20 mA + HART) → FBM216B field terminals → 16-bit ADC conversion + HART demodulation → I/A Series Nodebus/Fieldbus → Control Processor (CP) → FoxView HMI / Historian. In redundant configuration, the primary FBM216B drives the Nodebus while the standby module mirrors input data; upon primary failure, the standby assumes bus mastership within one scan cycle.

Compatible Modules & Infrastructure:

• FBM216 — Non-redundant variant; electrically identical field interface but lacks redundancy arbitration hardware. Suitable for non-critical loops only.
• FBM207 / FBM207B — Standard 16-channel AI without HART; compatible baseplates but no HART pass-through capability.
• P0916TW / P0916TX Baseplates — Required mounting infrastructure; FBM216B requires the redundancy-capable baseplate variant.
• FBM Extender Cables — Used in redundant pairs; both primary and standby FBM216B modules must be installed in adjacent baseplate slots.

Substitution Conditions: The FBM216B can substitute for FBM216 in non-redundant applications with no configuration change. Reverse substitution (FBM216 replacing FBM216B in a redundant pair) is not supported — the redundancy partner will report a hardware mismatch fault. Cross-generation substitution with FBM207-series requires I/O block reconfiguration in the ICC/AIM database.

Sourcing & Quality Verification

All FBM216B P0927AJ modules offered through Konmask.com are sourced from decommissioned plant upgrades, authorized distributor overstock, and verified secondary market channels. Each unit undergoes the following inspection process before listing:

1. Visual & Mechanical Inspection: Connector pin integrity, PCB condition, label legibility, and housing damage assessment against Foxboro acceptance criteria.
2. Firmware & Revision Verification: Firmware version and hardware revision confirmed against the P0927AJ part number specification to ensure redundancy compatibility.
3. Functional Bench Test: Module powered and enumerated on an I/A Series test baseplate; channel response and HART communication verified on a minimum of 4 channels per unit.
4. Packaging & ESD Protection: Modules shipped in anti-static bags with foam cushioning inside double-wall cartons; humidity indicator cards included for international shipments.

Documentation available upon request: Inspection report, firmware revision record, functional test log, original Foxboro datasheet (PSS 21H-2Z16 B4), and certificate of conformance.

Procurement Process

1. Submit Inquiry: Contact via the product page, email support@konmask.com, or WhatsApp +0086 19859288691 with your required quantity, hardware revision preference (if any), and delivery timeline.
2. Quotation & Stock Confirmation: A response with confirmed stock status, unit pricing (HKD/USD), lead time, and shipping options will be provided within 24 hours on business days. Expedited response available for urgent plant requirements.
3. Order & Shipment: Payment confirmed → unit re-inspected and photographed → shipped with full tracking. DHL Express, FedEx International Priority, and sea freight consolidation available. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.

Technical Support: Pre-sale support includes compatibility verification, revision matching, and I/A Series architecture consultation. Post-sale support includes installation guidance, ICC/AIM configuration reference, and troubleshooting assistance for integration issues.

Technical FAQ

Q: Can the FBM216B P0927AJ replace an FBM216 in an existing non-redundant I/A Series system?
A: Yes. The FBM216B is backward compatible with FBM216 baseplates in non-redundant configurations. No I/O block reconfiguration is required in the ICC database. The redundancy capability simply remains inactive. Confirm baseplate part number compatibility before installation.

Q: What is the minimum hardware revision required for the redundant pair, and can two units with different revisions be paired?
A: Both modules in a redundant pair must be the same hardware revision (P0927AJ). Mismatched revisions will cause the I/A Series to report a redundancy configuration fault and the standby module will not achieve hot-standby status. All units supplied are verified to the P0927AJ revision specification.

Q: Is the FBM216B certified for use in SIL 2 safety loops, and what additional components are required?
A: The FBM216B in redundant configuration is SIL 2 capable per IEC 61508. Achieving a SIL 2 rated loop also requires SIL-rated field transmitters, appropriate safety barriers (Zener or galvanic isolators for hazardous area installations), and a SIL-validated CP configuration. The module alone does not constitute a complete SIL 2 loop — a full Safety Requirements Specification (SRS) and FMEDA analysis are required for the complete loop assessment.

---
