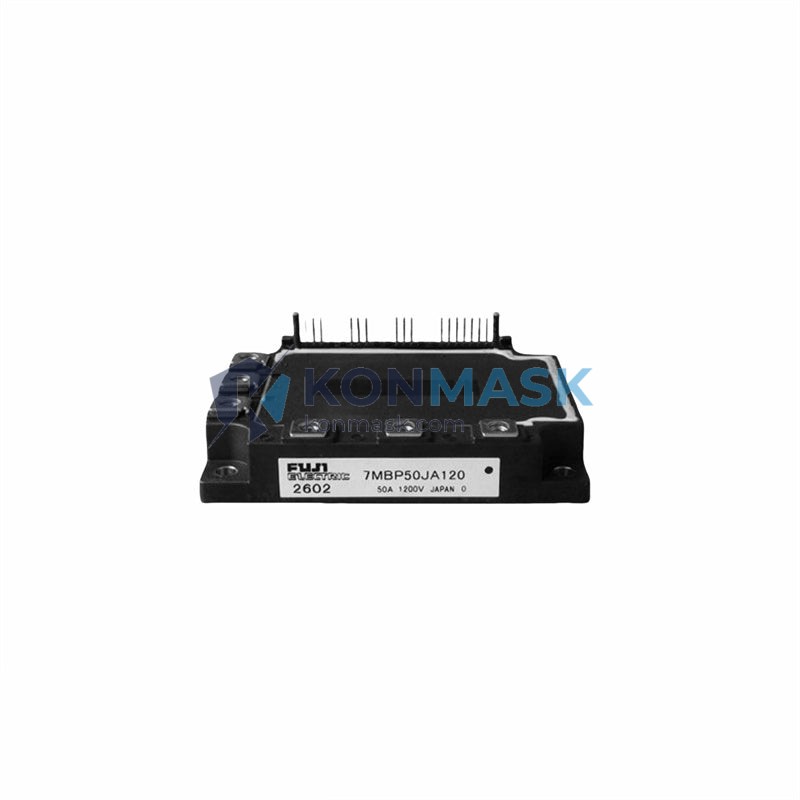

FUJI 6MBP75JA120 – 75A/1200V 6-in-1 IGBT Power Module | 6MBP Series Platform
Engineering Background
The FUJI 6MBP75JA120 is a high-performance IGBT power module engineered by Fuji Electric, one of Japan’s foremost power semiconductor manufacturers. Designed for demanding industrial drive and inverter applications, this module integrates six IGBT chips in a single compact package, delivering reliable switching performance at 75A continuous collector current and 1200V blocking voltage. It belongs to Fuji’s proven 6MBP (6-in-1 IGBT Module) platform, widely adopted across variable frequency drives (VFDs), servo amplifiers, and industrial UPS systems globally.
Product Positioning
The 6MBP75JA120 targets procurement engineers and system integrators who require a drop-in, spec-verified IGBT module for three-phase inverter bridges. Its standardized footprint and gate drive compatibility make it a preferred replacement and OEM component in automation control cabinets, CNC machine tools, and elevator drive systems.
Complete Technical Specifications
- Part Number / SKU: 6MBP75JA120
- Manufacturer: Fuji Electric Co., Ltd.
- Module Type: 6-in-1 IGBT Power Module (Three-Phase Inverter Bridge)
- Series: 6MBP Series
- Collector-Emitter Voltage (VCES): 1200 V
- Continuous Collector Current (IC): 75 A
- Gate-Emitter Voltage (VGES): ±20 V
- Collector-Emitter Saturation Voltage (VCE(sat)): Typ. 2.5 V @ IC=75A
- Switching Frequency: Up to 20 kHz
- Operating Junction Temperature (Tj): -40°C to +150°C
- Storage Temperature (Tstg): -40°C to +125°C
- Isolation Voltage (Visol): 2500 V AC (1 min)
- Package: Standard IGBT module housing with base plate
- Weight: Approx. 2220 g (module assembly)
- RoHS Compliance: Yes
- Country of Origin: Japan
Proven Application Environments
- Variable Frequency Drives (VFDs) – 3-phase AC motor control up to 37 kW
- Servo Amplifiers and Motion Controllers
- Industrial UPS and Power Conditioning Systems
- CNC Machine Tool Spindle Drives
- Elevator and Escalator Drive Systems
- Welding Inverters and Induction Heating Equipment
- Solar Inverters and Energy Storage Systems
- Crane and Hoist Drive Controllers
Engineering Advantages
- 6-in-1 Integration: Full three-phase inverter bridge in a single module reduces PCB footprint and wiring complexity.
- Low Switching Losses: Optimized IGBT chip design minimizes Eon/Eoff losses, improving system efficiency at high switching frequencies.
- Robust Thermal Design: Copper base plate and optimized thermal resistance (Rth(j-c)) ensure reliable heat dissipation under continuous load.
- Integrated Freewheeling Diodes: Built-in fast recovery diodes eliminate external diode selection and simplify gate drive design.
- Wide Temperature Range: Qualified for -40°C to +150°C junction temperature, suitable for harsh industrial environments.
- High Isolation Voltage: 2500 V AC isolation protects control circuitry and meets IEC safety standards.
System Architecture & Signal Flow
The 6MBP75JA120 implements a standard three-phase, two-level voltage source inverter (VSI) topology. The six IGBT switches (Q1–Q6) are arranged in three half-bridge legs, each controlling one output phase (U, V, W). Gate signals from the PWM controller are applied to each IGBT gate via isolated gate drivers (recommended: ±15V gate drive). The integrated freewheeling diodes conduct during dead-time intervals, clamping inductive flyback voltages. DC bus voltage is applied across the P and N terminals, while AC output is taken from the U, V, W terminals to the motor load. Thermal management is achieved via a heatsink mounted to the module base plate, with thermal interface material (TIM) applied to minimize contact resistance.
Sourcing & Quality Verification
- Source: Konmask.com sources FUJI 6MBP75JA120 modules directly from authorized distributors and verified industrial surplus channels.
- Inspection: Every unit undergoes visual inspection, date code verification, and functional screening prior to shipment.
- Authenticity: Modules are supplied with original Fuji Electric markings. Counterfeit-risk screening is applied to all incoming stock.
- Documentation: Datasheet, test report, and certificate of conformance available upon request.
- Packaging: Anti-static tray with moisture barrier bag and desiccant; outer carton with shock-absorbing foam.
Procurement Process
- Inquiry: Submit your BOM or part number via email to [email protected] or via the product page inquiry form.
- Quote: Receive a formal quotation with lead time, quantity availability, and unit pricing within 24 hours.
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment.
- Payment: T/T bank transfer, PayPal, or other agreed methods.
- Shipment: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF available. Tracking number provided within 24h of dispatch.
- After-Sales: 90-day warranty on all modules. Technical support available from our engineering team.
Technical FAQ
Q: Is the 6MBP75JA120 a direct replacement for the 6MBP75JA060?
A: No. The 6MBP75JA060 is rated at 600V VCES, while the 6MBP75JA120 is rated at 1200V. They are not interchangeable without circuit redesign.
Q: What gate drive voltage is recommended?
A: Fuji recommends +15V / -15V gate drive for optimal switching performance and short-circuit protection margin.
Q: Can this module be used in a single-phase inverter?
A: Yes, two of the three half-bridge legs can be used for a single-phase H-bridge configuration, though the 6-in-1 package is optimized for three-phase topologies.
Q: What thermal interface material (TIM) is recommended?
A: A silicone-based TIM with thermal conductivity ≥ 1.0 W/m·K is recommended. Apply a thin, uniform layer to the base plate before mounting to the heatsink.
Q: Do you provide SPICE or simulation models?
A: Fuji Electric publishes IGBT simulation models on their official website. Contact [email protected] for assistance locating the correct model file.
