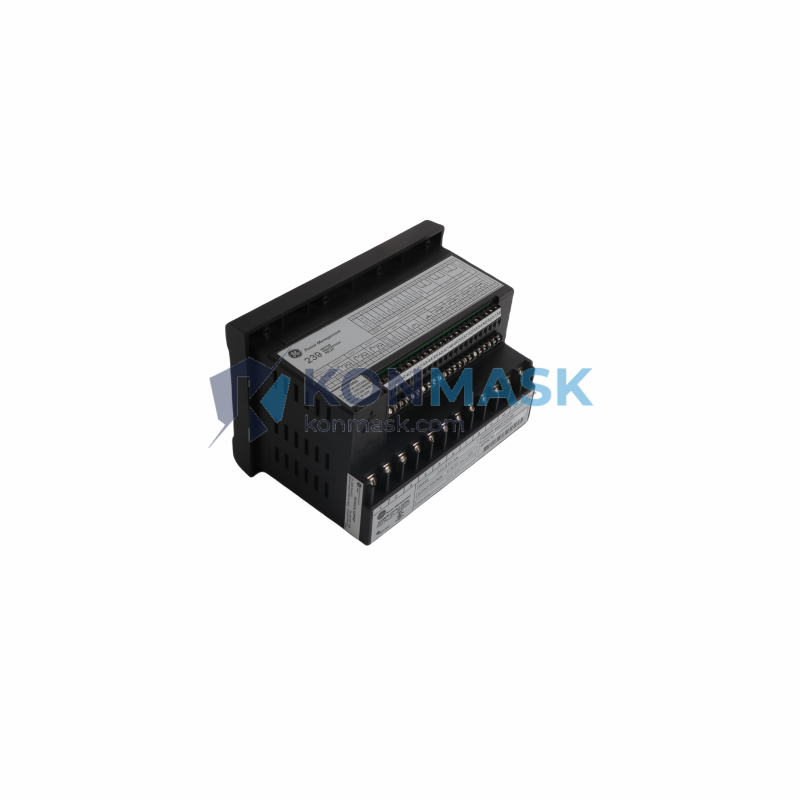

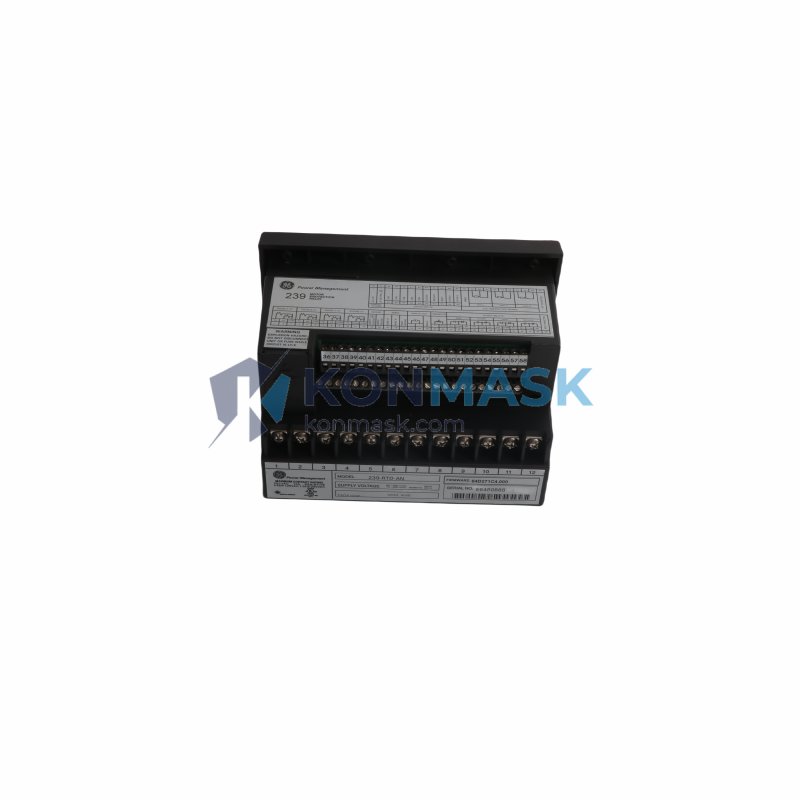

GE 239-RTD-AN Motor Protection Relay – RTD-Based Thermal Protection | Multilin 239 Platform
Engineering Background
The GE Multilin 239 series was developed to address the thermal protection gap in medium-voltage motor applications where traditional bimetallic overload relays fail to capture winding temperature with sufficient accuracy. The 239-RTD-AN variant integrates direct RTD (Resistance Temperature Detector) inputs, enabling real-time thermal state monitoring of stator windings, bearings, and ambient environment — a critical requirement for continuous-duty industrial motors operating under variable load cycles.
Product Positioning
The 239-RTD-AN is purpose-built for procurement engineers specifying protection schemes for motors in process industries including oil & gas, mining, water treatment, and heavy manufacturing. It replaces legacy electromechanical overload relays with a microprocessor-based solution that delivers deterministic trip response, event logging, and serial communications — all within a compact DIN-rail or panel-mount form factor.
Complete Technical Specifications
- Model: GE Multilin 239-RTD-AN
- Series / Platform: Multilin 239 Motor Protection System
- Manufacturer: GE (General Electric) / GE Grid Solutions
- Protection Function: RTD-based thermal overload, stator winding temperature, bearing temperature
- RTD Inputs: Multiple RTD channels (Pt100 / Ni100 compatible)
- Trip Output: Relay output contacts (Form C)
- Alarm Output: Configurable alarm threshold per RTD channel
- Communication: RS-485 serial (Modbus RTU protocol)
- Power Supply: AC/DC universal auxiliary supply (refer to nameplate)
- Mounting: Panel mount / DIN rail compatible
- Operating Temperature: -20°C to +60°C
- Weight: 1,700 g (approx.)
- Country of Origin: Canada
- Part Number / SKU: 239-RTD-AN
Proven Application Environments
- Medium-voltage induction motors (pump drives, compressor drives, fan drives)
- Continuous-duty process motors in oil & gas upstream and downstream facilities
- Mining hoist and conveyor motor protection panels
- Water and wastewater treatment plant motor control centers (MCCs)
- Pulp & paper mill drive systems requiring thermal history logging
- Retrofit of legacy electromechanical overload relays in existing switchgear
Engineering Advantages
- Direct RTD Measurement: Eliminates thermal model estimation errors — actual winding temperature is measured, not inferred from current alone.
- Multi-Channel Monitoring: Simultaneous monitoring of stator, bearing, and ambient RTDs enables comprehensive thermal profiling.
- Configurable Alarm & Trip Thresholds: Independent setpoints per RTD channel allow graduated response (alarm → trip) without nuisance tripping.
- Event Log & Fault Record: Microprocessor-based architecture stores pre-trip data for root-cause analysis and maintenance planning.
- Modbus RTU Integration: Native RS-485 Modbus RTU enables integration with SCADA, DCS, and PLC systems without additional protocol converters.
- Compact Form Factor: Suitable for retrofit into existing panel cutouts with minimal modification.
System Architecture & Signal Flow
RTD sensors embedded in motor windings and bearings feed resistance signals to the 239-RTD-AN’s analog input front-end. The onboard microprocessor converts resistance values to temperature (°C/°F), compares against user-configured alarm and trip setpoints, and actuates output relay contacts within the specified response time. Simultaneously, temperature data is made available over the RS-485 Modbus RTU bus for upstream SCADA or DCS polling. The relay’s front-panel LED indicators provide local status indication (Power, Alarm, Trip) without requiring a laptop or HMI connection during commissioning.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels.
- Each unit inspected for physical integrity, nameplate legibility, and terminal condition prior to dispatch.
- Original GE Multilin firmware and hardware — no third-party modifications.
- Functional verification available upon request for critical applications.
- Documentation package (datasheet, instruction manual) available on request.
Procurement Process
- Step 1: Confirm part number 239-RTD-AN against your BOM or existing relay nameplate.
- Step 2: Submit inquiry or place order directly via Konmask.com product page.
- Step 3: Receive order confirmation with lead time and shipping details within 1 business day.
- Step 4: Unit dispatched with inspection record; tracking provided upon shipment.
- Step 5: Technical support available post-delivery for commissioning queries.
Technical FAQ
Q: What RTD types are compatible with the 239-RTD-AN?
A: The unit supports Pt100 (platinum 100Ω) and Ni100 (nickel 100Ω) RTDs, which are the industry-standard types used in motor winding and bearing temperature sensing.
Q: Can the 239-RTD-AN replace a standard current-based overload relay?
A: Yes, in applications where RTD sensors are already installed in the motor windings. The 239-RTD-AN provides superior thermal protection accuracy compared to current-based thermal models.
Q: Is Modbus RTU the only communication protocol supported?
A: The 239-RTD-AN supports RS-485 Modbus RTU as its native protocol. For other protocols (DNP3, IEC 61850), a protocol gateway would be required.
Q: What is the typical lead time for this unit?
A: In-stock units ship within 1–3 business days. Contact us for expedited shipping options for critical plant shutdowns.
Q: Can I request a functional test report before shipment?
A: Yes. Contact support@konmask.com to arrange pre-shipment functional verification for critical applications.
