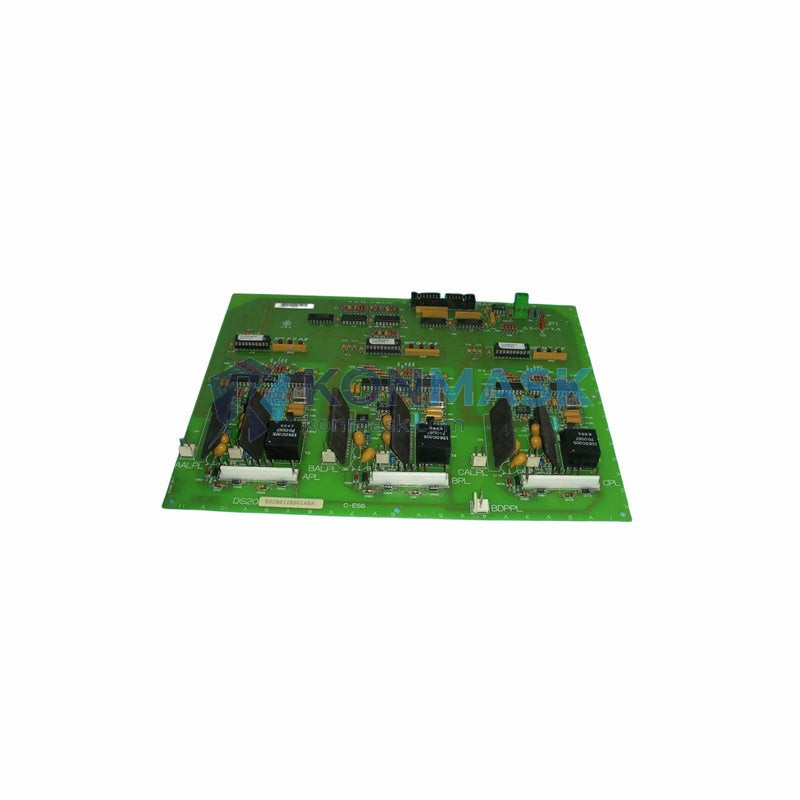

GE DS200IIBDG1AEA – IGBT Gate Driver Board | DS200 Drive Control Series – Verified Source
Engineering Background: The GE DS200IIBDG1AEA is a precision IGBT gate driver board engineered by GE (General Electric) as a core component within its DS200 drive control architecture. Designed to interface directly with high-power IGBT modules, this board delivers critical gate signal conditioning, galvanic isolation, and multi-layer fault protection — ensuring reliable inverter operation across the most demanding industrial power environments.
Product Positioning: The DS200IIBDG1AEA is the OEM-specified gate driver for GE EX2100 excitation systems, Mark VI turbine control platforms, and related DS200-series drive assemblies. It is the preferred procurement choice for maintenance engineers, OEM system integrators, and MRO teams requiring verified, traceable GE automation hardware with documented provenance.
Complete Technical Specifications
- Part Number: DS200IIBDG1AEA
- Manufacturer: GE (General Electric)
- Series / Platform: DS200 Drive Control Series
- Function: IGBT Gate Driver Board
- Gate Drive Output: Isolated PWM gate signals for IGBT power modules
- Isolation Technology: Galvanic isolation — control stage fully separated from power stage
- Protection Features: Desaturation detection, short-circuit protection, under-voltage lockout (UVLO)
- Fault Response Time: Microsecond-level protective shutdown on fault detection
- Compatible Bus Voltage: Typical 400–690 V AC input drive systems
- Operating Temperature: 0°C to +55°C (standard industrial range)
- Weight: 420 g
- Country of Origin: United States
- Condition Available: New OEM / Professionally Refurbished / Tested (specify on inquiry)
Proven Application Environments
- GE EX2100 Excitation Control Systems
- GE Mark VI Turbine Control Platforms
- Industrial variable frequency drives (VFDs) and inverter systems
- Power generation and utility-scale motor drive applications
- Oil & gas, petrochemical, and heavy manufacturing facilities
- Marine propulsion and offshore platform drive systems
- Renewable energy grid-tie inverter platforms
Engineering Advantages
- OEM-Grade Reliability: Manufactured to GE’s original design specifications — no reverse-engineered substitutes or third-party clones.
- Full Galvanic Isolation: Ensures complete electrical separation between low-voltage control logic and high-voltage IGBT power stage, protecting sensitive control electronics from power-side transients.
- Integrated Multi-Layer Fault Protection: Desaturation detection and UVLO circuits prevent catastrophic IGBT failure during fault conditions, minimizing unplanned downtime and secondary damage.
- Microsecond Fault Response: Fault signals are fed back to the control layer within microseconds, enabling protective shutdown before thermal runaway or device destruction occurs.
- Drop-In Form-Fit-Function Replacement: Direct replacement for existing DS200IIBDG1AEA installations — no firmware changes, re-parameterization, or mechanical modifications required.
- Traceable Provenance: Each unit sourced through verified supply channels; serialization and traceability documentation available upon request for regulated industries.
System Architecture & Signal Flow
The DS200IIBDG1AEA is positioned at the critical interface between the GE drive’s digital control board and the IGBT power module stack. The signal flow operates as follows:
- PWM Signal Reception: Gate pulse-width modulation (PWM) signals are received from the main drive control processor at logic-level voltages.
- Level Shifting & Isolation: Signals are level-shifted and passed through galvanic isolation barriers, eliminating ground loops and protecting control electronics from power-stage noise.
- Gate Drive Amplification: Isolated signals are amplified to the gate drive voltage levels required by the IGBT devices (typically ±15 V gate-emitter drive).
- Fault Monitoring: The board continuously monitors collector-emitter voltage (Vce) for desaturation events. On fault detection, a protective shutdown signal is returned to the control layer within microseconds.
- UVLO Protection: Under-voltage lockout prevents gate drive output if supply voltage falls below the threshold required for reliable IGBT switching, avoiding undefined switching states.
This architecture ensures control-side logic operates at safe low voltages while the power stage handles bus voltages typical of industrial drive applications (400–690 V AC input).
Sourcing & Quality Verification
- All units sourced from authorized distributors, OEM surplus channels, or verified MRO supply networks.
- Anti-counterfeit inspection on all inbound stock: part markings, date codes, board-level visual inspection, and component verification.
- Pre-shipment functional testing available — contact us to specify test parameters and documentation requirements.
- Serialization and traceability documentation provided upon request for regulated or safety-critical industries.
- Packaging: ESD-safe anti-static bag + foam-lined carton for safe international transit.
Procurement Process
- Confirm Part Number: Verify DS200IIBDG1AEA against your existing board label, GE BOM documentation, or drive system schematic.
- Request a Quote: Contact us via email or phone with required quantity, condition preference, and delivery timeline.
- Lead Time: In-stock units ship within 1–3 business days. Special or large-quantity orders: 5–15 business days.
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted.
- Shipping: DHL / FedEx / UPS international express with full tracking and cargo insurance.
- After-Sales Support: 12-month warranty on tested units. Technical support available post-installation.
Technical FAQ
Q: Is DS200IIBDG1AEA compatible with all GE DS200 series drives?
A: It is specifically designed for GE drive platforms using the DS200 control architecture, including EX2100 and Mark VI systems. Always cross-reference your drive’s BOM or contact our engineers to confirm compatibility with your specific drive model and revision.
Q: Can this board be repaired if damaged?
A: Board-level repair is possible for certain fault types (e.g., failed gate resistors, blown optocouplers, damaged isolation transformers). Contact our technical team with a fault description for a repair feasibility assessment.
Q: Do you provide a test report with the unit?
A: Yes, functional test reports are available upon request. Please specify this requirement at the time of order placement.
Q: What is the lead time for large quantity orders?
A: For orders of 5+ units, please contact us directly for real-time availability and volume pricing.
Q: Is this a new or refurbished unit?
A: We stock both new OEM and professionally refurbished units. Please specify your condition preference when inquiring — both options carry our standard warranty and quality verification process.
Q: Can you provide documentation for regulated industry procurement?
A: Yes. Serialization records, test reports, and supply chain traceability documentation are available upon request for nuclear, defense, aerospace, and other regulated procurement requirements.
