GE DS215TCQAG1BZZ01A – Analog Input/Output Board | Mark V Turbine Control Platform
Engineering Background

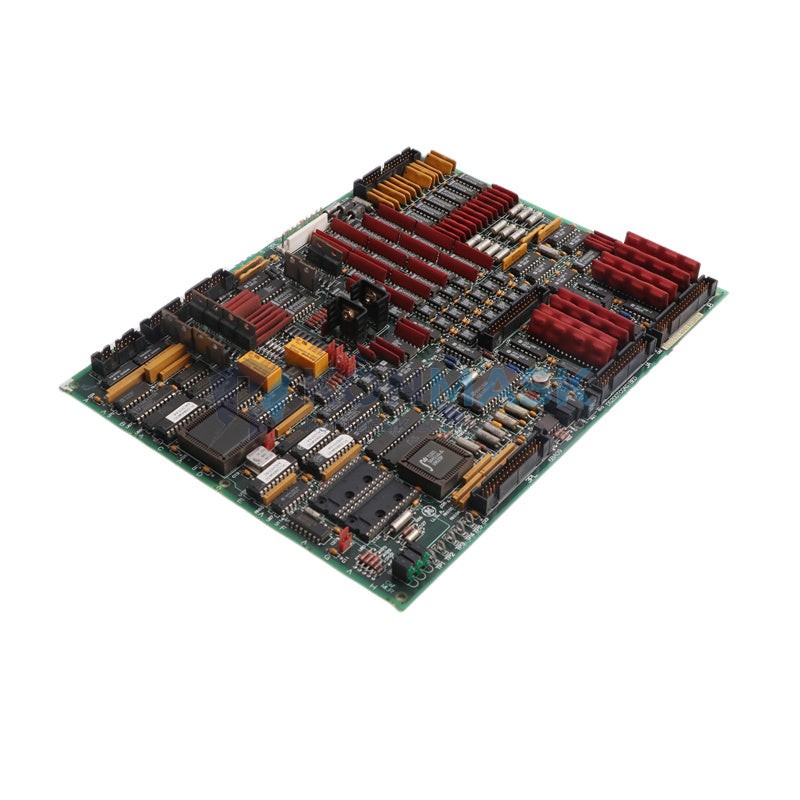

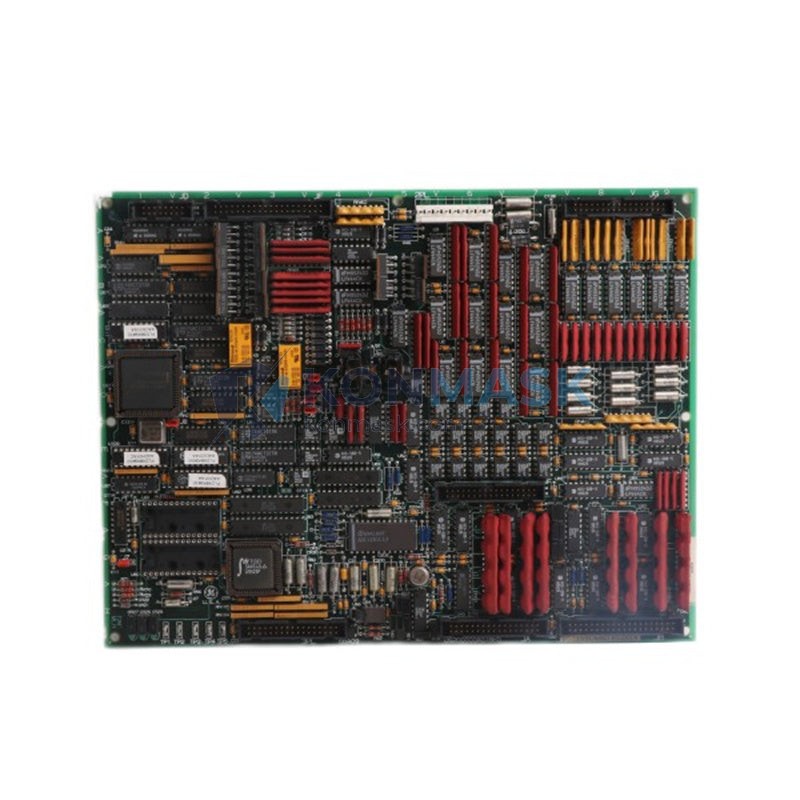

The DS215TCQAG1BZZ01A is a precision analog signal conditioning board engineered by General Electric as a core I/O component within the Mark V Speedtronic™ turbine control system. Designed for continuous-duty industrial environments, this board manages the acquisition and output of analog process signals — including temperature, pressure, flow, and position feedback — that are critical to safe turbine operation and regulatory compliance.
Product Positioning
Targeted at maintenance engineers and procurement specialists managing GE Mark V-equipped gas turbines, steam turbines, and combined-cycle power plants, the DS215TCQAG1BZZ01A provides a direct OEM-equivalent replacement path. Konmask.com stocks verified surplus units sourced from decommissioned plant inventories and authorized distributors, enabling rapid field replacement without extended lead times from the OEM.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DS215TCQAG1BZZ01A |
| Manufacturer | General Electric (GE) |
| Series / Platform | Mark V Speedtronic™ Turbine Control |
| Board Function | Analog Input / Output (I/O) Signal Conditioning |
| Signal Types | 4–20 mA current loop, 0–10 V DC voltage, thermocouple (TC), RTD |
| Input Channels | Multiple differential analog inputs (platform-dependent configuration) |
| Output Channels | Analog output channels for actuator/valve positioner drive |
| Resolution | 12-bit ADC / DAC (typical for Mark V I/O class) |
| Isolation | Galvanic isolation between field and logic circuits |
| Operating Voltage | +5 VDC / ±15 VDC (supplied via Mark V backplane) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Form Factor | PCB card, Mark V rack-mount format |
| Weight | Approx. 600 g |
| Compliance | Designed to GE Speedtronic Mark V system standards |
Proven Application Environments
- Gas Turbine Power Generation — Frame 5, Frame 6, Frame 7, Frame 9 GE turbines equipped with Mark V control panels
- Steam Turbine Control — Combined-cycle and cogeneration plants requiring analog feedback from steam flow and pressure transmitters
- Compressor Stations — Pipeline and process compressor trains using Mark V for surge control and load sharing
- Offshore & Marine Platforms — Turbine-driven generator sets in harsh marine environments
- Industrial Process Plants — Refineries and petrochemical facilities with GE turbine-driven rotating equipment
Engineering Advantages
- Direct Drop-In Replacement — Identical form, fit, and function to OEM specification; no firmware modification required
- Galvanic Isolation — Protects control logic from field-side transients and ground loops common in high-voltage plant environments
- Multi-Signal Compatibility — Handles current loop, voltage, TC, and RTD inputs on a single board, reducing spare-parts inventory complexity
- Proven Field Reliability — Sourced from operational plant decommissions; boards have demonstrated real-world MTBF in continuous-duty service
- Rapid Availability — In-stock surplus eliminates OEM lead times of 16–52 weeks, minimizing turbine downtime costs
System Architecture & Signal Flow
Within the Mark V architecture, the DS215TCQAG1BZZ01A resides in the , or ,
Signal path: Field Device → Terminal Board → DS215TCQAG1BZZ01A (conditioning & isolation) → Backplane Bus → Mark V CPU → Control Output → DS215TCQAG1BZZ01A (DAC) → Actuator
Sourcing & Quality Verification
- Source Traceability — Units sourced from documented plant decommissions or authorized surplus distributors with chain-of-custody records
- Visual Inspection — 100% inspection for physical damage, burnt components, corrosion, and connector integrity prior to listing
- Functional Screening — Where test fixtures are available, boards are powered and signal-path continuity verified
- ESD-Safe Packaging — Shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons
- Warranty — 90-day replacement warranty against DOA or latent defects identified within the warranty period
Procurement Process
- Confirm Compatibility — Verify your Mark V panel revision and TCQA terminal board suffix against your plant documentation or contact our engineering team
- Request Quote / Place Order — Add to cart or contact support@konmask.com for volume pricing and lead-time confirmation
- Export & Compliance Check — For international shipments, our team handles EAR/ECCN classification and export documentation
- Shipping — DHL Express / FedEx International Priority with full tracking; typical transit 3–7 business days worldwide
- Incoming Inspection Support — We provide datasheet references and test guidance to support your incoming QC process
Technical FAQ
Q: Is the DS215TCQAG1BZZ01A compatible with Mark VI or Mark VIe systems?
A: No. This board is designed exclusively for the Mark V platform. Mark VI and Mark VIe use a different I/O architecture (VPRO/VTUR boards). Contact us if you need Mark VI equivalents.
Q: Can this board be repaired if it fails incoming inspection?
A: Yes. We can refer you to qualified GE Mark V repair facilities. Alternatively, we offer exchange programs — contact us for details.
Q: What is the typical lead time for surplus stock?
A: In-stock units ship within 1–2 business days of order confirmation. If out of stock, typical sourcing lead time is 2–4 weeks.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC documenting part number, serial number (if available), inspection results, and source is provided with every shipment upon request.
Q: What payment methods are accepted for international orders?
A: We accept T/T (wire transfer), PayPal, and major credit cards. For large orders, LC (Letter of Credit) arrangements can be discussed.
