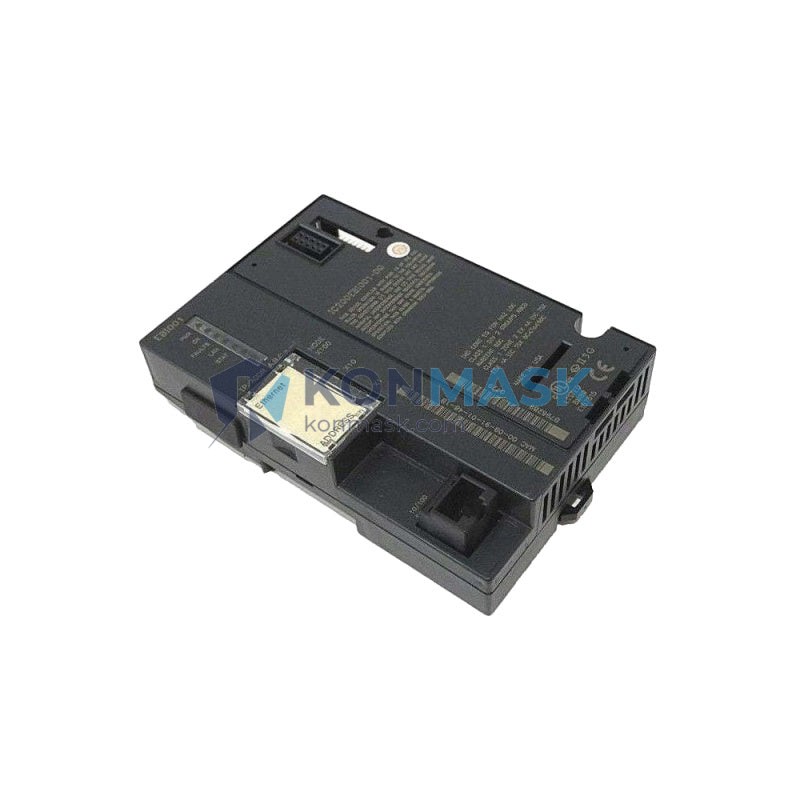

GE IC200EBI001 – Ethernet Network Interface Unit | VersaMax Series
Engineering Background
The GE IC200EBI001 is a dedicated Ethernet Network Interface Unit (NIU) designed for the GE VersaMax distributed I/O platform. As industrial facilities transition from legacy fieldbus architectures to Ethernet-based control networks, the IC200EBI001 provides a robust, standards-compliant gateway that connects VersaMax I/O stations directly to plant-floor Ethernet backbones — eliminating the need for proprietary communication adapters and reducing integration complexity for procurement engineers and system integrators.
Product Positioning
Targeted at process automation, discrete manufacturing, and hybrid control environments, the IC200EBI001 enables VersaMax remote I/O nodes to communicate over standard 10/100 Mbps Ethernet using Modbus TCP/IP and EtherNet/IP protocols. It is the preferred network interface for engineers migrating VersaMax systems to modern DCS or PLC architectures without replacing existing I/O infrastructure.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | IC200EBI001 |
| Manufacturer | GE (General Electric / Emerson) |
| Series / Platform | VersaMax Distributed I/O |
| Module Type | Ethernet Network Interface Unit (NIU) |
| Communication Protocol | Modbus TCP/IP, EtherNet/IP |
| Ethernet Speed | 10/100 Mbps, Auto-negotiation |
| Ethernet Port | RJ-45 (IEEE 802.3) |
| Max I/O Modules per Station | Up to 8 I/O modules |
| Max I/O Points | 128 discrete or 64 analog (station-dependent) |
| Power Supply Voltage | 24 VDC (supplied via VersaMax power supply) |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 |
| Shock Resistance | IEC 60068-2-27 |
| Enclosure / Mounting | DIN rail, IP20 |
| Certifications | CE, UL, cUL |
| Dimensions (W × H × D) | Approx. 40 × 120 × 80 mm |
| Weight | Approx. 200 g |
| Firmware Configurability | Via GE Machine Edition / Proficy software |
Proven Application Environments
- Automotive Assembly Lines — Distributed I/O nodes connected over plant Ethernet for real-time body-in-white and paint shop control.
- Water & Wastewater Treatment — Remote pump station monitoring with Modbus TCP/IP SCADA integration.
- Oil & Gas Upstream/Midstream — Wellhead and pipeline remote I/O with EtherNet/IP to Emerson DeltaV or PACSystems RX3i.
- Food & Beverage Processing — Hygienic zone I/O expansion with standard Ethernet cabling, reducing proprietary bus wiring costs.
- Power Generation & Utilities — Substation automation and generator control room I/O aggregation.
- Pharmaceutical Manufacturing — GMP-compliant distributed I/O with audit-trail-capable Ethernet communication.
Engineering Advantages
- Protocol Flexibility — Simultaneous Modbus TCP/IP and EtherNet/IP support allows integration with both legacy SCADA systems and modern EtherNet/IP PLCs without protocol converters.
- Auto-Negotiation Ethernet — 10/100 Mbps auto-negotiation ensures compatibility with existing plant network switches without manual configuration.
- Backward Compatibility — Fully compatible with existing VersaMax I/O modules (IC200MDL, IC200ALG series), protecting prior capital investment.
- Simplified Wiring — Single RJ-45 Ethernet connection replaces multi-conductor fieldbus cabling, reducing installation labor and cable management complexity.
- Hot-Swap Capable — Module replacement without full system shutdown minimizes production downtime during maintenance cycles.
- Compact DIN-Rail Form Factor — IP20-rated enclosure suitable for standard control panel installation alongside other VersaMax components.
System Architecture & Signal Flow
The IC200EBI001 functions as the network head-end of a VersaMax remote I/O station. The signal flow is as follows:
- Host Controller (GE PACSystems RX3i / RX7i, or third-party EtherNet/IP / Modbus TCP master) initiates a read/write request over the plant Ethernet network.
- IC200EBI001 NIU receives the Ethernet frame, decodes the Modbus TCP or EtherNet/IP packet, and translates it to the VersaMax internal backplane bus protocol.
- VersaMax I/O Modules (up to 8 per station) execute the I/O operation — reading discrete inputs, writing discrete outputs, or sampling/commanding analog channels.
- Response data is assembled by the NIU and returned to the host controller via Ethernet within the configured RPI (Requested Packet Interval) or Modbus poll cycle.
This architecture supports star, daisy-chain, and ring Ethernet topologies when used with managed switches, enabling fault-tolerant network designs for critical process applications.
Sourcing & Quality Verification
- OEM Authenticity — All IC200EBI001 units sourced by Konmask.com are verified against GE/Emerson OEM part markings, date codes, and firmware revision labels prior to listing.
- Functional Testing — Units undergo power-on and communication link verification before shipment.
- Condition Disclosure — Product condition (new, surplus-new, refurbished) is explicitly stated on each listing. Contact us for condition-specific pricing.
- Traceability — Batch and serial number records maintained for quality audit and warranty claim support.
- Packaging — ESD-safe anti-static packaging with foam cushioning; original GE packaging preserved where available.
Procurement Process
- Confirm Part Number — Verify IC200EBI001 against your BOM or existing system documentation. Cross-reference with IC200EBI002 if a dual-port variant is required.
- Request a Quote — Contact Konmask.com via email or phone for volume pricing, lead time, and availability confirmation.
- Submit Purchase Order — PO accepted via email. Net payment terms available for qualified industrial accounts.
- Shipping & Logistics — DHL / FedEx / SF Express international shipping. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales Support — Technical support available for installation, configuration, and compatibility verification post-delivery.
Technical FAQ
Q: Is the IC200EBI001 compatible with GE PACSystems RX3i as a remote I/O head?
A: Yes. The IC200EBI001 is fully supported as a VersaMax Ethernet NIU under PACSystems RX3i using EtherNet/IP or Modbus TCP/IP, configured via GE Proficy Machine Edition.
Q: Can the IC200EBI001 communicate with third-party PLCs (Siemens, Rockwell, Mitsubishi)?
A: Yes, via Modbus TCP/IP (as a Modbus slave) or EtherNet/IP (as an adapter). Compatibility depends on the master controller’s Modbus/EtherNet/IP scanner capability.
Q: What is the maximum cable length for the Ethernet connection?
A: Standard IEEE 802.3 Cat5e/Cat6 UTP — up to 100 m per segment. Fiber optic media converters can extend this for long-distance plant floor runs.
Q: Does the IC200EBI001 support PROFINET or PROFIBUS?
A: No. The IC200EBI001 supports Modbus TCP/IP and EtherNet/IP only. For PROFIBUS, refer to the IC200PBI001; for PROFINET, a protocol gateway is required.
Q: What software is required for configuration?
A: GE Proficy Machine Edition (Logic Developer – PLC) is the primary configuration tool. IP address assignment can also be performed via the module’s built-in BOOTP/DHCP client or a standard network configuration utility.
Q: Is a firmware upgrade available?
A: Firmware updates are managed through GE/Emerson’s official support channels. Konmask.com can advise on current firmware revision compatibility upon request.
