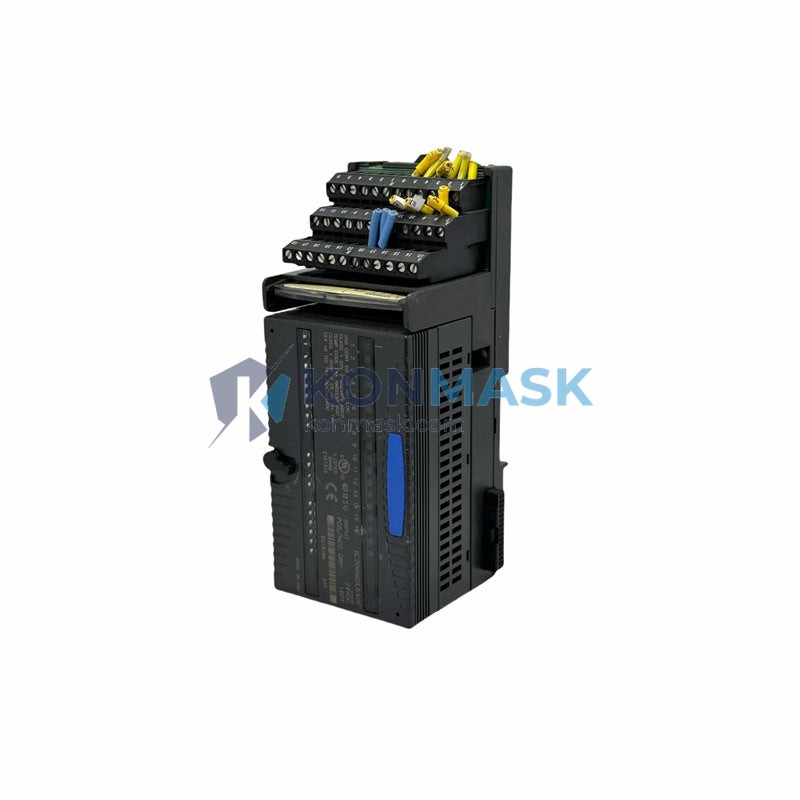

The GE Fanuc IC200MDL640F is a 16-point, 24VDC digital input module designed for the VersaMax Modular I/O platform. Engineered to meet the demanding requirements of industrial automation environments, this module provides reliable discrete signal acquisition for process control, machine automation, and factory floor applications. As part of GE’s proven VersaMax architecture, the IC200MDL640F integrates seamlessly with VersaMax CPUs, NIUs, and expansion racks, delivering deterministic I/O performance across a wide range of industrial sectors.
Product Positioning
Targeted at procurement engineers and system integrators sourcing replacement or expansion I/O for existing GE VersaMax control systems, the IC200MDL640F offers a cost-effective, drop-in compatible solution. Konmask.com maintains verified stock of this module, supporting both MRO (Maintenance, Repair & Operations) procurement and new system builds.
Complete Technical Specifications
- Part Number: IC200MDL640F
- Platform: GE Fanuc VersaMax Modular I/O
- Module Type: Digital Input (DC)
- Number of Points: 16 inputs
- Input Voltage: 24VDC
- Input Current (per point): Approx. 7 mA @ 24VDC
- ON State Voltage Range: 15–30 VDC
- OFF State Voltage Range: 0–5 VDC
- Input Filter Time: Configurable (1 ms / 10 ms typical)
- Isolation: Optical isolation between field and logic side
- Backplane Current Consumption: 80 mA @ 5VDC (typical)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions: Standard VersaMax single-slot form factor
- Certifications: UL Listed, CE Marked, cUL
- Wiring: Removable terminal block (RTB)
- Indicators: Per-point LED status indicators
- Compatible Carriers: IC200CHS001, IC200CHS002, IC200CHS005, IC200CHS012, IC200CHS022
Proven Application Environments
- Discrete manufacturing and assembly line control
- Conveyor and material handling systems
- Packaging machinery and bottling lines
- Water/wastewater treatment plant automation
- Oil & gas field instrumentation and wellhead control
- Building automation and HVAC control panels
- Automotive body shop and paint line PLCs
- Food & beverage processing equipment
- Power generation auxiliary control systems
Engineering Advantages
- Optical Isolation: Protects CPU backplane from field-side transients and ground loops
- Per-Point LED Diagnostics: Enables rapid field troubleshooting without test equipment
- Removable Terminal Block: Allows module swap without rewiring — minimizes downtime during maintenance
- Configurable Input Filter: Reduces false triggering from contact bounce or electrical noise
- Wide Operating Temperature: Suitable for non-climate-controlled industrial enclosures
- Drop-in Compatibility: Direct replacement for earlier IC200MDL640 revisions within the VersaMax platform
- Compact Footprint: Single-slot design maximizes I/O density in constrained panel layouts
System Architecture & Signal Flow
The IC200MDL640F occupies a single slot on any VersaMax I/O carrier. Field-side 24VDC signals are received at the removable terminal block, passed through optical isolators, and presented to the VersaMax backplane as discrete logic states. The CPU or NIU scans these inputs at the configured RPI (Requested Packet Interval) and maps them to the PLC data table for ladder logic or function block processing. The module draws logic power from the 5VDC backplane rail; no separate field power supply is required for the input circuitry beyond the 24VDC field wiring.
Typical Wiring Topology: Sink (NPN) or Source (PNP) field devices → 24VDC common → IC200MDL640F terminal block → optical isolator → VersaMax backplane → CPU data table.
Sourcing & Quality Verification
- Condition: New surplus / refurbished — all units tested prior to shipment
- Inspection Protocol: Visual inspection, firmware revision check, functional I/O point test
- Traceability: Batch records maintained; serial numbers logged on request
- Packaging: Anti-static bag + foam-lined carton; original GE packaging where available
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure
- Counterfeit Mitigation: Sourced exclusively from verified industrial surplus channels and authorized distributors
Procurement Process
- Confirm part number IC200MDL640F and required quantity with our technical team
- Request a formal quotation via support@konmask.com or +0086 19859288691
- Review datasheet, test report, and stock availability confirmation
- Submit purchase order — Net 30 / T/T / LC accepted
- Shipment within 1–3 business days from Hong Kong warehouse; DHL / FedEx / UPS express available
- Post-delivery technical support included at no charge
Technical FAQ
Q: Is the IC200MDL640F compatible with the VersaMax Nano and Micro CPUs?
A: No. The IC200MDL640F is designed for the VersaMax Modular platform (IC200 series carriers). VersaMax Nano/Micro use a different I/O architecture and are not compatible with this module.
Q: Can this module be used with a VersaMax NIU (Network Interface Unit) on Profibus or DeviceNet?
A: Yes. The IC200MDL640F is fully compatible with all VersaMax NIUs (IC200BEM002, IC200PBI001, etc.) as well as VersaMax CPUs.
Q: What is the difference between IC200MDL640 and IC200MDL640F?
A: The “F” suffix denotes a later firmware/hardware revision with minor improvements to EMC performance and input filter options. Both revisions are functionally interchangeable in most applications.
Q: Does the module support hot-swap (replacement under power)?
A: GE does not officially support hot-swap for VersaMax I/O modules. Power down the carrier or rack before replacing the module to avoid potential damage to the backplane.
Q: What programming software is required?
A: Proficy Machine Edition (PME) Logic Developer-PLC is the standard configuration and programming environment for VersaMax systems.
