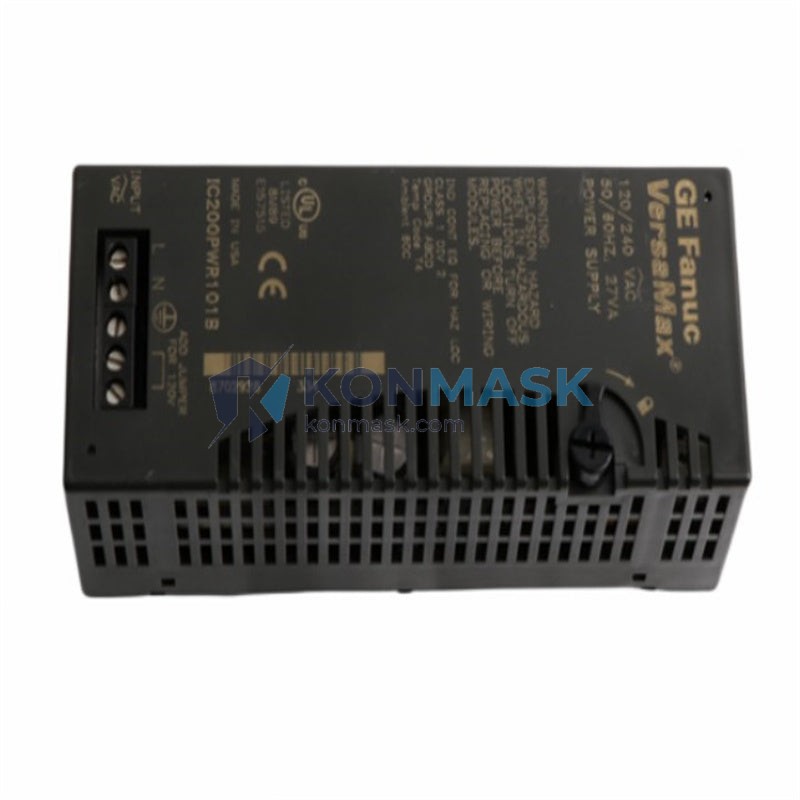

GE IC200PWR101B – Embedded Power Supply Module | VersaMax Micro PLC Platform
Engineering Background
The IC200PWR101B is GE Fanuc’s dedicated embedded power supply module for the VersaMax Micro PLC series — one of the most widely deployed compact automation controllers in light manufacturing, building automation, and process control applications across North America and Asia-Pacific. Designed to operate in space-constrained panel environments, this module converts 24VDC field power into regulated 5VDC logic power for the CPU and I/O backplane, eliminating the need for a separate internal power rail.
Product Positioning
For procurement engineers sourcing replacement or expansion power supply modules for existing VersaMax Micro installations, the IC200PWR101B represents the OEM-specified solution. Konmask.com supplies verified, traceable units with full documentation support — suitable for MRO procurement, capital project BOM fulfillment, and spare-parts inventory programs.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IC200PWR101B |
| Manufacturer | GE Fanuc Automation (now Emerson / Proficy) |
| Series / Platform | VersaMax Micro PLC |
| Module Type | Embedded Power Supply |
| Input Voltage | 24VDC (nominal) |
| Input Voltage Range | 18–30VDC |
| Output Voltage | 5VDC regulated |
| Output Current | 1.0A (max) |
| Output Power | 5W |
| Isolation | Input-to-output isolated |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Mounting | Integrated into VersaMax Micro base unit |
| Certifications | UL Listed, CE Marked, cUL |
| Weight | Approx. 100g |
| Compatible CPUs | IC200UDR002, IC200UDR005, IC200UAL005, IC200UDD020 and compatible VersaMax Micro bases |
Proven Application Environments
- Light Manufacturing & Assembly Lines — Powers VersaMax Micro controllers managing conveyor sequencing, part detection, and reject handling in 24VDC panel environments.
- Building Automation & HVAC — Deployed in AHU control panels, chiller sequencing, and BMS integration nodes where compact DIN-rail footprint is mandatory.
- Water & Wastewater Treatment — Suitable for pump station control panels with 24VDC field power distribution; rated for high-humidity environments.
- Food & Beverage Processing — Used in washdown-adjacent control enclosures; wide temperature tolerance supports ambient variation in production areas.
- MRO / Spare Parts Programs — Standard stocking item for facilities running legacy VersaMax Micro installations requiring rapid swap-out capability.
Engineering Advantages
- Integrated Design — Eliminates external 5VDC rail; reduces panel wiring complexity and potential failure points.
- Wide Input Tolerance (18–30VDC) — Handles field power fluctuations common in industrial 24VDC distribution without requiring additional regulation upstream.
- Input-to-Output Isolation — Protects CPU logic from field-side transients and ground loops.
- Compact Footprint — Designed for space-constrained enclosures; no additional DIN-rail space required beyond the base unit.
- OEM Compatibility — Direct plug-in replacement for existing IC200PWR101 (Rev A) installations; no firmware or configuration changes required.
- Proven MTBF — GE Fanuc industrial-grade components rated for continuous duty in 24/7 production environments.
System Architecture & Signal Flow
The IC200PWR101B is embedded within the VersaMax Micro base unit and is not a standalone module — it forms an integral part of the base assembly. The power supply accepts 24VDC from the field terminal block, converts it to regulated 5VDC, and distributes logic power internally to the CPU module and all installed I/O expansion modules via the backplane bus. The 24VDC field supply also passes through to discrete I/O circuits where applicable, maintaining a single-source field power architecture.
Signal Flow: 24VDC Field Input → IC200PWR101B Converter → 5VDC Backplane Bus → CPU + I/O Modules
Sourcing & Quality Verification
- Origin: OEM-manufactured by GE Fanuc; units sourced through authorized distribution and verified secondary market channels.
- Inspection: Each unit undergoes visual inspection for label integrity, connector condition, and revision marking verification prior to shipment.
- Traceability: Date codes and revision levels documented on request for regulated industries (pharma, food, defense-adjacent).
- Condition: New (factory-sealed) and refurbished (tested, cleaned, re-labeled) stock available — specify at time of inquiry.
- Warranty: 12-month operational warranty on all units shipped from Konmask.com.
Procurement Process
- Confirm Compatibility — Verify your VersaMax Micro base unit part number against the compatible CPU list above. Contact our technical team if uncertain.
- Request Quote / Place Order — Add to cart for standard pricing, or contact support@konmask.com for volume pricing, lead time confirmation, or documentation packages.
- Shipping & Lead Time — In-stock units ship within 1–2 business days. International orders dispatched via DHL Express or FedEx International Priority with full tracking.
- Documentation — GE Fanuc datasheet, declaration of conformity, and inspection report available upon request at no additional charge.
- Returns — 30-day return window for unused, uninstalled units in original packaging.
Technical FAQ
Q: Can the IC200PWR101B be replaced without replacing the entire base unit?
A: No. The power supply is integrated into the VersaMax Micro base assembly and is not field-replaceable as a standalone component. If the power supply section fails, the base unit (e.g., IC200UDR002) must be replaced as a whole.
Q: Is the IC200PWR101B compatible with 120VAC or 240VAC input?
A: No. This module accepts 24VDC input only. For AC-powered VersaMax Micro applications, refer to the IC200PWR002 (120VAC) or IC200PWR003 (240VAC) variants.
Q: What is the difference between IC200PWR101 (Rev A) and IC200PWR101B (Rev B)?
A: Rev B incorporates minor component-level improvements for enhanced thermal performance and EMC compliance. Both revisions are functionally interchangeable and pin-compatible.
Q: Can this power supply support additional I/O expansion modules?
A: The 5VDC/1A output supports the standard VersaMax Micro base I/O complement. For expanded I/O configurations, verify total backplane current draw against the 1A limit in the GE Fanuc VersaMax Micro System Manual (GFK-1645).
Q: Do you provide NCNR (Non-Cancellable, Non-Returnable) terms for project orders?
A: Yes. For project-specific procurement with confirmed quantities, NCNR pricing with extended lead time commitments is available. Contact our sales team for a formal quotation.
