Industrial Control Power Solution — SIEMENS 6ES7307-1BA01-0AA0 | PS307 Series
Where This Product Is Used

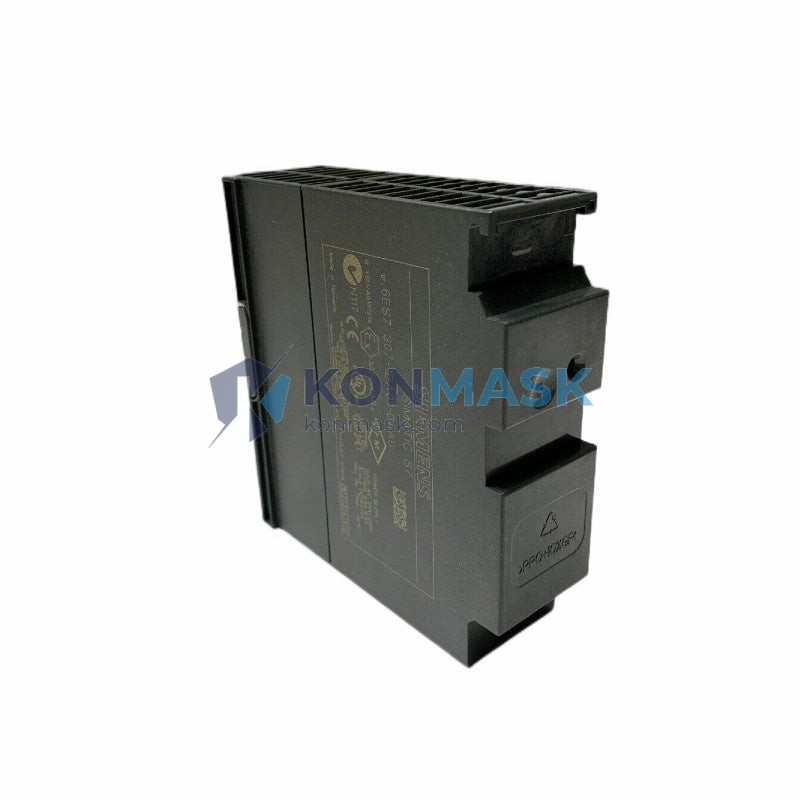

The SIEMENS 6ES7307-1BA01-0AA0 PS307 Power Supply is purpose-built for powering SIMATIC S7-300 PLC racks in demanding industrial environments. Engineers specify this unit across a wide range of applications:
- Automotive Assembly Lines — Provides stable 24 VDC bus power to S7-300 CPUs and I/O modules on high-cycle body-shop and paint-shop lines where voltage transients can corrupt process data.
- Water & Wastewater Treatment Plants — Delivers continuous, regulated power to SCADA-connected PLCs managing pump stations, dosing systems, and filtration control loops.
- Pharmaceutical Manufacturing — Supports GMP-compliant control panels where power quality directly affects batch-record integrity and FDA audit readiness.
- Food & Beverage Processing — Powers S7-300 racks in washdown-rated enclosures controlling conveyor drives, filling machines, and CIP systems.
- Building Automation & HVAC — Feeds PLC-based BMS controllers managing chiller plants, AHUs, and energy metering in commercial facilities.
- Machine Tool & CNC Centers — Supplies logic-level power to S7-300 motion-control racks coordinating servo drives and spindle feedback.
- Oil & Gas Wellhead / Skid Control — Used in hazardous-area control panels (with appropriate enclosure rating) for remote monitoring and shutdown logic.

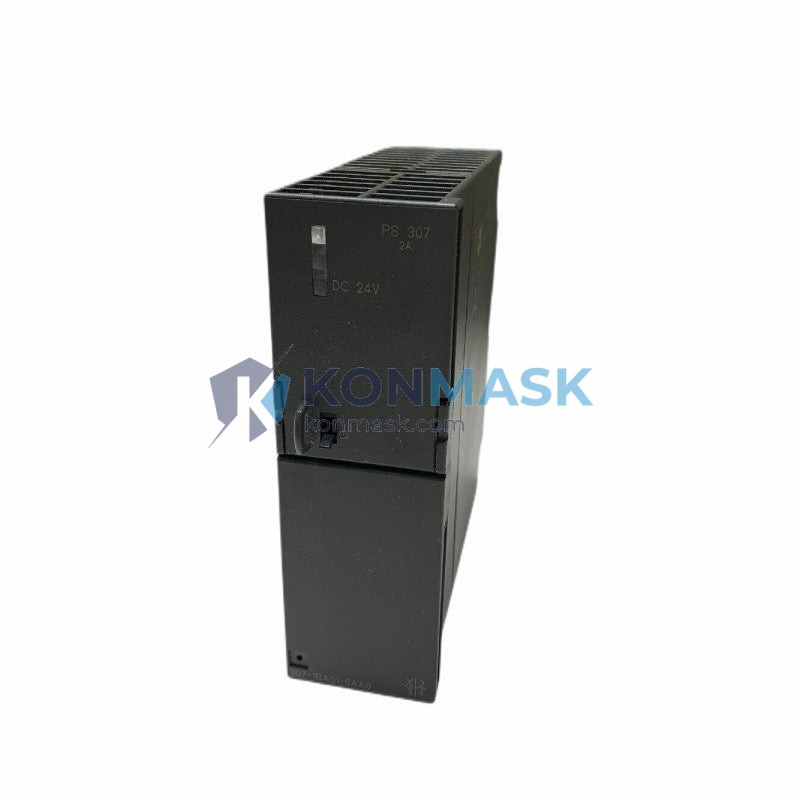

Technical Specifications
| Part Number | 6ES7307-1BA01-0AA0 |
| Series | SIMATIC S7-300 PS307 |
| Input Voltage | 120 / 230 VAC (wide-range), 50/60 Hz |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 2 A |
| Output Power | 48 W |
| Mounting | S7-300 DIN rail (35 mm), slots directly onto S7-300 rack |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Dimensions (W×H×D) | 50 × 125 × 120 mm |
| Weight | approx. 300 g |
| Approvals | CE, UL, cUL, FM |
Why Engineers Specify This Model
- Plug-and-Play Rack Integration — Mechanically and electrically mates with the S7-300 backplane; no external wiring harness required for bus power.
- Wide-Range AC Input — Accepts 120 VAC (North America) and 230 VAC (Europe/Asia) without manual switching, simplifying global machine builds.
- Short-Circuit & Overload Protection — Built-in electronic protection prevents cascade failures across the PLC rack during fault conditions.
- Compact 50 mm Width — Minimises rack footprint, preserving slots for additional I/O or communication modules.
- Long Production Lifecycle — Siemens SIMATIC S7-300 components maintain extended availability and spare-parts support, reducing lifecycle risk for installed base.

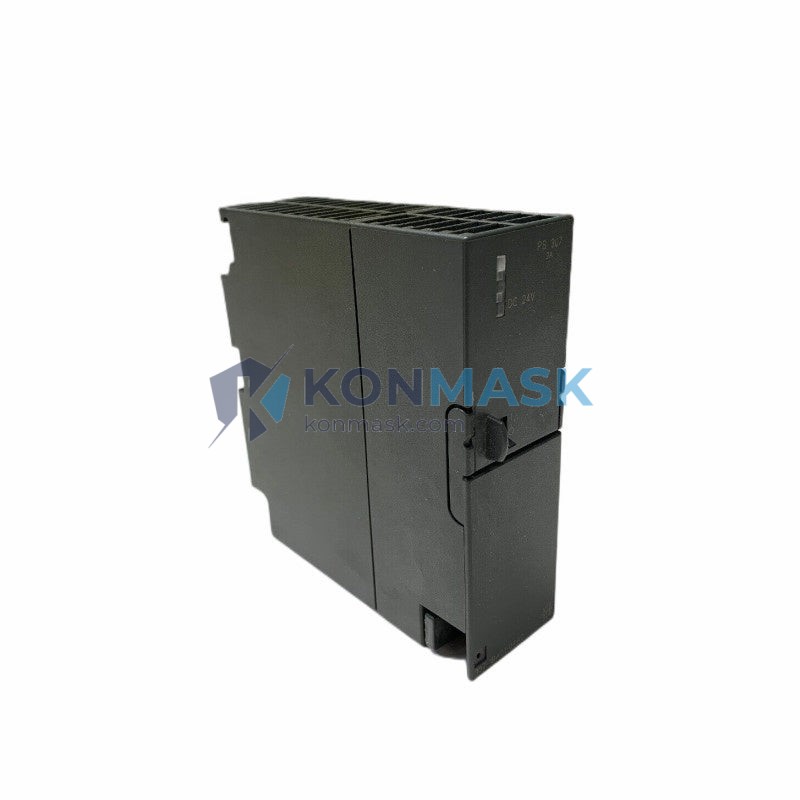

- Diagnostic LED — Green DC-OK indicator provides at-a-glance power status without requiring a multimeter or HMI access.
Complete System Bill of Materials
For a fully operational SIMATIC S7-300 control node, the following components are typically specified alongside the 6ES7307-1BA01-0AA0:
- S7-300 Rack (e.g. 6ES7390-1AE80-0AA0) — DIN-rail mounting frame
- S7-300 CPU (e.g. 6ES7314-1AG14-0AB0 CPU 314) — Central processing unit
- Digital Input Module (e.g. 6ES7321-1BH02-0AA0 SM321) — 16× 24 VDC DI
- Digital Output Module (e.g. 6ES7322-1BH01-0AA0 SM322) — 16× 24 VDC DO
- Analog Input Module (e.g. 6ES7331-7KF02-0AB0 SM331) — 8× AI for process signals
- PROFIBUS DP Master (e.g. 6GK7343-1EX30-0XE0 CP343-1) — Ethernet connectivity
- Front Connector (e.g. 6ES7392-1AM00-0AA0) — Screw-type field wiring connector
Compliance & Industry Standards
- CE Marking — Conforms to EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU.
- UL / cUL Listed — Certified to UL 508 (Industrial Control Equipment) for North American installations.
- FM Approved — Factory Mutual approval for use in applicable hazardous-location control systems.
- IEC 61131-2 — Compliant with programmable controller hardware requirements.
- RoHS Compliant — Meets EU Directive 2011/65/EU on restriction of hazardous substances.
Quality Assurance & Sourcing
- All units sourced from authorised distribution channels or verified surplus with full traceability documentation.
- Pre-shipment functional test: output voltage verification at no-load and full-load conditions.
- Visual inspection for label integrity, connector condition, and housing damage prior to dispatch.
- Packaging: anti-static bag + foam-lined carton; original Siemens packaging preserved where available.
- Batch records and test reports available upon request for MRO and OEM procurement teams.
How to Source This Part
Konmask.com maintains stock of the 6ES7307-1BA01-0AA0 for immediate dispatch. To place an order or request a quotation:
- Online: Add to cart directly on this page and proceed to checkout.
- Email RFQ: support@konmask.com — include quantity, required delivery date, and project reference.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Bulk / OEM Orders: Volume pricing available for orders of 5+ units. Contact us for a tiered quote.
Application-Specific FAQ
Q: Can the 6ES7307-1BA01-0AA0 power both the S7-300 CPU and field devices simultaneously?
A: The PS307 2A supplies 24 VDC to the S7-300 backplane bus. Field devices (sensors, actuators) requiring 24 VDC should be powered from a separate dedicated PSU to avoid overloading the 2 A output and to maintain electrical isolation between control and field circuits.
Q: What is the difference between 6ES7307-1BA01-0AA0 and 6ES7307-1EA01-0AA0?
A: The -1BA01 variant provides 2 A / 48 W output, while the -1EA01 provides 5 A / 120 W. Select the 5 A model when powering larger racks with multiple I/O modules or when field devices are powered from the same supply.
Q: Is this power supply compatible with S7-400 or S7-1500 racks?
A: No. The PS307 is mechanically and electrically designed exclusively for the S7-300 rack system. S7-400 requires PS407 series; S7-1500 uses PM70/PM190 system power modules.
Q: Can I use this unit in a UL 508A-certified control panel?
A: Yes. The 6ES7307-1BA01-0AA0 carries UL/cUL listing under UL 508, making it suitable for inclusion in UL 508A industrial control panels in North America.
Q: What is the typical lead time for this part?
A: In-stock units ship within 1–2 business days. For out-of-stock situations, typical lead time is 5–15 business days depending on sourcing channel. Contact us for real-time availability.
