GE IC695CPE310 Central Processing Unit – High-Performance RX3i Controller | PACSystems RX3i Platform
Engineering Background
The GE IC695CPE310 is a flagship Central Processing Unit within GE’s PACSystems RX3i automation platform — a successor architecture to the Series 90-30 and Series 90-70 families. Designed for demanding industrial environments, the RX3i backplane leverages a high-speed PCI bus (up to 200 MB/s) to deliver deterministic scan times and seamless I/O expansion. The CPE310 represents GE’s commitment to open-architecture control: it runs standard IEC 61131-3 programming languages and integrates natively with Proficy Machine Edition (PME) software.
Product Positioning
The IC695CPE310 targets mid-to-large scale process and discrete manufacturing applications where high memory capacity, dual-port Ethernet connectivity, and backward compatibility with legacy GE I/O are non-negotiable. It is the preferred CPU for engineers migrating from Series 90-70 systems while retaining existing field wiring and I/O modules.
Complete Technical Specifications
- Part Number: IC695CPE310
- Platform: PACSystems RX3i
- User Memory: 10 MB (program + data combined)
- Backplane Bus: PCI (up to 200 MB/s throughput)
- Ethernet Ports: 2 × 10/100 Mbps RJ-45 (embedded, independent)
- Programming Port: USB Type-B (direct PC connection, no adapter required)
- Serial Port: RS-232 (Port 1, configurable for SNP/SNPX/RTU)
- Supported Languages: Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), Sequential Function Chart (SFC) — IEC 61131-3 compliant
- Scan Time: < 1 ms/K boolean (typical)
- Max I/O Modules per Backplane: Up to 12 modules per main rack
- Max Expansion Racks: 7 (via RX3i expansion backplanes)
- Power Supply Compatibility: IC695PSA040 / IC695PSD040 / IC695PSA140
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 60068-2-6 compliant
- Shock: IEC 60068-2-27 compliant
- Agency Approvals: UL, CE, cUL
- Module Slot: Occupies 1 slot in RX3i main rack (IC695CHS012 / IC695CHS016)
- Weight: Approx. 660 g
- Firmware: Field-upgradeable via USB or Ethernet
Proven Application Environments
- Oil & Gas: Pipeline SCADA, compressor control, wellhead automation
- Power Generation: Turbine sequencing, BOP control, substation automation
- Water & Wastewater: Pump station control, SCADA integration, remote telemetry
- Automotive Manufacturing: Assembly line control, robotic cell coordination, conveyor systems
- Chemical Processing: Batch control, reactor management, safety interlock systems
- Food & Beverage: CIP/SIP sequencing, filling line control, packaging automation
- Pulp & Paper: Drive coordination, process variable control, DCS integration
Engineering Advantages
- Dual Independent Ethernet: Separate ports for HMI/SCADA traffic and peer-to-peer CPU communication — eliminates network bottlenecks and supports redundant network topologies.
- 10 MB Unified Memory: Single memory pool for program logic and data tables eliminates the fragmentation issues common in older GE CPU architectures.
- USB Programming Port: Direct laptop connection without a serial adapter — accelerates commissioning and on-site troubleshooting.
- Backward I/O Compatibility: Accepts legacy Series 90-30 I/O modules via IC694 adapter, protecting existing field wiring investments.
- Hot-Standby Redundancy Ready: Supports CPU redundancy configurations with IC695RMX128 redundancy memory xchange module.
- IEC 61131-3 Multi-Language: Engineers can mix LD, FBD, ST, and SFC within a single project — maximizing code reuse and team flexibility.
- Proficy Machine Edition Integration: Full support for online editing, force tables, data logging, and motion coordination within PME.
System Architecture & Signal Flow
The IC695CPE310 occupies Slot 0 of the RX3i main backplane. On power-up, the CPU performs a self-diagnostic sweep, initializes the PCI bus, and establishes Ethernet link states before entering RUN mode. Program execution follows a deterministic scan cycle:
- Input Scan: All discrete and analog input values are read from I/O modules into the CPU’s input image table.
- Logic Solve: The user program executes sequentially (or in task-scheduled blocks for SFC/FBD).
- Output Scan: Solved output values are written from the output image table to I/O modules.
- Communications Window: Ethernet, serial, and backplane communication requests are serviced.
- Housekeeping: Diagnostics, watchdog timer reset, and memory integrity checks.
Ethernet Port 1 is typically assigned to the plant LAN (SCADA/HMI), while Ethernet Port 2 is used for CPU-to-CPU peer communications or isolated programming network — both operate independently with separate IP addresses.
Sourcing & Quality Verification
- Source: Sourced from authorized distributors, decommissioned OEM lines, and verified surplus channels.
- Inspection Protocol: Each unit undergoes visual inspection (PCB, connectors, label integrity), power-on self-test (POST) verification, and firmware version confirmation before shipment.

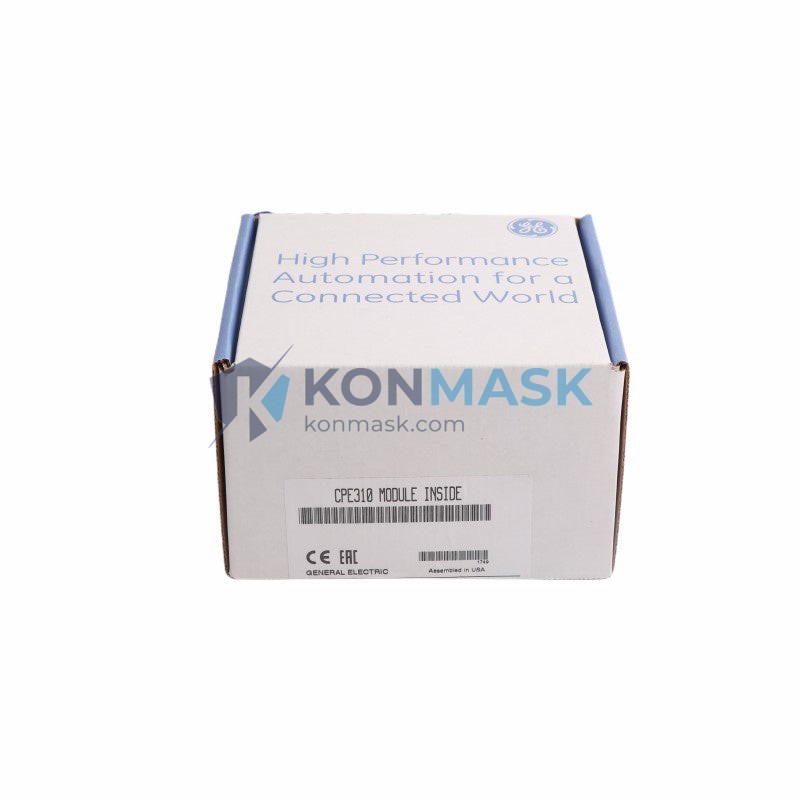

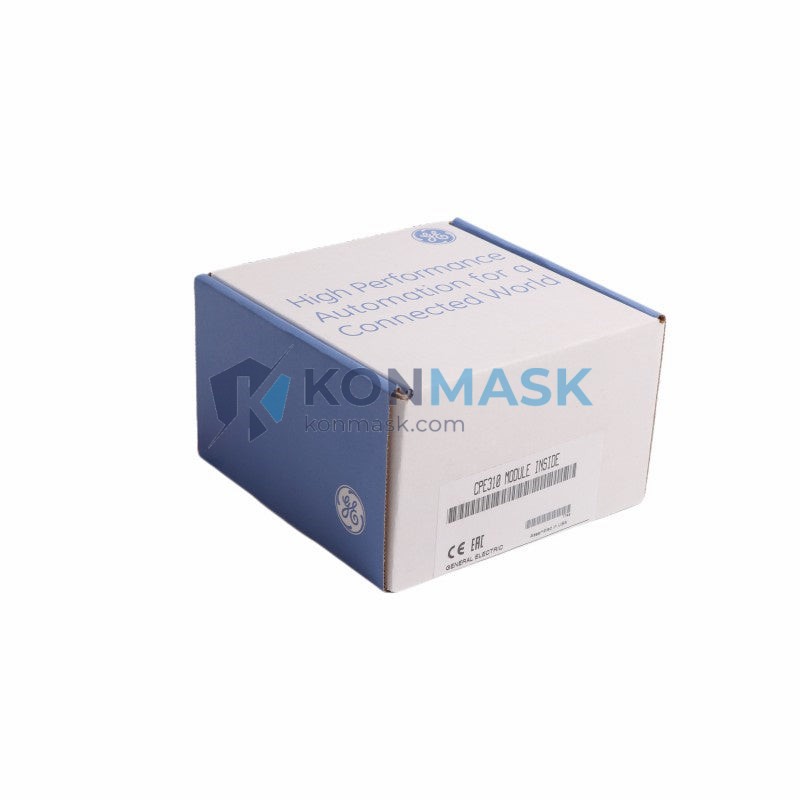

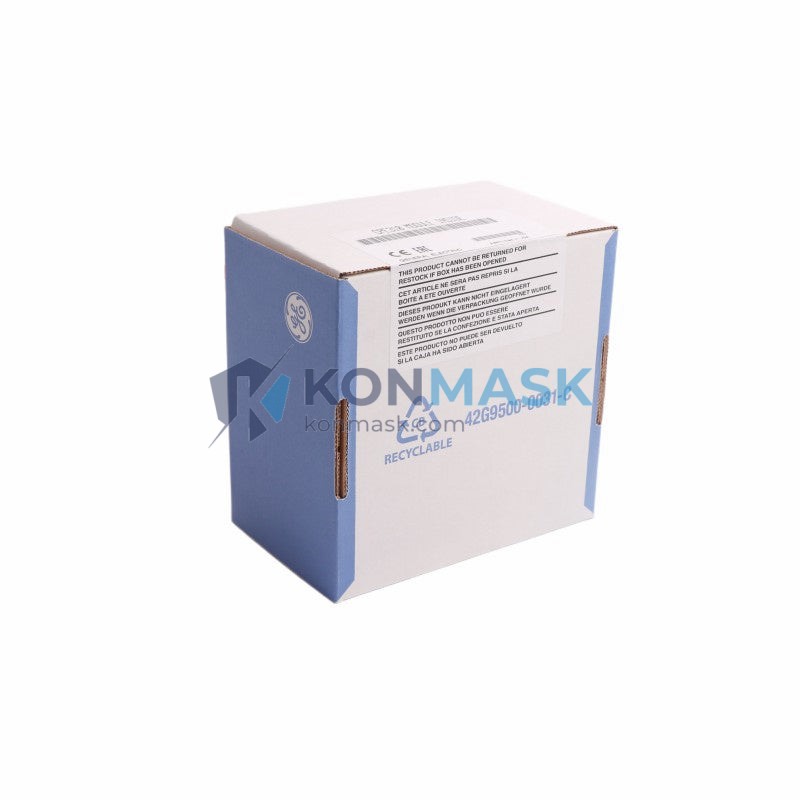

- Condition: New surplus (factory-sealed) or refurbished (tested, cleaned, re-labeled) — condition specified at time of order confirmation.
- Warranty: 12-month functional warranty against defects in materials and workmanship.
- Counterfeit Prevention: All units verified against GE Fanuc serial number databases where applicable. Suspicious units are quarantined and not listed.
Procurement Process
- Inquiry: Submit your RFQ via the product page or email support@konmask.com with quantity, required condition, and delivery timeline.
- Quote: We respond within 1 business day with pricing, lead time, and stock confirmation.
- Order Confirmation: Purchase order or online checkout accepted. Proforma invoice issued for wire transfer payments.
- Pre-Shipment Inspection: Unit tested and photographed. Inspection report available on request.
- Shipping: DHL / FedEx / UPS express worldwide. Export documentation (commercial invoice, packing list, COO) included. HS Code: 8537.10.
- After-Sales: Technical support available via email and WhatsApp. Replacement or refund processed within warranty period per our policy.
Technical FAQ
Q: Is the IC695CPE310 compatible with Series 90-30 I/O modules?
A: Yes, via the IC694ALG220 or equivalent adapter modules that allow Series 90-30 I/O to mount in RX3i expansion racks.
Q: Can I use both Ethernet ports simultaneously?
A: Yes. Both ports are independent with separate IP addresses and MAC addresses. They can be on different subnets simultaneously.
Q: What programming software is required?
A: GE Proficy Machine Edition (PME) version 8.0 or later is recommended. The USB port enables direct connection without a serial-to-USB adapter.
Q: Does this CPU support CPU redundancy?
A: Yes, when paired with the IC695RMX128 Redundancy Memory Xchange module and a redundant power supply configuration.
Q: What is the maximum number of I/O points supported?
A: The RX3i system supports up to 8,192 discrete I/O points and 2,048 analog I/O channels across all racks.
Q: Is firmware upgrade possible in the field?
A: Yes. Firmware can be updated via USB or Ethernet using PME’s firmware upgrade utility without removing the module from the rack.
Q: What happens to the program if power is lost?
A: The IC695CPE310 uses non-volatile flash memory to retain the user program. A supercapacitor maintains RAM data (timers, counters, retentive registers) for a limited period during power loss.
