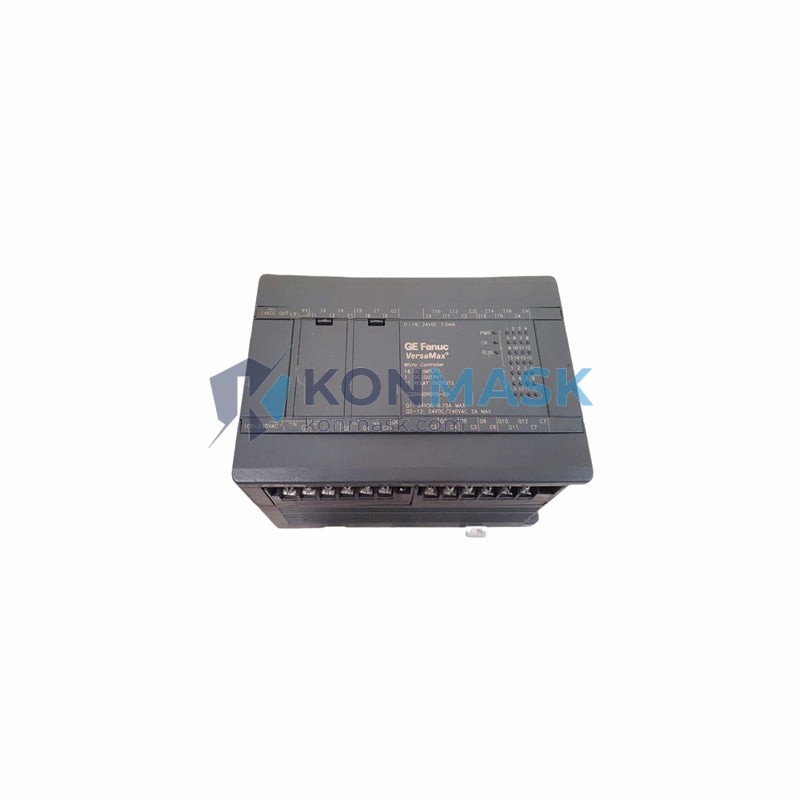

GE IC200UDR005-CH VersaMax Micro PLC – 14-Point Relay Output Controller | VersaMax Micro Platform
Engineering Background
The GE IC200UDR005-CH is a compact, high-reliability programmable logic controller from GE’s VersaMax Micro series — a platform engineered specifically for machine-level automation in demanding industrial environments. Designed to replace legacy relay logic and standalone controllers, the VersaMax Micro platform delivers enterprise-grade control in a DIN-rail-mountable form factor, making it the preferred choice for OEM machine builders and system integrators across discrete manufacturing, process control, and infrastructure sectors.
Product Positioning
The IC200UDR005-CH targets procurement engineers and automation specialists who require a proven, field-hardened PLC with relay output capability, AC power input, and seamless integration into GE Proficy Machine Edition programming environments. As an authorized distributor and quality-verification partner, Konmask.com supplies this module with full traceability documentation, ensuring compliance with industrial procurement standards.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | IC200UDR005-CH |
| Manufacturer | GE (General Electric) / GE Automation & Controls |
| Product Series | VersaMax Micro PLC |
| Form Factor | Standalone Micro PLC (All-in-One) |
| Power Supply Input | 120/240 VAC, 50/60 Hz |
| Digital Inputs | 8 × DC Inputs (24 VDC, sink/source) |
| Digital Outputs | 6 × Relay Outputs (Form A, SPST-NO) |
| Total I/O Points | 14 Points (8 DI + 6 DO) |
| Output Type | Relay (dry contact), 2A per point |
| Output Voltage Range | 5–250 VAC / 5–30 VDC |
| Communication Port | RS-232 Serial (SNP/SNP-X protocol) |
| Programming Software | GE Proficy Machine Edition (ME) |
| Programming Languages | Ladder Diagram (LD), Instruction List (IL) |
| Memory | Program: 4 KB; Data: 2 KB |
| Scan Time | ~0.8 ms/K (typical) |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Mounting | DIN Rail (EN 50022) or Panel Mount |
| Dimensions (W×H×D) | Approx. 130 × 90 × 70 mm |
| Weight | 1,340 g (approx.) |
| Protection Rating | IP20 |
| Certifications | UL Listed, CE Marked, RoHS Compliant |
| Country of Origin | USA / China (CH suffix = China production) |
Proven Application Environments
- Discrete Manufacturing: Assembly line sequencing, conveyor control, pick-and-place machine coordination
- Building Automation: HVAC control panels, pump station management, lighting control systems
- Water & Wastewater: Pump control, valve sequencing, level monitoring with relay-driven actuators
- Food & Beverage: Packaging line control, batch processing, sanitary environment relay switching
- OEM Machine Control: Standalone machine controllers requiring AC power input and relay outputs
- Infrastructure & Utilities: Substation auxiliary control, generator management, transfer switch automation
Engineering Advantages
- AC Power Input: Direct 120/240 VAC connection eliminates external DC power supply — reduces panel BOM cost and wiring complexity
- Relay Output Versatility: Dry-contact relay outputs switch both AC and DC loads up to 250 VAC / 30 VDC, ideal for solenoids, contactors, and indicator lamps
- Compact All-in-One Design: Integrated CPU, I/O, and power supply in a single housing — minimizes panel footprint and simplifies installation
- GE Proficy ME Compatibility: Full integration with GE’s Proficy Machine Edition IDE — supports online monitoring, forced I/O, and program upload/download
- Proven Field Reliability: VersaMax Micro platform has 20+ years of global deployment across thousands of industrial installations
- DIN Rail Mounting: Standard EN 50022 DIN rail compatibility ensures rapid panel integration and serviceability
- -CH Suffix Traceability: China-production suffix provides clear supply chain documentation for procurement compliance
System Architecture & Signal Flow
The IC200UDR005-CH operates as a self-contained control node. The 120/240 VAC power supply feeds the internal CPU and I/O bus. Eight 24 VDC digital inputs (sink/source configurable) capture field signals from sensors, pushbuttons, and limit switches. The CPU executes the ladder logic program and drives six relay output coils. Each relay output provides an isolated dry contact rated at 2A, capable of switching AC or DC loads independently of the PLC’s internal logic voltage. The RS-232 port connects to a programming terminal running GE Proficy Machine Edition for program development, upload/download, and live diagnostics.
Signal Flow Summary: Field Sensors → 24 VDC Digital Inputs → CPU Scan (Ladder Logic) → Relay Output Coils → Field Actuators / Loads
Sourcing & Quality Verification
- Source Traceability: All IC200UDR005-CH units supplied by Konmask.com are sourced from verified industrial distributors and authorized supply chain partners
- Incoming Inspection: Each unit undergoes visual inspection, label verification (part number, date code, country of origin), and functional power-on testing prior to shipment
- Counterfeit Prevention: We cross-reference manufacturer markings, PCB revision codes, and holographic labels against GE’s authentic product database
- Documentation Package: Certificate of conformance, test report, and packing list available upon request for regulated procurement environments
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 30 days of receipt
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline via email or the contact form below
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Confirm purchase order; payment via T/T bank transfer, PayPal, or credit card
- Quality Check: Pre-shipment inspection completed; photos and test report provided upon request
- Shipment: Ships via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support: Technical support available via email for installation, programming, and integration questions
Technical FAQ
Q: What is the difference between IC200UDR005 and IC200UDR005-CH?
A: The “-CH” suffix denotes the China-production variant of the IC200UDR005. Functionally and electrically identical to the standard version; the suffix indicates manufacturing origin for supply chain documentation purposes.
Q: Can the IC200UDR005-CH expand its I/O?
A: The VersaMax Micro standalone units do not support external I/O expansion modules. For expandable I/O, consider the GE VersaMax Nano or VersaMax standard platform with IC200 expansion modules.
Q: What programming cable is required?
A: A standard RS-232 serial cable (or USB-to-RS232 adapter) connecting to the front-panel serial port, used with GE Proficy Machine Edition software.
Q: Is this module compatible with GE PACSystems?
A: No. The IC200UDR005-CH is a VersaMax Micro standalone PLC and is not compatible with the PACSystems RX3i or RSTi-EP backplane architecture. It operates as an independent controller.
Q: What is the maximum relay output load?
A: Each relay output is rated at 2A resistive at 250 VAC or 30 VDC. For inductive loads (motors, solenoids), apply a derating factor and use appropriate surge suppression (MOV or RC snubber).
Q: Do you provide programming support?
A: Yes. Konmask.com offers basic programming consultation and can connect you with GE-certified automation engineers for complex application support.
