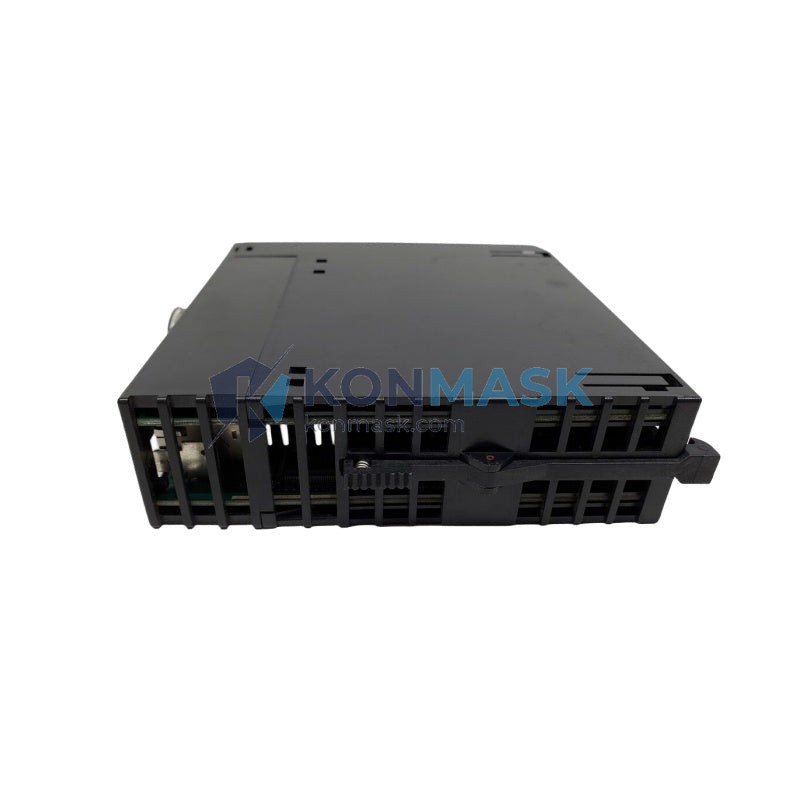

GE IC693CPU374-KZ – High-Performance CPU Module | Series 90-30 PLC Platform
Engineering Background: The GE Fanuc Series 90-30 platform has been a cornerstone of industrial automation since the early 1990s, deployed across power generation, oil & gas, water treatment, and discrete manufacturing. The IC693CPU374-KZ represents the advanced tier of this proven architecture, delivering expanded memory and enhanced communication capability for demanding process environments.
Product Positioning: Designed for procurement engineers and system integrators who require a drop-in replacement or capacity upgrade for existing Series 90-30 racks. The IC693CPU374-KZ supports up to 2,048 discrete I/O points and 512 analog I/O channels, making it suitable for mid-to-large scale control architectures without requiring a full platform migration.
Complete Technical Specifications
- Part Number: IC693CPU374-KZ
- Manufacturer: GE Fanuc (now Emerson / Proficy)
- Platform: Series 90-30 PLC
- CPU Type: 32-bit RISC Processor
- User Memory: 512 KB (program + data)
- Maximum Discrete I/O: 2,048 points
- Maximum Analog I/O: 512 channels
- Communication Ports: RS-232 (Port 1), RS-485/RS-232 (Port 2), Ethernet TCP/IP (built-in)
- Ethernet Protocol: SRTP, Modbus TCP, EGD (Ethernet Global Data)
- Scan Time: ~0.6 ms/K boolean logic
- Power Supply Requirement: 5 VDC via backplane (Series 90-30 rack)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Certifications: UL, CE, CSA
- Form Factor: Single-slot CPU module for Series 90-30 5/10-slot rack
- Weight: 1,570 g (approx.)
- Country of Origin: United States
Proven Application Environments
- Power Generation & Utilities: Turbine control, load management, substation automation
- Oil & Gas: Pipeline monitoring, compressor control, SCADA integration
- Water & Wastewater Treatment: Pump sequencing, chemical dosing, remote telemetry
- Discrete Manufacturing: Assembly line control, conveyor systems, robotic cell coordination
- Building Automation: HVAC control, energy management, access systems
- Food & Beverage: Batch processing, CIP (Clean-in-Place) sequencing
Engineering Advantages
- Backward Compatibility: Fully compatible with all Series 90-30 I/O modules, racks, and power supplies — no hardware redesign required for upgrades
- Dual Serial Ports: Simultaneous HMI and programming device connectivity without additional communication modules
- Embedded Ethernet: Native SRTP and Modbus TCP eliminates the need for a separate Ethernet Interface Module (EIM) in most topologies
- EGD Support: Peer-to-peer data exchange with other GE PLCs and SCADA systems at deterministic rates
- Flash Memory: Program stored in non-volatile flash — retains logic through power cycles without battery dependency for program storage
- Hot-Swap Ready: Supports module replacement procedures per GE Fanuc maintenance guidelines to minimize downtime
System Architecture & Signal Flow
The IC693CPU374-KZ occupies Slot 1 of any Series 90-30 5-slot or 10-slot rack. The CPU communicates with I/O modules via the backplane bus at high speed. The embedded Ethernet port connects directly to plant LAN or SCADA network. Serial Port 1 (RS-232) is typically used for local HMI or programming via Proficy Machine Edition. Serial Port 2 supports RS-485 multi-drop for remote I/O or third-party device integration. The EGD producer/consumer model allows real-time data sharing across multiple PLCs without polling overhead.
Sourcing & Quality Verification
- Source: Authorized distributor stock and verified surplus channels
- Inspection: Each unit undergoes visual inspection, firmware version verification, and functional power-on test prior to shipment
- Condition: New OEM or factory-refurbished with full traceability documentation available on request
- Warranty: 12-month replacement warranty against manufacturing defects
- Counterfeit Prevention: All units sourced with verifiable lot codes and date codes; third-party authentication available for critical applications
Procurement Process
- Step 1: Confirm your Series 90-30 rack model and current CPU slot configuration
- Step 2: Verify firmware compatibility with your existing I/O modules (GE Fanuc compatibility matrix available on request)
- Step 3: Submit your PO or RFQ to support@konmask.com with quantity and required delivery date
- Step 4: Receive proforma invoice, confirm payment, and track shipment via provided AWB
- Step 5: Receive unit with inspection report and test certificate
Technical FAQ
Q: Is the IC693CPU374-KZ compatible with IC693CPU374 (without -KZ suffix)?
A: The -KZ suffix denotes a specific hardware revision. Functionally equivalent for most applications, but verify firmware version compatibility with your Proficy Machine Edition version before substitution.
Q: Does this CPU require a battery for program retention?
A: Program logic is stored in non-volatile flash memory and does not require a battery. A battery (IC693ACC302) is recommended for retaining real-time clock data and certain register values during extended power loss.
Q: Can I use this CPU with a Series 90-70 rack?
A: No. The IC693CPU374-KZ is exclusively compatible with Series 90-30 racks. It is not interchangeable with Series 90-70 (IC697 series) hardware.
Q: What programming software is required?
A: GE Proficy Machine Edition (Logic Developer – PLC) is the current supported programming environment. Legacy Logicmaster 90-30 software is also compatible for older program formats.
Q: What is the lead time for in-stock units?
A: In-stock units typically ship within 1–3 business days. Express DHL/FedEx options available for urgent requirements.
