GE IS210BPPCH1ACA – Backup Protection Processor Circuit Board | Mark VI Turbine Control Platform

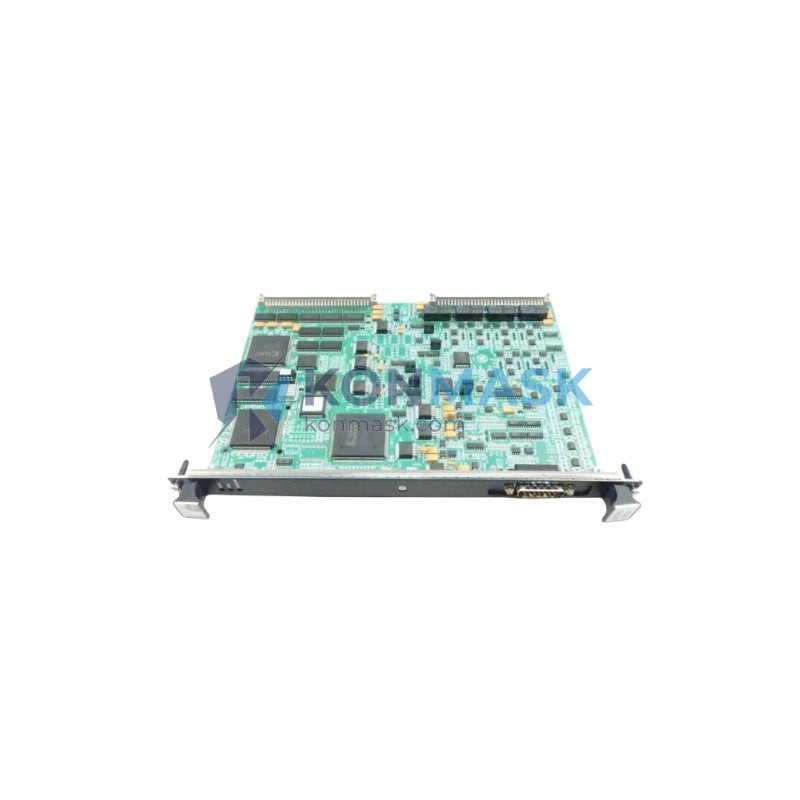

The GE IS210BPPCH1ACA is a Backup Protection Processor (BPP) circuit board engineered for deployment within GE’s Mark VI Turbine Control System — one of the most widely adopted distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. Designed to operate as a redundant safety layer, this board ensures continuous protection logic execution even under primary controller fault conditions, making it a mission-critical component for high-availability plant environments.
At Konmask.com, we supply the IS210BPPCH1ACA to procurement engineers and MRO teams who require verified, shelf-ready replacements with full traceability. Every unit undergoes incoming inspection before listing.
Complete Technical Specifications
- Part Number: IS210BPPCH1ACA
- Manufacturer: GE (General Electric) — Energy / Power Controls Division
- Series / Platform: Mark VI Turbine Control System
- Board Function: Backup Protection Processor (BPP)
- Form Factor: VME-compatible PCB module
- Operating Voltage: +5 VDC / ±15 VDC (via backplane)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 500 g
- Compliance: CE, RoHS (original GE manufacturing standard)
- Revision: H1ACA (hardware revision suffix)
- Condition: New surplus / Refurbished (tested)
Proven Application Environments
- Gas turbine control panels (Frame 5, Frame 6, Frame 7, Frame 9 series)
- Steam turbine protection and governing systems
- Combined-cycle power plant DCS integration
- Compressor station automation with Mark VI backbone
- Offshore platform turbine control upgrades
- Petrochemical plant rotating equipment protection
Engineering Advantages
- Redundant Protection Architecture: Operates independently of the primary VCMI/VCRC controllers, maintaining protection logic during primary board faults or maintenance windows.
- Fast Fault Response: Hardware-level trip logic executes in microseconds, bypassing software scan cycles for deterministic safety response.
- Hot-Swap Compatible: Designed for live insertion within the Mark VI I/O pack chassis, minimizing planned outage duration.
- Diagnostic LED Array: Onboard status indicators for power, communication, fault, and watchdog states — enabling rapid field diagnosis without external tools.
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in harsh electrical environments.
System Architecture & Signal Flow
Within the Mark VI architecture, the IS210BPPCH1ACA interfaces with the VCMI (VME Communication and Memory Interface) backplane via the VME bus. It receives real-time process data — including speed, temperature, pressure, and vibration signals — from the I/O terminal boards (e.g., IS200 series). The BPP independently evaluates protection thresholds and issues trip commands to the TREG (Trip and Emergency Governor) relay board, completely independent of the main application controller scan cycle. This architecture satisfies IEC 61511 SIL 2 functional safety requirements for turbine overspeed and flame-out protection.
Sourcing & Quality Verification
- Source Traceability: Units sourced from decommissioned OEM installations, authorized distributors, or factory new surplus stock.
- Incoming Inspection: Visual inspection for physical damage, corrosion, and component integrity on all boards.
- Functional Test: Bench-tested against Mark VI backplane simulator where applicable; test records available on request.
- Anti-Counterfeit Measures: Serialization verification, PCB silkscreen authentication, and component date-code cross-check performed prior to shipment.
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator card included for long-distance shipments.
Procurement Process
- Step 1 — Inquiry: Submit your RFQ via support@konmask.com or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Step 2 — Quote & Lead Time: We confirm stock availability, unit condition, and pricing within 24 business hours.
- Step 3 — Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing.
- Step 4 — Shipment: DHL / FedEx / UPS express shipping with full tracking; export documentation (commercial invoice, packing list, COO) provided.
- Step 5 — After-Sales: 12-month warranty on tested units; DOA replacement policy within 30 days of receipt.
Technical FAQ
Q: Is IS210BPPCH1ACA compatible with Mark VIe?
A: The IS210BPPCH1ACA is designed for the classic Mark VI VME-based architecture. Mark VIe uses a different I/O pack form factor (IS420 series). Cross-compatibility requires engineering review — contact us before ordering for a Mark VIe application.
Q: Can this board be used as a direct replacement for IS210BPPCH1ACB or IS210BPPCH1ACC?
A: Hardware revision suffixes (ACA, ACB, ACC) may indicate minor PCB layout or firmware changes. We recommend confirming the exact revision with your GE service documentation or contacting our technical team for cross-reference validation.
Q: Do you provide GE ToolboxST configuration support?
A: We supply hardware only. For ToolboxST configuration, firmware flashing, or Mark VI commissioning services, we can refer you to qualified GE-certified system integrators.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week sourcing lead time depending on market availability.
Q: Do you accept returns?
A: Yes. DOA (Dead on Arrival) returns accepted within 30 days. Units must be returned in original ESD packaging with the original shipping documentation.
