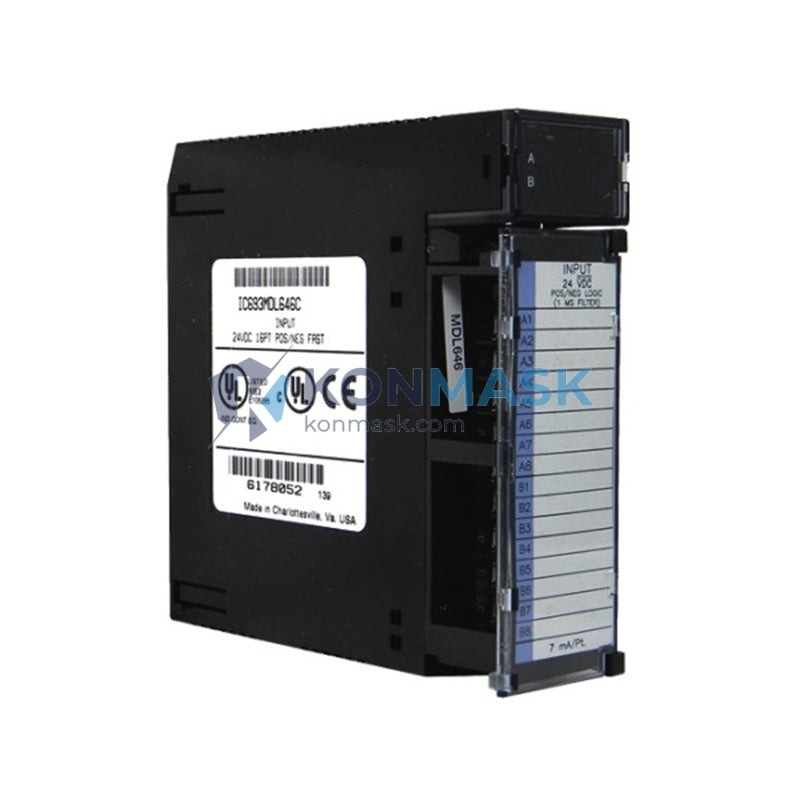

GE IC693MDL646 – 32-Point 24VDC Discrete Input Module | Series 90-30 PLC Platform
Engineering Background
The IC693MDL646 is a high-density discrete input module designed for GE’s Series 90-30 programmable logic controller platform — one of the most widely deployed mid-range PLC families in North American and global industrial automation. Engineered to handle the demanding signal environments of factory floors, process plants, and infrastructure facilities, this module delivers reliable 24VDC digital input acquisition across 32 isolated channels.
Product Positioning
Targeting control engineers who require dense, cost-effective I/O expansion without sacrificing signal integrity, the IC693MDL646 slots directly into any Series 90-30 baseplate and is recognized natively by GE Proficy Machine Edition. It is the preferred choice for machine builders and system integrators upgrading legacy GE automation architectures or expanding existing 90-30 installations.
Complete Technical Specifications
- Part Number: IC693MDL646
- Manufacturer: GE Automation & Controls (General Electric)
- Platform: Series 90-30 PLC
- Module Type: Discrete Input Module
- Number of Input Points: 32 points
- Input Voltage: 24VDC
- Input Current (per point): ~7 mA @ 24VDC nominal
- ON-State Voltage Range: 15–30 VDC
- OFF-State Voltage Range: 0–5 VDC
- Input Impedance: ~3.3 kΩ
- Isolation: Optical isolation between field and backplane
- Response Time: ≤ 1 ms (hardware filter)
- Backplane Current Consumption: 120 mA @ 5VDC
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5–95% non-condensing
- Mounting: Series 90-30 baseplate (5-slot, 10-slot compatible)
- Wiring: Removable terminal block (field-side)
- Dimensions (W × H × D): ~25 mm × 175 mm × 130 mm
- Weight: ~300 g
- Certifications: UL Listed, CE Marked, cUL
- Country of Origin: USA
Proven Application Environments
- Automotive assembly line discrete signal acquisition (pushbuttons, limit switches, proximity sensors)
- Food & beverage packaging machinery — wash-down adjacent control panels
- Water/wastewater treatment plant SCADA I/O expansion
- Oil & gas upstream/midstream field instrument interfacing
- Building automation and HVAC control systems
- Power generation and substation auxiliary control
- Material handling conveyors and sortation systems
Engineering Advantages
- High Channel Density: 32 points per slot maximizes I/O count within a compact baseplate footprint, reducing panel space and wiring cost.
- Optical Isolation: Full galvanic isolation protects the CPU backplane from field-side transients, ground loops, and surge events.
- Hot-Swap Compatible: Removable terminal block allows field wiring to remain intact during module replacement, minimizing downtime.
- Native GE Integration: Recognized automatically by Proficy Machine Edition; no custom configuration blocks required.
- Wide Voltage Tolerance: ON-state threshold of 15–30VDC accommodates real-world 24VDC supply variations without false reads.
- Proven Longevity: Series 90-30 platform has 30+ years of installed base; spare parts and technical documentation are well-established.
System Architecture & Signal Flow
Field-side 24VDC signals enter through the removable terminal block (32 inputs + commons). Each input passes through an RC filter network and optical isolator before presenting a logic-level signal to the Series 90-30 backplane bus. The CPU reads all 32 points within a single I/O scan cycle. The module occupies one slot on any standard 90-30 baseplate (IC693CHS391, IC693CHS392, IC693CHS397, etc.) and is addressed automatically by the rack configuration in Proficy ME.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with documented chain of custody.
- Each module undergoes visual inspection, label verification (date code, revision level), and functional power-on test prior to shipment.
- Original GE firmware and hardware — no counterfeit risk. Serial number traceability available on request.
- Packaging: anti-static bag + foam-lined carton; ESD-safe handling throughout.
Procurement Process
- Confirm part number IC693MDL646 and required quantity with your project BOM.
- Submit inquiry or place order directly at Konmask.com.
- Receive order confirmation and lead-time estimate within 1 business day.
- Shipment via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) included for international orders.
- Post-delivery technical support available via email or phone.
Technical FAQ
Q: Is IC693MDL646 compatible with Series 90-30 CPU models IC693CPU374 and IC693CPU375?
A: Yes. The module is compatible with all Series 90-30 CPU variants and baseplates.
Q: Can this module be used in an expansion rack?
A: Yes, it operates in both main and expansion racks when connected via the IC693CBL300 or IC693CBL301 expansion cable.
Q: What is the maximum cable length from field device to terminal block?
A: GE recommends shielded cable up to 300 m (1,000 ft) for 24VDC discrete inputs; shield should be grounded at one end only.
Q: Does the module support diagnostics or fault reporting?
A: The IC693MDL646 is a standard (non-intelligent) discrete input module; it does not generate module-level fault codes. Input state is read directly by the CPU.
Q: What is the difference between IC693MDL645 and IC693MDL646?
A: IC693MDL645 is a 16-point 24VDC input module; IC693MDL646 doubles the channel count to 32 points in the same single-slot form factor.
