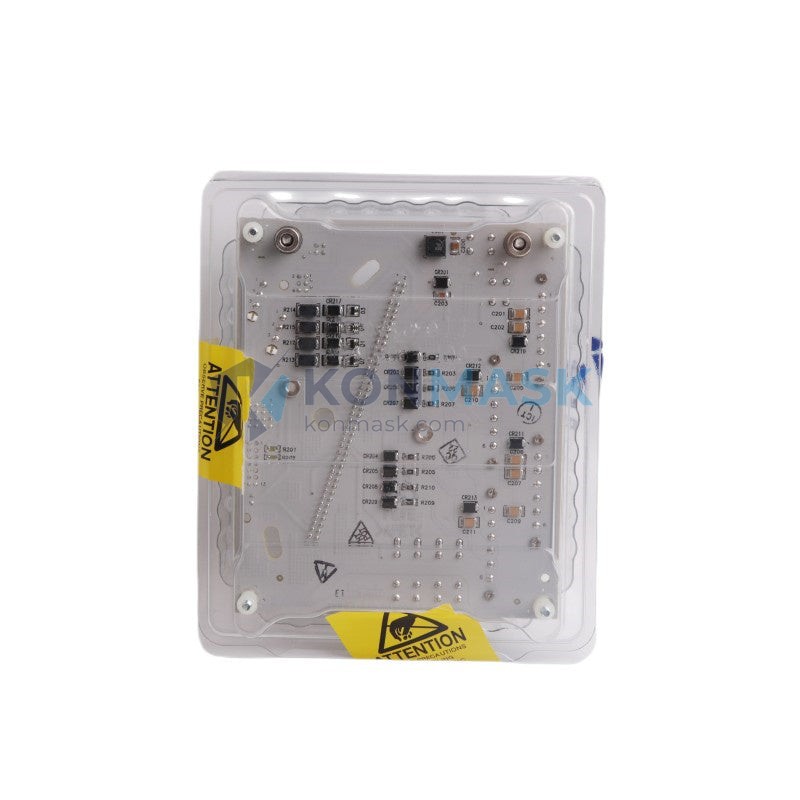

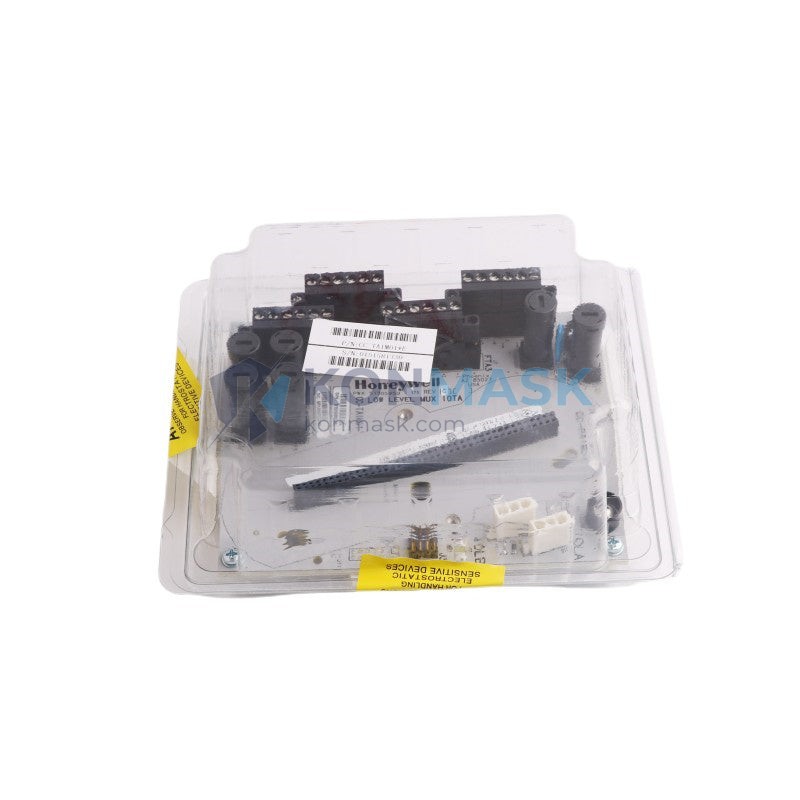

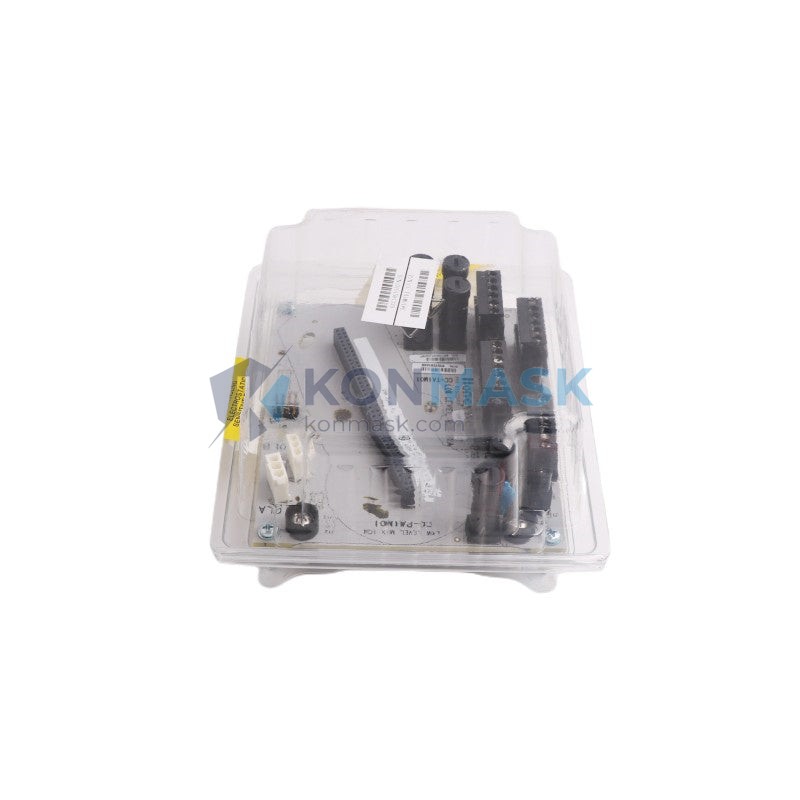

Genuine Honeywell CC-TAIM01 Low Level Mux Module | 51305959-175 | Experion PKS / TDC 3000 — Verified Source
The Honeywell CC-TAIM01 (part number 51305959-175) is a critical analog input multiplexer module deployed across Experion PKS and legacy TDC 3000 distributed control systems in high-stakes process industries including refining, petrochemical, power generation, and water treatment. As a low-level mux module, it serves as the front-end signal conditioning interface between field instrumentation and the controller backbone — a role where counterfeit or degraded components introduce measurement error, spurious trips, and unplanned downtime. The global secondary market for Honeywell DCS modules carries a documented risk of relabeled, refurbished-without-disclosure, or outright counterfeit units, particularly for long-lifecycle models that remain in service well beyond original production runs.
Konmask sources the CC-TAIM01 exclusively through verified industrial surplus channels and authorized distribution networks, with every unit subjected to a documented 4-step inspection protocol before dispatch. Each module is confirmed genuine through physical marking verification, functional bench testing, and cross-referenced serial traceability. Buyers receive authentic, verified hardware — not rebranded substitutes. Certificate of Conformance, test reports, and photographic documentation are available upon request, providing procurement engineers with the audit trail required for regulated facility onboarding.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CC-TAIM01 |
| Honeywell Reference | 51305959-175 |
| Module Type | Low Level Analog Input Multiplexer (Mux) |
| Compatible Platform | Honeywell Experion PKS, TDC 3000, PlantScape |
| Input Channels | 16 differential analog input channels |
| Input Signal Range | Low-level thermocouple / mV signals; ±100 mV typical |
| Input Impedance | >10 MΩ |
| Resolution | 16-bit ADC |
| Common Mode Rejection | >120 dB @ 50/60 Hz |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Supply Voltage | 24 VDC (via backplane) |
| Power Consumption | ≤ 5 W typical |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | Standard Honeywell I/O module form factor |
| Weight | Approx. 300 g |
| Mounting | Honeywell I/O termination assembly / carrier |
| Certifications | CE, UL, FM (Class I Div 2 capable configurations) |
| Country of Origin | USA |
Specifications verified against Honeywell official documentation and Experion PKS I/O Module Reference Manual (Doc. EP-DSC-0001).
Our 4-Step Quality Verification Process
Every CC-TAIM01 unit dispatched by Konmask passes through the following documented inspection sequence:
- Step 1 — Physical Authenticity Check: Label markings, part number silk-screen, PCB revision codes, and Honeywell holographic identifiers are inspected under magnification and cross-referenced against known-genuine reference units. Any discrepancy in font, color, or placement triggers immediate rejection.
- Step 2 — Functional Bench Test: The module is powered via a compatible Honeywell backplane simulator. All 16 input channels are exercised with calibrated mV-level signals. ADC linearity, common-mode rejection, and channel isolation are verified against published Honeywell acceptance thresholds.
- Step 3 — Serial Number & Revision Traceability: Serial numbers are logged and, where possible, cross-referenced against Honeywell’s production revision history to confirm the hardware revision matches the declared part number suffix (-175).
- Step 4 — Packaging & Documentation Audit: Units are repackaged in anti-static ESD bags with desiccant, placed in rigid foam-lined cartons, and accompanied by a Konmask Certificate of Conformance. Available on request: functional test report with channel-by-channel data, incoming inspection photos, packing list, and Country of Origin declaration.
Key Features & Benefits
- High-resolution low-level signal acquisition: 16-bit ADC resolution enables accurate measurement of thermocouple and mV-range signals without external signal conditioning, compliant with IEC 60584 thermocouple accuracy classes.
- Superior common-mode rejection (>120 dB): Meets IEC 61000-4-6 conducted immunity requirements, ensuring reliable signal integrity in electrically noisy industrial environments such as motor control centers and switchgear rooms.
- Full channel-to-channel isolation: Eliminates ground loop interference between field devices — critical in multi-point thermocouple installations across large process vessels.
- Direct backplane integration: Hot-swap compatible with Honeywell Experion PKS I/O carriers, enabling module replacement without process shutdown in redundant configurations.
- Wide operating temperature range (0–60°C): Suitable for installation in non-climate-controlled marshalling cabinets in tropical and desert process plant environments.
- Long-lifecycle platform support: Maintains backward compatibility with TDC 3000 and PlantScape architectures, protecting capital investment in existing DCS infrastructure without forced migration.
Typical Applications
- Petroleum Refining — Crude Distillation Units: Multi-point thermocouple scanning across distillation column trays under continuous high-temperature, high-vibration operating conditions.
- Petrochemical — Ethylene Cracker Furnaces: Low-level mV signal acquisition from skin thermocouples on radiant coils, where measurement accuracy directly impacts tube life and yield optimization.
- Power Generation — Boiler Combustion Control: Flue gas temperature profiling via multiple Type K/J thermocouples integrated into Experion PKS combustion management loops.
- Water & Wastewater Treatment — SCADA Integration: Analog signal multiplexing from distributed field sensors across large treatment plant footprints, reducing wiring infrastructure cost.
- Pulp & Paper — Recovery Boiler Monitoring: High-channel-count temperature monitoring in smelt bed and liquor systems where signal isolation prevents cross-contamination of measurement data.
- LNG Terminals — Cryogenic Temperature Measurement: Low-level thermocouple inputs from cryogenic storage and transfer systems, requiring high CMR and stable cold-junction compensation.
Compatible System Components
- Honeywell Experion PKS C200 / C300 Controllers
- Honeywell TDC 3000 High-Performance Process Manager (HPPM)
- Honeywell PlantScape Process Controller
- CC-TAIX01 / CC-TAIX11 Analog Input Termination Assemblies
- Honeywell I/O Link / FTA carrier assemblies (standard and HART-capable)
- Honeywell Universal I/O (UIO) backplane carriers (verify revision compatibility)
- Redundant power supply modules: CC-PWR01 / CC-PWR02
Global Sourcing & Shipping Capabilities
Konmask supplies the CC-TAIM01 to procurement teams across Southeast Asia, the Middle East, Europe, and the Americas. Standard export packaging consists of individual ESD-shielded anti-static bags, foam-cushioned rigid outer cartons rated for air and sea freight, with gross weight and dimensions declared on the commercial invoice and packing list. DHL Express, FedEx International Priority, and sea freight consolidation are available. Export documentation including HS code classification, commercial invoice, and COO declaration is prepared for all international shipments. Lead time for in-stock units is typically 3–7 business days to major industrial hubs.
Certifications & Compliance Statement
- CE Marking — EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL Listed — Industrial Control Equipment
- FM Approved — Class I, Division 2, Groups A, B, C, D (configuration-dependent)
- RoHS Compliant (Directive 2011/65/EU)
- IEC 61131-2 — Programmable Controllers: Equipment Requirements and Tests
Konmask commits to supplying only genuine, unmodified Honeywell hardware. No units are reprogrammed, relabeled, or cosmetically restored prior to sale. All quality documentation provided reflects the actual unit shipped, not a generic batch record.
How to Order
- Submit Inquiry: Contact Konmask via the product page inquiry form or email support@konmask.com with your required quantity, delivery destination, and any documentation requirements (COC, test report, photos).
- Receive Quotation & Availability Confirmation: A response with pricing, lead time, and stock status is provided within 24 hours on business days. Sample units for incoming inspection can be arranged for qualified volume buyers.
- Confirm Order & Dispatch: Upon order confirmation and payment, units are inspected, documented, packaged, and dispatched with full shipping documentation. Tracking information is provided within 24 hours of dispatch.
Technical pre-sales support is available for compatibility verification, system architecture questions, and cross-reference confirmation. Post-sale support includes documentation provision and logistics coordination.
Authenticity & Trust FAQ
- Q: How can I verify that the CC-TAIM01 I receive is a genuine Honeywell module?
- Every unit shipped by Konmask includes a Certificate of Conformance stating the part number, serial number, and inspection outcome. Functional test reports with channel-by-channel measurement data are available on request. Buyers are encouraged to perform incoming inspection against Honeywell’s published module identification markings upon receipt.
- Q: Is the CC-TAIM01 compatible with both Experion PKS and legacy TDC 3000 systems?
- Yes. The CC-TAIM01 (51305959-175) is designed for use within the Honeywell Experion PKS I/O subsystem and maintains backward compatibility with TDC 3000 and PlantScape controller platforms when used with the appropriate termination assemblies. Buyers should confirm backplane carrier revision compatibility with their site’s existing hardware revision level before ordering.
- Q: What warranty and return policy applies to this module?
- Konmask provides a 90-day functional warranty against defects in the supplied unit under normal operating conditions. If a module fails functional acceptance testing upon receipt, Konmask will arrange replacement or refund subject to return of the original unit with documented test evidence. Test reports provided at dispatch serve as the baseline for warranty claims.
