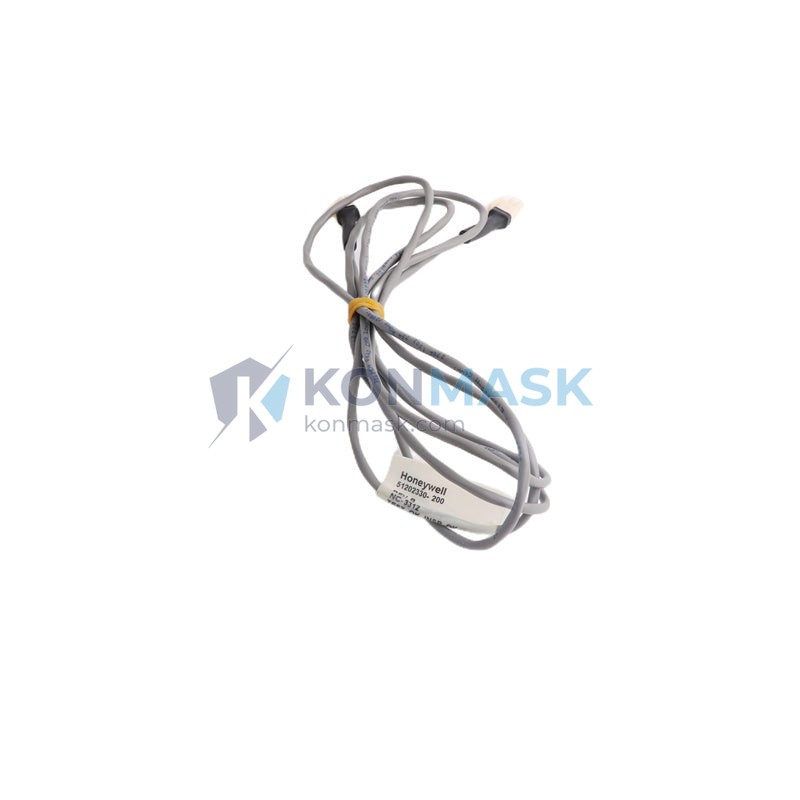

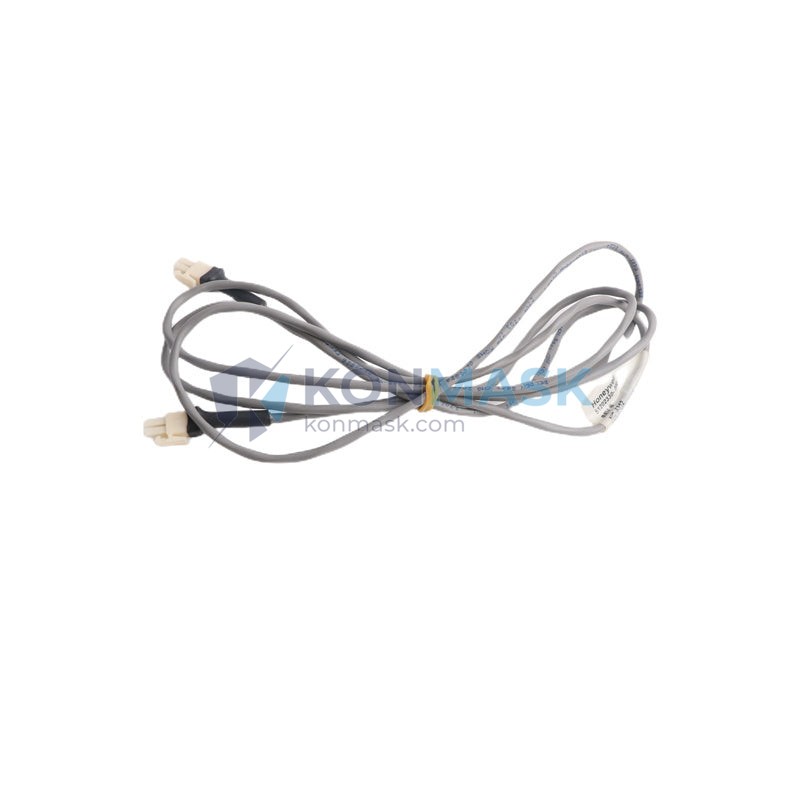

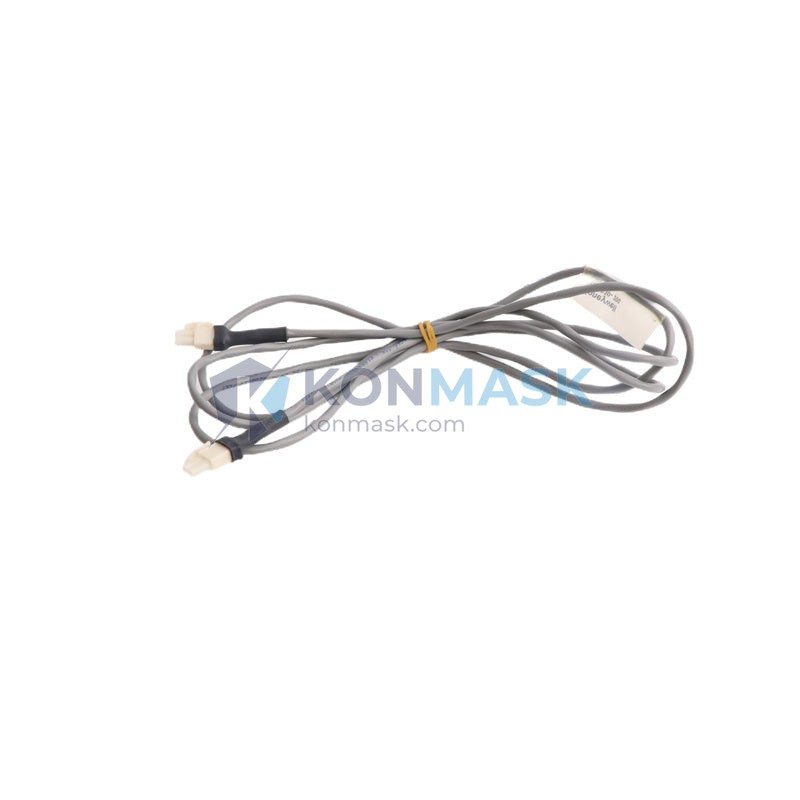

Honeywell 51202330-200 – I/O Link Cable | Experion PKS DCS Platform
Engineering Background: The Honeywell Experion PKS (Process Knowledge System) is a distributed control system deployed across critical process industries including refining, petrochemical, power generation, and water treatment. Within the Experion architecture, I/O Link Cables serve as the physical communication backbone between I/O Link Masters (ILM) and remote I/O modules — enabling deterministic, high-integrity data exchange across the control loop. The 51202330-200 is a factory-terminated cable assembly designed specifically for this signal path, ensuring impedance matching, shielding continuity, and connector keying that generic cables cannot replicate.
Product Positioning: The 51202330-200 is a 200-series I/O Link Cable, distinguished from shorter-run variants (e.g., 51202330-100) by its extended reach, making it suitable for panel layouts where I/O modules are mounted at greater distances from the ILM. It is not a universal fieldbus cable — its application boundary is defined by the Experion PKS I/O Link topology. Substitution with non-OEM cables risks communication timeouts, CRC errors, and loss of redundancy failover capability.
Complete Technical Specifications
Electrical
- Cable Type: Shielded twisted-pair, factory-terminated
- Signal Protocol: Honeywell I/O Link (proprietary, RS-485 physical layer basis)
- Connector Type: Keyed RJ-style / DIN-rail locking, per Experion PKS ILM specification
- Shield: Foil + braid, 100% coverage, drain wire terminated at both ends
- Operating Voltage: Low-voltage signal level (≤5 VDC logic)
Mechanical
- Part Number: 51202330-200
- Series Designation: 200 (extended-run variant)
- Weight: Approx. 60 g
- Connector Keying: Polarized to prevent mis-insertion
- Jacket Material: PVC, flame-retardant
Environmental
- Operating Temperature: 0°C to +60°C (panel-mount, indoor use)
- Storage Temperature: –20°C to +70°C
- Humidity: 5% to 95% RH, non-condensing
- Installation Environment: Control room / marshalling cabinet (not rated for direct field exposure)
Certifications
- Designed and qualified per Honeywell Experion PKS hardware compatibility matrix
- RoHS compliant
- CE marking applicable per EU Low Voltage Directive
Data source: Honeywell Experion PKS Hardware Planning Guide; Honeywell part cross-reference documentation. Specifications subject to revision — confirm against current Honeywell ILM installation manual prior to procurement.
Proven Application Environments
- Petrochemical Refinery: Crude distillation unit DCS panel | ILM-to-remote-I/O link in high-density marshalling cabinet | continuous 24/7 operation with zero-tolerance for communication dropout
- Power Generation: Coal-fired boiler control system | Experion PKS C300 controller node | I/O expansion across extended panel bay requiring 200-series cable reach
- Water Treatment Plant: SCADA-integrated DCS for filtration and dosing control | remote I/O modules in distributed panel layout | cable replacement during scheduled maintenance shutdown
- LNG Terminal: Safety-instrumented system (SIS) adjacent DCS panel | I/O Link segment serving analog input modules for pressure and temperature | SIL-rated process area
- Chemical Plant: Batch reactor control | Experion PKS with Series C I/O | cable assembly replacement after insulation degradation detected during predictive maintenance inspection
- Pulp & Paper Mill: Continuous digester process control | multi-drop I/O Link segment | extended cable run between ILM and I/O chassis in large-format control enclosure
Engineering Advantages
- For high-density marshalling cabinets with limited bend radius, this cable assembly maintains signal integrity, because the factory-terminated connectors eliminate field-crimped joints that introduce impedance discontinuities.
- For plants operating Experion PKS with redundant I/O Link Masters, this cable assembly preserves failover switching speed, because the matched impedance profile prevents reflection-induced latency that can trigger false redundancy switchovers.
- For maintenance teams executing hot-swap I/O module replacements, this cable assembly enables tool-free disconnection and reconnection, because the keyed locking connector design prevents accidental mis-seating during live panel work.
- For facilities with strict EMI environments (VFD-heavy panels, high-current bus bars), this cable assembly suppresses induced noise, because the 100% foil-plus-braid shield with terminated drain wire provides continuous ground reference across the full cable length.
- For procurement teams managing spare parts under ISA-55.1 or equivalent asset management frameworks, this cable assembly simplifies BOM alignment, because the OEM part number 51202330-200 maps directly to Honeywell’s hardware compatibility matrix without engineering re-qualification.
- For aging Experion PKS installations approaching end-of-support, this cable assembly extends system life without controller migration, because it is a direct form-fit-function replacement that requires no firmware update or configuration change.
System Architecture & Signal Flow
Within the Experion PKS I/O subsystem, the signal flow is: C300 Controller → I/O Link Master (ILM) → [51202330-200 Cable] → Remote I/O Module (e.g., 51304485-150 AI module or 51304516-150 DI module). The ILM polls each I/O module at a deterministic scan rate; the cable assembly carries both the polling command and the module response on the same shielded pair.
Compatible modules and assemblies:
- 51401642-100 / -150 I/O Link Master — primary host for this cable
- 51304485-150 Analog Input Module — confirmed downstream device
- 51304516-150 Digital Input Module — confirmed downstream device
- 51202330-100 — shorter-run variant; functionally identical, use when panel depth permits
Substitution conditions: The 51202330-100 may substitute the -200 only when the physical distance between ILM and I/O module is within the -100 cable’s rated reach. No firmware or configuration change is required for this substitution. Third-party cables are not recommended without Honeywell engineering approval, as the I/O Link protocol timing is sensitive to cable capacitance and termination resistance.
Sourcing & Quality Verification
Stock is sourced from decommissioned plant upgrades, authorized distributor overstock, and verified surplus channels. Each unit undergoes the following 4-step inspection process before dispatch:
- Visual Inspection: Connector housing integrity, jacket condition, shield drain wire continuity check, label legibility and part number confirmation
- Continuity Test: End-to-end conductor continuity verified with calibrated test equipment; open circuits and shorts recorded and rejected
- Shield Integrity Test: Shield-to-drain resistance measured; units exceeding threshold are rejected
- Packaging & Labeling: Anti-static bag, part number label, and inspection pass sticker applied prior to shipment
Documentation available upon request:
- Inspection report (per unit or per batch)
- Honeywell OEM part number cross-reference confirmation
- Country of origin declaration
- Commercial invoice with HS code for customs clearance
Procurement Process
- Submit Inquiry: Send part number, required quantity, and delivery timeline to support@konmask.com or via the on-site inquiry form. Include your plant’s Experion PKS version if known.
- Receive Quote & Stock Confirmation: A response with pricing, lead time, and available stock quantity will be provided within 24 hours on business days. Expedited response available for shutdown/turnaround situations.
- Order Confirmation & Dispatch: Upon PO receipt, units are inspected, packaged, and dispatched with full documentation. Tracking information provided within 1 business day of shipment.
Technical support: Pre-sale compatibility verification, installation guidance, and cross-reference assistance are available via email and phone. Support is provided by personnel with hands-on Experion PKS system experience.
Technical FAQ
Q: Is the 51202330-200 compatible with both Series A and Series C Experion PKS I/O?
A: The 51202330-200 is designed for use with the Experion PKS I/O Link architecture. Compatibility with specific I/O series (A, C, or ACIO) depends on the ILM variant installed. Confirm the ILM part number against Honeywell’s hardware compatibility matrix, or submit the ILM part number for verification before ordering.
Q: Can the 51202330-100 substitute the 51202330-200 in all applications?
A: The -100 variant is a shorter-run cable. It is a valid substitute only when the physical distance between the ILM and the target I/O module is within the -100’s rated cable length. No configuration or firmware change is required. If the panel layout requires the extended reach of the -200, the -100 is not an acceptable substitute.
Q: Does this cable carry any hazardous location (ATEX/IECEx) certification for use in Zone 1 or Zone 2 areas?
A: The 51202330-200 is a panel-internal cable assembly rated for control room and marshalling cabinet installation. It does not carry ATEX or IECEx certification for use in classified hazardous areas. For field-routed cable in Zone 1/2 environments, consult Honeywell’s intrinsically safe I/O barrier and cable specifications.
