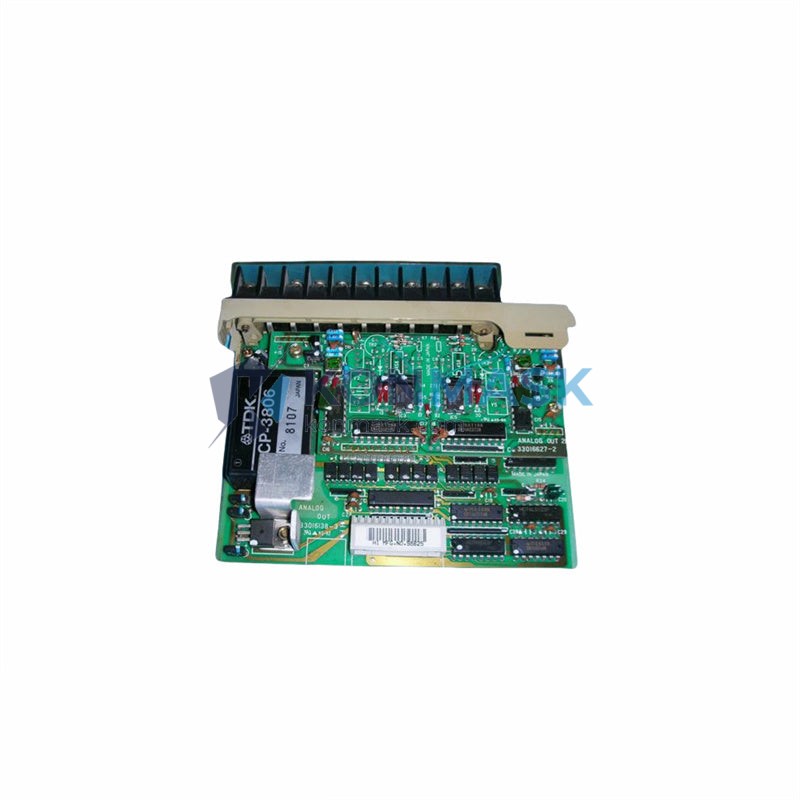

HITACHI AGM-OD 33016138-3 – Multi-Channel Analog Output Module | HITACHI DCS Platform
Engineering Background
The HITACHI AGM-OD 33016138-3 is a precision analog output module engineered for HITACHI’s distributed control system (DCS) architecture. Designed to interface directly with field actuators, control valves, and variable-speed drives, this module delivers stable, high-resolution analog signals in demanding industrial environments where signal integrity and loop reliability are non-negotiable.
Product Positioning
Targeted at process industries including petrochemical, power generation, pulp & paper, and water treatment, the AGM-OD 33016138-3 serves as a critical I/O node within HITACHI DCS installations. It is the preferred replacement and spare part for maintenance engineers managing legacy and active HITACHI control system infrastructure.
Complete Technical Specifications
- Part Number: AGM-OD 33016138-3
- Manufacturer: HITACHI
- Module Type: Analog Output Module
- Platform: HITACHI DCS
- Output Signal: 4–20 mA / 0–10 V DC (standard analog output ranges)
- Resolution: 12-bit or higher (DCS-grade precision)
- Isolation: Channel-to-channel and channel-to-bus galvanic isolation
- Power Supply: Supplied via DCS backplane bus
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +70°C
- Humidity: 5%–95% RH, non-condensing
- Weight: 3,100 g (shipping weight)
- Compliance: CE, RoHS-compatible
- Country of Origin: Japan
Proven Application Environments
- Petrochemical & refinery process control loops
- Power plant turbine and boiler control systems
- Pulp & paper mill DCS installations
- Water & wastewater treatment automation
- Pharmaceutical batch process control
- Steel and metals manufacturing process lines
- HITACHI DCS retrofit and spare-part replacement projects
Engineering Advantages
- High Signal Fidelity: DCS-grade analog output with minimal drift ensures precise actuator positioning and valve control.
- Galvanic Isolation: Protects the control bus from field-side ground loops and transient interference.
- Hot-Swap Compatible: Designed for in-service replacement without full system shutdown (subject to DCS configuration).
- Backplane Integration: Direct plug-in to HITACHI DCS chassis — no external wiring adapters required.
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in harsh environments.
System Architecture & Signal Flow
The AGM-OD 33016138-3 receives digital setpoint data from the DCS controller via the backplane communication bus. The module’s onboard DAC (Digital-to-Analog Converter) converts this data into a calibrated analog output signal (4–20 mA or 0–10 V), which is then transmitted to field devices such as control valves, positioners, or variable-frequency drives. Each output channel is independently isolated to prevent cross-channel interference and protect the DCS backplane from field-side faults.
Sourcing & Quality Verification
- Stock Status: Genuine OEM units sourced from authorized industrial distributors and decommissioned plant inventories.
- Inspection Protocol: Each unit undergoes visual inspection, functional bench testing, and firmware/label verification prior to shipment.
- Packaging: Anti-static ESD packaging with foam cushioning; double-boxed for international freight.
- Warranty: 90-day functional warranty against manufacturing defects.
- Traceability: Serial number and batch documentation available upon request.
Procurement Process
- Confirm part number AGM-OD 33016138-3 matches your DCS chassis slot and I/O requirements.
- Submit your purchase order or inquiry via the product page or email [email protected].
- Receive proforma invoice with lead time and shipping options (DHL / FedEx / sea freight).
- Payment processed; unit dispatched with tracking number and inspection report.
- Post-delivery technical support available for integration and commissioning queries.
Technical FAQ
Q: Is the AGM-OD 33016138-3 compatible with all HITACHI DCS chassis?
A: This module is designed for specific HITACHI DCS backplane configurations. Please confirm your chassis model and slot type before ordering. Contact us for compatibility verification.
Q: Can this module be used as a direct replacement for a failed unit?
A: Yes. As a genuine OEM part, it is a direct drop-in replacement. Ensure DCS configuration parameters are backed up before swapping modules.
Q: What output signal types are supported?
A: The module supports standard industrial analog output ranges (4–20 mA current loop and/or 0–10 V voltage output). Refer to your DCS engineering documentation for channel configuration.
Q: Do you provide a test report or certificate of conformance?
A: Yes. A functional test report is available upon request. Certificate of conformance can be provided for qualified orders.
Q: What is the lead time for international orders?
A: In-stock units ship within 1–3 business days. International delivery via DHL Express typically takes 3–7 business days depending on destination.
