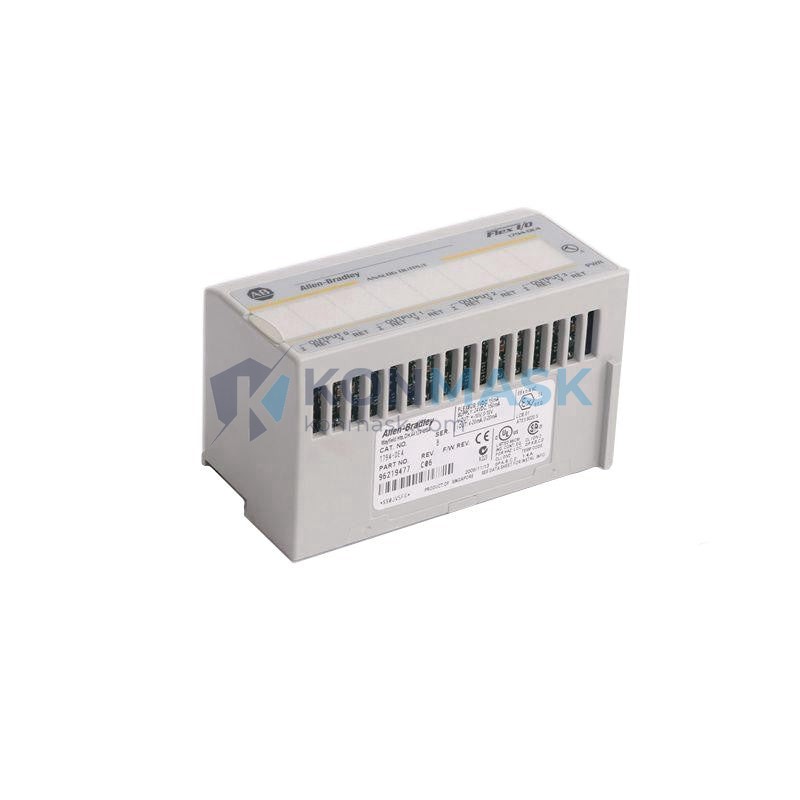

Allen-Bradley 1794-OF41 Isolated Analog Output Module | FLEX I/O

Process Control & Precision Signal Output Solution – Allen-Bradley 1794-OF41 | FLEX I/O Series

In demanding industrial process environments — chemical dosing lines, oil & gas skids, water treatment facilities, and continuous manufacturing cells — precise analog signal output is not optional. When a control loop loses its 4–20 mA command signal, actuators freeze, valves default to fail-safe positions, and entire production batches can be lost in minutes. The Allen-Bradley 1794-OF41 Isolated Analog Output Module eliminates that risk by delivering four channels of fully isolated, high-accuracy analog output directly from your FLEX I/O backplane, keeping your process loops stable and your plant running.

The 1794-OF41 occupies a well-defined niche within Rockwell Automation’s FLEX I/O platform: it is the go-to choice for applications that demand channel-to-channel isolation alongside multi-channel density. Unlike non-isolated counterparts, each output channel operates on its own isolated circuit, preventing ground loops and cross-channel interference — a critical requirement in environments with long cable runs or mixed-voltage field devices. Widely deployed across North America, Europe, and Asia-Pacific, this module is a standard BOM line item in Rockwell-based DCS migration projects and greenfield PLC panel builds alike.

Where This Product Is Used

• Oil & Gas: Control valve positioners on wellhead and pipeline skids requiring isolated 4–20 mA loops to prevent ground faults across long cable distances.
• Chemical & Petrochemical: Dosing pump speed references and pressure regulator setpoints in hazardous-area panels where channel isolation is a safety requirement.
• Water & Wastewater Treatment: Variable-frequency drive (VFD) speed references and chlorine dosing control in multi-pump stations with shared grounding infrastructure.
• Food & Beverage: Temperature setpoint transmission to zone heaters and flow control valves in CIP (Clean-In-Place) systems.
• Pharmaceutical Manufacturing: Precision setpoint delivery to mass flow controllers in batch reactors where signal integrity is critical for GMP compliance.
• Power Generation: Turbine governor and excitation system analog references in utility and co-generation plants.
• Automotive Assembly: Servo drive analog command signals in body-in-white welding and paint-shop conveyor systems.

Technical Specifications

Part Number	1794-OF41
Brand	Allen-Bradley (Rockwell Automation)
Series	FLEX I/O
Module Type	Isolated Analog Output
Number of Output Channels	4
Output Signal Range	4–20 mA / 0–20 mA (current); 0–10 V / ±10 V (voltage, configuration-dependent)
Isolation	Channel-to-channel and channel-to-backplane isolated
Resolution	12-bit (4096 counts)
Backplane Compatibility	1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T terminal bases
Communication	Via FLEX I/O adapter (DeviceNet, ControlNet, EtherNet/IP, etc.)
Operating Temperature	0 °C to 55 °C (32 °F to 131 °F)
Storage Temperature	-40 °C to 85 °C
Weight	Approx. 200 g
Certifications	UL, CE, cUL (refer to current Rockwell product certification page for latest listings)

Note: Always verify specifications against the official Rockwell Automation 1794-OF41 product page and installation instructions (publication 1794-IN006) before engineering design. Konmask.com does not modify or re-rate factory specifications.

Why Engineers Specify This Model

• True Channel-to-Channel Isolation: Eliminates ground loops in multi-drop field wiring — a common failure mode in non-isolated modules deployed across large plant footprints.
• FLEX I/O Modularity: Slots into any standard FLEX I/O backplane without additional hardware, enabling incremental I/O expansion without panel redesign.
• Multi-Protocol Adapter Compatibility: Works with DeviceNet (1794-ADN), ControlNet (1794-ACN), and EtherNet/IP (1794-AENT) adapters — future-proofing your network migration path.
• 12-Bit Resolution: Provides 4096 discrete output steps, sufficient for tight PID loop control in flow, pressure, and temperature applications.
• Compact DIN-Rail Footprint: High channel density in a small form factor reduces panel space and wiring complexity versus discrete signal conditioners.
• Rockwell Studio 5000 / RSLogix 5000 Native Support: Module configuration via Add-On Profile (AOP) — no custom code required, reducing commissioning time.

Complete System Bill of Materials

The 1794-OF41 requires the following companion components for a complete, operational FLEX I/O analog output node:

• Terminal Base: 1794-TB2 or 1794-TB3 (screw-clamp) / 1794-TB3S (spring-clamp) — must be ordered separately
• FLEX I/O Adapter: Select based on network protocol:
  • EtherNet/IP: 1794-AENT or 1794-AENTR (redundant media)
  • ControlNet: 1794-ACN15 or 1794-ACNR15
  • DeviceNet: 1794-ADN
• Power Supply: 1794-PS13 (24 VDC, 1.3 A) or equivalent DIN-rail 24 VDC supply
• End Cap: 1794-END (required to terminate the backplane bus)
• Field Wiring: Shielded twisted-pair cable recommended for all analog output loops
• Controller: Any ControlLogix, CompactLogix, or MicroLogix platform with appropriate network scanner card

Contact support@konmask.com for bundle pricing on complete FLEX I/O node assemblies.

Compliance & Industry Standards

• UL Listed — Industrial Control Equipment (UL 508)
• CE Marked — EMC Directive and Low Voltage Directive compliance
• RoHS Compliant — Restriction of Hazardous Substances
• ATEX / IECEx: Not rated for Zone 1/2 intrinsically safe use in this base configuration — consult Rockwell for IS barrier solutions
• ISA-5.1: Signal ranges conform to ISA instrumentation signal standards

Quality Assurance & Sourcing

Every 1794-OF41 unit shipped from Konmask.com undergoes the following verification process before dispatch:

• Visual inspection for physical damage, label integrity, and connector condition
• Firmware version and date-code verification against known production batches
• Functional power-on test where applicable
• Anti-static packaging with humidity indicator card
• Traceability documentation available on request

We source from authorized distribution channels and vetted industrial surplus networks. Counterfeit detection protocols are applied to all non-factory-sealed stock. If a unit does not pass our inspection, it is not listed for sale.

How to Source This Part

Konmask.com specializes in hard-to-find and long-lead Rockwell Automation FLEX I/O components. To place an inquiry:

• Email: support@konmask.com
• Phone / WhatsApp: +0086 19859288691
• Response Time: Within 1 business day for stock confirmation and lead time
• MOQ: 1 unit — no minimum order quantity
• Export: We ship globally with DHL, FedEx, and UPS express options; EXW and CIF Incoterms available
• Documentation: Commercial invoice, packing list, and certificate of origin provided with every shipment

Application-Specific FAQ

Q: Can the 1794-OF41 output both current and voltage signals simultaneously?
A: Output type (current or voltage) is configured per channel via software in RSLogix 5000 / Studio 5000. Channels can be independently configured, but the physical wiring must match the selected output type. Consult publication 1794-IN006 for wiring diagrams.

Q: Is the 1794-OF41 compatible with the 1794-AENT EtherNet/IP adapter?
A: Yes. The 1794-OF41 is compatible with all current FLEX I/O adapters including the 1794-AENT and 1794-AENTR. Ensure your adapter firmware is current to support the module’s AOP in Studio 5000.

Q: What is the maximum cable length for the analog output loops?
A: Rockwell Automation recommends a maximum of 300 m (1000 ft) for shielded twisted-pair wiring on current output loops. Voltage output loops are more susceptible to cable capacitance — consult the installation manual for derating guidelines.

Q: Can I use the 1794-OF41 in a SIL-rated safety application?
A: The 1794-OF41 is not SIL-rated as a standalone module. For functional safety applications, Rockwell Automation’s GuardLogix or Safety FLEX I/O product lines should be evaluated.

Q: Do you offer exchange or repair services for faulty 1794-OF41 units?
A: Yes. Contact support@konmask.com with your unit’s serial number and fault description. We can facilitate exchange, repair referral, or replacement sourcing depending on your timeline.

Q: How quickly can you ship to Europe or North America?
A: In-stock units typically ship within 1–2 business days. DHL Express transit to Europe is 3–5 days; North America 4–7 days. Expedited options available on request.

---
