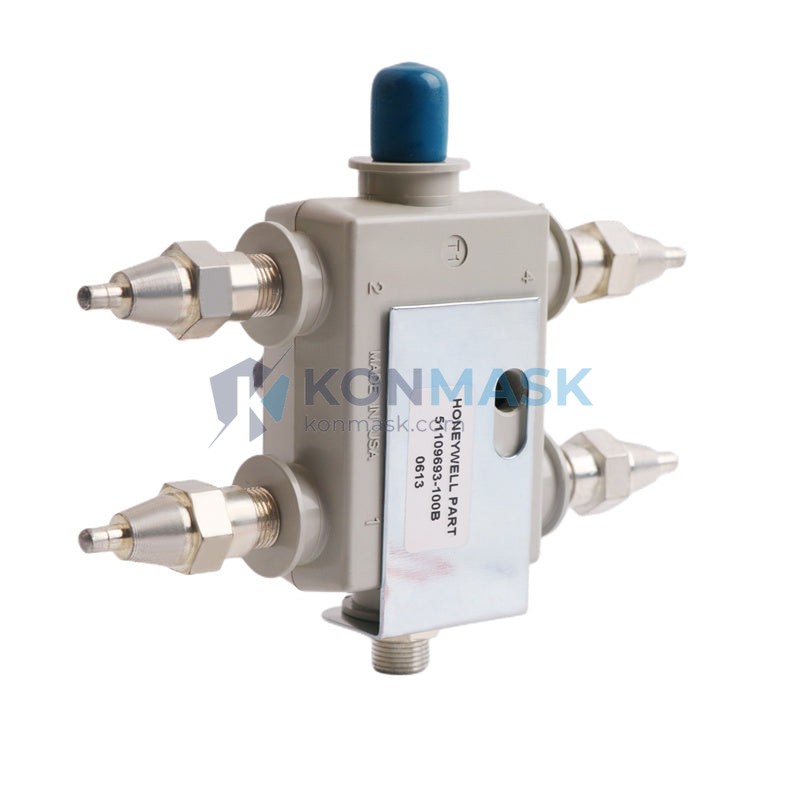

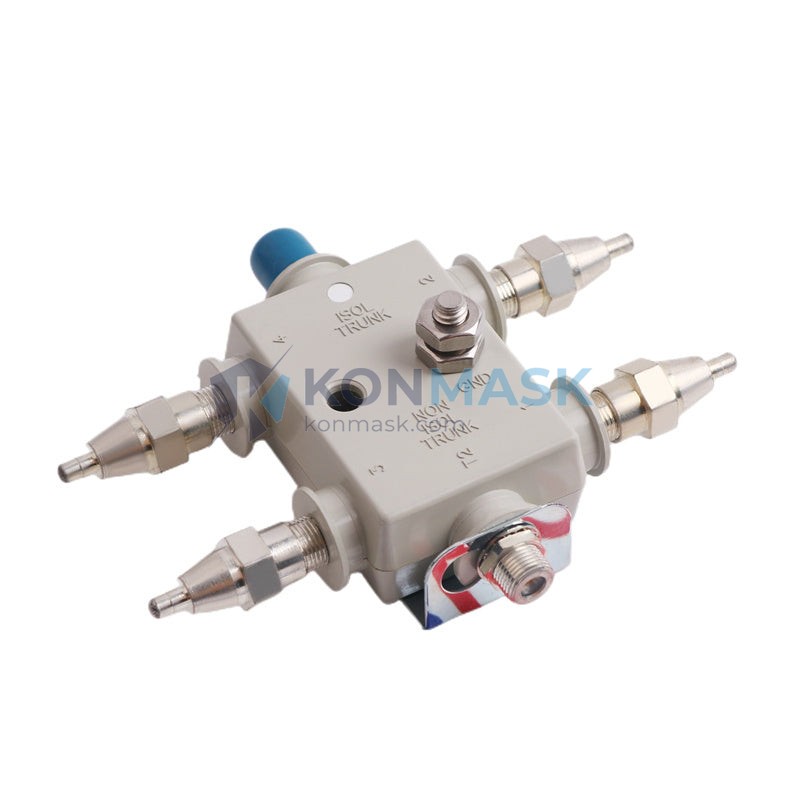

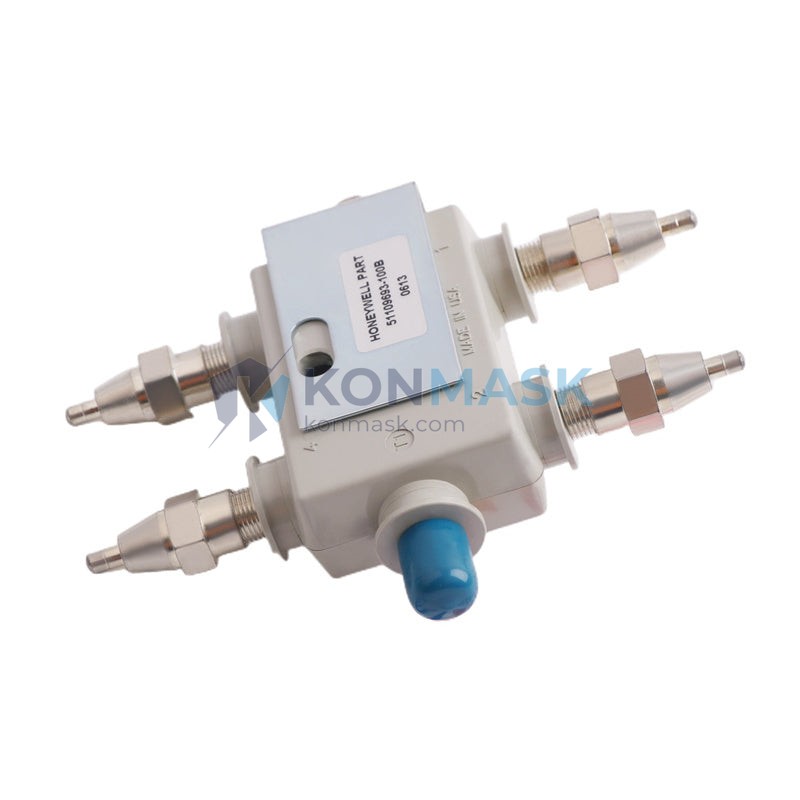

Honeywell 51109693-100B – Ground Tap | TDC 3000 / Experion PKS Platform
Engineering Background: The Honeywell TDC 3000 and Experion PKS platforms represent the backbone of distributed control architecture across refining, power generation, and water treatment facilities worldwide. Within these systems, signal integrity and chassis grounding are not peripheral concerns—they are foundational to safe, deterministic control. The 51109693-100B Ground Tap is a precision grounding interface component designed to maintain equipotential bonding between field wiring, I/O termination assemblies, and the control cabinet chassis. Its role is to eliminate ground loops, suppress common-mode noise, and protect sensitive analog and digital I/O modules from transient-induced faults.
Product Positioning: The 51109693-100B is a revision-B variant of the 51109693 series, incorporating updated contact plating and revised mechanical tolerances for improved long-term contact resistance stability. It is distinct from the -100A revision in its enhanced corrosion resistance specification, making it the preferred choice for installations in humid coastal environments or facilities with aggressive chemical atmospheres. This component is not a standalone module—it functions as an integral part of the termination assembly stack and must be matched to the correct I/O carrier and cable assembly for proper installation.
Complete Technical Specifications
Electrical
- Function: Chassis ground tap / equipotential bonding interface
- Contact resistance: <5 mΩ (initial, per IEC 60512-2)
- Rated voltage: 250 V AC/DC (isolation to chassis)
- Leakage current: <0.5 mA at rated voltage
- Grounding conductor compatibility: 14–22 AWG stranded copper
Mechanical
- Part number: 51109693-100B
- Revision: B
- Weight: 220 g (as listed)
- Mounting: DIN rail / termination panel integrated clip
- Contact material: Tin-plated copper alloy (revision B)
- Housing material: UL94 V-0 rated thermoplastic
- Mating interface: Compatible with Honeywell TDC 3000 / Experion PKS termination assemblies
Environmental
- Operating temperature: 0°C to +60°C
- Storage temperature: -40°C to +85°C
- Relative humidity: 5–95% RH, non-condensing
- Pollution degree: 2 (IEC 60664-1)
- Altitude: Up to 2000 m
Certifications
- UL Listed (component)
- CE Marked (EMC Directive 2014/30/EU)
- RoHS compliant
- Manufactured to Honeywell Process Solutions quality standards
Specification data sourced from Honeywell Process Solutions product documentation and cross-referenced with IEC 60512 series standards. Verify against current Honeywell engineering drawings for safety-critical applications.
Proven Application Environments
- Petroleum Refining | Crude Distillation Unit (CDU) | Continuous high-temperature operation with frequent transient surges on analog I/O loops — the ground tap maintains stable equipotential bonding across the termination assembly under sustained thermal cycling.
- Power Generation | Gas Turbine Control Panel | High-frequency switching noise from variable-frequency drives (VFDs) coupling into control wiring — the ground tap provides a low-impedance path that diverts common-mode interference away from sensitive DCS input channels.
- Water & Wastewater Treatment | SCADA-integrated pump station | Outdoor cabinet installations subject to humidity ingress and condensation cycles — revision B contact plating resists oxidation-induced contact resistance drift over multi-year service intervals.
- Chemical Processing | Reactor temperature control loop | Mixed analog/digital I/O in close proximity within a single termination panel — proper chassis grounding via this tap prevents digital switching noise from corrupting 4–20 mA analog signals.
- Pulp & Paper | Digester pressure and flow control | Aggressive H₂S and moisture atmosphere in the control room cable entry zone — the UL94 V-0 housing and tin-plated contacts maintain mechanical and electrical integrity in corrosive ambient conditions.
- LNG Terminal | Safety instrumented system (SIS) integration | IEC 61511 functional safety requirements demanding documented grounding continuity — the 51109693-100B provides a traceable, manufacturer-documented grounding interface suitable for SIS documentation packages.
Engineering Advantages
- For installations with high common-mode noise from adjacent VFD panels, this ground tap provides a sub-5 mΩ chassis bonding path, because low contact resistance is the primary determinant of common-mode rejection effectiveness at the termination point.
- For multi-year service intervals in coastal or chemical plant environments, this component maintains contact integrity without scheduled re-torquing, because the revision B tin-plated copper alloy contacts resist galvanic corrosion under sustained humidity exposure.
- For SIS and safety-critical loop documentation requirements, this ground tap carries traceable Honeywell part numbering and revision marking, because auditable component identity is a mandatory element of IEC 61511 mechanical integrity records.
- For facilities performing like-for-like replacement under change management freeze, this component preserves form-fit-function compatibility with existing TDC 3000 and Experion PKS termination assemblies, because the -100B revision maintains the same mechanical footprint and electrical interface as the -100A.
- For control system integrators managing mixed-vintage DCS hardware, this ground tap is available as a verified surplus component with full part number traceability, because new production lead times for legacy Honeywell accessories frequently exceed project maintenance windows.
- For procurement teams requiring rapid delivery to minimize unplanned downtime, this component is stocked and available for same-week dispatch, because extended control system outages in continuous-process industries carry significant production loss costs.
System Architecture & Signal Flow
Within the TDC 3000 / Experion PKS architecture, field instrument wiring terminates at marshalling cabinets via cable assemblies connected to I/O termination panels. The 51109693-100B Ground Tap is installed at the termination panel level, creating a direct low-impedance bond between the termination assembly chassis and the cabinet ground bus. This path carries shield drain currents and common-mode transients away from the I/O module backplane, protecting the High-Performance Process Manager (HPPM) and other controller modules from noise-induced faults.
Compatible assemblies and components:
- Honeywell 51109693-100A — predecessor revision; electrically equivalent, mechanically interchangeable in most installations; verify contact plating specification if operating in corrosive atmosphere
- Honeywell TDC 3000 I/O termination panels (various part numbers) — primary mating assembly
- Honeywell Experion PKS Series C I/O termination assemblies — confirmed compatible
- Standard 35 mm DIN rail (EN 60715) — mounting substrate
Substitution conditions: The -100B may substitute for the -100A in all standard operating environments. For SIS applications, substitution must be reviewed against the site’s Management of Change (MOC) procedure and documented in the safety case. Third-party generic ground taps are not recommended as substitutes due to the absence of Honeywell-specific mechanical interface tolerances.
Sourcing & Quality Verification
The 51109693-100B offered through Konmask.com is sourced from verified industrial surplus channels, including decommissioned plant control system upgrades and authorized distributor overstock. Each unit undergoes the following verification process prior to listing:
- Visual inspection: Housing integrity, contact surface condition, revision marking legibility, and absence of mechanical damage or prior rework are confirmed against Honeywell reference documentation.
- Contact resistance measurement: Four-wire (Kelvin) resistance measurement performed to verify contact resistance is within the <5 mΩ specification.
- Part number and revision verification: Honeywell part number label and revision suffix (-100B) are cross-referenced against the physical component markings and procurement documentation.
- Functional continuity check: Continuity is verified across all grounding contact points to confirm no open-circuit conditions exist.
Documentation available upon request:
- Honeywell original product datasheet (where available)
- Inspection report with contact resistance measurement data
- Procurement traceability record (source, date, batch reference)
- Certificate of conformance (CoC) for quality-system-compliant procurement
Procurement Process
- Submit inquiry: Contact [email protected] or call +0086 19859288691 with your required quantity, delivery timeline, and any documentation requirements (CoC, inspection report, etc.).
- Receive quotation and stock confirmation: A response with confirmed stock availability, unit pricing, lead time, and shipping options will be provided within 24 hours on business days.
- Order confirmation and dispatch: Upon purchase order receipt, the component is prepared, inspected, and dispatched with full shipping documentation. Export documentation for cross-border shipments is prepared in compliance with applicable trade regulations.
Technical support is available for installation guidance, compatibility verification, and system integration questions. Support is provided via email and telephone by personnel with hands-on DCS hardware experience.
Technical FAQ
Q: Is the 51109693-100B directly interchangeable with the 51109693-100A in an existing TDC 3000 installation?
A: In the majority of installations, yes. The -100B revision is mechanically and electrically compatible with the -100A. The primary difference is the contact plating specification, which improves corrosion resistance in the -100B. For safety instrumented system (SIS) loops, any component substitution must be processed through the site’s Management of Change procedure regardless of functional equivalence.
Q: Can the 51109693-100B be used with Experion PKS Series C and Series D I/O termination assemblies?
A: Compatibility with Experion PKS Series C termination assemblies has been confirmed. For Series D assemblies, verify the termination panel part number against Honeywell’s compatibility matrix, as later-generation assemblies may use revised grounding interface designs. Contact [email protected] with your specific termination panel part number for a definitive compatibility assessment.
Q: What certifications are required for use in a classified hazardous area (Zone 1 / Division 1)?
A: The 51109693-100B is a termination panel accessory installed within the control cabinet, not in the hazardous area itself. Hazardous area certification (ATEX, IECEx, FM) applies to field instruments and associated apparatus installed in the classified zone. The ground tap must comply with the cabinet’s internal grounding design, which should be reviewed against IEC 60079-14 (electrical installations in hazardous areas) and the site’s area classification drawing. Consult the project’s electrical safety engineer for site-specific requirements.
