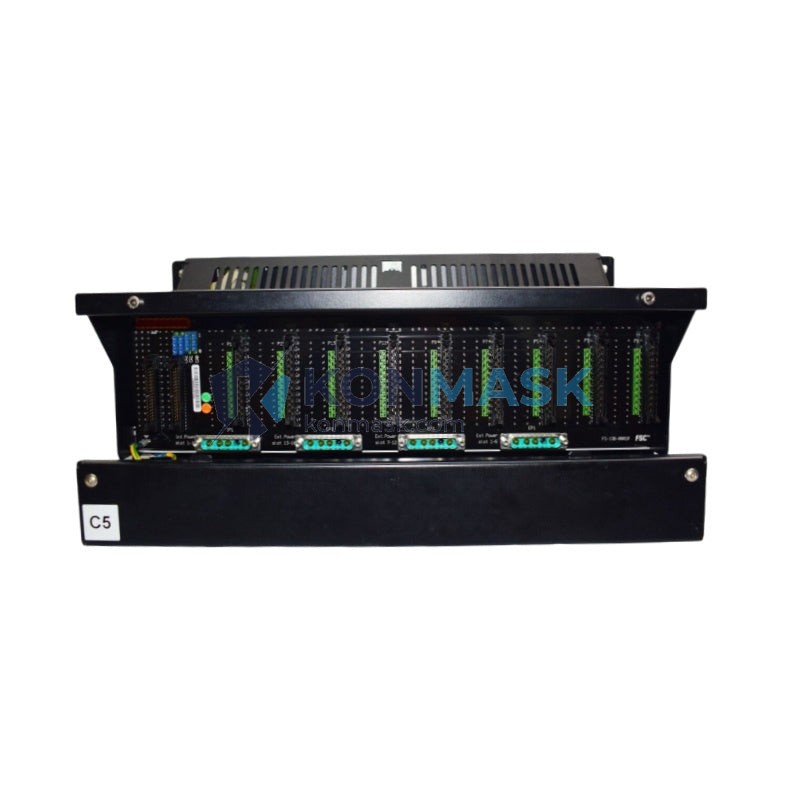

Honeywell 51305980-260 – Fieldbus Interface Module | TDC 3000 / Experion PKS
Engineering Background
The Honeywell 51305980-260 is a Fieldbus Interface Module (FIM) designed for integration within Honeywell’s TDC 3000 and Experion PKS distributed control system (DCS) platforms. It serves as the critical communication bridge between field-level FOUNDATION Fieldbus H1 devices and the process control network, enabling deterministic, high-integrity data exchange in demanding industrial environments.
Product Positioning
Targeted at process automation engineers and control system integrators managing legacy TDC 3000 upgrades or Experion PKS expansions, the 51305980-260 provides a proven, OEM-sourced solution for fieldbus segment management. It is the preferred choice for refineries, chemical plants, and power generation facilities requiring long-term platform continuity and certified interoperability.
Complete Technical Specifications
- Part Number: 51305980-260
- Manufacturer: Honeywell Process Solutions
- Module Type: Fieldbus Interface Module (FIM)
- Compatible Platforms: TDC 3000, Experion PKS (C200, C300 series)
- Communication Protocol: FOUNDATION Fieldbus H1 (FF-H1)
- H1 Segments Supported: Up to 4 per module (platform-dependent)
- Bus Speed: 31.25 kbit/s (FF-H1 standard)
- Power Supply: Supplied via backplane (5 VDC / 24 VDC bus)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Humidity: 5% to 95% RH, non-condensing
- Form Factor: Single-slot card module
- Weight: Approx. 1.6 kg (with packaging)
- Certifications: CE, UL (per Honeywell platform certification)
- Country of Origin: USA
Proven Application Environments
- Oil & Gas upstream/downstream process control (refineries, FPSO platforms)
- Petrochemical and chemical batch/continuous process automation
- Power generation plant DCS infrastructure (boiler, turbine, BOP control)
- Pulp & paper and water treatment facilities running TDC 3000 legacy systems
- Pharmaceutical manufacturing with validated Experion PKS environments
- LNG terminals and pipeline SCADA integration nodes
Engineering Advantages
- Deterministic FF-H1 Communication: Ensures time-critical process data integrity across all connected field devices on each segment.
- Multi-Segment Architecture: Supports up to 4 independent H1 segments per module, reducing cabinet footprint and wiring complexity.
- Hot-Swap Capable: Designed for live insertion/removal within the TDC 3000 / Experion PKS chassis, minimizing planned downtime.
- Backward Compatibility: Fully interoperable with existing TDC 3000 UCN/LCN infrastructure and Experion PKS R400+ software releases.
- Integrated Diagnostics: Onboard LED status indicators and software-accessible diagnostic registers for rapid fault isolation.
- OEM Quality: Manufactured to Honeywell’s stringent industrial-grade quality standards with full traceability.
System Architecture & Signal Flow
The 51305980-260 FIM resides in the Honeywell I/O chassis and interfaces directly with the Controller (C200/C300) via the backplane bus. Each H1 segment port connects to a field junction box or segment coupler, from which up to 16 FF-H1 field devices (transmitters, valve positioners, analyzers) can be addressed. The module handles link scheduling, publisher/subscriber management, and alarm/event buffering, offloading communication overhead from the main controller CPU. Configuration and diagnostics are managed through Honeywell’s Control Builder or Station software.
Sourcing & Quality Verification
- Stock Status: Verified surplus / new-surplus inventory, inspected prior to shipment
- Inspection Protocol: Visual inspection, firmware version check, functional power-on test where applicable
- Packaging: Anti-static ESD bag + foam-lined carton for international transit
- Warranty: 12-month Konmask operational warranty against manufacturing defects
- Documentation: Honeywell datasheet and installation guide available upon request
- Traceability: Serial number and date code recorded at dispatch
Procurement Process
- Confirm Compatibility: Provide your existing platform version (TDC 3000 / Experion PKS release) and chassis model to our engineering team for cross-reference.
- Request Quote: Contact us via email or phone for volume pricing, lead time, and export compliance (ECCN/HTS classification).
- Order & Payment: T/T bank transfer, PayPal, or trade-term (EXW/FOB Xiamen) options available.
- Shipping: DHL / FedEx Express worldwide; sea freight for bulk orders. Typical dispatch within 2–5 business days of payment confirmation.
- After-Sales: Technical support available via email within 24 hours; RMA process for warranty claims.
Technical FAQ
Q: Is the 51305980-260 compatible with Experion PKS R500 and later?
A: Compatibility depends on the specific Experion release and chassis generation. Please contact our team with your system version for a definitive cross-reference check.
Q: Can this module replace the 51305980-250 or other FIM variants?
A: The -260 suffix denotes a specific hardware revision. Direct substitution with other suffixes requires engineering review. We recommend consulting the Honeywell FIM compatibility matrix or contacting us for guidance.
Q: What is the maximum number of field devices per H1 segment?
A: FOUNDATION Fieldbus H1 supports up to 16 devices per segment under standard conditions; actual limits depend on power budget, cable length, and device current draw.
Q: Do you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, and certificate of origin. HS Code 8537.10 applies for most jurisdictions. ECCN classification available on request.
Q: Is firmware upgrade support available?
A: Firmware updates for Honeywell FIM modules are managed through the Honeywell support portal. We can advise on current firmware versions available for the 51305980-260.
