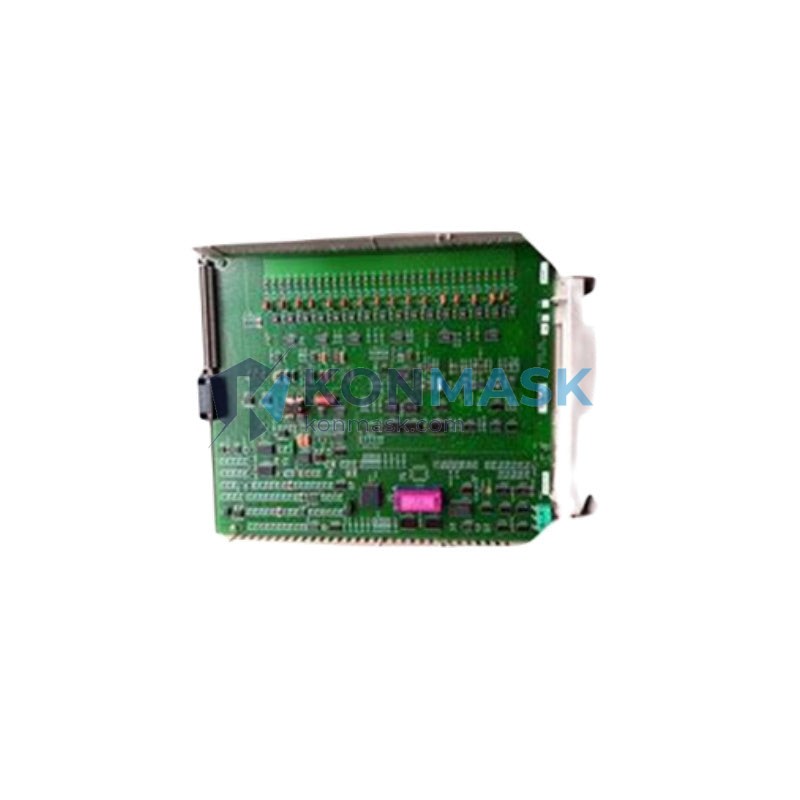

Process Control & Safety Solution — Honeywell 51403483-100 TC-FTEB01 | Experion PKS Series
Where This Product Is Used
The Honeywell TC-FTEB01 (P/N 51403483-100) Fault-Tolerant Ethernet Bridge module is a mission-critical communication interface deployed in high-availability distributed control systems (DCS). Engineers specify this module across the following industries and applications:
- Oil & Gas Refining — Connects C300 controllers to the Fault-Tolerant Ethernet (FTE) backbone in refinery process units, ensuring zero-downtime communication for crude distillation, hydrotreating, and catalytic cracking loops.
- Petrochemical Plants — Provides redundant Ethernet bridging for ethylene crackers, polymer reactors, and utility systems where network interruption is unacceptable.
- Power Generation — Integrated into boiler management systems (BMS) and turbine control networks in coal, gas, and combined-cycle power plants.
- Pharmaceutical Manufacturing — Supports FDA 21 CFR Part 11-compliant process automation in batch reactors, CIP/SIP systems, and cleanroom HVAC control.
- Pulp & Paper — Used in continuous digester control and recovery boiler automation where network redundancy is mandated by safety standards.
- Chemical Processing — Deployed in exothermic reactor control and hazardous-area process networks requiring IEC 61511 SIL-rated communication paths.
Technical Specifications
| Part Number | 51403483-100 |
| Model | TC-FTEB01 |
| Manufacturer | Honeywell Process Solutions |
| Series | Experion PKS / TotalPlant Solution (TPS) |
| Module Type | Fault-Tolerant Ethernet (FTE) Bridge / Digital I/O Interface |
| Communication Protocol | Fault-Tolerant Ethernet (FTE) — Dual-path redundant 100 Mbps |
| Network Interface | Dual RJ-45 Ethernet ports (FTE A & FTE B) |
| Backplane Compatibility | Honeywell C300 Controller chassis / IOTA |
| Power Supply | Supplied via backplane (24 VDC) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 220 g |
| Certifications | CE, UL, cUL, FM Class I Div 2 |
| Firmware | Compatible with Experion PKS R310 and above |
Why Engineers Specify This Model
- True Fault Tolerance — Dual FTE paths (A & B) operate simultaneously; a single cable or switch failure causes zero process disruption, meeting IEC 61784-1 redundancy requirements.
- Seamless Experion PKS Integration — Native plug-and-play compatibility with C300 controllers eliminates custom configuration and reduces commissioning time by up to 40%.
- Hot-Swap Capability — Module can be replaced under power without shutting down the controller or interrupting process I/O — critical for 24/7 continuous operations.
- Deterministic Latency — FTE protocol guarantees sub-millisecond cycle times, essential for fast-loop PID control in compressor surge and reactor temperature applications.
- Long Product Lifecycle — Honeywell Experion PKS platform carries a 20+ year support commitment, protecting capital investment in brownfield and greenfield projects alike.
Complete System Bill of Materials
For a fully operational Experion PKS C300 node using the TC-FTEB01, engineers typically specify the following complementary components:
- TC-CCR014 / TC-CCR016 — C300 Controller Module
- TC-PCIC02 — Process Controller Interface Card
- 51305476-200 — C300 IOTA (I/O Termination Assembly)
- 51401642-100 — FTE Network Switch (Cisco IE series recommended)
- 51204172-175 — Redundant Power Supply Module
- 51109684-175 — Cabinet Backplane Assembly
- Honeywell Experion PKS R510+ Server License
Contact [email protected] for complete BOM pricing and availability on all associated components.
Compliance & Industry Standards
- IEC 61511 — Functional Safety for Process Industry Sectors (SIL-rated network paths)
- IEC 61784-1 — Industrial Communication Networks — Fieldbus Profiles
- ANSI/ISA-99 / IEC 62443 — Industrial Cybersecurity Standards
- FM Class I, Division 2 — Hazardous Location Approval (Groups A, B, C, D)
- CE Marking — EU EMC Directive 2014/30/EU compliance
- UL / cUL Listed — North American safety certification
- RoHS Compliant — EU Directive 2011/65/EU
Quality Assurance & Sourcing
Every Honeywell 51403483-100 TC-FTEB01 module supplied by Konmask.com undergoes a rigorous multi-stage quality process:
- Visual Inspection — PCB, connectors, and housing examined for physical damage, corrosion, or counterfeit indicators.
- Functional Power-On Test — Module is energized and FTE link status LEDs verified against Honeywell factory test specifications.
- Firmware Version Verification — Confirmed compatible with Experion PKS R310+ before shipment.
- Traceability Documentation — Each unit ships with inspection report, serial number log, and certificate of conformance upon request.
- Packaging — ESD-safe anti-static bag, foam-lined carton, and moisture barrier for international freight.
How to Source This Part
Konmask.com maintains ready stock of the Honeywell TC-FTEB01 (51403483-100) for immediate dispatch. Our standard sourcing process:
- Step 1 — Submit your RFQ via [email protected] or WhatsApp +0086 19859288691 with your required quantity and delivery timeline.
- Step 2 — Receive a formal quotation with unit price, lead time, and shipping options (DHL Express, FedEx, sea freight) within 2 business hours.
- Step 3 — Confirm order and receive proforma invoice. Payment via T/T, PayPal, or credit card accepted.
- Step 4 — Module ships with full documentation. Tracking number provided within 24 hours of payment clearance.
Urgent plant shutdowns? Contact us directly for same-day quotation and priority air freight dispatch.
Application-Specific FAQ
Q: Is the TC-FTEB01 compatible with Experion PKS R500 and R510?
A: Yes. The 51403483-100 is backward and forward compatible with Experion PKS R310 through R510+. Firmware updates may be required for the latest releases — contact us for version confirmation.
Q: Can this module be used in a Safety Instrumented System (SIS)?
A: The TC-FTEB01 is a standard DCS communication module, not a SIL-rated SIS component. For safety loops, Honeywell’s Safety Manager SC or FSC platform with dedicated SIL-certified I/O modules should be specified.
Q: What is the difference between 51403483-100 and 51403483-150?
A: The -100 suffix denotes the standard revision. The -150 is a later hardware revision with minor PCB improvements. Both are functionally interchangeable in Experion PKS C300 systems. We can supply either revision — specify your preference when ordering.
Q: Do you provide a warranty?
A: Yes. All modules carry a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced or refunded within 5 business days of confirmed fault report.
Q: Can you supply the complete C300 controller node?
A: Yes. Konmask.com specializes in complete Experion PKS node assemblies. Contact us with your I/O count and tag list for a full BOM and system quotation.
