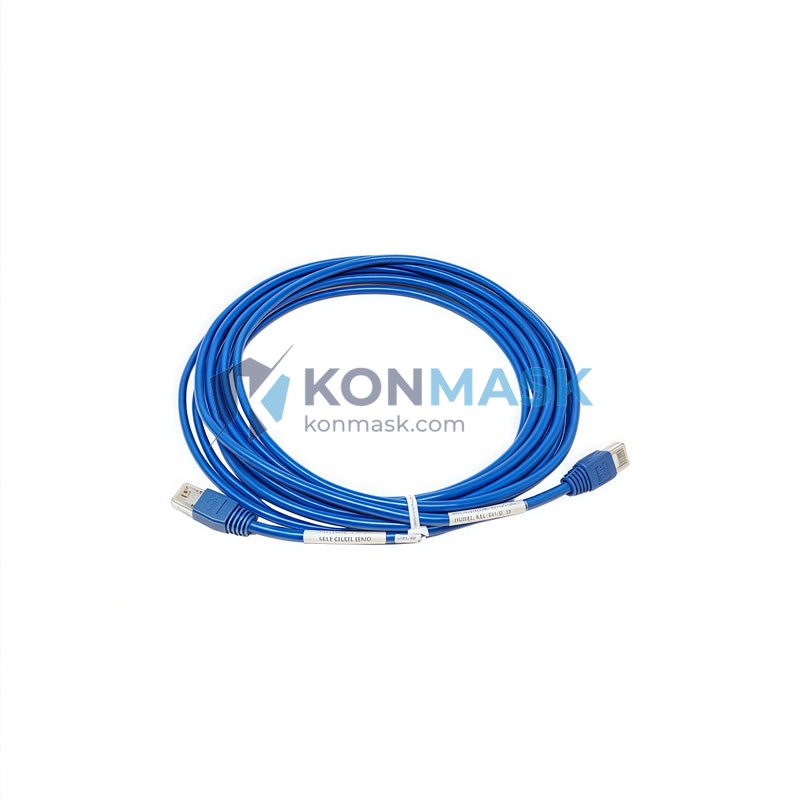

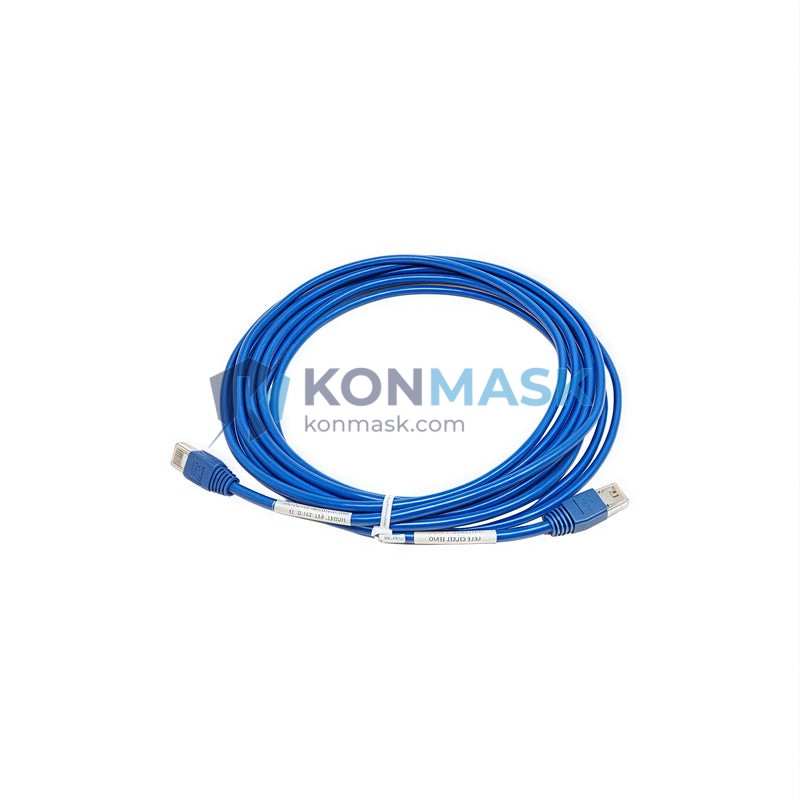

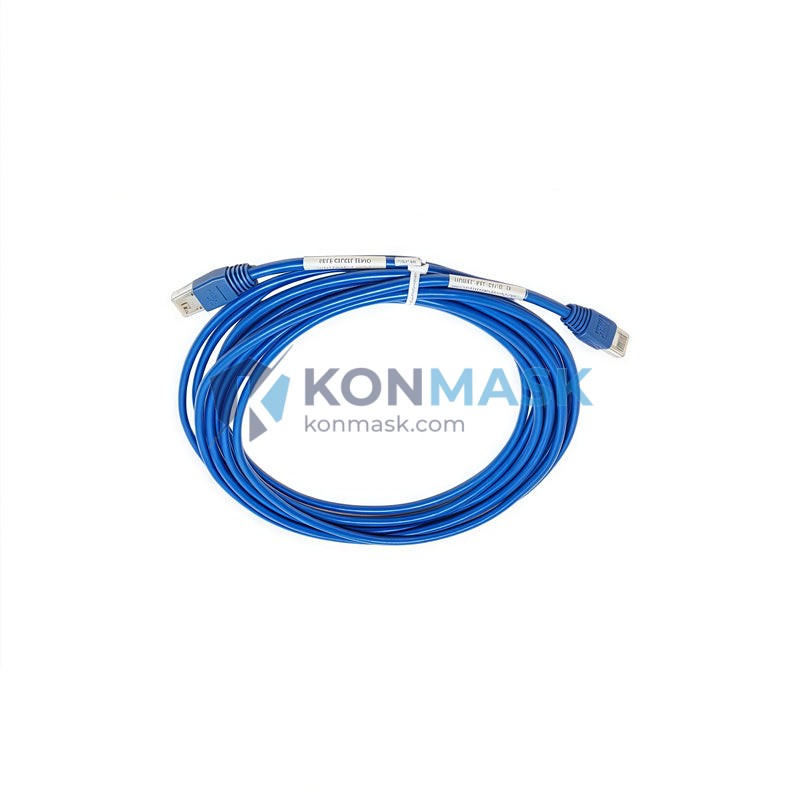

Industrial DCS Communication Solution – HONEYWELL 51451432-020 | Experion PKS
In a modern process plant, every millisecond of communication latency matters. The HONEYWELL 51451432-020 Ethernet Cable is purpose-engineered for the Experion PKS distributed control system, delivering deterministic, noise-immune data transmission between controllers, I/O modules, and operator workstations. When your facility cannot afford a dropped packet or a degraded signal, this is the cable engineers specify.
Where This Product Is Used
The 51451432-020 is deployed across a wide range of industrial environments where Honeywell Experion PKS is the backbone of process control:
- Oil & Gas Refineries – Connecting C300 Process Controllers to EPKS servers in hazardous-area control rooms
- Chemical & Petrochemical Plants – Linking redundant FIM (Fieldbus Interface Modules) to the Experion network backbone
- Power Generation Facilities – Integrating turbine control panels with the plant-wide DCS network
- Pulp & Paper Mills – Providing reliable Ethernet connectivity in high-vibration, high-humidity environments
- Pharmaceutical Manufacturing – Supporting 21 CFR Part 11-compliant data integrity in validated DCS architectures
- LNG Terminals – Ensuring uninterrupted communication in safety-critical SIL-rated control loops
- Water & Wastewater Treatment – Connecting remote I/O cabinets to central Experion PKS servers
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 51451432-020 |
| Manufacturer | Honeywell Process Solutions |
| Cable Type | Industrial Shielded Ethernet |
| Compatible System | Experion PKS (Process Knowledge System) |
| Connector Type | RJ-45 (shielded) |
| Cable Standard | IEEE 802.3 / Cat 5e or higher |
| Weight | 1,000 g (approx.) |
| Country of Origin | USA |
| Condition | New / Surplus New |
Why Engineers Specify This Model
- OEM-Certified Fit – Designed and tested by Honeywell to exact Experion PKS mechanical and electrical tolerances; no field modification required
- EMI/RFI Shielding – Industrial-grade foil and braid shielding rejects interference from VFDs, motors, and high-voltage bus bars common in process plants
- Plug-and-Play Reliability – Pre-terminated, tested, and labeled; eliminates field crimping errors that cause intermittent faults
- Redundancy Support – Compatible with Experion PKS dual-network (primary/secondary) redundancy architecture
- Long Service Life – PVC or LSZH jacket options withstand industrial temperature cycling, chemical splash, and UV exposure
Complete System Bill of Materials
The 51451432-020 is typically ordered alongside these Experion PKS components:
- Honeywell C300 Process Controller – 51309276-175 / 51309276-150
- Honeywell EPLCG2 Ethernet Switch – 51454501-175
- Honeywell FIM4 Fieldbus Interface Module – 51304485-150
- Honeywell ESVT Server – 51401641-100
- Honeywell 24 VDC Power Supply – 51452055-175
- Honeywell Cabinet Patch Panel – 51451432-025
Compliance & Industry Standards
- IEEE 802.3 Ethernet Standard
- IEC 61158 / IEC 61784 Industrial Communication Networks
- UL Listed cable assembly
- RoHS 2 Compliant
- CE Marked
- Compatible with IEC 61511 (Functional Safety) system architectures
Quality Assurance & Sourcing
Konmask.com sources the HONEYWELL 51451432-020 exclusively from authorized distributors and verified surplus channels. Every unit undergoes:
- Visual inspection for connector integrity and jacket damage
- Continuity and pin-out verification
- Shield continuity test
- Original Honeywell labeling and part number verification
- Anti-static packaging with humidity indicator card
We maintain traceability documentation and can provide certificates of conformance upon request.
How to Source This Part
Ready to order or need a formal quotation for your procurement team? Contact Konmask.com through any of the following channels:
- Email: [email protected]
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
Provide your required quantity, delivery timeline, and destination country. We respond to all RFQs within 24 business hours and can arrange DHL / FedEx / sea freight worldwide.
Application-Specific FAQ
Q: Is the 51451432-020 compatible with Experion PKS R500 and later releases?
A: Yes. The cable is a passive assembly and is compatible with all Experion PKS software releases. Verify connector type matches your specific chassis revision.
Q: Can this cable be used in a redundant Experion network?
A: Yes. Experion PKS supports dual-network redundancy; the 51451432-020 is used on both primary and secondary network paths.
Q: What is the maximum cable run length?
A: Per IEEE 802.3, standard Cat 5e Ethernet supports up to 100 m per segment. For longer runs, use Honeywell-approved fiber media converters.
Q: Do you supply the cable with a certificate of conformance?
A: Yes, CoC documentation is available upon request for all orders.
Q: Can I use a generic Cat 5e cable instead?
A: Generic cables may work electrically, but Honeywell recommends OEM cables for validated DCS environments to maintain system warranty and SIL integrity.
