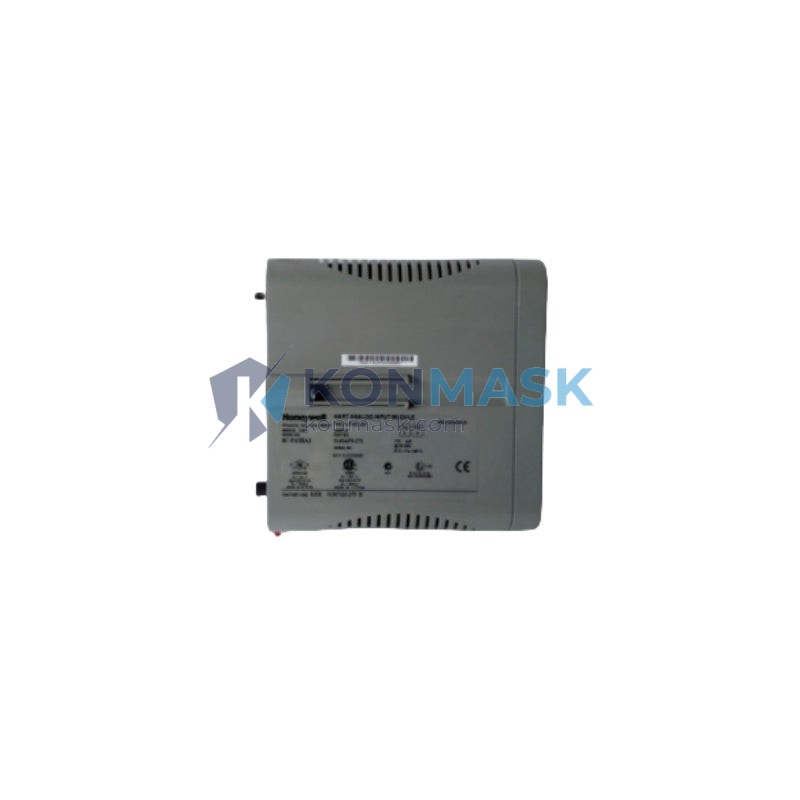

Honeywell 8C-PAINA1 HART Analog Input Module | Replacement, Equivalent & Selection Guide
The Honeywell 8C-PAINA1 (also referenced as 8C-PAIMA1) is a HART-enabled Analog Input module designed for the Honeywell Experion PKS C300 Controller platform. It provides high-accuracy field signal acquisition with HART protocol support, making it a critical component in process automation and DCS architectures across oil & gas, chemical, power, and manufacturing industries.
Technical Specifications
- Part Number: 8C-PAINA1 / 8C-PAIMA1
- Manufacturer: Honeywell Process Solutions
- Series: C300 / Experion PKS
- Module Type: HART Analog Input
- Channels: 8 channels (single-ended)
- Signal Range: 4–20 mA with HART communication
- Protocol: HART (Highway Addressable Remote Transducer)
- Isolation: Channel-to-channel and channel-to-bus isolation
- Resolution: 16-bit A/D conversion
- Power Supply: Supplied via C300 backplane
- Operating Temperature: 0°C to 60°C
- Weight: Approx. 350 g
- Certifications: CE, UL, FM (refer to Honeywell datasheet for full listing)
Compatible Replacement & Equivalent Models
When sourcing a replacement for the 8C-PAINA1, the following models are functionally compatible or serve as direct equivalents within the Honeywell Experion PKS ecosystem:
- 8C-PAIMA1 — Alternate part number for the same module (HART Analog Input, 8-channel)
- 8C-TAIM12 — HART Analog Input module, 12-channel variant for higher-density applications
- 8C-PAIN01 — Standard Analog Input (non-HART) for applications not requiring HART communication
- 51304485-150 — Legacy Honeywell AI module compatible in hybrid migration scenarios
- CC-PAIN01 — Analog Input module for Experion C300 with standard 4–20 mA (non-HART)
Note: Always verify firmware version and backplane compatibility before substituting modules. Contact Konmask.com for cross-reference validation.
Why Choose the Original 8C-PAINA1
- Native HART Support: Full bidirectional HART communication for smart field device diagnostics and parameterization without additional hardware.
- Seamless C300 Integration: Plug-and-play compatibility with Honeywell Experion PKS C300 controller backplanes — no additional configuration adapters required.
- High Accuracy: 16-bit resolution ensures precise analog signal acquisition critical for process control loops.
- Redundancy Ready: Supports hot-standby redundancy configurations for high-availability process environments.
- Long-Term Support: Honeywell provides extended lifecycle support and firmware updates for the Experion PKS platform.
Typical Applications
- Oil & Gas upstream/downstream process monitoring
- Chemical plant DCS control loops (flow, pressure, temperature, level)
- Power generation plant instrumentation
- Pharmaceutical batch process control
- Water treatment and utilities automation
- Refinery and petrochemical process control
System Compatibility
- Controller Platform: Honeywell Experion PKS — C300 Controller
- Backplane: C300 Series I/O Link backplane (8-slot and 16-slot)
- Software: Honeywell Experion PKS R400 and above
- Field Wiring: Standard 4–20 mA two-wire and four-wire HART transmitters
- HART Revision: HART 5 / HART 7 compatible
Selection Guide
Use the table below to select the correct Honeywell analog input module for your application:
| Requirement | Recommended Model |
|---|---|
| 8-ch HART AI, C300 platform | 8C-PAINA1 / 8C-PAIMA1 |
| 12-ch HART AI, higher density | 8C-TAIM12 |
| 8-ch standard AI (no HART) | 8C-PAIN01 / CC-PAIN01 |
| Legacy migration / hybrid system | 51304485-150 |
| Intrinsically safe zone requirement | Consult Honeywell IS module series |
Not sure which module fits your system? Send us your system configuration and we’ll recommend the right part.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock
- Condition: New, refurbished, and tested-used options available — clearly labeled
- Testing: All modules undergo functional verification prior to shipment
- Warranty: 12-month warranty on all units shipped from Konmask.com
- Traceability: Full documentation and traceability records available on request
- Packaging: Anti-static ESD packaging with original or equivalent protective materials
How to Order
- Add the 8C-PAINA1 to your cart and proceed to checkout, or
- Contact us directly for bulk orders, lead time inquiries, or custom sourcing requests:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
We typically respond within 1 business day. Expedited sourcing available for urgent plant shutdowns or emergency replacements.
Replacement & Compatibility FAQ
Q: Is 8C-PAIMA1 the same as 8C-PAINA1?
A: Yes. 8C-PAIMA1 is an alternate part number used in some Honeywell documentation for the same HART Analog Input module. They are functionally identical and interchangeable.
Q: Can I use 8C-PAINA1 in a non-C300 Honeywell system?
A: No. This module is specifically designed for the C300 backplane. It is not compatible with Honeywell HC900, PlantScape, or TDC 3000 platforms without additional migration hardware.
Q: Does this module support HART pass-through to the Experion server?
A: Yes. When used with Experion PKS R400+, HART device data is accessible via the Experion HART Device Manager for diagnostics and parameterization.
Q: What is the lead time for 8C-PAINA1?
A: In-stock units ship within 1–3 business days. For sourced units, typical lead time is 5–15 business days. Contact us for current availability.
Q: Can Konmask.com provide a certificate of conformance?
A: Yes. Certificate of conformance and test reports are available upon request for all units.
