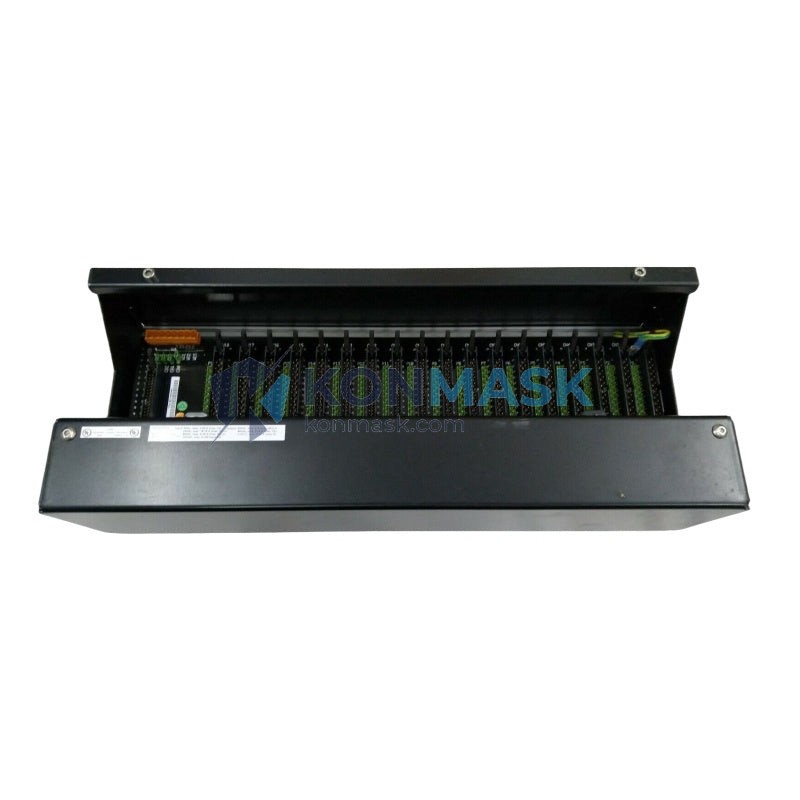

Process Control & Hybrid Automation Solution – Honeywell 900R12-0200 / 900R12R-0200 | HC900 Series
Where This Product Is Used
The Honeywell 900R12-0200 and 900R12R-0200 12 I/O Slot Racks are the structural backbone of the HC900 Hybrid Controller system, deployed across demanding industrial environments where reliability and scalability are non-negotiable:
- Oil & Gas Processing: Wellhead automation, separator control, and pipeline monitoring stations requiring high-density I/O in hazardous-area-adjacent panels.
- Chemical & Petrochemical Plants: Reactor temperature/pressure loop control, batch sequencing, and safety interlock systems.
- Refinery Operations: Distillation column control, heat exchanger management, and utility systems (steam, cooling water).
- Power Generation: Boiler combustion control, turbine auxiliary systems, and balance-of-plant automation.
- Pharmaceutical Manufacturing: FDA-compliant batch process control with full audit trail support via HC900 software.
- Water & Wastewater Treatment: Multi-loop PID control for dosing, filtration, and aeration processes.
- Food & Beverage: CIP/SIP cycle automation, pasteurization control, and recipe management.
Technical Specifications
| Part Numbers | 900R12-0200 (standard) / 900R12R-0200 (redundant-ready) |
| Series | Honeywell HC900 Hybrid Controller |
| I/O Slots | 12 module slots |
| Rack Type | Remote / Local I/O Expansion Rack |
| Compatible Controllers | HC900 C30, C50, C70, C70R (redundant) |
| Backplane Bus | HC900 proprietary high-speed I/O bus |
| Power Supply | Requires HC900-compatible power supply module (sold separately) |
| Mounting | DIN rail / panel mount |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | Approx. 300 g (rack only) |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Maximum I/O Density: 12 slots accommodate the full range of HC900 analog, digital, and specialty I/O modules — minimizing rack count and panel footprint.
- Redundancy Support (900R12R-0200): The -R variant supports controller redundancy configurations, enabling hot-standby operation with bumpless transfer for zero-downtime processes.
- Seamless HC900 Ecosystem Integration: Plug-and-play compatibility with all HC900 I/O modules — no custom wiring adapters or firmware patches required.
- Scalable Architecture: Expand from a single rack to multi-rack distributed systems via HC900 rack-linking cables without controller replacement.
- Long Product Lifecycle: Honeywell HC900 is an actively supported platform with guaranteed spare parts availability and firmware updates.
- Simplified Maintenance: Hot-swappable I/O modules (with appropriate HC900 firmware) reduce planned downtime during module replacement.
Complete System Bill of Materials
A typical HC900 process control node built around the 900R12-0200 rack includes:
- 900R12-0200 or 900R12R-0200 — 12 I/O Slot Rack (this item)
- HC900 Controller Module (C30 / C50 / C70 / C70R)
- 900P01-0001 — HC900 Power Supply Module
- 900A16-0102 — 16-Channel Analog Input Module (4–20 mA)
- 900B08-0102 — 8-Channel Digital Input Module
- 900C32-0101 — 32-Channel Digital Output Module
- 900G32-0101 — HC900 Rack Linking Cable (for multi-rack expansion)
- HC900 Designer Software License (for configuration and programming)
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
- UL / cUL Listed — UL 508 Industrial Control Equipment
- RoHS Compliant — Directive 2011/65/EU
- IEC 61131-2 — Programmable Controllers: Equipment Requirements and Tests
- ISA-5.1 — Instrumentation Symbols and Identification (system-level compliance)
Quality Assurance & Sourcing
- All units sourced from authorized Honeywell distribution channels or verified surplus with full traceability documentation.
- Pre-shipment inspection includes visual examination, label verification, and functional power-on test where applicable.
- Anti-static packaging with humidity indicator cards for safe international transit.
- Batch and date code records maintained for full supply chain traceability.
- Counterfeit-prevention policy: all parts verified against Honeywell part number databases before dispatch.
How to Source This Part
- In Stock: Ready to ship from our warehouse — typical lead time 1–3 business days.
- Request a Quote: Contact us for volume pricing, project BOM support, or expedited delivery.
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
- We support Net 30 terms for qualified industrial buyers and OEM accounts.
Application-Specific FAQ
Q: What is the difference between 900R12-0200 and 900R12R-0200?
A: The 900R12R-0200 is the redundancy-capable variant, designed to work with the HC900 C70R redundant controller pair. The 900R12-0200 is the standard rack for non-redundant C30/C50/C70 systems. Both share the same 12-slot physical form factor.
Q: Can I mix analog and digital I/O modules in the same rack?
A: Yes. The HC900 rack architecture supports any combination of analog input, analog output, digital input, digital output, and specialty modules across all 12 slots, configured via HC900 Designer software.
Q: How many racks can I connect to a single HC900 controller?
A: The HC900 system supports up to 4 racks (local + remote) per controller node, providing up to 48 I/O slots total when using 12-slot racks.
Q: Is this rack compatible with legacy HC900 systems installed before 2015?
A: Yes. Honeywell maintains backward compatibility across HC900 hardware generations. The 900R12-0200 rack is compatible with all HC900 controller firmware versions.
Q: Do you provide installation support or system integration services?
A: We provide pre-sales technical consultation and can connect you with certified Honeywell system integrators in your region. Contact us at support@konmask.com.
