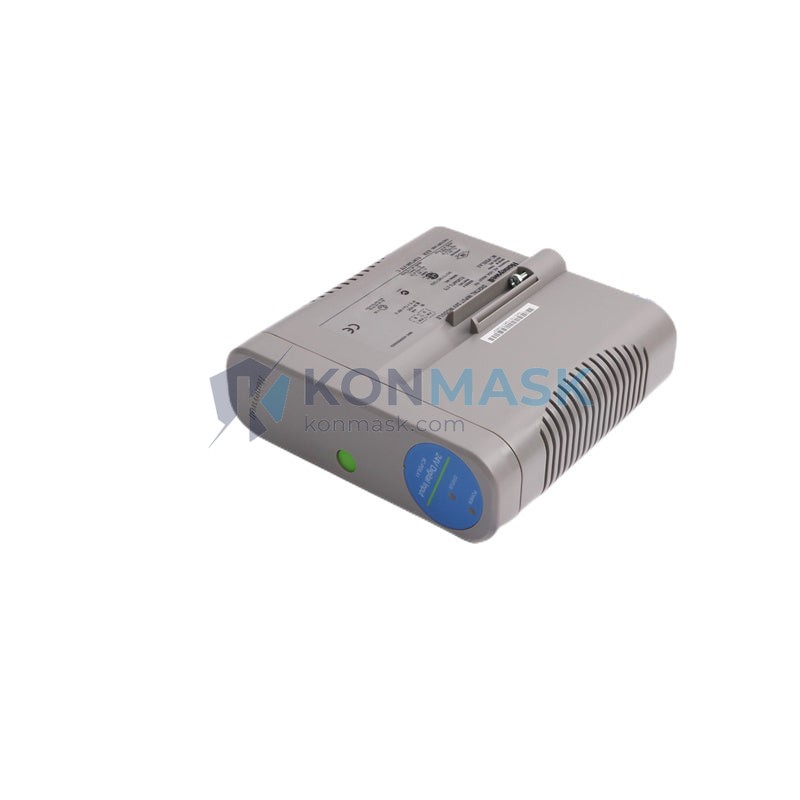

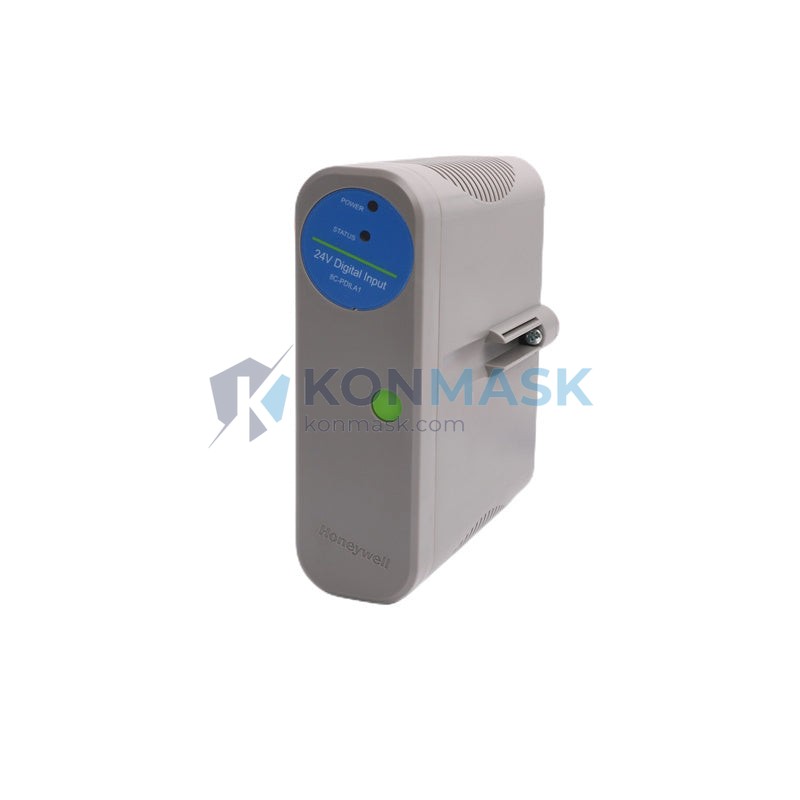

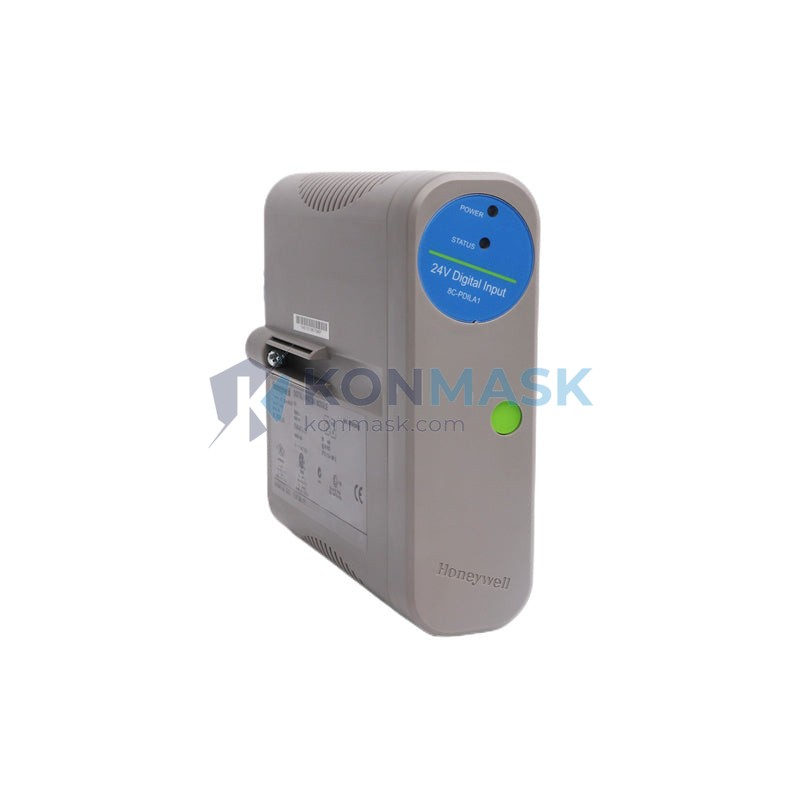

Honeywell 8C-PDILA1 51454471-175 – 8-Channel 24V DC Digital Input Module | TDC 3000 / TPS Distributed Control System
Engineering Background: The Honeywell TDC 3000 / TPS (Total Plant Solution) platform is one of the most widely deployed Distributed Control Systems in continuous-process industries, with an installed base spanning refinery, power generation, and water treatment facilities worldwide. Within this architecture, the Process Manager (PM) and Advanced Process Manager (APM) I/O subsystems rely on plug-in I/O modules to interface field instruments with the control highway. The 8C-PDILA1 (catalog suffix 51454471-175) is a discrete digital input module that occupies a standard I/O slot in the PM/APM card file, converting 24V DC field-level ON/OFF signals into the internal logic representation consumed by the controller.
Product Positioning: The 8C-PDILA1 provides 8 isolated 24V DC digital input channels, distinguishing it from the 16-channel PDILA2 variant and from the 120V AC input module (PDILA3). Its 24V DC rating makes it the preferred choice for installations where field devices—limit switches, proximity sensors, solenoid feedback contacts—are powered from a 24V DC loop supply rather than mains AC. The module is not interchangeable with analog input cards (PAIA, PAIB series) and is not suitable for high-speed pulse counting applications.
Complete Technical Specifications
Electrical
- Part Number: 8C-PDILA1 / 51454471-175
- Input Channels: 8 isolated digital input channels
- Input Voltage Range: 18–30V DC (nominal 24V DC)
- Logic ON Threshold: ≥ 11V DC
- Logic OFF Threshold: ≤ 5V DC
- Input Current (per channel): ≈ 7 mA at 24V DC
- Isolation: Channel-to-backplane optical isolation
- Backplane Power Consumption: ≤ 1.5W (5V DC from card file)
- Scan Rate: Determined by PM/APM controller cycle time (typically 100–500 ms)
Mechanical
- Form Factor: Single-width plug-in card, PM/APM I/O card file compatible
- Connector: 32-pin DIN card-edge (mates with I/O termination assembly)
- Weight: ≈ 300 g
- Dimensions: Standard TDC 3000 I/O card profile
Environmental
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −40°C to +70°C
- Relative Humidity: 5–95% RH, non-condensing
- Vibration: IEC 68-2-6 compliant
- Installation Category: Indoor, controlled environment (DCS cabinet)
Certifications
- CE Marking (EMC Directive)
- UL Listed (process control equipment)
- Compatible with SIL-rated safety loops when used within validated TDC 3000 SIS configurations
Data source: Honeywell TDC 3000 Process Manager I/O Module Specification, PM I/O Card File Installation Guide (Honeywell document 51-52-25-35). Specifications subject to revision; confirm against current Honeywell documentation for safety-critical applications.
Proven Application Environments
- Petroleum Refinery – Crude Distillation Unit: Monitoring pump run/stop feedback signals from 24V DC motor control centers; continuous operation under high-ambient-temperature cabinet conditions.
- Power Generation – Coal-Fired Boiler Control: Acquiring limit switch status from coal feeder gates and damper actuators; module operates within PM card files in the main control room DCS cabinet.
- Water Treatment – Filtration Plant: Reading valve open/close position feedback from 24V DC solenoid-operated valves across multiple filter trains; low-power loop supply compatible with site 24V DC distribution.
- Petrochemical – Ethylene Cracker: Interfacing emergency shutdown (ESD) system dry-contact outputs to the TDC 3000 PM for alarm annunciation; optical isolation prevents ground-loop interference between ESD and DCS commons.
- LNG Terminal – Loading Arm Control: Capturing proximity sensor signals from loading arm interlocks; 8-channel density matches the typical 8-point field junction box wiring practice at marine terminals.
- Pharmaceutical – Batch Reactor: Monitoring agitator seal status and vessel door interlock contacts in a 24V DC safety circuit; module’s low input current minimizes self-heating in temperature-sensitive cabinet environments.
Engineering Advantages
- For high-noise field environments (VFD-dense motor control rooms), this digital input module provides channel-to-backplane optical isolation, because galvanic separation eliminates common-mode interference paths that would otherwise corrupt discrete signal integrity.
- For sites standardized on 24V DC field power distribution, this module eliminates the need for interposing relays to step down 120V AC signals, because the native 18–30V DC input range directly accepts loop-powered sensor outputs without additional signal conditioning.
- For maintenance teams performing hot-swap card replacement, this module supports in-service removal from the PM card file without requiring a controller shutdown, because the TDC 3000 PM architecture supports online I/O replacement when the redundant I/O option is configured.
- For plants running extended TDC 3000 lifecycle programs, this module maintains full backward compatibility with original PM and APM card files manufactured from the 1980s onward, because the 32-pin card-edge interface and backplane protocol have not changed across hardware revisions.
- For procurement teams managing spare-parts inventory, this module’s 8-channel density aligns with standard 8-point field junction box layouts, because one module maps directly to one junction box without channel waste or cross-card wiring complexity.
- For SIL-rated safety applications, this module can be incorporated into validated TDC 3000 Safety Manager configurations, because Honeywell’s functional safety documentation covers the PM I/O subsystem within its overall SIL assessment framework.
System Architecture & Signal Flow
Field 24V DC discrete signals enter through the I/O termination assembly (FTA), pass through optical isolators on the 8C-PDILA1 card, and are latched into the module’s input register. The PM/APM controller reads this register over the I/O card file backplane during each scan cycle and maps the 8-bit input word to the corresponding process database points accessible via the TDC 3000 Universal Control Network (UCN).
Compatible modules and assemblies:
- 51304485-100 / 51304485-150 – Digital Input FTA (field termination assembly), direct mating termination panel for 8C-PDILA1
- 8C-PDILA2 / 51454471-176 – 16-channel 24V DC digital input variant; use when channel density per slot must be doubled
- 51401288-100 – PM I/O card file (16-slot), standard housing for 8C-PDILA1 installation
- 51401288-200 – APM I/O card file, also accepts 8C-PDILA1 without modification
Substitution conditions: The 8C-PDILA2 (16-channel) is a functional superset and can replace the 8C-PDILA1 in the same slot with unused channels left unwired, provided the PM configuration database is updated to reflect the new module type. The 8C-PDILA1 cannot substitute for analog input modules (PAIA/PAIB series) or for 120V AC digital input modules (PDILA3).
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from decommissioned plant upgrades, authorized surplus channels, and verified industrial distributors. Each unit undergoes the following 4-step inspection before dispatch:
- Visual Inspection: Card-edge connector pin condition, PCB surface for corrosion or burn marks, component seating, and label legibility (part number, revision, and date code verified against Honeywell labeling standards).
- Functional Bench Test: Module inserted into a live TDC 3000 PM card file test rig; all 8 input channels exercised with a 24V DC signal source; input register readback confirmed via engineering workstation.
- Firmware / Revision Check: Hardware revision code recorded and cross-referenced against known compatible PM/APM firmware versions to confirm there are no known incompatibility issues.
- Packaging & ESD Protection: Card bagged in anti-static shielding, placed in foam-lined carton with desiccant; shipping label includes part number, serial number, and test-pass date.
Documentation available upon request: Inspection report, functional test log, high-resolution photographs of card front and back, Honeywell original datasheet copy, and certificate of conformance.
Procurement Process
- Submit Inquiry: Email support@konmask.com or call +0086 19859288691 with your required part number (8C-PDILA1 / 51454471-175), quantity, and delivery timeline. Attach your purchase order or RFQ document if available.
- Receive Quotation: A quotation including unit price, lead time, shipping options, and available inspection documentation will be issued within 24 hours of inquiry receipt on business days.
- Order Confirmation & Dispatch: Upon order confirmation and payment clearance, units are dispatched with full tracking. Express international shipping (DHL / FedEx) is available for urgent plant maintenance requirements.
Technical support available: Pre-purchase compatibility verification against your PM/APM configuration; post-delivery installation guidance; cross-reference assistance for obsolete or superseded part numbers.
Technical FAQ
- Q: Is the 8C-PDILA1 compatible with both the Process Manager (PM) and Advanced Process Manager (APM) card files?
- A: Yes. The 8C-PDILA1 uses the standard 32-pin TDC 3000 I/O card-edge interface and is electrically and mechanically compatible with both the PM (51401288-100) and APM (51401288-200) card files. No hardware modification is required; only the PM/APM configuration database entry must specify the correct module type.
- Q: Can the 8C-PDILA1 replace the 8C-PDILA2 (51454471-176) in an existing installation?
- A: Only if the installed configuration uses 8 or fewer channels from the PDILA2 slot. The PDILA1 provides 8 channels versus the PDILA2’s 16; replacing a PDILA2 with a PDILA1 will render channels 9–16 unavailable. The PM configuration database must be updated accordingly, and field wiring for unused channels must be verified before the swap. For like-for-like replacement, the 8C-PDILA2 is the correct substitute.
- Q: Is this module suitable for use in a SIL 2 safety instrumented system (SIS)?
- A: The 8C-PDILA1 is a standard DCS I/O module, not a dedicated SIL-rated safety module. Its use in a SIL 2 SIS requires a full functional safety assessment per IEC 61511, including proof-test interval analysis and failure mode documentation from Honeywell’s safety manual for the TDC 3000 PM subsystem. For dedicated SIL 2 discrete input applications, Honeywell’s Safety Manager SC platform with its certified I/O modules is the recommended architecture. Confirm applicability with your functional safety engineer before specifying this module in a safety loop.
