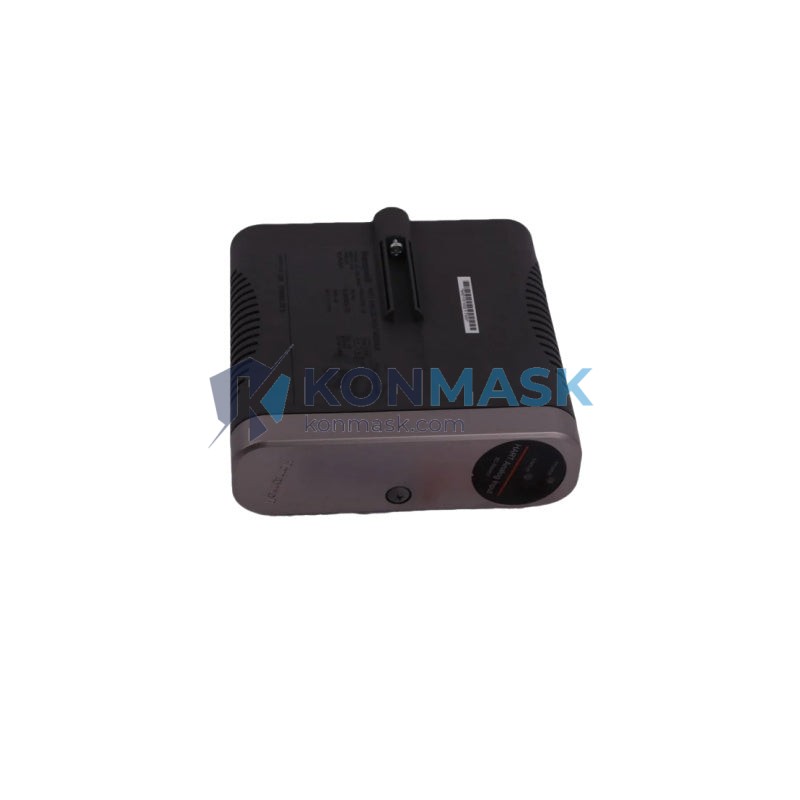

Honeywell 8C-SHEDA1 – Series 8 DCS Header Board | TDC 3000 Expansion Platform
Engineering Background
The Honeywell TDC 3000 Distributed Control System (DCS) has been the backbone of process automation in refining, petrochemical, power generation, and advanced manufacturing for decades. The Series 8 hardware generation represents Honeywell’s mature, field-proven I/O architecture, engineered for deterministic signal handling, high-density channel expansion, and long-term operational stability in mission-critical environments.
Product Positioning
The 8C-SHEDA1 is a Series 8 Header Board designed to serve as the physical and electrical backbone for I/O module mounting within the TDC 3000 chassis. It provides the structured backplane interface that allows field signal modules to communicate reliably with the process controller, making it an essential structural and functional component for any Series 8 I/O expansion assembly. Procurement engineers sourcing replacement or expansion hardware for legacy TDC 3000 installations will find the 8C-SHEDA1 a direct, specification-matched solution.
Complete Technical Specifications
- Part Number: 8C-SHEDA1
- Manufacturer: Honeywell Process Solutions
- Product Series: Series 8 / TDC 3000
- Module Type: DCS Header Board / I/O Backplane Interface
- Form Factor: Card-mount header board for Series 8 I/O chassis
- Compatibility: Honeywell TDC 3000 Series 8 I/O subsystem
- Signal Interface: Backplane bus interface for field I/O modules
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Weight: Approx. 2,000 g (assembled with chassis hardware)
- Country of Origin: United States
- Compliance: CE, UL listed (per Honeywell TDC 3000 system certification)
Proven Application Environments
- Petroleum refining and upstream oil & gas process control
- Petrochemical and specialty chemical plant DCS infrastructure
- Power generation (thermal, nuclear auxiliary systems)
- Pulp & paper and continuous process manufacturing
- Pharmaceutical batch and continuous process automation
- Water treatment and municipal utility SCADA/DCS hybrid systems
- Legacy TDC 3000 system maintenance, life extension, and capacity expansion projects
Engineering Advantages
- Direct OEM Replacement: Exact form, fit, and function match for installed TDC 3000 Series 8 I/O assemblies — no field modification required.
- Backplane Signal Integrity: Engineered to Honeywell’s deterministic bus timing specifications, ensuring reliable data transfer between field modules and the process controller.
- Long-Term Availability: Sourced from verified industrial surplus and authorized channels to support legacy system life extension beyond OEM production cycles.
- Reduced Downtime Risk: Having a tested spare 8C-SHEDA1 on-hand eliminates extended lead-time exposure during unplanned outages.
- Chassis Structural Integrity: Provides the mechanical mounting and electrical termination foundation for Series 8 I/O modules, maintaining system alignment and contact reliability.
System Architecture & Signal Flow
Within the TDC 3000 Series 8 I/O subsystem, the 8C-SHEDA1 Header Board occupies the backplane position that bridges field termination assemblies (FTAs) and the I/O Link communication bus. Field signals enter through the FTA wiring, pass through the header board’s connector interface, and are routed to the appropriate I/O processing module seated in the chassis. The header board ensures proper bus addressing, power distribution to seated modules, and mechanical retention of the I/O card stack. This architecture supports Honeywell’s redundancy configurations when paired with appropriate redundant I/O modules and controllers.
Sourcing & Quality Verification
- All units are inspected upon receipt for physical integrity, connector condition, and board-level cleanliness.
- Functional verification is performed where applicable using Honeywell-compatible test fixtures.
- Units are stored in ESD-safe, climate-controlled environments to preserve long-term reliability.
- Full traceability documentation available upon request for regulated industries (pharmaceutical, nuclear auxiliary).
- Konmask.com specializes in genuine, traceable Honeywell DCS and PLC components — no counterfeit risk.
Procurement Process
- Step 1: Confirm part number 8C-SHEDA1 against your TDC 3000 Series 8 BOM or existing chassis label.
- Step 2: Contact Konmask.com for real-time stock confirmation and lead time: [email protected] | +0086 19859288691.
- Step 3: Submit PO or request a formal quotation with your required delivery timeline.
- Step 4: Units ship with inspection report and ESD-safe packaging. Express international shipping available.
- Step 5: Post-delivery technical support available for installation verification queries.
Technical FAQ
Q: Is the 8C-SHEDA1 compatible with all TDC 3000 Series 8 chassis configurations?
A: The 8C-SHEDA1 is designed for the Series 8 I/O subsystem. Compatibility depends on your specific chassis slot configuration. Contact our engineering team with your chassis model for confirmation.
Q: Can this header board be used in a redundant I/O configuration?
A: Yes, when paired with appropriate redundant I/O modules and a redundant I/O Link interface, the Series 8 architecture supports redundancy. The 8C-SHEDA1 itself is a passive backplane component and does not limit redundancy capability.
Q: What is the typical lead time?
A: In-stock units typically ship within 1–3 business days. For out-of-stock situations, sourcing lead time is 2–6 weeks depending on market availability. Contact us for current status.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested units. Extended warranty options are available for volume procurement contracts.
Q: Can I request a certificate of conformance or test report?
A: Yes. Documentation packages including inspection records and, where available, functional test reports can be provided upon request at no additional charge.
