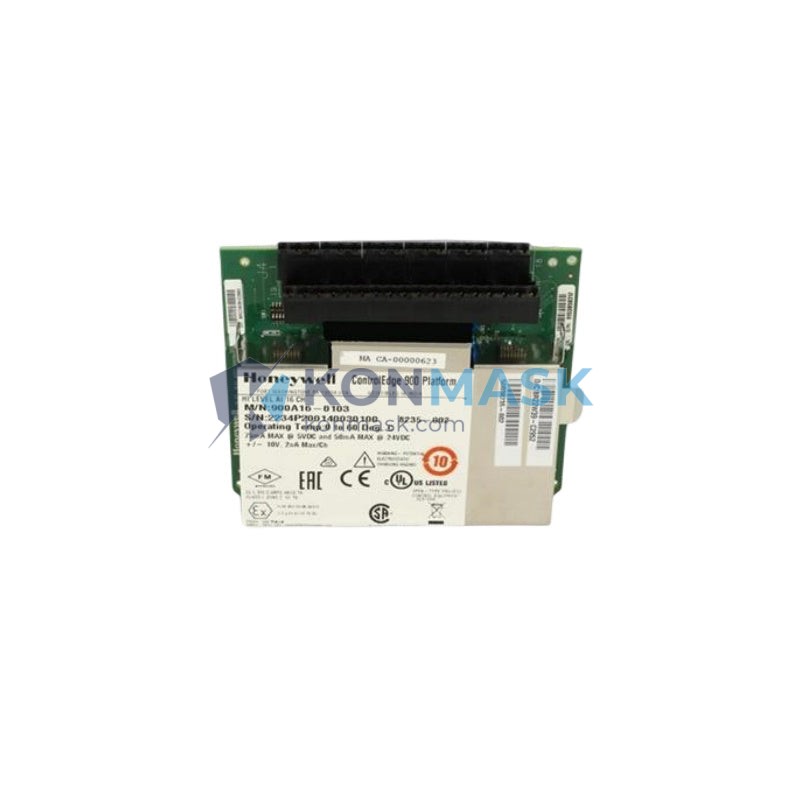

Honeywell 900A16-0103 — 16-Channel Analog Input Card | HC900 Hybrid Control Designer Platform
Engineering Background
The Honeywell HC900 Hybrid Control Designer is a field-proven distributed control platform widely deployed in refining, chemical processing, power generation, and pharmaceutical manufacturing. Designed for demanding continuous-process environments, the HC900 architecture separates I/O from the controller rack, enabling flexible, scalable system expansion without process interruption.
Product Positioning
The 900A16-0103 is a 16-channel analog input module engineered for high-density signal acquisition in HC900 controller racks. It accepts industry-standard 4–20 mA current loop and 0–10 V voltage signals, providing the front-end measurement layer for PID loops, alarm management, and historian data collection. This module is the preferred choice for procurement engineers seeking a drop-in replacement or system expansion card with full firmware compatibility.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 900A16-0103 |
| Module Type | Analog Input (AI) |
| Number of Channels | 16 Channels |
| Input Signal Types | 4–20 mA (current loop), 0–10 V (voltage), thermocouple (J, K, T, E, R, S, B), RTD (Pt100, Pt1000) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale (typical) |
| Input Impedance | >1 MΩ (voltage mode); 250 Ω (current mode) |
| Scan Rate | Configurable per channel; typical 100 ms/16 ch |
| Isolation | Channel-to-bus optical isolation; 500 V RMS |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5%–95% non-condensing |
| Power Consumption | ≤ 3.5 W (from backplane) |
| Backplane Bus | HC900 proprietary I/O bus |
| Dimensions (H × W × D) | Refer to HC900 I/O Module Datasheet (Doc# 51-52-25-107) |
| Weight | Approx. 500 g |
| Certifications | CE, UL, cUL, FM (Class I Div 2) |
| Compatible Controllers | HC900 C30, C50, C70, C75 CPU modules |
| Firmware Compatibility | HC900 Designer v4.0 and above |
Proven Application Environments
- Refinery & Petrochemical: Crude distillation column temperature profiling, reactor feed flow monitoring
- Pharmaceutical / Biotech: Bioreactor pH, DO, and temperature acquisition; clean-room pressure differential monitoring
- Power Generation: Boiler drum level, steam header pressure, and flue gas O₂ measurement
- Chemical Processing: Multi-stream flow totalizing, heat exchanger ΔT calculation
- Food & Beverage: Pasteurizer temperature logging, CIP conductivity monitoring
- Water / Wastewater: Influent flow, dissolved oxygen, and turbidity signal conditioning
Engineering Advantages
- High Channel Density: 16 AI channels per slot reduces rack footprint and wiring cost versus 8-channel alternatives
- Universal Input Flexibility: Single card handles mA, V, TC, and RTD — eliminates need for separate signal conditioners
- Hot-Swap Capable: Module can be replaced under power in HC900 racks with redundant power supplies, minimizing process downtime
- Galvanic Isolation: 500 V RMS channel-to-bus isolation suppresses ground loops common in large industrial installations
- Diagnostics: Per-channel open-wire detection and out-of-range alarming reported to HC900 controller fault log
- Long Product Lifecycle: Honeywell HC900 platform supported through 2030+ per Honeywell lifecycle policy
System Architecture & Signal Flow
The 900A16-0103 mounts directly into any HC900 I/O expansion rack slot. Field wiring terminates at the module’s front-face screw terminals (or optional marshalling panel via 37-pin D-sub cable). Signals are digitized by the onboard 16-bit ADC, conditioned through the module’s FPGA, and transmitted over the HC900 proprietary backplane bus to the CPU module at configurable scan intervals. The CPU executes configured function blocks (PID, ratio, cascade) using the acquired values and writes results back to analog output modules or to the Ethernet historian.
Recommended wiring practice: Use shielded twisted-pair cable (Belden 8761 or equivalent), ground shield at one end only (control room side), and maintain minimum 150 mm separation from power conductors.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified surplus channels with documented chain of custody
- Pre-shipment inspection: visual, label verification (Honeywell holographic authenticity label), and functional power-on test where applicable
- Serialized units traceable to Honeywell manufacturing batch records upon request
- ESD-safe packaging; anti-static bag + foam insert + double-wall carton
- Certificate of Conformance (CoC) available on request
- 30-day DOA warranty; extended warranty options available — contact sales
Procurement Process
- Confirm compatibility: Verify your HC900 CPU firmware version (≥ v4.0) and rack slot availability
- Request quote: Submit RFQ via support@konmask.com with quantity, required delivery date, and destination port
- Order confirmation: PO accepted in USD / HKD / CNY; Net 30 terms available for approved accounts
- Shipping: DHL Express / FedEx International Priority standard; sea freight available for bulk orders ≥ 10 units
- Documentation: Commercial invoice, packing list, CoC, and HS code 8537.10 declaration included
Technical FAQ
Q: Is the 900A16-0103 compatible with HC900 C30 controllers?
A: Yes. The module is compatible with all HC900 CPU variants (C30, C50, C70, C75) running firmware v4.0 or later.
Q: Can I mix 900A16-0103 with older 900A08-0101 (8-channel) modules in the same rack?
A: Yes. HC900 racks support mixed I/O module types. HC900 Designer software auto-discovers module configuration on download.
Q: What is the maximum cable length for 4–20 mA field wiring?
A: Honeywell specifies up to 300 m (1,000 ft) for 24 AWG shielded cable at 250 Ω loop resistance. Verify loop power supply voltage margin for longer runs.
Q: Do you provide ATEX / IECEx certified units?
A: The standard 900A16-0103 is FM Class I Div 2 rated. For ATEX Zone 1 applications, Honeywell recommends using certified Zener barriers or galvanic isolators in the field junction box. Contact us for barrier selection guidance.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For large quantities or factory-new units, lead time is 4–8 weeks subject to Honeywell production schedule.
