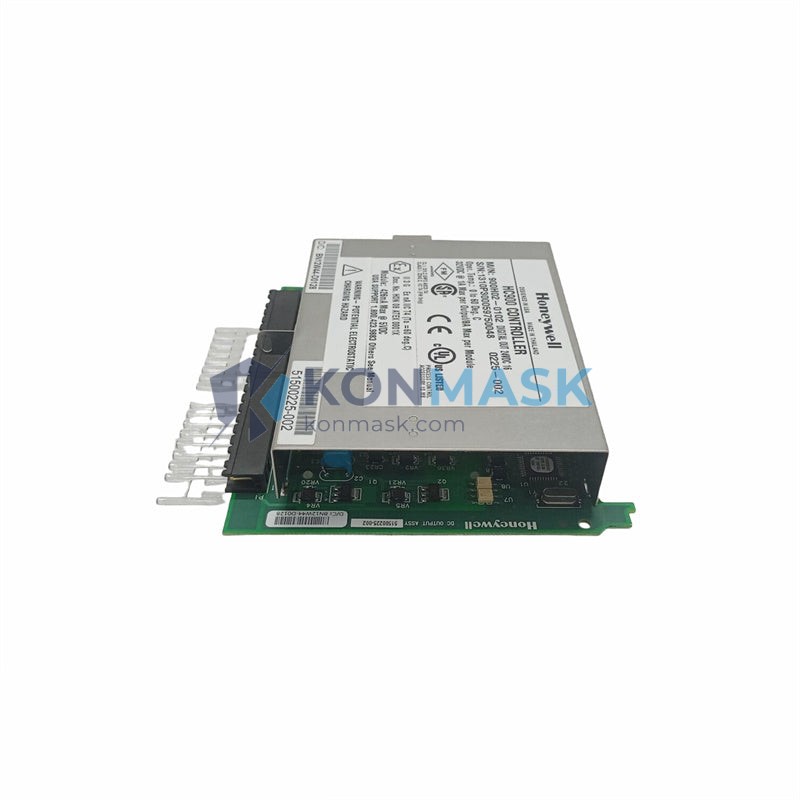

Honeywell 900H02-0102 – 16-Channel Digital Output Module | HC900 Hybrid DCS Platform
Engineering Background
The Honeywell HC900 Hybrid Controller platform was engineered to bridge the gap between traditional DCS and modern process automation requirements. Designed for continuous, batch, and hybrid process applications, the HC900 system delivers deterministic control with modular I/O scalability. The 900H02-0102 is the standard 16-channel digital output module within this ecosystem, providing reliable discrete control for field actuators, solenoids, motor starters, and indicator circuits.
Product Positioning
Targeted at process engineers and automation integrators operating in refining, chemical, pharmaceutical, and utilities sectors, the 900H02-0102 delivers hardened digital output capability within the HC900 rack architecture. Its 24 VDC sourcing output design ensures compatibility with the widest range of industrial field devices, while hot-swap capability minimizes process downtime during maintenance cycles.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 900H02-0102 |
| Module Type | Digital Output (DO) |
| Number of Channels | 16 Channels |
| Output Voltage | 24 VDC Sourcing |
| Output Current (per channel) | 0.5 A max |
| Total Module Load Current | 4 A max (all channels ON) |
| Output Type | Solid-State Transistor (Sourcing) |
| Short-Circuit Protection | Yes, per channel |
| Isolation | Optical isolation, field side to backplane |
| Backplane Communication | HC900 proprietary rack bus |
| Hot-Swap / Hot-Insertion | Supported |
| LED Indicators | Per-channel status LED |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Module Weight | Approx. 1,040 g |
| Certifications | CE, UL, cUL |
| Compatible Platform | Honeywell HC900 Hybrid Controller |
| Rack Compatibility | HC900 4-slot, 8-slot, 12-slot expansion racks |
| Country of Origin | USA |
Proven Application Environments
- Refining & Petrochemical: Solenoid valve control, pump motor start/stop sequencing, emergency shutdown (ESD) output circuits
- Pharmaceutical & Biotech: Batch process actuator control, clean-in-place (CIP) valve sequencing, GAMP-compliant discrete output management
- Power Generation & Utilities: Boiler burner management discrete outputs, cooling tower fan control, alarm annunciator driving
- Chemical Processing: Reactor agitator control, feed pump sequencing, interlock output circuits
- Water & Wastewater Treatment: Pump station control, dosing system actuator outputs, SCADA-integrated discrete control
- Food & Beverage: Conveyor drive control, filling line actuator outputs, CIP/SIP sequence control
Engineering Advantages
- Hot-Swap Capability: Replace or insert the 900H02-0102 without powering down the HC900 rack — critical for continuous process environments where unplanned shutdowns carry significant cost.
- Per-Channel Short-Circuit Protection: Each of the 16 output channels is individually protected, preventing a single field wiring fault from cascading to adjacent channels or the backplane.
- Optical Isolation: Full galvanic isolation between field wiring and the HC900 backplane bus eliminates ground loop interference and protects controller electronics from field-side transients.
- Per-Channel LED Diagnostics: Immediate visual confirmation of output state at the module face reduces troubleshooting time during commissioning and maintenance.
- Deterministic Scan Cycle Integration: Outputs update synchronously with the HC900 controller scan cycle, ensuring precise timing for sequencing and interlock applications.
- Wide Thermal Operating Range: Rated 0–60°C for reliable operation in non-air-conditioned industrial enclosures and harsh plant environments.
System Architecture & Signal Flow
The 900H02-0102 occupies a standard I/O slot within any HC900 expansion rack. The HC900 controller CPU communicates with the module via the proprietary HC900 rack bus, delivering output state commands on each controller scan cycle. The module’s solid-state transistor outputs source 24 VDC to field devices through the module’s field wiring terminal block. Optical isolation at the backplane interface ensures that field-side wiring faults, ground differentials, or transient events do not propagate to the controller backplane. Each channel’s status is reflected on the front-panel LED array, providing real-time visual diagnostics without requiring a connected engineering workstation.
Typical Signal Path: HC900 CPU → Rack Bus → 900H02-0102 Backplane Interface → Optical Isolator → Transistor Output Stage → Field Terminal Block → Field Device (Solenoid / Relay / Indicator)
Sourcing & Quality Verification
- Source: Konmask.com sources the 900H02-0102 exclusively from authorized distributors, certified surplus channels, and verified OEM overstock — no gray-market or counterfeit supply chains.
- Inspection Protocol: Every unit undergoes visual inspection, label authenticity verification, and functional bench testing prior to shipment.
- Condition: New (factory-sealed) and Refurbished (tested, cleaned, re-certified) units available — condition specified at time of quotation.
- Documentation: Certificate of conformance, test report, and original Honeywell datasheet available upon request.
- Warranty: 12-month replacement warranty against defects in materials and workmanship.
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity, delivery timeline, and condition preference (new / refurbished).
- Receive Quotation: Formal quotation with unit price, lead time, shipping options, and payment terms issued within 1 business day.
- Order Confirmation: Purchase order accepted via email. Pro-forma invoice issued for prepayment or net-terms accounts.
- Quality Check & Dispatch: Unit inspected, documented, and packed in anti-static ESD packaging. Tracking number provided upon dispatch.
- Delivery & Support: Global shipping via DHL / FedEx / UPS. Post-delivery technical support available from Konmask engineering team.
Technical FAQ
Q: Is the 900H02-0102 compatible with all HC900 rack sizes?
A: Yes. The module is compatible with HC900 4-slot, 8-slot, and 12-slot expansion racks. It occupies one standard I/O slot.
Q: Can the module be replaced while the HC900 system is running?
A: Yes. The 900H02-0102 supports hot-swap insertion and removal. The controller will detect the module and resume normal operation without a full system restart, subject to the application program’s fault handling configuration.
Q: What is the maximum load current per channel?
A: Each channel is rated at 0.5 A maximum. The total module load must not exceed 4 A with all 16 channels energized simultaneously.
Q: Does the module support sinking (NPN) output configurations?
A: No. The 900H02-0102 is a sourcing (PNP) output module. For sinking output requirements, consult Honeywell’s HC900 I/O selection guide for the appropriate module variant.
Q: What firmware or software is required to configure the module?
A: The 900H02-0102 is configured through Honeywell’s HC Designer software. No module-level firmware update is required for standard operation; the module is auto-detected by the HC900 CPU upon insertion.
Q: Are spare terminal blocks available separately?
A: Yes. Honeywell field wiring terminal blocks for HC900 I/O modules are available as separate accessories. Contact Konmask for part number and pricing.
