HONEYWELL CC-PAON01 / 51410070-175 – 8-Channel Analog Output Module | Experion PKS C300 Series
Engineering Background
The Honeywell Experion PKS (Process Knowledge System) platform is one of the most widely deployed Distributed Control Systems in the global process industries. Introduced as the successor to the TDC 3000 and PlantScape systems, Experion PKS delivers fault-tolerant, high-availability control across refining, petrochemical, power generation, and specialty chemical facilities. The C300 Controller Series—at the heart of this architecture—relies on a family of CHARM (Characterization Module) and Series C I/O modules to interface with field instrumentation. The CC-PAON01 is the standard 8-channel analog output module within this ecosystem.
Product Positioning

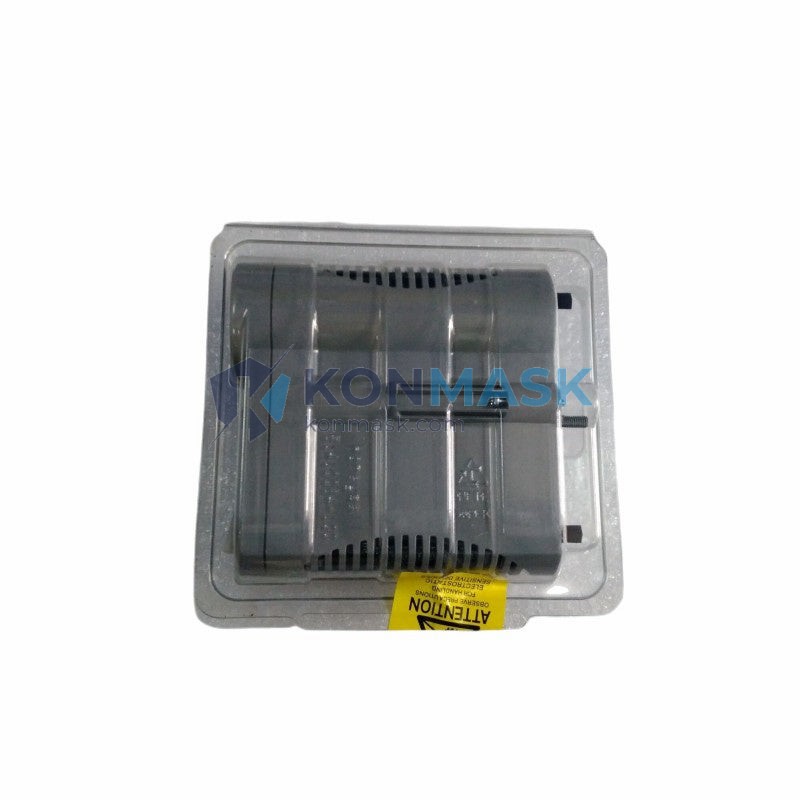

The CC-PAON01 (part number 51410070-175) is a plug-in analog output module designed for use with the Honeywell Series C I/O subsystem. It provides eight independently configurable 4–20 mA current output channels, each capable of driving HART-enabled field devices. Engineered for continuous process control environments, this module delivers the signal integrity, redundancy support, and diagnostic depth that process engineers demand in safety-critical and high-uptime applications. Konmask.com supplies this module as a verified, tested unit with full traceability documentation.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | CC-PAON01 / 51410070-175 |
| Manufacturer | Honeywell Process Solutions |
| Module Type | Analog Output (AO) |
| Number of Channels | 8 channels, independently configurable |
| Output Signal Range | 4–20 mA (current loop) |
| Output Resolution | 16-bit DAC |
| Accuracy | ±0.1% of full scale @ 25°C |
| Load Drive Capability | 0–750 Ω per channel |
| HART Communication | HART 5/6/7 pass-through supported |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Power Consumption | Supplied via Series C I/O backplane |
| Module Form Factor | Series C plug-in card |
| Compatible Controller | C300 Controller, Experion PKS |
| Compatible Backplane | CC-PCNT01, CC-PCNT02 Series C I/O Link |
| Diagnostics | Open-loop detection, wire-break, over-range, module health LED |
| SIL Rating | Suitable for use in SIL 1/2 safety loops (with Safety Manager) |
| Certifications | CE, UL, FM, ATEX (zone 2 when used with appropriate barriers) |
| Weight | Approx. 100 g |
| RoHS Compliance | Yes |
Proven Application Environments
The CC-PAON01 is specified by process control engineers across a broad range of industries where precise, reliable analog output is non-negotiable:
- Oil & Gas Refining: Control valve positioner signals for crude distillation, hydrotreating, and FCC units. Each channel independently drives a smart valve positioner with HART diagnostics looped back to the DCS historian.
- Petrochemical & Chemical Plants: Reactor temperature and pressure setpoint transmission to field-mounted controllers and I/P transducers in continuous polymerization and batch reaction processes.
- LNG & Gas Processing: Compressor anti-surge control and speed governor setpoint output in cryogenic environments where signal stability is critical to plant safety.
- Power Generation: Turbine governor and boiler feedwater control loops in combined-cycle and coal-fired power stations running Experion PKS as the plant DCS.
- Pulp & Paper: Stock flow, consistency, and headbox pressure control loops requiring tight ±0.1% output accuracy to maintain product quality.
- Pharmaceutical & Biotech: Bioreactor agitation speed, pH dosing pump control, and clean-steam pressure regulation in FDA-regulated GMP environments.
- Water & Wastewater: Variable-speed drive setpoint output for pump stations and aeration blowers in SCADA-integrated Experion PKS installations.
Engineering Advantages
- 16-Bit Output Resolution: Provides 65,536 discrete output steps across the 4–20 mA span, enabling sub-0.1% positioning accuracy for precision control valves and variable-speed drives.
- Per-Channel HART Pass-Through: Allows the C300 controller to communicate with HART-enabled field devices on each channel simultaneously, supporting remote diagnostics, device configuration, and predictive maintenance without additional multiplexers.
- Open-Loop Wire-Break Detection: Each channel continuously monitors loop integrity. A broken wire or open-circuit condition is immediately flagged to the operator console and logged in the Experion historian, reducing mean time to repair.
- Hot-Swap Capability: The Series C I/O architecture supports module replacement under power in non-redundant configurations, minimizing process interruption during maintenance windows.
- Galvanic Isolation: Channel-to-channel and channel-to-backplane isolation prevents ground loops and protects the controller from field-side transients in electrically noisy industrial environments.
- Compact 8-Channel Density: Eight outputs per module slot reduces cabinet footprint and wiring complexity compared to legacy 4-channel analog output cards, lowering total installed cost.
- Integrated Module Health Diagnostics: On-board self-test routines report module status to the Experion system continuously, enabling predictive replacement before failure impacts production.
System Architecture & Signal Flow
In a typical Experion PKS C300 installation, the CC-PAON01 is mounted on a Series C I/O Link backplane (CC-PCNT01 or CC-PCNT02). The C300 Controller communicates with the module over the redundant C-Link I/O bus. Control output values computed by the C300 are transmitted to the CC-PAON01, which converts the digital setpoint to a precision 4–20 mA current signal on each channel. The current loop drives the field device (control valve positioner, I/P transducer, VFD speed reference, etc.) wired to the module’s terminal block. HART digital signals are superimposed on the 4–20 mA loop and passed through to the C300 for device-level diagnostics. The module reports channel status, loop integrity, and self-diagnostic results back to the controller on every scan cycle, with alarm conditions propagated to the Experion operator station in real time.
Sourcing & Quality Verification
Konmask.com applies a multi-stage verification protocol to every CC-PAON01 unit before shipment:
- Visual Inspection: Board-level inspection for physical damage, corrosion, counterfeit markings, and component substitution.
- Functional Bench Test: Each channel is exercised across the full 4–20 mA output range using calibrated reference instruments. Output accuracy is verified against the ±0.1% specification.
- HART Communication Test: HART pass-through functionality is confirmed on all 8 channels using a HART communicator.
- Firmware Version Check: Module firmware is verified against Honeywell’s current release matrix and documented in the test report.
- Traceability Documentation: Each unit ships with a test report, serial number record, and sourcing declaration. Original Honeywell packaging is preserved where available.
- 90-Day Warranty: All units carry a 90-day functional warranty covering defects in materials and workmanship under normal operating conditions.
Procurement Process
- Submit RFQ: Contact Konmask.com via email at [email protected] or WhatsApp/phone at +0086 19859288691 with your required quantity, delivery timeline, and any specific firmware or revision requirements.
- Receive Quotation: Our technical team will confirm stock availability, unit pricing (HKD/USD), lead time, and shipping options within 24 business hours.
- Order Confirmation: Issue a purchase order or confirm via email. We accept T/T bank transfer, PayPal, and other agreed payment terms for qualified accounts.
- Pre-Shipment Inspection: Upon request, we provide pre-shipment test reports and photos for your QA records before dispatch.
- Shipping & Logistics: Units are shipped via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list, COO) is provided for customs clearance. Typical transit: 3–7 business days worldwide.
- After-Sales Support: Our engineering team is available post-delivery to assist with installation questions, compatibility verification, and warranty claims.
Technical FAQ
Q: Is the CC-PAON01 compatible with the Experion PKS R500 and later releases?
A: Yes. The CC-PAON01 is supported across Experion PKS R400 through R520 and later. Always verify the specific firmware revision against your site’s Experion release using Honeywell’s compatibility matrix.
Q: Can this module be used in a redundant I/O configuration?
A: The CC-PAON01 supports Honeywell’s Series C redundant I/O architecture when paired with a redundant backplane and C300 controller pair. Consult your Experion system design documentation for redundancy wiring requirements.
Q: What is the maximum cable length for the 4–20 mA output loops?
A: With a maximum loop resistance of 750 Ω and standard 0.5 mm² shielded twisted-pair cable (approximately 36 Ω/km), loop lengths of up to 1,000 m are achievable. Actual limits depend on cable gauge and field device input impedance.
Q: Does the module support HART 7?
A: HART pass-through is supported for HART 5, 6, and 7 devices. The HART master function resides in the C300 controller or a dedicated HART multiplexer; the CC-PAON01 provides the physical pass-through path.
Q: What is the difference between CC-PAON01 and 51410070-175?
A: CC-PAON01 is the Honeywell catalog model number; 51410070-175 is the manufacturing part number (MPN) used on the physical label and in Honeywell’s spare parts system. Both refer to the identical module.
Q: Can Konmask supply multiple units for a plant turnaround?
A: Yes. We maintain stock of multiple units and can source additional quantity through our verified supplier network. Contact us with your total requirement and turnaround schedule for a dedicated quotation.
