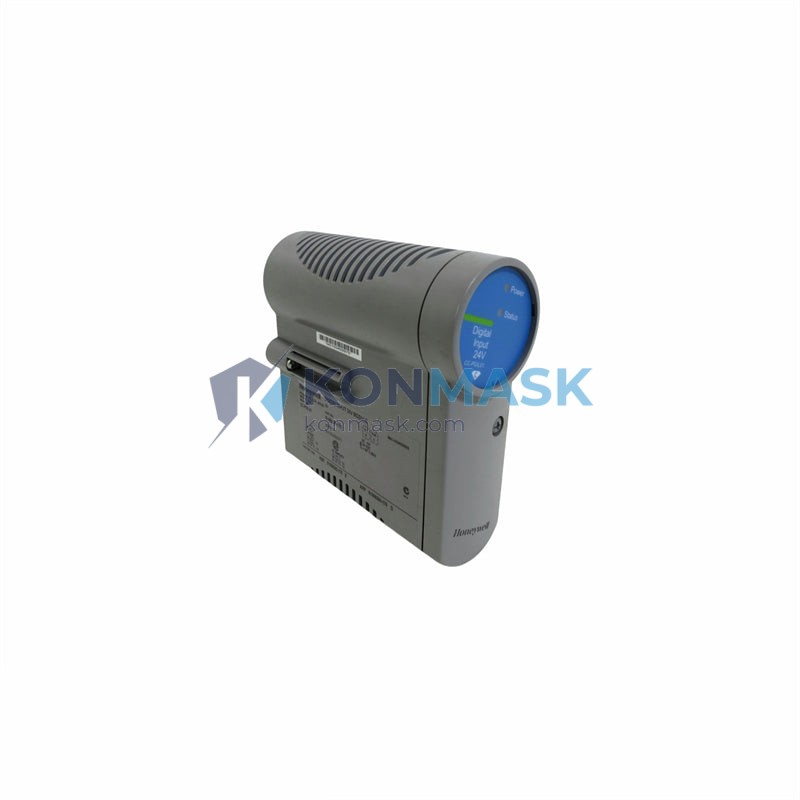

Honeywell CC-PDIL01 Digital Input Module | Replacement, Equivalent & Selection Guide
The Honeywell CC-PDIL01 is a Digital Input (DI) module designed for use in Honeywell’s Experion PKS (Process Knowledge System) Distributed Control System (DCS). It provides reliable field-level digital signal acquisition for process automation environments in oil & gas, refining, chemical, and power generation industries. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
- Part Number: CC-PDIL01
- Manufacturer: Honeywell Process Solutions
- Series: Experion PKS C300 / EPKS Series
- Module Type: Digital Input (DI) Module
- Channel Count: 32 channels (typical for PDIL series)
- Input Voltage Range: 24 VDC (nominal)
- Signal Type: Discrete / Digital (dry contact or wet contact)
- Communication: FTE (Fault Tolerant Ethernet) backplane interface
- Isolation: Optical isolation per channel group
- Mounting: DIN rail / chassis-mounted via IOTA base
- Operating Temperature: 0°C to 60°C
- Weight: ~4.6 kg (module + packaging)
- Certifications: CE, UL, FM (hazardous area variants available)
- Firmware: Compatible with Experion PKS R400 and above
Compatible Replacement & Equivalent Models
The following modules are commonly evaluated as replacements or functional equivalents for the CC-PDIL01. Always verify firmware revision and IOTA compatibility before substitution:
- CC-PDIL01 Rev. B / Rev. C – Direct drop-in replacement (same form factor, updated firmware)
- CC-PDIL01R – Redundant variant; requires redundant IOTA base (CC-TAID01)
- CC-PDOB01 – Digital Output counterpart; used in paired I/O configurations
- CC-PDIL02 – Higher-density DI module (if available in your revision level)
- Honeywell 51304485-150 – Legacy TDC-3000 DI module (not pin-compatible; requires migration)
- Yokogawa ADV151-P00 – Third-party DI equivalent for cross-platform migration projects
- Emerson KJ3221X1-BA1 – DeltaV DI module; functional equivalent for cross-brand evaluation
Note: Cross-brand replacements require engineering validation. Contact Konmask for migration support.
Why Choose the Original CC-PDIL01
- Native Experion PKS Integration: Plug-and-play with Honeywell C300 controllers and FTE network — no additional configuration adapters required.
- Proven Reliability: Designed for continuous 24/7 operation in SIL-rated process environments.
- Firmware Compatibility: Fully supported under Honeywell’s Experion PKS lifecycle program through R500+.
- Redundancy Support: Supports 1:1 redundant I/O configurations with CC-TAID01 IOTA base.
- Reduced Engineering Risk: Using OEM modules eliminates compatibility validation overhead versus third-party alternatives.
Typical Applications
- Oil & gas upstream / midstream / downstream process control
- Petrochemical and refinery DCS upgrades and expansions
- Power generation plant automation (boiler, turbine, BOP systems)
- Chemical plant batch and continuous process control
- Water treatment and utilities SCADA/DCS integration
- Pharmaceutical manufacturing (21 CFR Part 11 compliant environments)
System Compatibility
- Controller: Honeywell C300 Process Controller
- Network: Fault Tolerant Ethernet (FTE) — dual-ring topology
- IOTA Base: CC-TAID01 (standard) / CC-TAID11 (redundant)
- Software: Experion PKS R400, R410, R430, R500, R501 and above
- Chassis: Experion PKS I/O Link chassis (standard and extended)
- Not Compatible With: TDC-3000, PlantScape, or Experion HS without migration kit
Selection Guide
Use the following criteria to confirm CC-PDIL01 is the correct module for your application:
- Step 1 – Confirm DCS Platform: Verify your system is Experion PKS with C300 controllers and FTE network.
- Step 2 – Check IOTA Base: Confirm you have CC-TAID01 (non-redundant) or CC-TAID11 (redundant) IOTA installed.
- Step 3 – Verify Firmware Revision: CC-PDIL01 requires Experion PKS R400 or higher. Check your server revision in Experion Configuration Studio.
- Step 4 – Count I/O Points: CC-PDIL01 supports up to 32 DI channels. If you need more, consider multiple modules or the higher-density variant.
- Step 5 – Redundancy Requirement: If your SIL or availability requirement mandates redundant I/O, select CC-PDIL01R with CC-TAID11 IOTA.
- Step 6 – Hazardous Area: For Zone 1 / Division 1 installations, confirm the IS (Intrinsically Safe) variant and associated barriers.
Quality Assurance & Sourcing
- All modules supplied by Konmask.com are sourced from authorized distributors or verified surplus channels.
- Each unit undergoes visual inspection and functional verification prior to shipment.
- Original OEM packaging and documentation preserved where available.
- Traceability records available upon request for regulated industries.
- Warranty: 12 months from date of shipment (see full terms at Konmask.com/warranty).
How to Order
- Part Number: CC-PDIL01
- Add to cart directly on this page, or contact us for volume pricing and lead time confirmation.
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock items ship within 1–3 business days; ex-stock lead time quoted on request.
- Export: We support worldwide export with full commercial documentation (CO, packing list, invoice).
Replacement & Compatibility FAQ
Q: Can CC-PDIL01 replace a CC-PDIL01R (redundant version)?
A: No. The redundant variant (CC-PDIL01R) requires a different IOTA base (CC-TAID11). Using a non-redundant module on a redundant IOTA will result in a system fault.
Q: Is CC-PDIL01 compatible with Experion PKS R300?
A: Compatibility with R300 is not guaranteed. Honeywell recommends R400 or above. Please verify with your Honeywell system engineer.
Q: Can I use a third-party DI module as a drop-in replacement?
A: Third-party modules are not plug-and-play replacements for Experion PKS I/O. Cross-brand substitution requires engineering validation, driver development, and may void system support agreements.
Q: What is the difference between CC-PDIL01 and CC-PDOB01?
A: CC-PDIL01 is a Digital Input module (reads field signals); CC-PDOB01 is a Digital Output module (drives field devices). They are complementary, not interchangeable.
Q: Do you offer exchange / repair services for CC-PDIL01?
A: Yes. Contact support@konmask.com for repair, exchange, and refurbishment options.
