HVAC Zone Control Solution – Honeywell CLLYVB6436AS-VAV | VAV Series

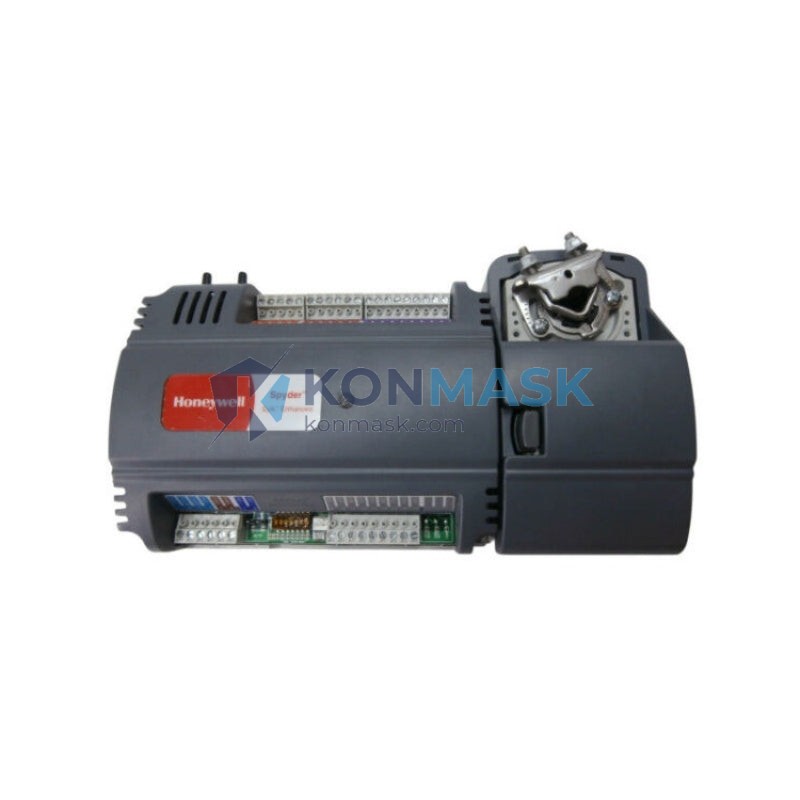

The Honeywell CLLYVB6436AS-VAV is a high-performance BACnet-native Variable Air Volume (VAV) zone controller engineered for precision airflow and temperature management in commercial and industrial HVAC systems. Designed for demanding environments where occupant comfort, energy efficiency, and system reliability are non-negotiable, this controller integrates seamlessly into modern Building Automation Systems (BAS).
Where This Product Is Used
The CLLYVB6436AS-VAV is specified by mechanical engineers and BAS integrators across a wide range of applications:
- Commercial Office Buildings – Multi-zone VAV systems requiring independent room-level temperature and airflow control with BACnet MS/TP network integration.
- Hospitals & Healthcare Facilities – Critical environment control where precise air changes per hour (ACH) and pressure relationships must be maintained 24/7.
- Pharmaceutical & Cleanroom Environments – ISO-classified spaces demanding tight differential pressure and airflow stability for regulatory compliance (GMP, FDA 21 CFR Part 11).
- University & Research Laboratories – Fume hood exhaust tracking and supply air coordination in variable-occupancy lab spaces.
- Data Centers & Server Rooms – Precision cooling zone management to protect sensitive IT infrastructure from thermal excursions.
- Retail & Hospitality – Energy-optimized comfort control across large open-plan or multi-room commercial spaces.
Technical Specifications
- Model: CLLYVB6436AS-VAV
- Brand: Honeywell
- Series: VAV Zone Controller Series
- Communication Protocol: BACnet MS/TP (EIA-485)
- Control Type: Variable Air Volume (VAV)
- Inputs: Universal inputs for temperature, pressure, and occupancy sensors
- Outputs: Analog and digital outputs for damper actuator and reheat control
- Power Supply: 24 VAC, 50/60 Hz
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Weight: 220 g
- Enclosure: DIN-rail or panel-mount compatible
- Certifications: CE, UL Listed, FCC
Why Engineers Specify This Model
- Native BACnet MS/TP – No gateway required; integrates directly with Honeywell WEBs-AX, Niagara N4, and third-party BAS platforms.
- Standalone Capability – Operates independently with onboard logic even during network outages, ensuring uninterrupted zone control.
- Flexible I/O Configuration – Supports reheat coils (hot water or electric), damper actuators, and occupancy-based setpoint adjustment.
- Energy Optimization – Demand-controlled ventilation (DCV) logic reduces unnecessary airflow during low-occupancy periods, cutting HVAC energy costs.
- Compact Form Factor – Space-efficient design fits standard VAV terminal unit enclosures without modification.
- Proven Reliability – Honeywell’s industrial-grade components deliver consistent performance across 10+ year service lifecycles.
Complete System Bill of Materials
For a complete VAV zone control installation, engineers typically specify the following alongside the CLLYVB6436AS-VAV:
- VAV Terminal Unit (box) with integrated damper
- Damper Actuator (e.g., Honeywell ML6161 or equivalent)
- Duct Temperature Sensor (e.g., Honeywell C7770A)
- Room Temperature Sensor / Thermostat (e.g., Honeywell T7770)
- Differential Pressure Transducer for airflow measurement
- 24 VAC Class 2 Transformer
- BACnet MS/TP Network Wiring (EIA-485, shielded twisted pair)
- Honeywell WEBs-AX or Niagara N4 Supervisor (for multi-zone BAS integration)
Compliance & Industry Standards
- BACnet Standard: ASHRAE 135 – BACnet MS/TP compliant
- Energy Codes: Compatible with ASHRAE 90.1 demand-controlled ventilation requirements
- Safety: UL 916 (Energy Management Equipment), CE Marking (EU Low Voltage Directive)
- EMC: FCC Part 15 Class B
- Environmental: RoHS compliant
- Healthcare: Supports ASHRAE 170 ventilation requirements for healthcare facilities
Quality Assurance & Sourcing
Konmask.com sources the Honeywell CLLYVB6436AS-VAV exclusively through verified industrial distribution channels. Every unit undergoes the following before shipment:
- Visual inspection for physical damage, label integrity, and seal verification
- Authenticity cross-check against Honeywell authorized distributor records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards for sensitive electronics
- Full traceability documentation available upon request (batch/lot records)
We do not source from grey-market or unverified secondary suppliers. All products carry the original manufacturer warranty.
How to Source This Part
Ready to procure the Honeywell CLLYVB6436AS-VAV? Here’s how to get started:
- In-Stock Orders: Add to cart and check out directly — most orders ship within 1–3 business days.
- Bulk / Project Quantities: Contact us for volume pricing and lead time confirmation for quantities of 5+ units.
- OEM / System Integrator Accounts: Apply for a wholesale account to access tiered pricing and priority allocation.
- Urgent Requirements: Email support@konmask.com or call +0086 19859288691 for expedited sourcing assistance.
Application-Specific FAQ
Q: Is the CLLYVB6436AS-VAV compatible with Niagara N4 (Tridium)?
A: Yes. As a native BACnet MS/TP device, it integrates with any BACnet-compliant supervisor including Niagara N4, Honeywell WEBs-AX, and Siemens Desigo CC without requiring a protocol gateway.
Q: Can this controller handle reheat applications?
A: Yes. The CLLYVB6436AS-VAV supports both hot water reheat coil control (via floating or modulating output) and electric reheat staging, making it suitable for perimeter zone and interior zone applications.
Q: What is the maximum number of VAV controllers per BACnet MS/TP segment?
A: BACnet MS/TP supports up to 127 devices per segment. For large projects, multiple segments can be connected via a BACnet router or IP backbone.
Q: Is this product suitable for cleanroom or pharmaceutical use?
A: Yes. The controller’s precise airflow modulation and pressure tracking capabilities make it well-suited for ISO-classified cleanrooms and GMP manufacturing environments where regulatory airflow compliance is mandatory.
Q: What programming tool is required for commissioning?
A: The CLLYVB6436AS-VAV is typically commissioned using Honeywell’s WEBs Engineering Center (WEC) or compatible BACnet commissioning tools. Pre-configured application programs are available for standard VAV sequences of operation.
