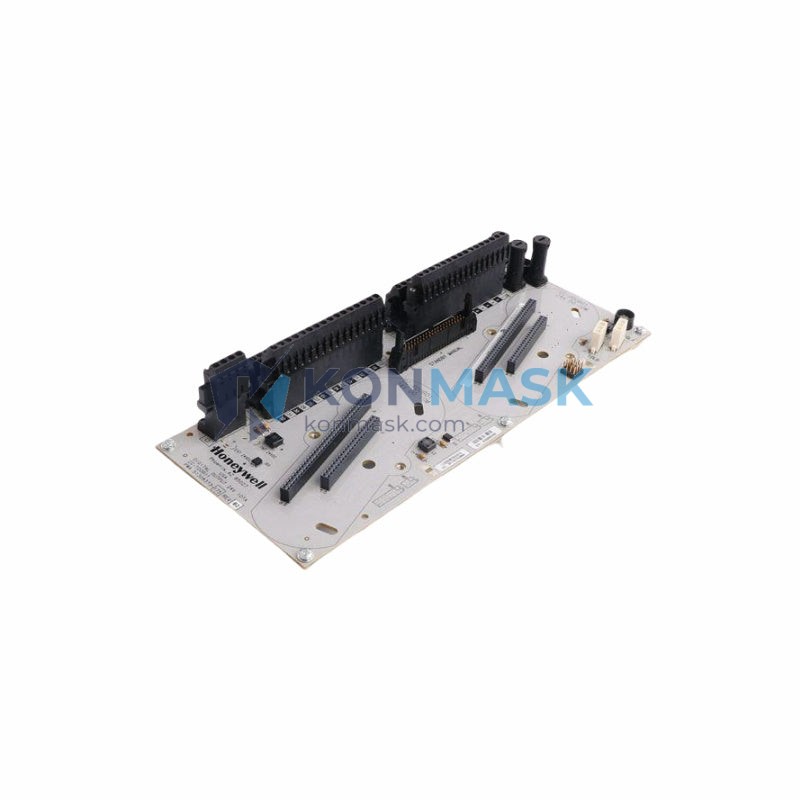

Honeywell DC-TDIL51 – Digital Input IOTA Module | Experion PKS C300 Platform
Engineering Background: The Honeywell Experion PKS (Process Knowledge System) C300 Controller platform is one of the most widely deployed distributed control systems in the process industries. The C300 architecture relies on a modular I/O subsystem where IOTA (I/O Termination Assembly) cards serve as the physical wiring interface between field instruments and the controller. The DC-TDIL51 is the Digital Input IOTA designed specifically for this platform, working in conjunction with the DC-TDOD51 Digital Output IOTA and the DC-TAIX51 Analog Input IOTA to form a complete field I/O termination solution.
Product Positioning: The DC-TDIL51 is a passive termination assembly — it provides the screw-terminal field wiring interface, signal conditioning pathway, and module mounting seat for the corresponding digital input card. It is not a standalone active module; it operates as part of the C300 I/O subsystem. Procurement engineers sourcing this part should verify the companion I/O card (e.g., DC-DIIM01) is also available. Konmask.com stocks both IOTA assemblies and their paired I/O cards for complete system builds and spares management.
Complete Technical Specifications
- Part Numbers: DC-TDIL51 (Digital Input IOTA), DC-TDOD51 (Digital Output IOTA), DC-TAIX51 (Analog Input IOTA)
- Platform: Honeywell Experion PKS — C300 Controller Series
- Module Type: IOTA — I/O Termination Assembly (passive wiring interface)
- Signal Type: Digital Input (DC-TDIL51), Digital Output (DC-TDOD51), Analog Input (DC-TAIX51)
- Mounting: C300 I/O Link chassis / carrier rail
- Field Wiring: Screw-terminal block, suitable for 24 VDC discrete signals
- Channel Count: Typically 16 channels per IOTA (verify with Honeywell datasheet for exact variant)
- Communication: Interfaces via C300 I/O Link to the C300 Controller
- Power Supply: Powered through the C300 I/O chassis backplane
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% non-condensing
- Weight: Approx. 1,060 g
- Compliance: CE, UL listed (verify current certification status with Honeywell)
- Country of Origin: USA
Proven Application Environments
- Oil & gas upstream/downstream process control (wellhead, refinery, pipeline)
- Petrochemical and chemical plant DCS expansions and retrofits
- Power generation — boiler control, turbine auxiliaries, BOP systems
- Pulp & paper and water/wastewater treatment facilities
- Pharmaceutical manufacturing with validated Experion PKS installations
- LNG terminals and offshore platform control systems
- Spare parts inventory for existing Experion PKS C300 installations
Engineering Advantages
- Native C300 Integration: Designed exclusively for the Experion PKS C300 I/O Link — no adapter or signal converter required.
- Hot-Swap Capable: C300 I/O architecture supports online card replacement; IOTA remains in place during card swap, preserving field wiring.
- Simplified Maintenance: Field wiring terminates permanently on the IOTA; the active I/O card can be replaced without disturbing field cables.
- High Channel Density: Compact form factor maximizes I/O density within the C300 chassis footprint.
- Redundancy Support: Compatible with C300 redundant I/O configurations for critical process loops.
- Long Product Lifecycle: Honeywell Experion PKS is a long-lifecycle platform; spare IOTA availability is critical for 10–20 year plant operational horizons.
System Architecture & Signal Flow
In the C300 I/O subsystem, field instrument wiring connects to the IOTA screw terminals → signals pass through the IOTA to the seated I/O card (e.g., DC-DIIM01 for digital input) → the I/O card communicates over the C300 I/O Link → data is processed by the C300 Controller → Experion PKS server receives process values for HMI display and control execution.
The DC-TDIL51 IOTA seats the digital input card. The DC-TDOD51 IOTA seats the digital output card. The DC-TAIX51 IOTA seats the analog input card. All three can coexist within the same C300 I/O chassis, enabling mixed I/O configurations in a single enclosure.
Sourcing & Quality Verification
- Source: Konmask.com sources DC-TDIL51, DC-TDOD51, and DC-TAIX51 from decommissioned plant spares, authorized distributors, and verified secondary market channels.
- Inspection: Each unit undergoes visual inspection, connector integrity check, and label/firmware verification prior to listing.
- Condition: Units are listed as New Surplus, Refurbished, or Used — condition is clearly stated on each order confirmation.
- Warranty: 12-month replacement warranty against DOA or functional failure under normal operating conditions.
- Documentation: Honeywell datasheets and installation guides available upon request.
- Traceability: Serial number and revision level recorded for each unit shipped.
Procurement Process
- Submit your part number(s) and required quantity via the order form or email support@konmask.com.
- Receive a formal quotation with unit price, lead time, and condition statement within 24 hours.
- Confirm purchase order — payment via T/T bank transfer, PayPal, or credit card accepted.
- Units are inspected, photographed, and packed to IPC/JEDEC standards for safe international shipping.
- Tracking number and commercial invoice provided for customs clearance.
- Post-delivery technical support available via email or WhatsApp: +0086 19859288691.
Technical FAQ
Q: Can the DC-TDIL51 IOTA be used with any Honeywell controller other than the C300?
A: No. The DC-TDIL51 is designed exclusively for the Experion PKS C300 I/O Link architecture. It is not compatible with the C200, C200E, or legacy TDC 3000 systems.
Q: What I/O card pairs with the DC-TDIL51?
A: The DC-TDIL51 IOTA pairs with the DC-DIIM01 (or equivalent) Digital Input I/O Module. Contact us to source the paired card if needed.
Q: Is the DC-TDOD51 a direct replacement for the DC-TDIL51?
A: No. DC-TDOD51 is the Digital Output IOTA; DC-TDIL51 is the Digital Input IOTA. They are not interchangeable — verify your I/O type before ordering.
Q: Can field wiring remain connected during an I/O card replacement?
A: Yes. The IOTA design allows the active I/O card to be removed and replaced while field wiring remains terminated on the IOTA screw terminals, minimizing downtime.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. A CoC is available upon request for all units. Contact support@konmask.com to include it with your shipment documentation.
