Large-Space Fire Detection Solution – Honeywell FSB-200 | System Sensor Series

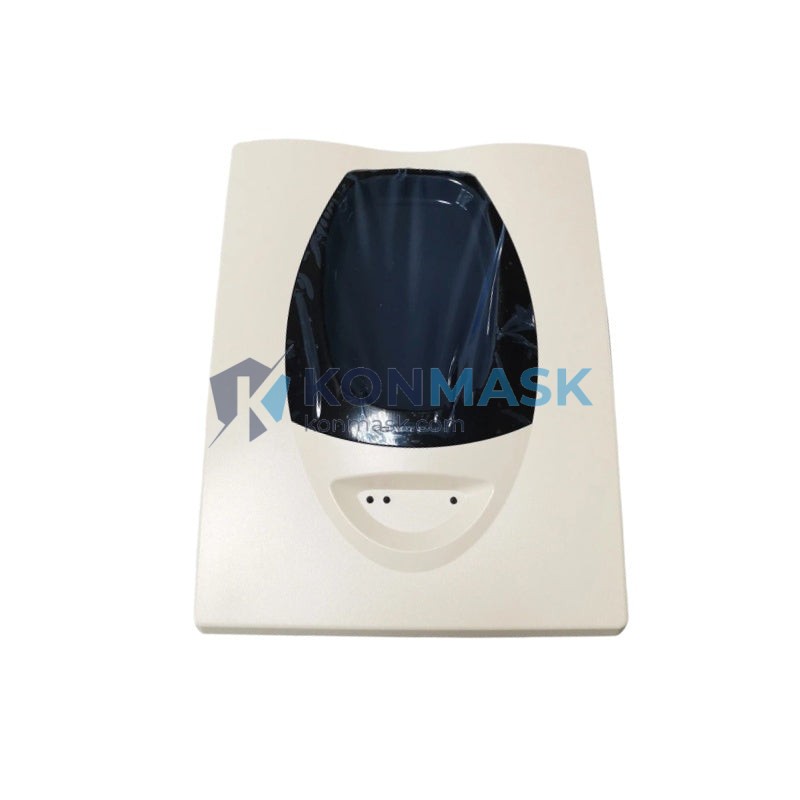

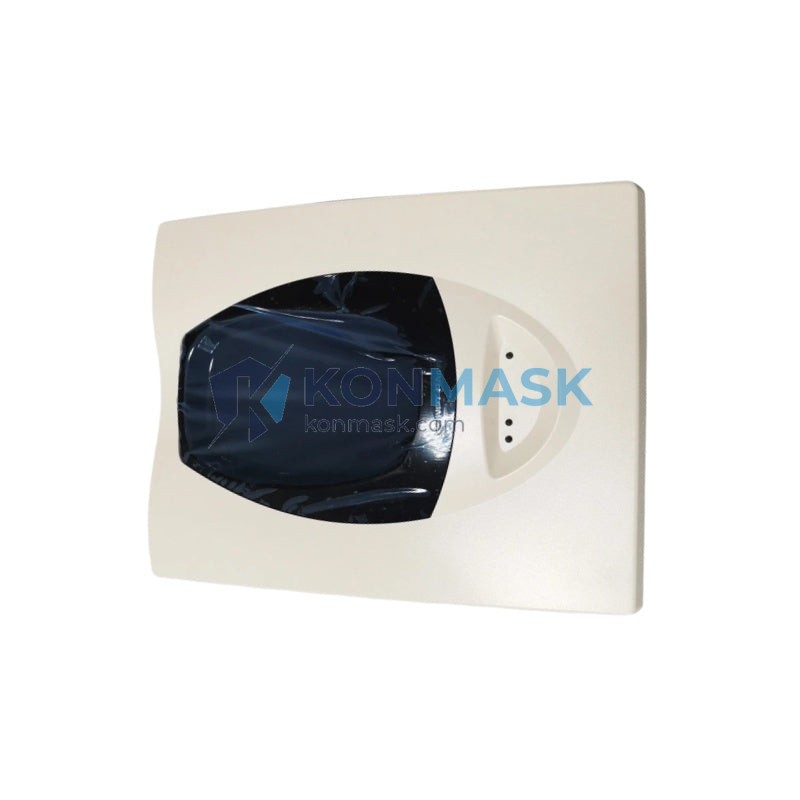

The Honeywell FSB-200 Reflected Beam Smoke Detector is engineered for reliable, long-range optical smoke detection in large open areas where conventional point detectors are impractical. Using a single-ended reflective beam technology, it eliminates the need for a separate transmitter unit, dramatically reducing installation complexity and maintenance overhead in high-ceiling industrial and commercial environments.
Where This Product Is Used
The FSB-200 is the preferred detection solution for engineers specifying fire safety in large-volume, high-ceiling spaces:
- Warehouses & Distribution Centers – Detects smoke across wide open floor plans without dense detector grids
- Airport Terminals & Atriums – Covers expansive public spaces with a single beam path up to 100 m
- Manufacturing Plants & Industrial Facilities – Operates reliably in dusty or humid environments with automatic drift compensation
- Sports Arenas & Exhibition Halls – Provides code-compliant coverage for large assembly occupancies
- Car Parks & Underground Structures – Handles low-visibility, high-ceiling environments where point detectors fail
- Power Plants & Substations – Integrates with addressable fire alarm control panels for zone-level monitoring
- Cold Storage & Refrigerated Warehouses – Rated for operation in low-temperature environments
Technical Specifications
- Model: FSB-200
- Brand: Honeywell (System Sensor)
- Detection Technology: Reflected beam (single-ended optical)
- Detection Range: 5 m – 100 m
- Operating Voltage: 15–30 V DC (supervised)
- Quiescent Current: ≤ 1.5 mA
- Alarm Current: ≤ 60 mA
- Sensitivity Range: 25%–62% obscuration/m (adjustable)
- Automatic Drift Compensation: Yes
- Operating Temperature: –10°C to +55°C
- Humidity: 10%–95% RH (non-condensing)
- IP Rating: IP42
- Weight: 1,680 g (with reflector)
- Mounting: Wall or ceiling bracket (included)
- Certifications: EN 54-12, UL 268, CE
Why Engineers Specify This Model
- Single-Ended Design – Transmitter and receiver in one unit; only a passive reflector required at the far end, cutting cable runs and installation time by up to 50%
- Automatic Gain Control – Compensates for gradual lens contamination and environmental drift without nuisance alarms
- Wide Sensitivity Adjustment – Field-selectable obscuration thresholds suit diverse occupancy types from clean-room to heavy-industrial
- Addressable & Conventional Compatibility – Interfaces with major FACP platforms via relay output or protocol modules
- Reduced Maintenance Intervals – Self-monitoring optics reduce mandatory service visits compared to conventional beam pairs
- Proven Honeywell Ecosystem – Fully supported by Honeywell’s global technical network and spare-parts supply chain
Complete System Bill of Materials
- Honeywell FSB-200 Reflected Beam Smoke Detector (this unit)
- FSB-200R Reflector Kit (standard range, included)
- FSB-200RX Extended Reflector Kit (for ranges > 50 m)
- FSB-200B Surface Mounting Bracket
- Honeywell FACP (e.g., Notifier NFS2-3030, Honeywell Fire-Lite MS-9200UDLS)
- 24 V DC supervised power supply
- 2-core shielded fire-rated cable (min. 1.5 mm²)
- End-of-line resistor (value per FACP specification)
Compliance & Industry Standards
- EN 54-12:2002 – European standard for line-type smoke detectors using optical beams
- UL 268 – UL standard for smoke detectors for fire alarm signaling systems
- CE Marking – Compliant with EU Construction Products Regulation (CPR)
- NFPA 72 – Compatible with National Fire Alarm and Signaling Code requirements (US)
- BS 5839-1 – Suitable for UK fire detection and alarm system designs
Quality Assurance & Sourcing
Every Honeywell FSB-200 unit supplied by Konmask.com is sourced through verified authorized distribution channels. Each unit ships with original manufacturer packaging, full documentation, and traceable batch records. We do not supply grey-market, refurbished, or counterfeit components. Pre-shipment functional verification is available on request for critical infrastructure projects.
How to Source This Part
- Add to Cart – Select quantity and proceed to checkout for standard orders
- Request a Quote – Contact us for project pricing on orders of 5+ units
- Specify Lead Time – In-stock units ship within 1–3 business days; lead times for large orders available on request
- Technical Pre-Sales – Email support@konmask.com with your FACP model and coverage area for compatibility confirmation
- Global Shipping – We ship to 50+ countries with DHL Express, FedEx, and UPS; customs documentation provided
Application-Specific FAQ
Q: Can the FSB-200 be used in a warehouse with forklifts causing vibration?
A: Yes. The FSB-200’s automatic gain control and alignment tolerance accommodate minor structural vibration. For high-vibration environments, use the heavy-duty mounting bracket and verify beam alignment quarterly.
Q: What is the maximum ceiling height supported?
A: The FSB-200 covers beam paths from 5 m to 100 m. For ceiling heights above 12 m, reflected beam detectors are typically the only practical solution per EN 54-12 and NFPA 72 guidelines.
Q: Is the FSB-200 compatible with Notifier and Siemens FACPs?
A: Yes, via its relay output. For native addressable integration, a protocol interface module may be required. Contact us with your FACP model for a compatibility matrix.
Q: How often does the FSB-200 require recalibration?
A: Honeywell recommends annual functional testing per EN 54-12. The automatic drift compensation extends the interval between full recalibrations under normal conditions.
Q: Can I order a sample unit before committing to a full project quantity?
A: Yes. Single-unit orders are accepted. Contact support@konmask.com to discuss project evaluation pricing.
