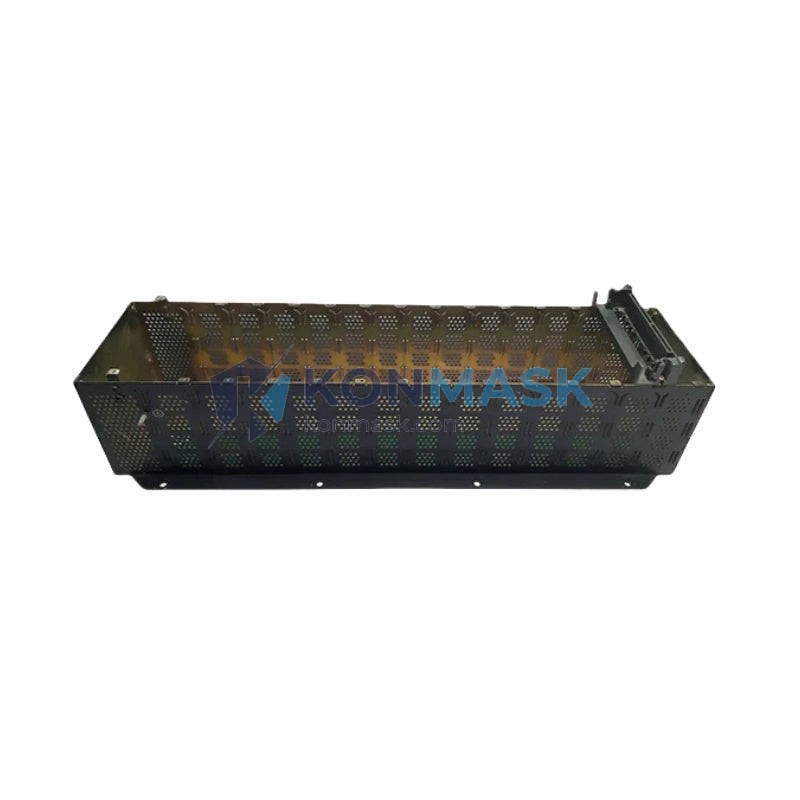

Honeywell TC-FXX102 / TK-FXX102 10-Slot Rack – TotalPlant Solution (TPS) DCS Backplane
When a DCS rack fails mid-production, the consequences are immediate and severe: controllers lose their backplane communication path, I/O modules go offline, and the entire control loop collapses. In refinery, chemical, or power generation environments, even a 30-minute unplanned shutdown can cost hundreds of thousands of dollars. The Honeywell TC-FXX102 / TK-FXX102 10-Slot Rack is the structural and electrical backbone that prevents this scenario — providing the physical housing, power distribution, and high-speed backplane bus that keeps every module in your TotalPlant Solution node communicating reliably, 24/7.
Within the Honeywell TotalPlant Solution (TPS) and TotalPlant Alcont (TK) DCS architecture, the TC-FXX102 and TK-FXX102 are the standard 10-slot rack form factors designed for controller and I/O node expansion. These racks are deployed across thousands of process plants worldwide — from upstream oil & gas to pharmaceutical batch control — and remain the most widely specified rack in legacy TPS system upgrades and greenfield TK installations. Their continued availability is critical to any plant running Honeywell’s proven distributed control infrastructure.
Technical Specifications
- Part Numbers: TC-FXX102 (TotalPlant Solution) / TK-FXX102 (TotalPlant Alcont)
- Slot Count: 10 slots
- Compatible Platform: Honeywell TotalPlant Solution (TPS) / TotalPlant Alcont (TK) DCS
- Backplane Bus: High-speed proprietary TPS/TK communication bus
- Mounting: Standard 19-inch DIN rail / panel mount enclosure
- Power Distribution: Integrated backplane power rails for module supply
- Weight: Approx. 1,400 g (bare rack)
- Condition: New / Refurbished / Tested-Good-as-New available
- Warranty: 12-month Konmask quality warranty
Key Features & Benefits
- Dual-Part Compatibility: TC-FXX102 and TK-FXX102 share the same mechanical form factor, simplifying spare-parts inventory management across mixed TPS/TK installations.
- 10-Slot Capacity: Accommodates up to 10 I/O or controller modules per node, maximizing density in cabinet space-constrained environments.
- Integrated Backplane Bus: Eliminates inter-module cabling, reducing failure points and ensuring deterministic scan-cycle communication between modules.
- Hot-Swap Ready Architecture: Supports module replacement without full node shutdown when used with compatible redundant power supplies.
- Long Service Life: Designed for continuous 24/7 industrial operation in harsh environments with wide temperature tolerance.
- Drop-In Replacement: Direct replacement for existing TC-FXX102 / TK-FXX102 racks — no firmware changes or reconfiguration required.
Industry & Equipment Applications
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA nodes, downstream refinery DCS cabinets
- Chemical & Petrochemical: Continuous process control, reactor management, safety instrumented system (SIS) integration
- Power Generation: Boiler control, turbine management, plant-wide DCS expansion nodes
- Pharmaceutical: Batch process control, clean-room automation, FDA-compliant process documentation systems
- Pulp & Paper / Mining: High-availability process control nodes requiring long-term spare part support
System Integration & Compatible Parts
The TC-FXX102 / TK-FXX102 rack is designed to work within the broader Honeywell TPS/TK ecosystem. Commonly paired components include:
- Honeywell TC-CCR014 / TC-CCR016 — Controller Communication Module
- Honeywell TC-PRS021 / TC-PRS023 — Power Supply Module
- Honeywell TC-IAH084 / TC-OAH084 — Analog I/O Modules
- Honeywell TC-IDH084 / TC-ODH084 — Digital I/O Modules
- Honeywell TC-FPCXX2 — Field Termination Panel
Contact our engineering team to verify compatibility with your specific node configuration and firmware revision.
Our Quality Assurance Process
Every TC-FXX102 / TK-FXX102 rack shipped from Konmask.com passes through a documented multi-stage inspection protocol:
- Visual Inspection: Backplane connector integrity, slot guide rail condition, PCB surface examination
- Electrical Continuity Test: All backplane bus traces and power rails verified with calibrated test equipment
- Functional Burn-In: Rack powered and loaded with test modules for minimum 48-hour operational verification
- Documentation: Each unit ships with a test report, serial number record, and traceability certificate
How to Order
- Submit your RFQ via the “Get a Quote” button on this page or email support@konmask.com
- Provide your required quantity, preferred condition (new/refurbished), and delivery timeline
- Our team responds with availability confirmation and pricing within 24 business hours
- Upon order confirmation, units are prepared, tested, and dispatched with full export documentation
- Worldwide shipping available — DHL, FedEx, UPS, sea freight for bulk orders
Why Choose Konmask.com?
- ✔ Specialized in Honeywell TPS/TK DCS components since establishment
- ✔ Global stock of hard-to-find and obsolete automation parts
- ✔ 12-month warranty on all shipped units
- ✔ Export-ready documentation: commercial invoice, packing list, COO, test certificate
- ✔ Engineering support for system compatibility verification
- ✔ Trusted by maintenance engineers and procurement teams across 40+ countries
Frequently Asked Questions
Q: What is the difference between TC-FXX102 and TK-FXX102?
A: TC-FXX102 is designated for the TotalPlant Solution (TPS) platform, while TK-FXX102 is the equivalent for the TotalPlant Alcont (TK) platform. Both share the same 10-slot mechanical form factor and backplane architecture, and are often interchangeable in mixed installations — confirm with your system documentation before substitution.
Q: Can I use this rack as a direct replacement without reconfiguring my DCS?
A: Yes. The TC-FXX102 / TK-FXX102 is a passive backplane rack. Replacing it does not require software reconfiguration — simply transfer your existing modules to the new rack and restore power.
Q: Do you supply new or refurbished units?
A: We supply both. All units — regardless of condition grade — pass the same functional test protocol. Condition and pricing are confirmed at the RFQ stage.
Q: What is the lead time?
A: In-stock units typically ship within 3–5 business days after order confirmation. For bulk or urgent orders, contact us directly for expedited options.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide full export documentation including commercial invoice, packing list, country of origin certificate, and test report as standard.
