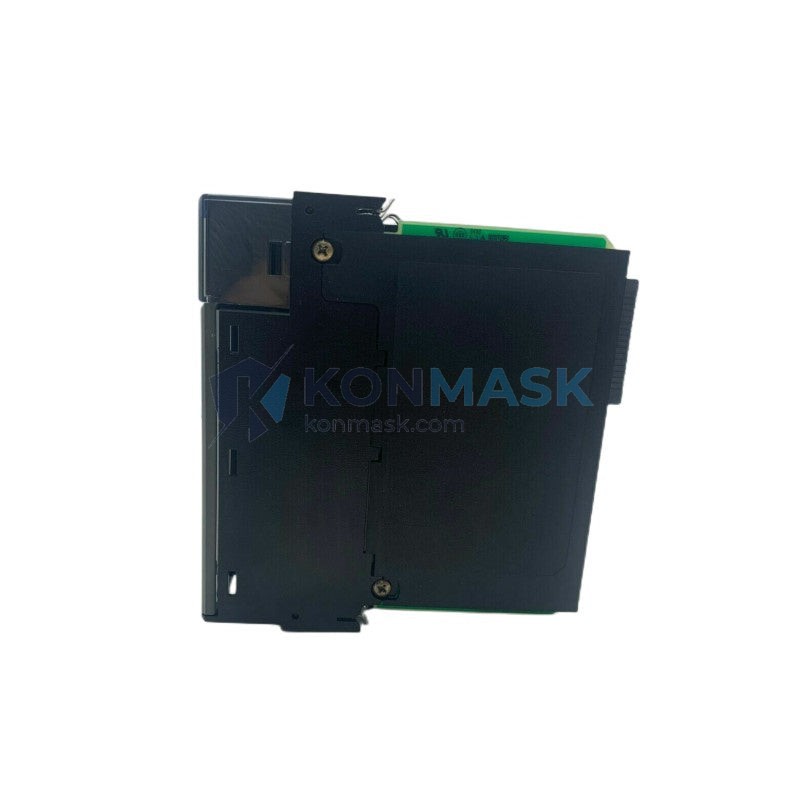

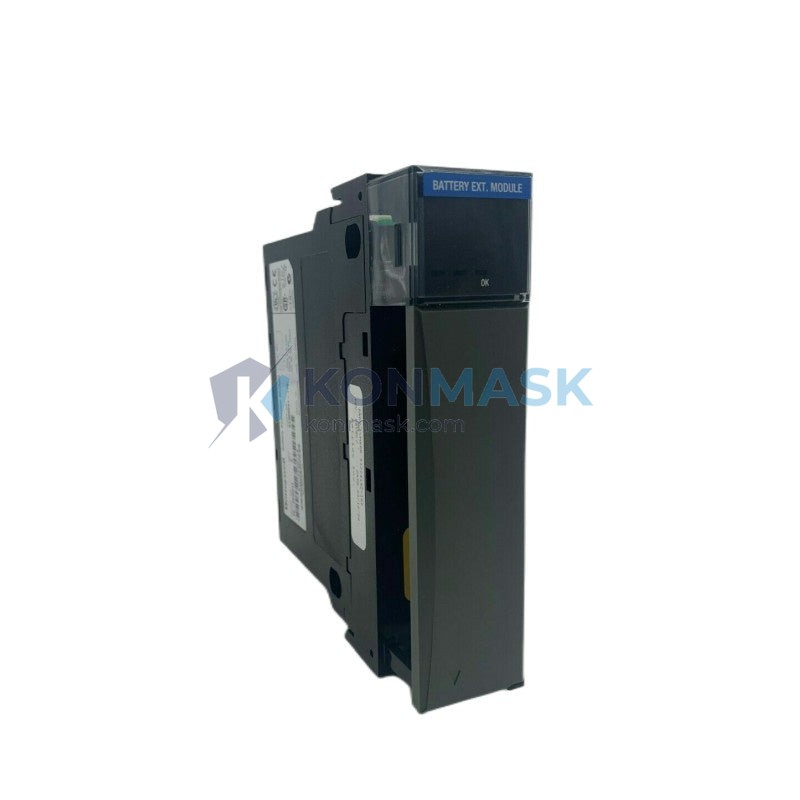

Honeywell TC-PPD011 (51309241-125) – Extension Battery Module | TotalPlant Solution DCS Platform
Engineering Background: The Honeywell TotalPlant Solution (TPS) / TotalPlant Alcont DCS platform has been a backbone of continuous-process automation in petrochemical refining, power generation, and water treatment for over two decades. Within this architecture, uninterrupted power delivery is a tier-1 reliability requirement: a power interruption to a controller node can trigger a process trip, emergency shutdown, or safety system activation. The TC-PPD011 (part number 51309241-125) is the dedicated Extension Battery Module for TPS power supply assemblies, providing the sustained backup energy buffer that keeps controller nodes alive during mains transients, switchover events, and planned maintenance windows.
Product Positioning: Unlike the primary power supply modules (TC-PRS021, TC-PRS022) which handle AC-to-DC conversion, the TC-PPD011 is a pure energy-storage extension unit — it adds battery capacity to an existing power supply chassis without replacing the base supply. This distinction matters: it is the correct choice when the existing battery runtime is insufficient for the site’s required hold-up time, but the base supply itself is functioning correctly. It is not a drop-in replacement for a failed primary supply, and it is not compatible with non-TPS Honeywell platforms such as Experion PKS or Safety Manager without engineering verification.
Complete Technical Specifications
Electrical
- Part Number: TC-PPD011 / 51309241-125
- Module Type: Extension Battery Module (passive energy storage, no AC input)
- Nominal Battery Voltage: 12 V DC (internal sealed lead-acid or equivalent chemistry)
- Backup Duration Extension: Extends hold-up time of paired TPS power supply (duration depends on load; consult system power budget)
- Charging Interface: Integrated via host power supply backplane connector
- Output: Seamless DC bus support during mains loss event

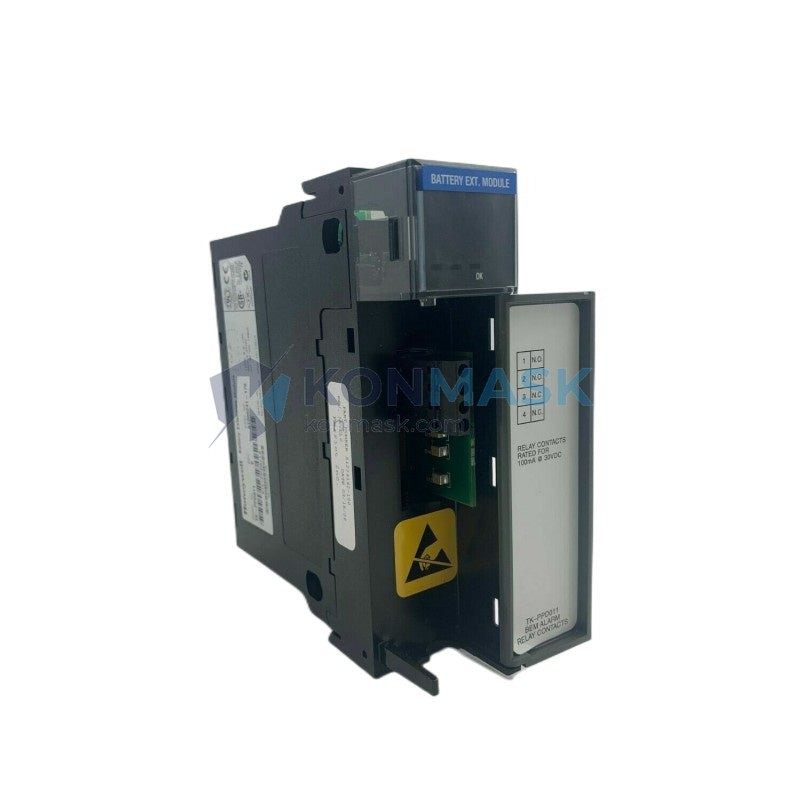

Mechanical
- Form Factor: Single-slot module, TPS power supply chassis-mount
- Weight: ~500 g (nominal)
- Connector: Proprietary TPS backplane edge connector
- Mounting: Tool-free slide-in with locking latch
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –20 °C to +70 °C
- Relative Humidity: 5% to 95% non-condensing
- Pollution Degree: 2 (IEC 60664-1)
- Installation Category: II
Certifications
- CE Marking (EMC Directive)
- UL Listed (industrial control equipment)
- RoHS compliant
- Manufactured to Honeywell Industrial Automation quality standards
Data source: Honeywell TotalPlant Solution Hardware Reference Manual, Honeywell part datasheet 51309241-125 Rev. C. Specifications subject to revision; confirm against current Honeywell documentation for safety-critical applications.
Proven Application Environments
- Petrochemical Refining — Crude distillation unit DCS controller nodes; continuous 24/7 operation with zero-tolerance for controller dropout during feed-rate changes or emergency depressurization sequences.
- Coal & Gas Power Generation — Turbine governor and boiler control cabinets; battery extension required to bridge the 10–30 second gap between mains loss and diesel generator pickup.
- Municipal Water Treatment — SCADA-linked TPS nodes controlling dosing pumps and clarifier drives; backup power prevents loss of setpoint data during grid instability events.
- Offshore Oil & Gas Platforms — Topside process control rooms with limited generator redundancy; TC-PPD011 provides the hold-up margin required by platform safety cases.
- Chemical Batch Processing — Reactor temperature and pressure control loops where a mid-batch controller restart would result in off-spec product and potential exothermic runaway risk.
- Pulp & Paper Mills — Continuous digester and recovery boiler control; high-humidity environments where sealed battery chemistry and conformal-coated PCB are essential for long service life.
Engineering Advantages
- For sites with extended generator start times (>15 s), this battery module extends controller hold-up beyond the base supply limit, because the additional cell capacity is directly paralleled onto the DC bus without switching transients.
- For maintenance windows requiring planned mains isolation, this module allows controller nodes to remain powered during switchgear work, because the battery sustains the full DC load independently of the AC input state.
- For high-ambient-temperature control rooms (up to 60 °C), this module maintains rated capacity, because the thermal management design accounts for accelerated self-discharge at elevated temperatures through conservative charge voltage selection.
- For aging TPS installations with degraded original batteries, this module restores system hold-up time without requiring a full power supply replacement, because it adds net capacity rather than substituting existing cells.
- For sites subject to frequent grid micro-interruptions (<500 ms), this module absorbs the transient invisibly to the controller, because the DC bus voltage deviation during switchover is within the controller's input voltage tolerance band.
- For procurement engineers requiring traceability, this module carries a unique serial number and date code on the label, because Honeywell’s manufacturing process assigns individual unit traceability for warranty and lifecycle management purposes.
System Architecture & Signal Flow
Signal / Power Flow: AC mains → TPS Primary Power Supply (TC-PRS021 / TC-PRS022) → DC bus → TC-PPD011 (battery float charge) → on mains loss, TC-PPD011 discharges onto DC bus → TPS controller nodes remain powered → mains restoration triggers automatic recharge cycle.
Compatible Host Modules:
- TC-PRS021 — Standard TPS power supply; TC-PPD011 occupies the adjacent extension slot.
- TC-PRS022 — High-capacity variant; same mechanical and electrical interface, confirmed compatible.
- 51309241-100 / -150 — Earlier and later dash-number revisions of the same assembly; verify PCB revision compatibility with Honeywell TAC before mixing dash numbers in a single chassis.
Substitution Conditions: The TC-PPD011 may be substituted by 51309241-125 (they are the same unit, different catalog reference formats). No cross-brand substitution is supported without Honeywell engineering approval. Substitution with generic sealed lead-acid battery packs is not recommended due to charge voltage mismatch and lack of backplane communication.
Sourcing & Quality Verification
Units offered through Konmask.com are sourced from authorized industrial surplus channels, decommissioned plant asset sales, and verified distributor stock. Each unit undergoes the following pre-shipment verification process:
- Visual Inspection: Label integrity, connector pin condition, housing cracks, and battery swelling check.
- Electrical Bench Test: Open-circuit voltage measurement and internal resistance check against Honeywell reference values.
- Firmware / Revision Verification: PCB revision and date code recorded and disclosed to buyer prior to shipment.
- Packaging: Anti-static bag, foam-lined carton, and desiccant pack for transit protection.
Documentation available upon request: Honeywell datasheet (51309241-125), test report, photo documentation of actual unit, certificate of conformance (where applicable), and export compliance classification (ECCN / HS code).
Procurement Process
- Submit Inquiry: Contact support@konmask.com with your required quantity, delivery timeline, and any site-specific revision requirements. Include your plant’s TPS version if known.
- Receive Quote & Confirmation: A technical response is provided within 24 hours, including unit availability, lead time, test report summary, and pricing in your preferred currency.
- Order & Dispatch: Payment confirmation triggers same-day or next-business-day dispatch. Tracking number and packing list are issued automatically. Technical support is available post-delivery for installation verification questions, compatibility confirmation, and warranty claims.
Technical Support Types Available: Pre-sales compatibility verification · Datasheet and revision history lookup · Post-installation commissioning guidance · Warranty and DOA claim processing
Technical FAQ
Q: Is the TC-PPD011 compatible with Honeywell Experion PKS power supply chassis?
A: No. The TC-PPD011 is designed exclusively for the TotalPlant Solution (TPS) / TotalPlant Alcont power supply platform. Experion PKS uses a different power architecture (C300 controller series) with incompatible backplane connectors and charge management logic. Installing a TC-PPD011 in an Experion chassis will not function and may damage the host supply.
Q: Can the 51309241-125 replace a failed TC-PRS021 primary power supply?
A: No. The TC-PPD011 / 51309241-125 is a battery extension module only — it has no AC input and cannot perform AC-to-DC conversion. A failed primary supply must be replaced with a TC-PRS021 or TC-PRS022. The TC-PPD011 is installed alongside a functioning primary supply to extend its backup duration.
Q: What certifications are required for use in a SIL-rated safety loop?
A: The TC-PPD011 is a power supply accessory, not a safety-rated device. For SIL-2 or SIL-3 applications, the power supply subsystem must be assessed as part of the overall Safety Instrumented System (SIS) architecture per IEC 61511. Consult the plant’s functional safety engineer and Honeywell’s Safety Manual for the TPS platform before deploying in a safety-critical power rail. Konmask.com can provide the Honeywell hardware datasheet to support your SIL assessment documentation.
