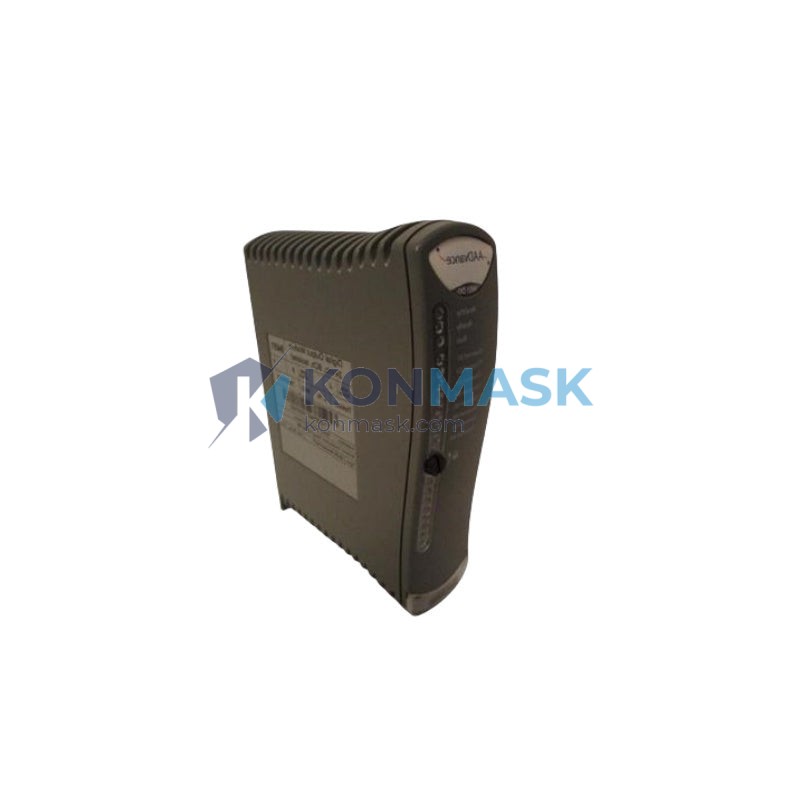

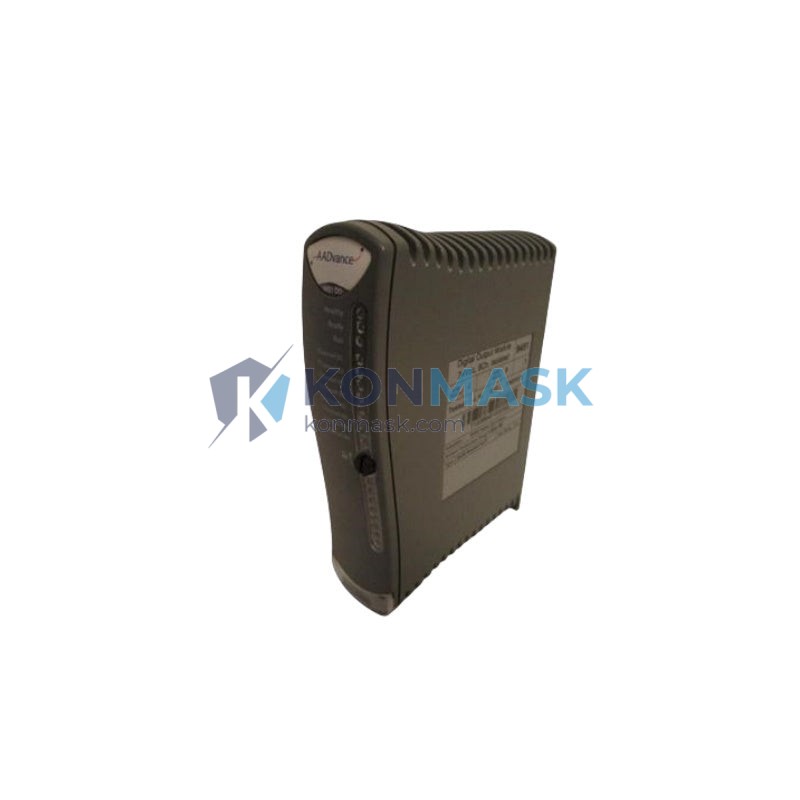

ICS TRIPLEX T9401 – 24Vdc 8-Channel Isolated Digital Input Module | Trusted Series Platform
Engineering Background
The ICS TRIPLEX T9401 is a field-proven digital input module designed for safety-critical and high-availability process control environments. Engineered under ICS Triplex’s Trusted Series architecture, it delivers hardware-enforced fault tolerance and deterministic signal acquisition for demanding industrial applications including oil & gas, petrochemical, power generation, and offshore platforms.
Product Positioning
The T9401 occupies the front-end signal acquisition layer of a Trusted TMR (Triple Modular Redundant) or High Integrity control system. It accepts 24Vdc discrete field signals across 8 fully isolated channels, converting them into fault-tolerant digital data for the controller backplane. Konmask.com supplies verified surplus and new-surplus T9401 modules with full traceability documentation.
Complete Technical Specifications
- Part Number: T9401
- Manufacturer: ICS TRIPLEX (Rockwell Automation)
- Module Type: Digital Input (DI)
- Input Voltage: 24Vdc nominal
- Channel Count: 8 channels
- Isolation: Channel-to-channel and channel-to-backplane galvanic isolation
- Logic Architecture: Trusted Series TMR / High Integrity compatible
- Input Signal Type: Discrete (dry contact / wet contact, 24Vdc)
- ON State Voltage Range: 15–30Vdc (typical)
- OFF State Voltage Range: 0–5Vdc (typical)
- Input Impedance: Per ICS Triplex Trusted Series specification
- Scan Rate: Deterministic, synchronized with Trusted controller cycle
- Diagnostics: Online self-diagnostics; fault reporting to system controller
- Hot-Swap: Supported (live replacement without system shutdown)
- Backplane Interface: Trusted Series proprietary backplane bus
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% RH non-condensing
- Certifications: SIL 2 / SIL 3 capable (system-level, per IEC 61508)
- Form Factor: Single-width Trusted Series module card
- Weight: Approx. 100 g
Proven Application Environments
- Emergency Shutdown Systems (ESD) and Safety Instrumented Systems (SIS)
- Burner Management Systems (BMS) in power and process plants
- Offshore oil & gas platform control and safety systems
- Refinery and petrochemical process control (DCS front-end I/O)
- Pipeline SCADA and compressor station automation
- Nuclear auxiliary systems requiring high-integrity discrete input acquisition
- LNG terminal and storage facility control systems
Engineering Advantages
- Full Channel Isolation: Eliminates ground loops and cross-channel interference in noisy field environments.
- TMR Architecture Compatibility: Integrates natively into Triple Modular Redundant control systems for 2oo3 voting logic without external hardware.
- Online Diagnostics: Continuous self-test capability detects open-circuit, short-circuit, and power supply faults without interrupting process control.
- Hot-Swap Capability: Modules can be replaced under power, enabling zero-downtime maintenance in live production environments.
- Deterministic Scan: Synchronized input scanning ensures consistent timing for safety logic execution.
- Compact Density: 8 isolated channels per single-width slot maximizes I/O density in constrained cabinet footprints.
System Architecture & Signal Flow
Field 24Vdc discrete signals (from limit switches, pushbuttons, relay contacts, or proximity sensors) connect to the T9401 terminal block. Each channel passes through an optical isolator stage, eliminating electrical coupling between field wiring and the backplane logic. The conditioned digital state is then transmitted via the Trusted Series backplane bus to the TMR controller, where it participates in the 2oo3 voting algorithm. Fault status for each channel is continuously reported to the system diagnostics layer and accessible via the engineering workstation.
Signal path summary: Field Device → Terminal Block → Optical Isolator → Backplane Bus → TMR Controller → Safety Logic Execution
Sourcing & Quality Verification
- Stock Condition: New-surplus or refurbished; each unit inspected prior to shipment
- Traceability: Part number, revision, and serial number documented on request
- Functional Testing: Available upon request before shipment
- Packaging: ESD-safe anti-static bag + foam-lined carton
- Lead Time: Typically in-stock; contact us to confirm current availability
- Warranty: 12-month Konmask warranty against manufacturing defects
- Counterfeit Prevention: All modules sourced from verified industrial surplus channels; visual and electrical inspection performed
Procurement Process
- Confirm Compatibility: Verify your Trusted Series chassis revision and firmware version against T9401 compatibility matrix.
- Request Quote: Contact [email protected] or call +0086 19859288691 for volume pricing and lead time confirmation.
- Place Order: Purchase directly via this product page or via purchase order (PO) for B2B accounts.
- Receive & Inspect: Module ships in ESD-safe packaging with inspection report. Verify part number label on receipt.
- Install & Commission: Follow ICS Triplex Trusted Series installation guide. Hot-swap procedure applies for live system replacement.
Technical FAQ
Q: Is the T9401 compatible with both TMR and High Integrity (HI) Trusted chassis?
A: Yes. The T9401 is designed for the Trusted Series backplane and is compatible with both TMR and HI controller configurations. Confirm chassis slot assignment with your system integrator.
Q: Can the T9401 accept 120Vac or 48Vdc field signals?
A: No. The T9401 is rated for 24Vdc discrete inputs only. For higher voltage field signals, ICS Triplex offers separate AI/DI modules with appropriate input ranges.
Q: What is the maximum cable length for field wiring to the T9401?
A: ICS Triplex recommends following the Trusted Series field wiring guidelines. Cable length is limited by loop resistance and capacitance; consult the T9401 hardware manual for site-specific calculations.
Q: Does Konmask provide the ICS Triplex T9401 hardware manual?
A: Yes. Documentation is available upon request. Contact [email protected] with your order reference.
Q: What is the lead time for the T9401?
A: We maintain stock of common Trusted Series modules. Contact us to confirm current availability and shipping timeline to your location.
