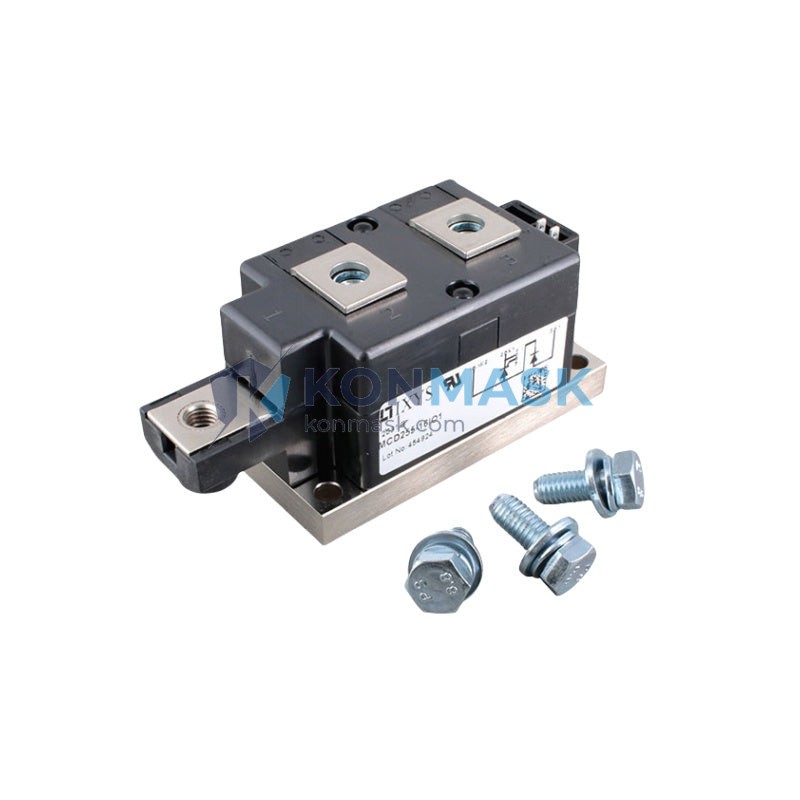

Genuine IXYS MCD255-16IO1 Thyristor Diode Module 1600V Y1-CU | MCD Series – Verified Source
The IXYS MCD255-16IO1 is a high-performance thyristor/diode combination power module rated at 1600V in a compact Y1-CU package. Sourced directly through verified industrial distribution channels, this module is engineered for demanding AC power control, motor drive, and rectifier applications where reliability is non-negotiable.
Technical Specifications
- Part Number (SKU): MCD255-16IO1
- Manufacturer: IXYS (now part of Littelfuse)
- Series: MCD Series
- Module Type: Thyristor + Diode Combination
- Repetitive Peak Off-State Voltage (VDRM): 1600V
- Average On-State Current (IT(AV)): 255A
- Package: Y1-CU (Isolated Copper Base)
- Configuration: SCR + Diode (Half-Controlled Bridge)
- Gate Trigger Current (IGT): Refer to IXYS datasheet
- Operating Temperature: -40°C to +125°C (Tj)
- Weight: Approx. 1900g
- RoHS Compliance: Consult current IXYS/Littelfuse documentation
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured exclusively from authorized distributors or factory-direct channels. We maintain full traceability documentation for every batch.
- Step 2 – Physical Inspection: Each module undergoes visual inspection for package integrity, laser-etched markings, and date code consistency before warehousing.
- Step 3 – Electrical Spot-Check: Random sampling from each lot is tested for blocking voltage and gate trigger parameters against published IXYS specifications.
- Step 4 – Secure Packaging: Units are shipped in anti-static, moisture-barrier packaging with individual serial documentation to ensure safe delivery and full traceability.
Key Features & Benefits
- High blocking voltage (1600V) for robust margin in industrial AC networks
- 255A average current rating supports heavy-duty continuous operation
- Isolated copper base (Y1-CU) enables direct heatsink mounting without additional isolation pads
- Compact module format reduces panel space and simplifies system integration
- Thyristor + diode combination in a single package minimizes BOM complexity
- Proven IXYS MCD Series reliability — widely deployed in global industrial installations
Typical Applications
- AC motor soft starters and speed controllers
- Industrial DC power supplies and rectifier bridges
- Resistance welding equipment
- Crane and hoist drive systems
- UPS and battery charging systems
- Heating and temperature control systems
- Renewable energy inverter front-ends
Compatible System Components
- Heatsinks: Standard Y1 / Y2 footprint heatsinks (Fischer Elektronik, Semikron, custom)
- Gate Drivers: IXYS IXDP630, Semikron SKHI series, or equivalent isolated gate driver boards
- Snubber Networks: RC snubber circuits rated ≥1600V for dV/dt protection
- Fuses: Semiconductor-grade fast-acting fuses (e.g., Bussmann FWP series) rated to module current
- Thermal Interface: Dow Corning TC-5026 or equivalent thermal compound for copper base mounting
Global Sourcing & Shipping Capabilities
Konmask.com ships the IXYS MCD255-16IO1 worldwide from our Hong Kong logistics hub. Standard lead times are 3–7 business days for in-stock units. Express DHL/FedEx options are available. For large-volume orders or project-based procurement, contact our team for dedicated freight and customs documentation support.
- ✔ In-stock units ship within 24–48 hours
- ✔ Full commercial invoice and packing list provided
- ✔ HS Code: 8541.30 (Thyristors, diacs and triacs) — customs-ready documentation
- ✔ Export to EU, USA, Southeast Asia, Middle East, and beyond
Certifications & Compliance Statement
The IXYS MCD255-16IO1 is manufactured under IXYS’s ISO 9001-certified quality management system. Konmask.com operates as a verified reseller and does not modify, repackage, or relabel any components. All products are supplied as-manufactured with original IXYS markings intact. Customers requiring CE, UL, or RoHS compliance documentation should request certificates of conformance at time of order.
How to Order
- Online: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards.
- Email RFQ: Send your quantity and delivery requirements to support@konmask.com
- Phone/WhatsApp: +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Bulk Orders: Volume pricing available for orders of 5+ units. Request a formal quotation.
Authenticity & Trust FAQ
Q: How do I know this is a genuine IXYS module?
A: We source exclusively from traceable distribution channels and can provide batch documentation upon request. All units carry original IXYS laser markings and date codes.
Q: Can I return the product if it doesn’t match specifications?
A: Yes. We offer a 30-day return policy for unused, uninstalled modules in original packaging. Contact support@konmask.com to initiate a return.
Q: Do you provide a datasheet?
A: Yes. The official IXYS MCD255-16IO1 datasheet is available upon request or can be downloaded from the Littelfuse/IXYS product portal.
Q: What if my required quantity is not in stock?
A: We can source to order. Lead times for non-stock quantities are typically 2–4 weeks. Contact us for a confirmed delivery schedule.
