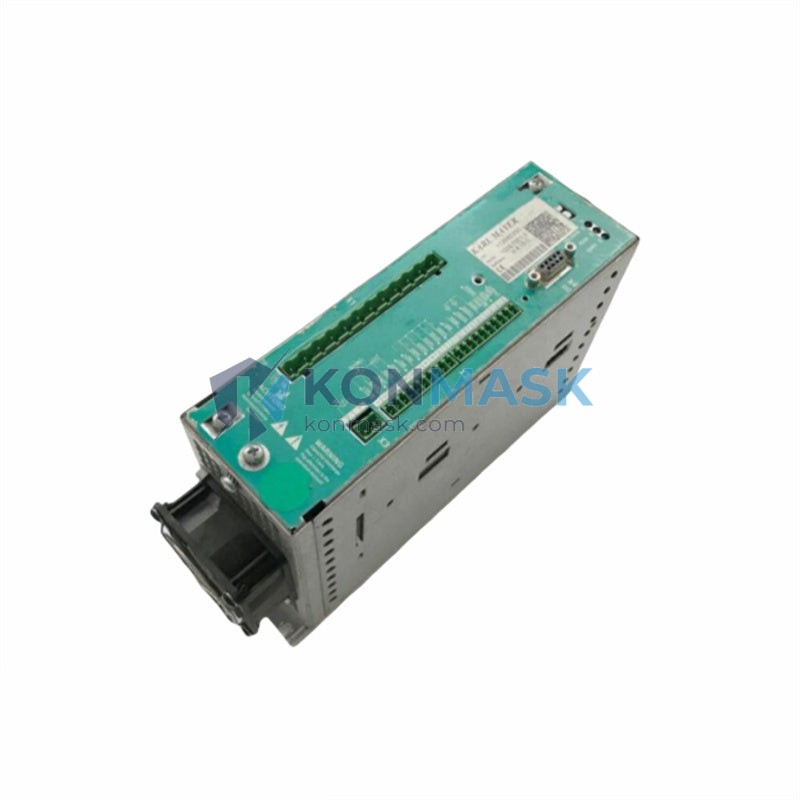

KARL MAYER CDB34.005C2.4-H36 – 1.5kW AC Servo Drive | CDB34 Series Platform
Engineering Background
KARL MAYER is a globally recognized German manufacturer of warp knitting and technical textile machinery. The CDB34 series servo amplifier was developed as the core motion control component for high-speed warp knitting machines, raschel machines, and stitch-bonding systems. Precision tension control, synchronous multi-axis coordination, and high-cycle reliability are the engineering pillars of this drive family.
Product Positioning
The CDB34.005C2.4-H36 is a 1.5kW compact AC servo amplifier designed for OEM integration into KARL MAYER textile production lines. It serves as a direct replacement or spare unit for maintenance engineers managing aging or failed drive modules in active production environments. Konmask.com supplies this unit as a verified, tested component with full traceability.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CDB34.005C2.4-H36 |
| Brand / OEM | KARL MAYER (Germany) |
| Series | CDB34 |
| Drive Type | AC Servo Amplifier |
| Rated Output Power | 1.5 kW |
| Input Voltage | 3-phase AC 200–240V / 380–480V (H36 variant) |
| Output Current (Continuous) | 5.0 A |
| Control Mode | Position / Velocity / Torque |
| Feedback Interface | Encoder (incremental / absolute compatible) |
| Communication | Fieldbus (PROFIBUS / proprietary KARL MAYER bus) |
| Protection Class | IP20 |
| Cooling Method | Forced air / internal fan |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5–95% RH (non-condensing) |
| Weight | Approx. 1.84 kg |
| Country of Origin | Germany |
Proven Application Environments
- KARL MAYER HKS / RSE / RSJ series warp knitting machines
- Raschel and tricot machine servo axes (beam drive, guide bar, take-down)
- Stitch-bonding and multiaxial warp knitting systems
- Technical textile production lines requiring precise tension and speed control
- Retrofit and modernization projects on legacy KARL MAYER platforms
Engineering Advantages
- OEM-grade precision: Manufactured to KARL MAYER’s original design specifications — no aftermarket substitution
- Multi-mode control: Supports position, velocity, and torque control modes for flexible integration
- Compact H36 form factor: Optimized for dense cabinet mounting in textile machine electrical enclosures
- High-cycle durability: Engineered for 24/7 continuous operation in industrial textile environments
- Fieldbus ready: Compatible with KARL MAYER proprietary communication architecture for seamless axis synchronization
System Architecture & Signal Flow
The CDB34.005C2.4-H36 operates within KARL MAYER’s distributed motion control architecture. The machine controller (PLC/CNC) issues position or velocity commands via the fieldbus. The CDB34 amplifier closes the servo loop using encoder feedback from the attached servo motor, generating the PWM output to drive the motor windings. The H36 designation indicates the specific hardware revision and voltage class of this amplifier variant.
Signal path: Machine Controller → Fieldbus → CDB34 Amplifier → Servo Motor → Encoder Feedback → CDB34 (closed loop)
Sourcing & Quality Verification
- Units sourced directly from authorized KARL MAYER spare parts channels and verified OEM distributors
- Each unit undergoes incoming inspection: visual check, label verification, and functional power-on test where applicable
- Serial number and firmware version documented prior to shipment
- Packaging: anti-static bag + foam-lined export carton, suitable for international air and sea freight
- Certificate of conformity available upon request
Procurement Process
- Submit your inquiry with machine model, existing drive serial number, and required quantity
- Konmask confirms stock availability and provides a formal quotation within 1 business day
- Payment via T/T, PayPal, or trade assurance; lead time 3–7 business days for in-stock units
- Shipment via DHL / FedEx / UPS with full tracking; export documentation (commercial invoice, packing list, COO) included
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is this a new or refurbished unit?
A: Konmask supplies both new OEM stock and professionally refurbished units. Please specify your requirement at inquiry stage; condition is clearly stated on the quotation.
Q: Can this drive replace CDB34.005C2.4 without the H36 suffix?
A: The H36 suffix denotes a specific hardware revision. Compatibility depends on your machine’s firmware and wiring. Please share your machine model and existing drive label for confirmation before ordering.
Q: Do you provide a warranty?
A: Yes — 12 months warranty on new units, 6 months on refurbished units, covering manufacturing defects under normal operating conditions.
Q: Can you supply the matching servo motor?
A: Yes. Konmask stocks a range of KARL MAYER-compatible servo motors. Contact us with your motor nameplate data for a matched quotation.
Q: What is the lead time for out-of-stock units?
A: Typically 2–4 weeks for sourcing from our global supplier network. Urgent requirements can be escalated — contact us directly.
