KOLLMORGEN MMC-SD-1.0-230-D Servo Drive | Replacement, Equivalent & Selection Guide

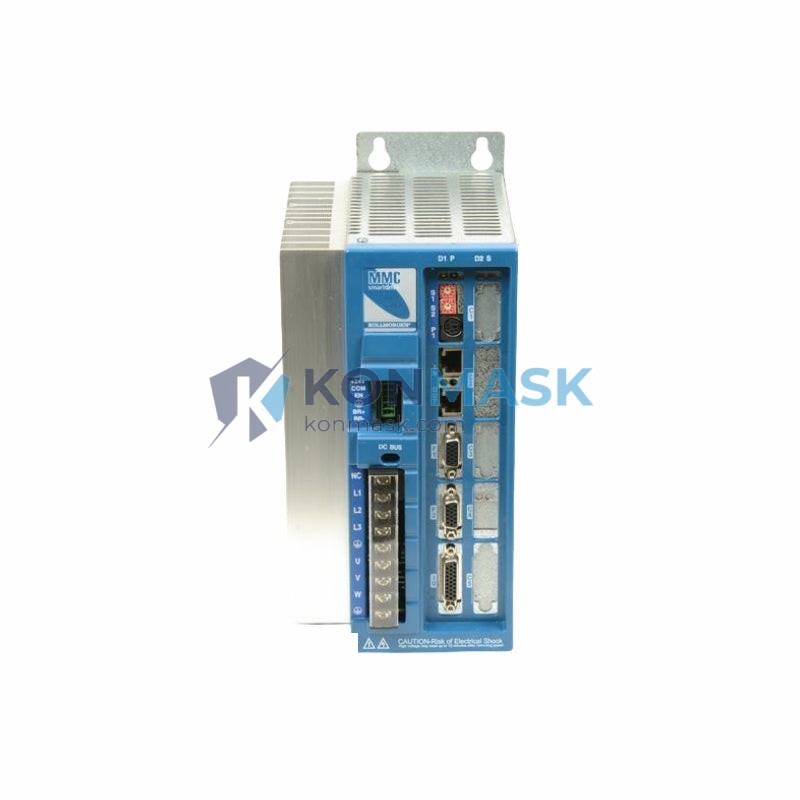

The KOLLMORGEN MMC-SD-1.0-230-D is a compact AC servo drive (servo amplifier) from the MMC-SD series, rated at 1.0A continuous output current and designed for 230V AC single/three-phase input. It delivers precise torque, velocity, and position control for demanding industrial motion applications. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Model: MMC-SD-1.0-230-D
- Brand: KOLLMORGEN
- Series: MMC-SD (Servo Drive)
- Continuous Output Current: 1.0 A
- Input Voltage: 230V AC (single-phase or three-phase)
- Control Modes: Torque / Velocity / Position
- Feedback Interface: Encoder / Resolver compatible
- Communication: Analog ±10V, Step/Direction, CANopen (model-dependent)
- Protection Class: IP20
- Mounting: DIN rail / panel mount
- Operating Temperature: 0°C to +45°C
- Standards: CE, UL (verify with datasheet)
Note: Always verify specifications against the official KOLLMORGEN datasheet before final design-in.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional replacements or equivalents for the MMC-SD-1.0-230-D. Compatibility depends on motor type, feedback device, and bus topology — always validate before substitution.
- KOLLMORGEN MMC-SD-2.0-230-D — Same series, 2.0A variant; drop-in upgrade for higher torque applications
- KOLLMORGEN AKD-P00306-NBEC-0000 — AKD series, 3A / 240V; modern replacement with EtherCAT support
- KOLLMORGEN S200 Series — Legacy equivalent; check firmware and connector pinout compatibility
- Lenze i700 Servo Inverter — Third-party alternative; requires motor re-parameterization
- Siemens SINAMICS S110 — Cross-brand equivalent for 230V single-axis servo applications
Important: Cross-brand replacements require full re-commissioning. Contact support@konmask.com for compatibility verification.
Why Choose the Original Model
- Plug-and-play replacement — No re-wiring or re-parameterization for existing KOLLMORGEN servo systems
- Proven reliability — MMC-SD series is field-tested in CNC, packaging, and semiconductor equipment
- OEM-matched performance — Maintains original torque ripple, bandwidth, and thermal characteristics
- Warranty & traceability — Sourced with full documentation and batch traceability at Konmask.com
Typical Applications
- CNC machine tool axes (X/Y/Z/A)
- Semiconductor wafer handling and pick-and-place
- Packaging and labeling machinery
- Robotics and Cartesian gantry systems
- Textile and printing equipment
- Medical device manufacturing automation
System Compatibility
The MMC-SD-1.0-230-D is designed to operate within the KOLLMORGEN MMC (Motion & Machine Controller) ecosystem. Verified compatible components include:
- Controllers: KOLLMORGEN MMC Smart Drive, AKD-N distributed drive nodes
- Motors: KOLLMORGEN AKM, Goldline, and Cartridge DDR series (verify current rating)
- Feedback: SFD (Smart Feedback Device), EnDat 2.1/2.2, Hiperface, Resolver
- Software: KOLLMORGEN WorkBench, AKD PDMM
- Bus: CANopen, EtherCAT (check firmware version)
Selection Guide
Use the following criteria to confirm the MMC-SD-1.0-230-D is the correct drive for your application, or to select an appropriate alternative:
- Step 1 — Continuous current: Motor rated current ≤ 1.0A → MMC-SD-1.0-230-D is suitable. Motor rated current 1.0–2.0A → consider MMC-SD-2.0-230-D.
- Step 2 — Supply voltage: Confirm 230V AC single or three-phase availability at the cabinet.
- Step 3 — Feedback type: Match encoder/resolver type to drive input (SFD, EnDat, Resolver).
- Step 4 — Control interface: Analog ±10V, Step/Direction, or fieldbus (CANopen/EtherCAT)?
- Step 5 — Environment: IP20 is suitable for enclosed control cabinets. Harsh environments may require IP65 variants or external enclosures.
- Step 6 — Certifications: Verify CE/UL requirements for your target market.
Not sure? Send your motor nameplate data and application requirements to support@konmask.com for a free selection review.
Quality Assurance & Sourcing
- Source: Authorized distributor channels and verified surplus stock
- Inspection: Visual, functional, and label authenticity checks on every unit
- Packaging: Anti-static ESD packaging with original or equivalent protective materials
- Documentation: Certificate of conformance and batch traceability available on request
- Warranty: 12-month warranty against manufacturing defects
How to Order
- Click Add to Cart or Buy Now on this page.
- For bulk orders (>5 units) or urgent requirements, email support@konmask.com with your PO or RFQ.
- Lead time: In-stock units ship within 1–3 business days. Out-of-stock lead time quoted on request.
- Export documentation (commercial invoice, packing list, COO) provided for international orders.
Replacement & Compatibility FAQ
Q: Can I replace the MMC-SD-1.0-230-D with an AKD series drive?
A: Yes, with re-commissioning. The AKD series uses a different connector pinout and requires WorkBench software setup. Motor feedback wiring must be adapted.
Q: Is the MMC-SD-1.0-230-D still in production?
A: KOLLMORGEN has transitioned newer designs to the AKD/AKD2G platform. The MMC-SD series is available as surplus/refurbished stock. Contact us for availability.
Q: What is the difference between MMC-SD-1.0-230-D and MMC-SD-2.0-230-D?
A: The primary difference is continuous output current: 1.0A vs 2.0A. All other electrical and mechanical interfaces are identical within the series.
Q: Can this drive control a servo motor from another brand?
A: Technically possible with analog ±10V interface, but KOLLMORGEN drives are optimized for KOLLMORGEN motors. Third-party motor use requires careful tuning and is not recommended for critical applications.
Q: Do you provide a test report before shipment?
A: Yes, functional test reports are available for refurbished units. Please request at time of order.
