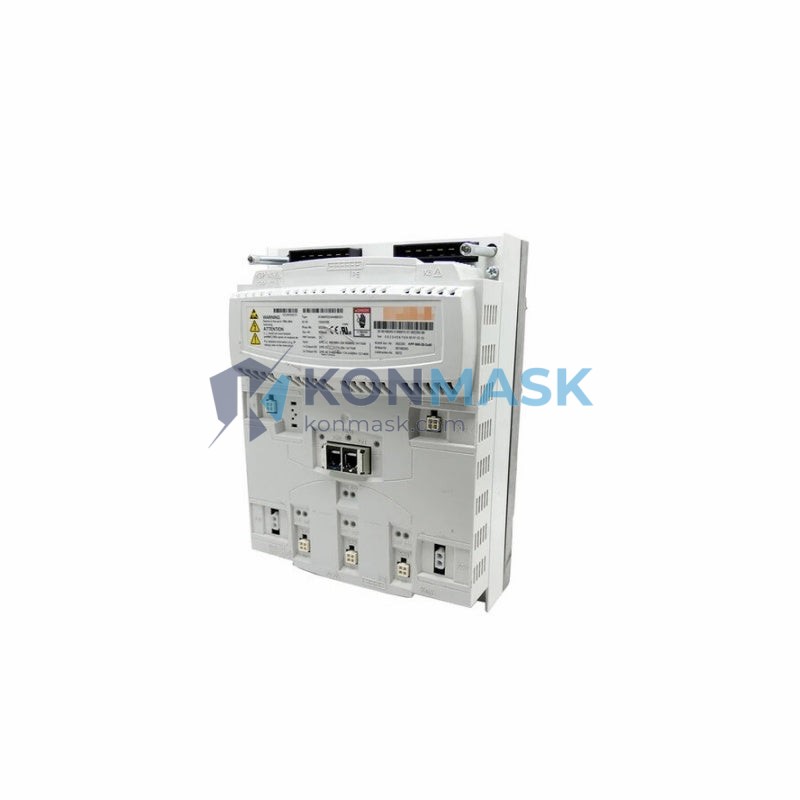

KUKA KPP 600-20 (00-160-150) | KSP 600 3X40 UL (00-198-268) | KSP 600 3X2000 (00-192-552) Robot Controller Power Supply Module | Replacement, Equivalent & Selection Guide
The KUKA KPP 600-20 (Part No. 00-160-150), KSP 600 3X40 UL (Part No. 00-198-268), and KSP 600 3X2000 (Part No. 00-192-552) are core power supply and servo drive modules used in KUKA KR C4 robot controller cabinets. This page provides full technical specifications, compatible replacement options, application guidance, and a structured selection guide for industrial buyers and maintenance engineers.
Technical Specifications
| Parameter | KPP 600-20 (00-160-150) | KSP 600 3X40 UL (00-198-268) | KSP 600 3X2000 (00-192-552) |
|---|---|---|---|
| Module Type | Cabinet Power Pack (KPP) | Cabinet Servo Pack (KSP) | Cabinet Servo Pack (KSP) |
| Rated Voltage | 600 V DC Bus | 600 V DC Bus | 600 V DC Bus |
| Rated Current | 20 A | 3 × 40 A | 3 × 2000 W |
| Compatible Controller | KUKA KR C4 | KUKA KR C4 | KUKA KR C4 |
| Communication Interface | EtherCAT | EtherCAT | EtherCAT |
| Cooling | Forced air (internal fan) | Forced air (internal fan) | Forced air (internal fan) |
| Protection Class | IP20 | IP20 | IP20 |
| Operating Temperature | 0 – 45 °C | 0 – 45 °C | 0 – 45 °C |
| Weight | ~800 g | ~800 g | ~800 g |
| Country of Origin | Germany | Germany | Germany |
Compatible Replacement & Equivalent Models
When sourcing a replacement for the KPP 600-20 or KSP 600 series, the following models are functionally equivalent or directly interchangeable within the KR C4 platform:
- KUKA KPP 600-20 — Part No. 00-160-150 (primary reference)
- KUKA KSP 600 3X40 UL — Part No. 00-198-268 (servo pack, 3-axis 40 A)
- KUKA KSP 600 3X2000 — Part No. 00-192-552 (servo pack, 3-axis 2000 W)
- KUKA KSP 600 3X20 — lower-current variant, suitable for lighter-duty axes
- KUKA KPP 600-3×40 — combined power pack + servo pack variant
Note: Always verify firmware version and KR C4 cabinet revision before substituting modules. Contact [email protected] for cross-reference confirmation.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-matched to KUKA KR C4 EtherCAT architecture — no firmware conflicts.
- Certified Safety: Meets UL, CE, and KUKA internal safety standards for collaborative and industrial robot cells.
- Plug-and-Play Replacement: Direct mechanical and electrical fit; no cabinet modification required.
- Warranty Support: Eligible for KUKA service contracts and extended warranty programs.
- Long-Term Availability: Stocked as a service part through authorized distributors including Konmask.com.
Typical Applications
- KUKA KR 6 R700 / KR 10 R1100 / KR 16 R1610 robot arm power supply replacement
- Automotive body-in-white welding and assembly lines
- Palletizing and material handling cells with KR C4 controllers
- Collaborative robot (LBR iiwa) adjacent cabinet power infrastructure
- Preventive maintenance overhaul of aging KR C4 cabinets
- Spare parts inventory for robot system integrators and OEMs
System Compatibility
| Controller Platform | Compatible | Notes |
|---|---|---|
| KUKA KR C4 | ✅ Yes | Primary platform — full compatibility |
| KUKA KR C4 compact | ✅ Yes | Verify cabinet slot dimensions |
| KUKA KR C4 smallSize | ⚠️ Partial | Check power rating requirements |
| KUKA KR C3 | ❌ No | Different bus architecture |
| KUKA KR C2 | ❌ No | Legacy platform — incompatible |
Selection Guide
Use the following criteria to select the correct module for your application:
- Step 1 — Identify your robot model: Confirm the KUKA robot arm model and its KR C4 cabinet variant (standard / compact / smallSize).
- Step 2 — Check axis current requirements: KSP 600 3X40 UL suits axes requiring up to 40 A per channel; KSP 600 3X2000 suits 2000 W per axis configurations.
- Step 3 — Verify part number on existing module: The part number label is located on the module’s front face (e.g., 00-160-150, 00-198-268, 00-192-552).
- Step 4 — Confirm firmware compatibility: KR C4 system software version must be ≥ 8.2 for UL-certified KSP variants.
- Step 5 — Contact Konmask for cross-reference: Send your existing part number and robot serial number to [email protected] for a confirmed replacement recommendation.
Quality Assurance & Sourcing
- All modules sourced from authorized KUKA distribution channels or verified surplus with full traceability.
- Each unit undergoes visual inspection, functional verification, and anti-static packaging before shipment.
- Certificate of conformity and test report available upon request.
- Refurbished units clearly labeled and priced separately from new-in-box stock.
- Export compliance: HS Code 8537.10 — suitable for international B2B procurement.
How to Order
- Add the item to your cart and proceed to checkout, or
- Contact us directly for bulk orders, lead time confirmation, or custom sourcing requests:
- 📧 [email protected]
- 📞 +0086 19859288691
- 🌐 https://konmask.com
Lead time: In-stock items ship within 1–3 business days. Special-order items: 5–15 business days depending on sourcing.
Replacement & Compatibility FAQ
Q: Can I use KSP 600 3X40 UL (00-198-268) to replace KSP 600 3X2000 (00-192-552)?
A: These are different current/power rating variants. Substitution is possible only if the axis load requirements fall within the lower-rated module’s specifications. Consult your KUKA system documentation or contact us for guidance.
Q: Is the KPP 600-20 (00-160-150) compatible with KR C4 compact cabinets?
A: Yes, the KPP 600-20 is compatible with KR C4 compact cabinets. Verify the physical slot dimensions match before installation.
Q: Do you supply refurbished modules?
A: Yes. Refurbished units are clearly identified in the product listing and are tested to OEM specifications. Contact us for availability and pricing.
Q: What is the warranty on these modules?
A: New-in-box modules carry the standard KUKA service part warranty. Refurbished units carry a 90-day functional warranty from Konmask. Extended warranty options are available.
Q: Can you source other KUKA KR C4 spare parts?
A: Yes. Konmask specializes in KUKA, Siemens, ABB, and Fanuc automation components. Submit your part list to [email protected].
