KUKA KRC2 SBM2 – 5.9kW Servo Drive & I/O Interface System | KRC2 Robot Controller Platform
Engineering Background: The KUKA KRC2 controller platform, introduced in the late 1990s and widely deployed through the 2010s, became the backbone of industrial robot automation across automotive, aerospace, and heavy manufacturing. At its core, the KRC2 relies on a tightly integrated servo drive and I/O architecture to deliver the millisecond-level motion precision that robotic welding, assembly, and material handling demand. The SBM2 (Servo Bus Module 2) and its companion IOB-16-16B PCB are critical nodes in this architecture — managing servo power delivery, digital I/O arbitration, and real-time fieldbus communication simultaneously.
Product Positioning: This listing covers the complete KRC2 servo and I/O subsystem bundle: the 1FK7103-5AZ91-1ZZ9-ZS08 Siemens SIMOTICS S servo motor (5.9kW, paired with KRC2), the SBM2 servo bus module (P/N 00-271-314), the IOB-16-16B digital I/O PCB (P/N 00-119-763 / 00-119-768), and associated interface hardware. Sourced, inspected, and shipped by Konmask.com for MRO replacement and system integration projects worldwide.
Complete Technical Specifications

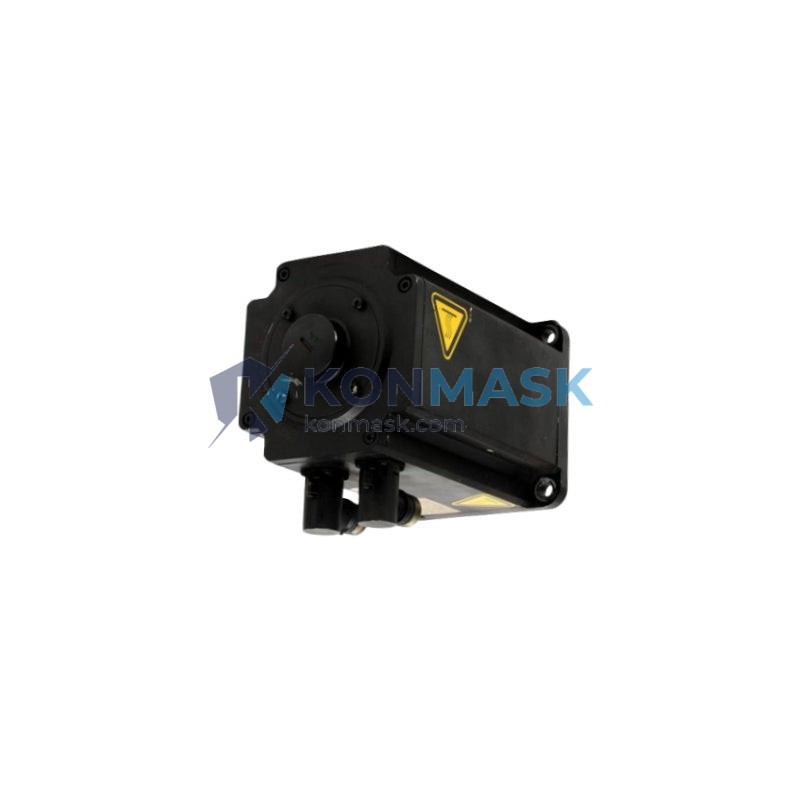

- Servo Motor Model: Siemens 1FK7103-5AZ91-1ZZ9-ZS08
- Rated Power: 5.9 kW
- Motor Series: SIMOTICS S / 1FK7 (Synchronous Servo)
- Encoder Type: Absolute encoder (ZS08 suffix = EnDat 2.1 / sin-cos)
- Cooling: Natural convection (self-cooled, suffix AZ91)
- Shaft Configuration: ZZ9 = smooth shaft with keyway
- SBM2 Part Number: 00-271-314
- SBM2 Function: Servo Bus Module — manages servo axis communication on KRC2 backplane
- IOB-16-16B Part Numbers: 00-119-763 / 00-119-768
- IOB-16-16B Function: 16 digital inputs / 16 digital outputs PCB for KRC2 controller
- I/O Voltage: 24 VDC (standard PLC-compatible logic levels)
- Controller Compatibility: KUKA KRC2, KRC2 ed05
- HS Code: 853710
- Origin: Germany (DE)
- Weight: ~300 g (PCB assembly; motor weight varies by configuration)
Proven Application Environments
- Automotive Body-in-White: KRC2-controlled KUKA KR 150/210 robots performing spot welding and seam sealing on vehicle body panels — the 1FK7103 servo delivers the torque bandwidth required for rapid multi-axis repositioning between weld points.
- Aerospace Component Machining: Precision milling and drilling fixtures driven by KRC2 systems where the IOB-16-16B manages tool-change interlocks, fixture clamp confirmation, and coolant valve control via 24 VDC I/O.
- Foundry & Heavy Press Automation: Material handling robots operating in high-vibration, high-temperature environments where the SBM2’s robust backplane communication maintains servo synchronization despite electrical noise.
- Palletizing & Depalletizing Lines: High-cycle logistics robots where MRO replacement of the IOB-16-16B PCB restores full I/O functionality without requiring controller replacement.
- Semiconductor & Electronics Assembly: Clean-room compatible KRC2 installations where servo encoder integrity (EnDat absolute) eliminates homing cycles after power loss.
Engineering Advantages
- Absolute Encoder — No Homing Required: The ZS08 EnDat 2.1 encoder retains position data through power cycles, eliminating reference runs and reducing restart downtime in production environments.
- Integrated I/O Architecture: The IOB-16-16B provides 32 points of 24 VDC I/O directly on the KRC2 backplane, reducing external relay panels and wiring complexity.
- SBM2 Backplane Redundancy: The Servo Bus Module 2 supports hot-swap diagnostics and provides isolated servo axis communication, preventing a single axis fault from cascading to the full robot cell.
- High Power Density: 5.9 kW in the compact 1FK7103 frame size enables installation in space-constrained robot arm configurations without sacrificing torque output.
- Long Production Run Compatibility: KRC2 hardware remains in active use across thousands of installed robots globally; this bundle directly addresses the most common MRO failure points (servo motor, I/O PCB, bus module).
System Architecture & Signal Flow
In a standard KRC2 installation, the KPS (KUKA Power Supply) feeds DC bus power to the KSD (KUKA Servo Drive) modules. The SBM2 sits on the KRC2 VME backplane and arbitrates real-time servo commands from the DSE (Digital Servo Electronics) board to each KSD axis. The 1FK7103 servo motor connects to its corresponding KSD via power and resolver/encoder cables. Simultaneously, the IOB-16-16B PCB interfaces the KRC2’s internal I/O bus to field devices — safety gates, gripper solenoids, conveyor interlocks — via 24 VDC discrete signals. All three components must be functional for the robot to pass its power-on self-test (POST) and enter operational mode.
Sourcing & Quality Verification
- All units sourced from verified industrial MRO channels and decommissioned OEM production lines.
- PCB assemblies (IOB-16-16B, SBM2) inspected for capacitor condition, solder joint integrity, and connector pin seating prior to dispatch.
- Servo motor (1FK7103) tested for winding resistance, insulation resistance (IR >100 MΩ at 500 VDC), and encoder signal output before shipment.
- Part numbers cross-referenced against KUKA spare parts database (00-119-763, 00-271-314, 00-119-768) to confirm fitment.
- Shipped in anti-static packaging with desiccant; motor shaft protected with end-cap.
Procurement Process
- Step 1: Confirm your KRC2 controller revision (KRC2 standard vs. KRC2 ed05) and existing part numbers from the controller cabinet label.
- Step 2: Contact Konmask.com via the inquiry form or email below with your robot serial number and fault description for compatibility confirmation.
- Step 3: Receive a formal quotation with lead time, shipping options (DHL Express / sea freight), and export documentation (CO, packing list, commercial invoice).
- Step 4: Place order — payment via T/T, PayPal, or trade assurance. Dispatch within 1–3 business days for in-stock items.
- Step 5: Receive shipment with test report and installation reference. Konmask technical support available for commissioning queries.
Technical FAQ
Q: Is the 1FK7103-5AZ91-1ZZ9-ZS08 a direct drop-in replacement for the original KUKA KRC2 servo motor?
A: Yes, provided your KSD drive module is configured for the 1FK7103 motor parameters. Verify the motor data set (MDI) in the KRC2 machine data before installation.
Q: Can the IOB-16-16B PCB be replaced without reprogramming the KRC2?
A: In most cases, yes. The IOB-16-16B is a hardware I/O board; its configuration is stored in the KRC2 system software. A direct PCB swap typically restores I/O function without software changes. Always back up your KRC2 system data before any hardware replacement.
Q: What is the difference between P/N 00-119-763 and 00-119-768?
A: Both are IOB-16-16B variants. 00-119-763 is the base PCB assembly; 00-119-768 is a revised hardware revision with minor component updates. Both are functionally interchangeable in standard KRC2 installations.
Q: Do you provide a warranty on these parts?
A: Konmask.com provides a 90-day functional warranty on all tested components. Extended warranty and exchange programs are available for volume MRO customers.
Q: Can you supply the full KRC2 spare parts kit (KPS, KSD, DSE, SBM2, IOB)?
A: Yes. Contact us with your full BOM and we will provide a consolidated quotation for the complete KRC2 spare parts package.
